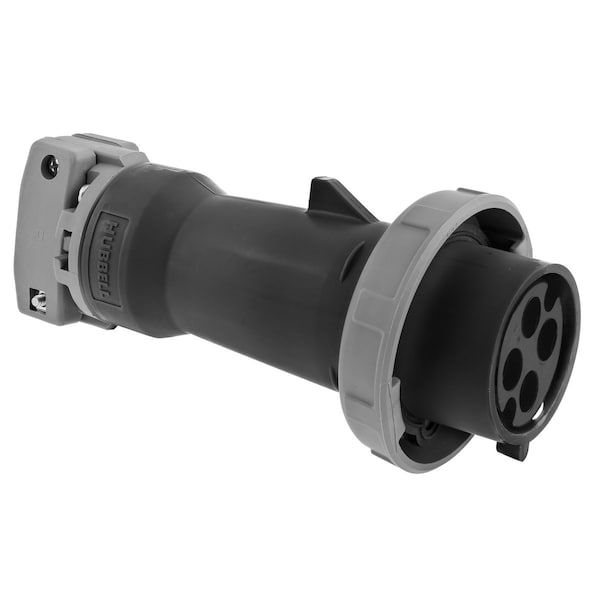

Este conector Pin & Sleeve de 100 A y 600V CA es ideal para aplicaciones trifásicas. Cuenta con 3 polos, conexión a tierra IEC y no está clasificado por NEMA. Fabricado por Hubbell Wiring Device-Kellems para garantizar seguridad y confiabilidad.
| Item | Pin & Sleeve Plug |
|---|---|
| Current Rating | 100 A |
| Voltage Rating | 600V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP67 |
| NEMA Enclosure Rating | Not Rated |
| Wire Connection Type | Terminals |
| Connection Orientation | Straight |
| Switch Rated | No |
| Grounding Style | IEC |
| Housing Color | Black |
| Cap Type | No Cap or Cover |
| Standards | CSA Standard C22.2 No. 182.1, UL Classified to IEC60309-1, UL Listed, File E146032 |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Hub Style | Reversed |
| Material | Composite |
| Current / Amperage Rating | 100 A |
| Industry Standard(s) | CSA Standard C22.2 No. 182.1 UL Classified to IEC60309-1 UL Listed, File E146032 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Cord Mounted |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperature - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing. Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Style | Reverse Service |
| Display Size | Standard Sized |
| Wire Size | #3 AWG to #1/0 AWG |
| Connectivity | Pressure Terminal Screws |
| Environmental Conditions | Watertight |
| Cord Type | All Portable |
| Series | Unfused Circuit-Lock |
| Package Quantity | 1 |
