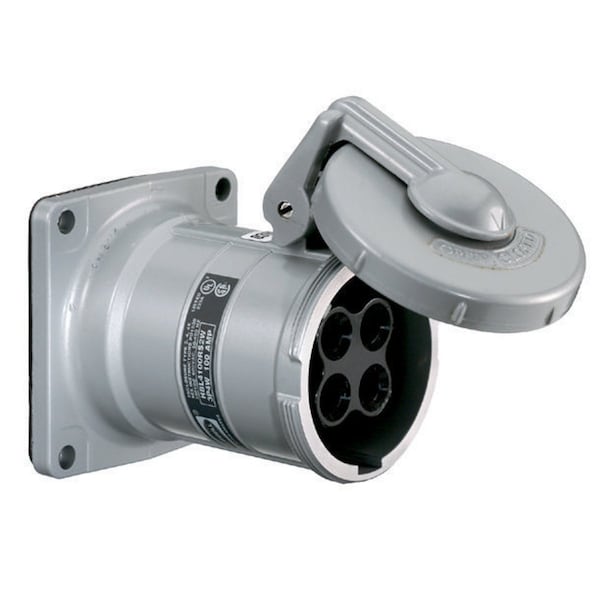

Este receptáculo de clavija y enchufe de 100 A y 600V AC es ideal para aplicaciones monofásicas. Con 2 polos y estilo 1 de puesta a tierra, cumple con las normas NEMA 3, 4 y 4X para garantizar su resistencia en distintos entornos.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 100 A |
| Voltage Rating | 600V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| IP Rating | Not Rated |
| NEMA Enclosure Rating | 4X, 4, 3 |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Grounding Style | Style 1 |
| Housing Color | Gray |
| Cap Type | No Cap or Cover |
| Standards | UL 1682, UL50 and UL1010, CSA C22.2 No. 182.1, No.94 and No. 159, CSA C22.2 No.0.17 |
| Material | Thermoplastic |
| Voltage | 250V DC/600V AC |
| Body Material | Epoxy Painted Aluminum |
| NEMA Rating | 3, 4, 4X |
| Application | Metallic with Nylon Shroud |
| Wire Size | 4 to 2 AWG |
| Operating Temp. Range | -40 to 75° C |
| Environmental Conditions | Watertight |
| Current / Amperage Rating | 100 A |
| Material - Mounting Hardware | Screw Mounting |
| Style | Standard Service,Style 1 Grounding |
| Display Size | Standard Sized Product |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Connectivity | Pressure Terminal Screws |
| Series | UL 1686 Class 1 Insulgrip® |
| Wattage | 60000 |
| Package Quantity | 1 |
