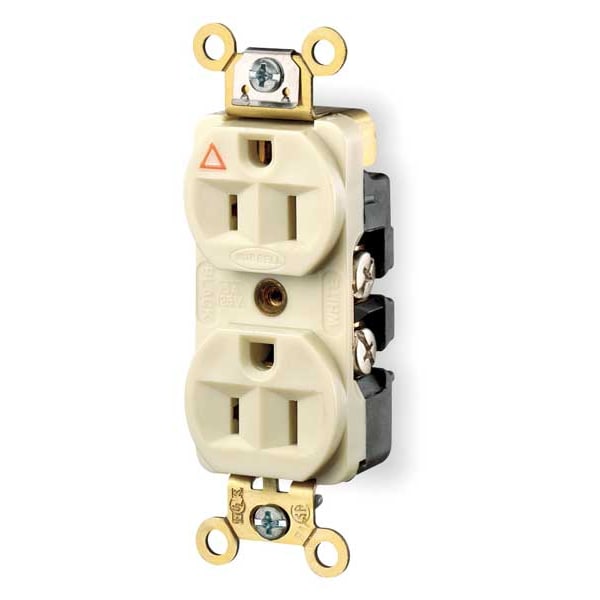

Este receptáculo de 15 A y 125V AC es ideal para montaje al ras y cuenta con una salida dúplex estándar 5-15R en elegante color marfil. Producto de alta calidad de Hubbell Wiring Device-Kellems.
| Item | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Color | Ivory |
| Special Features | Isolated Ground |
| HP | 1/2 hp |
| Amps - Plugs and Receptacles | 15 |
| Outlet Type | Duplex |
| Wiring Method | Back, Side |
| Amps | 15 |
| Voltage | 125VAC |
| Item - Plugs and Receptacles | Receptacle |
| Number of Gangs | 1 |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Sub-Category | Duplex Receptacles |
| Weather Resistant | No |
| Phase | Single |
| NEMA Configuration | 5-15 |
| Material | Nylon |
| Mounting Type | Flush |
| Corrosion Resistant | No |
| Type | Duplex |
| Cover Type | No Cover |
| Surge Protection | No |
| Housing Material | Nylon |
| Market | Industrial |
| Face Plate Height | 2.7 in |
| Wire Connection Type | Screw Terminals |
| Voltage Rating | 125V AC |
| NEMA Receptacle Configuration | 5-15R |
| NEMA Enclosure Rating | 1 |
| Horsepower Rating | 0.5 HP |
| GFCI | No |
| Face Plate Width | 1.7 in |
| Current Rating | 15 A |
| Includes Mounting Hardware | Yes |
| Mount Hole Center-to-Center Height | 3.3 in |
| Includes | Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover |
| Contact Material | Nickel Plated Brass |
| AFCI | No |
| Housing Color | Ivory |
| Grounding | Isolated Ground |
| Polarized | Yes |
| Minimum Wire Size | 14 AWG |
| Receptacle Type | Duplex |
| UL 94 Flammability Rating | V-2, V-0 |
| Maximum Operating Temperature | 167 deg F |
| Connection Orientation | Straight |
| Minimum Operating Temperature | -40 deg F |
| Flange Type | Non-Flanged |
| Maximum Wire Size | 10 AWG |
| Grade | Federal Specification |
| Mount Type | Flush |
| For Location | Indoor |
| Shrouded | No |
| Overall Depth | 1.1 in |
| Horsepower | 0.5 |
| Auto Ground Clip Material | Stainless Steel |
| Face Style | Finder Groove |
| Enhancement | Isolated Ground |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Rating | 15A, 125V |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Receptacle Style | Duplex |
| Mounting Screw Material | Steel-Zinc Plated |
| NEMA No. | 5-15R |
| Mounting Strap Material | .050" Brass |
| Device Color | Ivory |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Standard | NEMA |
| Face Shape | Traditional |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Amperage | 15 A |
| Base Material | Reinforced PET |
| Top Material | Nylon |
| Receptacle Grade | Heavy Duty Spec Grade |
| Power Contacts Material | Bronze |
| Other Available Colors | Orange, Gray, Ivory, Red |
| Flammability | Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better. |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Certification | UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285. |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Voltage | Withstands 2,000V minimum |
| Width | 1.33 in |
| Height | 1.05 in |
| Style | Finder Groove Face |
| Dimensions | 3.28 in x 1.33 in x 1.05 in |
| Material - Mounting Hardware | Screw Mounting |
| Series | Heavy Duty |
| Nema Rating | 5-15R |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Horsepower - Maximum | 0.5 |
| Amperage Rating | 15 A |
| Connectivity | Back and Side Wired Screw Terminals |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Wattage | 1875 W |
| Wire Size | #14 AWG to #10 AWG |
| Length | 3.28 in |
| Voltage Rating Description | 125 V |
| Current / Amperage Rating | 15 A |
| Display Size | Standard Sized Product |
| Item Type | Traditional Duplex |
| Dielectric Strength | Withstands 2,000V minimum |
| Application | Extra Heavy Duty Specification Grade |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Package Quantity | 1 |
