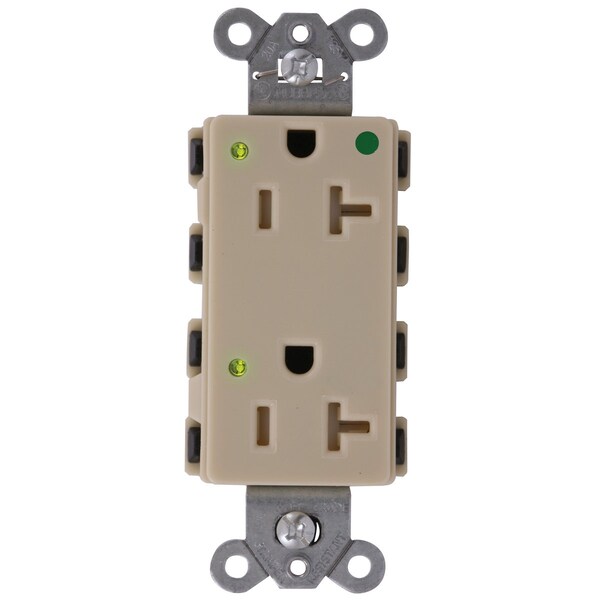

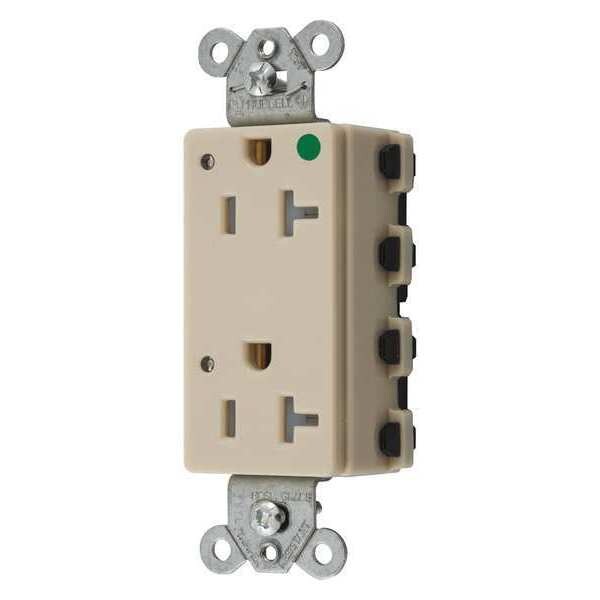

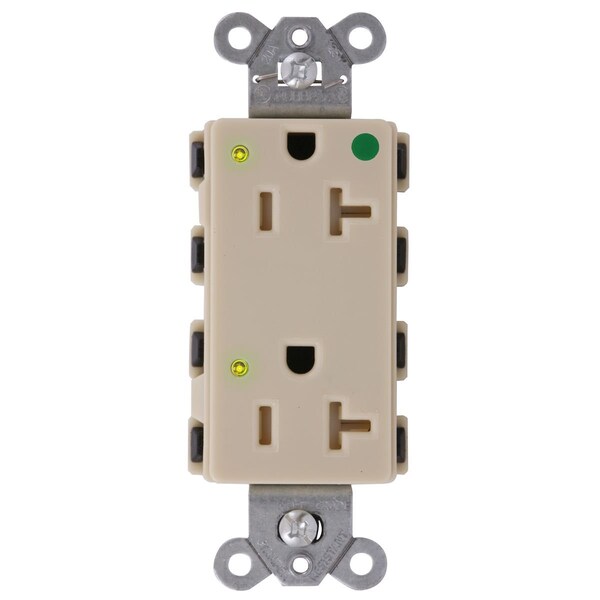

Este receptáculo de 20 amperios y 125V CA es ideal para montaje al ras y cuenta con tomas estándar dobles. Su diseño en color marfil lo hace perfecto para cualquier entorno. Modelo 5-20R. Marca: Hubbell Wiring Device-Kellems.
| Item | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Modular |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Voltage | 125VAC |
| Mounting Type | Flush |
| Weather Resistant | No |
| IP Rating | IP20 |
| Standards | CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 |
| Wiring Method | Back |
| Phase | Single |
| Outlet Type | Duplex |
| Sub-Category | Duplex Receptacles |
| Color | Ivory |
| Amps | 20 |
| Number of Gangs | 1 |
| HP | 1 hp |
| NEMA Rating | 1 |
| Corrosion Resistant | No |
| NEMA Configuration | 5-20 |
| Item - Plugs and Receptacles | Receptacle |
| Amps - Plugs and Receptacles | 20 |
| Material | Nylon |
| Description | Finder Groove |
| Special Features | Standard |
| Width | 1.64 in |
| Height | 1.1 in |
| GFCI | No |
| Surge Protection | No |
| Mount Type | Flush |
| Contact Material | Brass |
| Market | Commercial |
| Voltage Rating | 125V AC |
| Polarized | Yes |
| Overall Depth | 1.1 in |
| Flange Type | Non-Flanged |
| Connection Orientation | Straight |
| Shrouded | No |
| Face Plate Width | 1.6 in |
| NEMA Enclosure Rating | 1 |
| Includes | Wall Plate or Weatherproof Cover |
| UL 94 Flammability Rating | V-2 |
| AFCI | No |
| Housing Color | Ivory |
| Face Plate Height | 2.6 in |
| Grade | Hospital Grade Fed. Spec. |
| NEMA Receptacle Configuration | 5-20R |
| Current Rating | 20 A |
| Minimum Operating Temperature | -40 deg F |
| Maximum Operating Temperature | 167 deg F |
| Mount Hole Center-to-Center Height | 3.3 in |
| Wire Connection Type | Modular Wiring |
| Grounding | Grounded |
| Horsepower Rating | 1 HP |
| Resistance Properties | Tamper Resistant |
| Cover Type | No Cover |
| For Location | Indoor |
| Housing Material | Nylon |
| Receptacle Type | Decorator Duplex |
| Maximum Wire Size | 12 AWG |
| Wattage | 2500 W |
| Dimensions | 3.28 in x 1.64 in x 1.1 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number Of Conductors | 3-Wire Grounding |
| Item Type | Style Line Decorator |
| Current / Amperage Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Length | 3.28 in |
| Type | Tamper Resistant, Power Indicating LED |
| Series | Hospital Grade |
| Connectivity | Connectorized |
| Horsepower - Maximum | 1 |
| Application | Hospital Grade |
| Display Size | Standard Sized Product |
| Voltage Rating Description | 125 V |
| Wire Size | #12 AWG |
| Style | Style Line Decorator |
| Amperage Rating | 20 A |
| Package Quantity | 1 |
