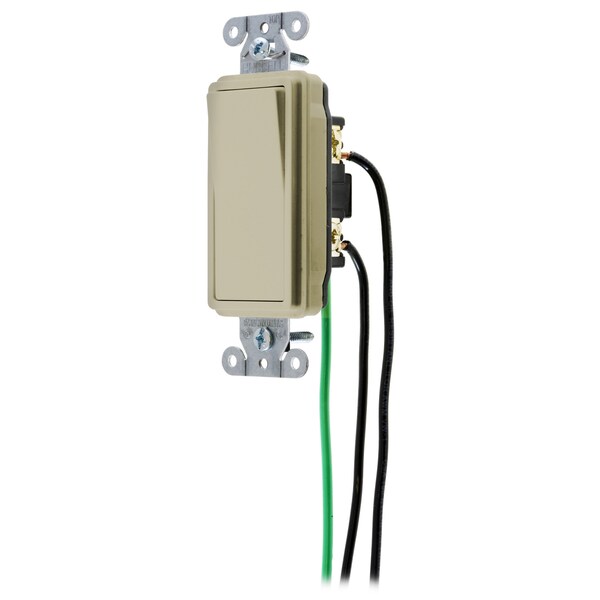

Spec Grade, Decorator Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN
| Item | Double Pole Style Line Decorator Switch |
|---|---|
| Color | Ivory |
| Length | 4.12 in |
| Style | Double Pole |
| Type | Decorator, Rocker |
| Height | 1.61 in |
| Width | 1.73 in |
| Voltage Rating | 120-277 VAC |
| Application | 8 #12 AWG THHN |
| Connectivity | Pre-Wired |
| Dimensions | 4.12 in x 1.73 in x 1.61 in |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Wire Size | #12 AWG |
| Current Rating | 20 A |
| Amperage | 20 A |
| Temp. Rise | 30°C maximum at rated current |
| Series | General Purpose |
| Carton Quantity | 50 |
| Number Of Poles | Double Pole |
| Material | Polycarbonate |
| Terminal Screws | Brass |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Flammability | UL 94V-2 |
| Terminal Accommodations | 8" #12 AWG THHN |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Max. Working Voltage | 277V AC |
| Rocker Material | Thermoplastic |
| Temperature Rise | 30°C maximum at rated current |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Mounting Bridge | Nickel Plated Steel with Auto Ground Staple |
| Max. Continuous Current | 20 A |
| Contacts | Silver Alloy |
| Rocker Color | Ivory |
| Ground Screw | Brass (Green) |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Item Type | Double Pole Style Line Decorator Switch |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - 8" #12 AWG THHN |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Package Quantity | 1 |
