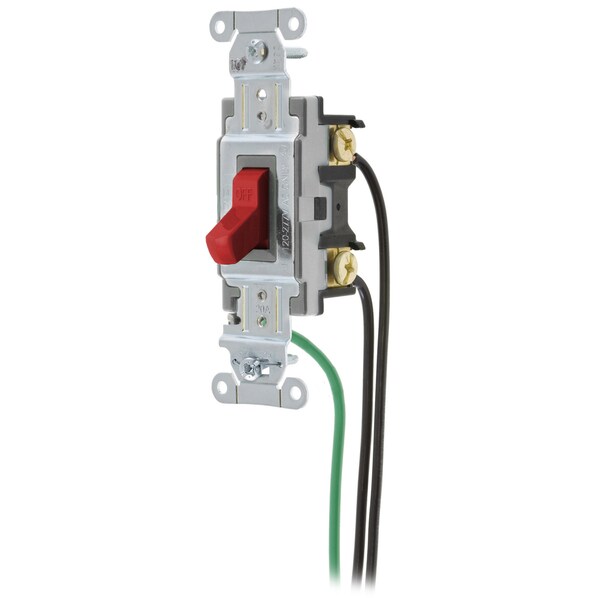

Spec Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN
| Item | Single Pole Pre-Wired Toggle Switch |
|---|---|
| Color | Red |
| Style | Single Pole |
| Type | Toggle |
| Length | 4.18 in |
| Height | 1.83 in |
| Width | 1.34 in |
| Wire Size | #14 AWG to #10 AWG |
| Series | General Purpose |
| Connectivity | Pre-Wired |
| Amperage | 20 A |
| Number Of Poles | Single Pole |
| Current Rating | 20 A |
| Dimensions | 4.18 in x 1.34 in x 1.83 in |
| Application | 8 #12 AWG THHN |
| Carton Quantity | 50 |
| Temp. Rise | 30°C maximum at rated current |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Voltage Rating | 120-277 VAC |
| Material | Nylon |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Temperature Rise | 30°C maximum at rated current |
| Base Material | Thermoset, Gray |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Toggle Material | Nylon |
| Auto Grounding Mounting Bridge | Zinc Plated Steel |
| Toggle Color | Red |
| Max. Working Voltage | 277V AC |
| Top Material | Thermoplastic, Gray |
| Flammability | UL 94V-2 |
| Max. Continuous Current | 20 A |
| Contacts | Silver Alloy |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Terminal Screws | Brass |
| Lead Type | #12 AWG THHN, 8" Length |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Current / Amperage Rating | 20 A |
| Amperage Rating | 20 A |
| Item Type | Single Pole Toggle Switch, Pre-Wired Toggle Switch |
| Package Quantity | 1 |
