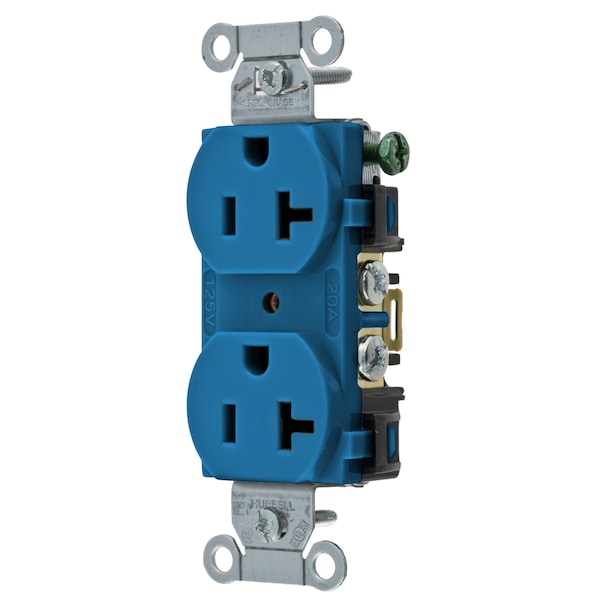

Straight Blade Devices, DuplexReceptacle, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, Blue
| Width | 0.83 in |
|---|---|
| Color | Blue |
| Material | Nylon |
| Height | 3.28 in |
| Type | Standard Duplex |
| Phase | Single Phase |
| Application | Commercial Specification Grade |
| Length | 1.32 in |
| Item | Traditional Duplex |
| Number Of Poles | 2-Pole |
| Ground Contacts | Brass |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Terminal Screws | Steel |
| Item Type | Traditional Duplex |
| Amperage Rating | 20 A |
| Terminal Accommodation | #12-#10 AWG copper stranded or solid conductor only |
| Current / Amperage Rating | 20 A |
| Nema Rating | 5-20R |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Carton Quantity | 10 |
| Brand | Hubbell Wiring Device-Kellems |
| Automatic Self-grounding Staple | Stainless steel |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Device Color | Blue |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Voltage Rating Description | 125 V |
| Dimensions | 1.32 in x 0.83 in x 3.28 in |
| Current Rating | 20 A |
| Horsepower - Maximum | 1 |
| Amperage | 20 A |
| Face | Nylon |
| Mounting Hardware Material | Screw Mounting |
| Base | Nylon |
| Wattage | 2500 W |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Power Contacts | .030 in. Brass |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Style | Smooth Face |
| Connectivity | Back and Side Wired |
| Dielectric Strength | Withstands 2,000V minimum |
| Wire Size | #12 AWG to #10 AWG |
| Voltage Rating | 125 V |
| Current Interrupting | Certified for current interrupting at full rated current |
| Series | Commercial Specification Grade |
| Number Of Wires | 3-Wire |
| Wire Clamp | .062 in. (1.6) Nickel plated steel |
| Mounting Screws | Galvanized Steel |
| Mounting Strap | .040 in. Galvanized steel |
| Maximum Horsepower | 1 |
| Dielectric Voltage | Withstands 2,000V minimum |
| Display Size | Standard Sized Product |
| Material - Mounting Hardware | Screw Mounting |
| Flammability | UL 94 V-2 |
| Package Quantity | 1 |
