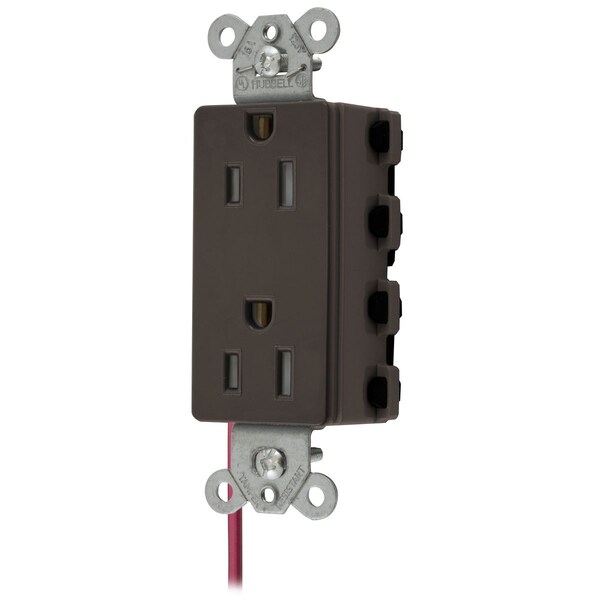

Los dispositivos de cuchilla recta, tomacorrientes, circuito dividido, resistente a manipulaciones, estilo decorador dúplex de la línea SNAPConnect de Hubbell Wiring Device-Kellems ofrecen una solución segura y eficiente para sus necesidades de energía. Con capacidad de 15A y 125V, el modelo SNAP2152SCTRA es perfecto para aplicaciones residenciales y comerciales.
| Item | Style Line Decorator |
|---|---|
| Type | Tamper Resistant, Split Circuit |
| Phase | Single Phase |
| Height | 1.1 in |
| Width | 1.64 in |
| Color | Brown |
| Brand | Hubbell Wiring Device-Kellems |
| Current Rating | 15 A |
| Nema Rating | 5-15R |
| Voltage Rating | 125 V |
| Wire Size | #12 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| Material | Nylon |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Number Of Conductors | 3-Wire Grounding |
| Number Of Wires | 3-Wire |
| Series | Extra Heavy Duty |
| Number Of Poles | 2-Pole |
| Connectivity | Connectorized |
| Dimensions | 3.28 in x 1.64 in x 1.1 in |
| Amperage | 15 A |
| Wattage | 1875 W |
| Maximum Horsepower | 0.5 |
| Display Size | Standard Sized Product |
| Carton Quantity | 10 |
| Style | Style Line Decorator |
| Length | 3.28 in |
| Application | Extra Heavy Duty Specification Grade |
| Current / Amperage Rating | 15 A |
| Item Type | Style Line Decorator Duplex |
| Voltage Rating Description | 125 V |
| Horsepower - Maximum | 0.5 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 15 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Performance | Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact) |
| Package Quantity | 1 |
