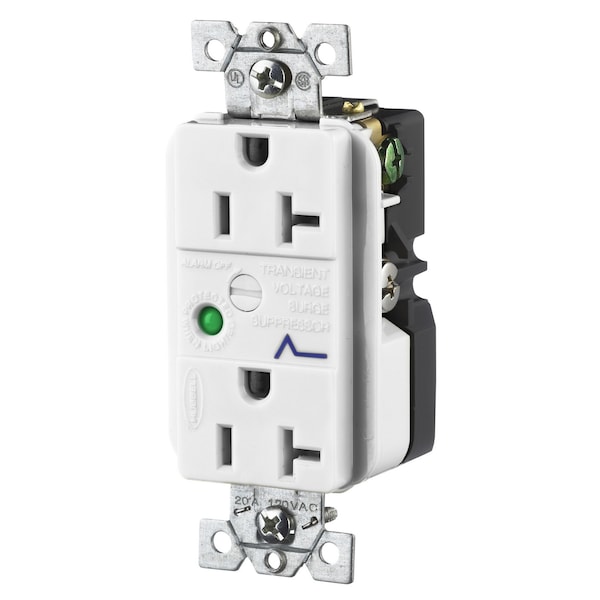

Surge Protective Devices, Straight Blade Receptacle, Duplex, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White
| Phase | Single Phase |
|---|---|
| Type | Duplex |
| Material | Composite |
| Color | White |
| Brand | Hubbell Wiring Device-Kellems |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Current Rating | 20 A |
| Connectivity | Terminal Screws |
| Frequency | 60 Hz |
| Series | Specification Grade |
| Application | Decorator Duplex |
| Display Size | Standard |
| Nema Rating | 5-20R |
| Item | Surge Protection Receptacles |
| Carton Quantity | 10 |
| Amperage | 20 A |
| Outlet | Straight Blade |
| Indicator Type | None |
| Mounting Hardware Material | Mounting Screws |
| Response Time | 5 |
| Voltage Rating | 125 V |
| Voltage Rating Description | 125 V |
| Item Type | Surge Protection Receptacles |
| Frequency Rating | 60 Hz |
| Material - Mounting Hardware | Mounting Screws |
| Current / Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Indicator(s) Type | None |
| Amperage Rating | 20 A |
| Performance | Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs), Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C) |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 UL Listed File E2186 |
| Package Quantity | 1 |
