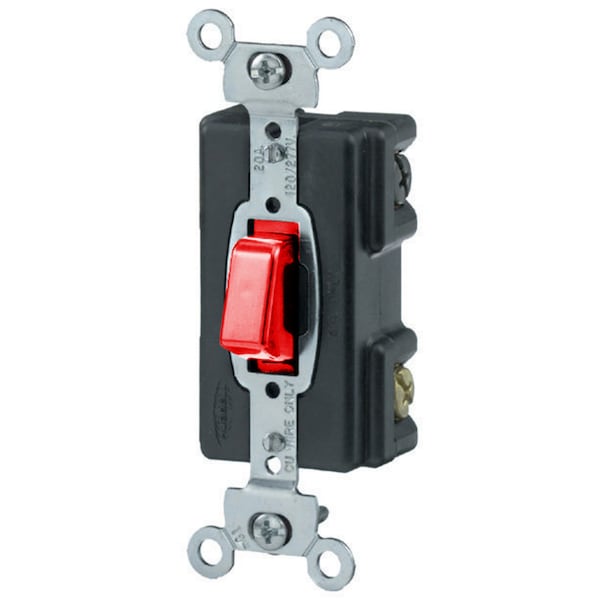

Switches and Lighting Controls, Pilot Lighted Industrial Grade, PresSwitch, General Purpose AC, Three Way, 20A 120/277V AC, Screw Terminals, Red
| Item | Three Way Toggle Switch |
|---|---|
| Switch Type | Three Way |
| Color | Red |
| Width | 1-1/2 in |
| Series | Pilot Light |
| Length | 3.28 in |
| Voltage | 120V AC |
| Height | 1.45 in |
| Style | Three Way |
| Temp. Rise | 30°C maximum at rated current |
| Connectivity | Side Wired Only |
| Wire Size | #14 AWG to #10 AWG |
| Carton Quantity | 10 |
| Current Rating | 20 A |
| Dimensions | 3.28 in x 1-1/2 in x 1.45 in |
| Voltage Rating | 120 VAC |
| Amperage | 20 A |
| Action | SPDT |
| Indicator | Light On with Load On |
| Number Of Poles | Single Pole |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Max. Continuous Current | 20 A |
| Toggle Color | Red |
| Switch Handle Positions | 2 |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Temperature Rise | 30°C maximum at rated current |
| Max. Working Voltage | 277V AC |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Wiring Style | Side Wired Only |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Switch Grade | PresSwitches |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Product Type | Toggle-switches |
| Flammability | UL 94V-2 |
| Industry Standard(s) | Fed. Spec. W-S-896 |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Voltage Rating Description | 120 VAC |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Amperage Rating | 20 A |
| Item Type | Three Way Toggle Switch |
| Current / Amperage Rating | 20 A |
| Package Quantity | 1 |
