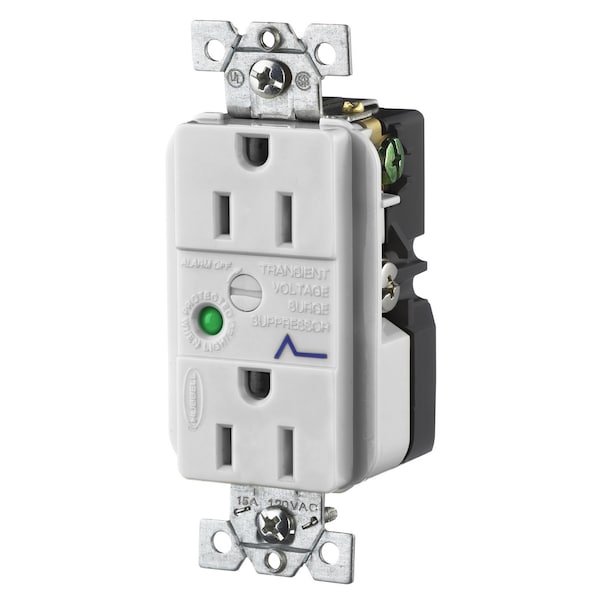

TVSS Duplex Receptacle with Light and Alarm, 15A 125V, 5-15R, Gray
| Phase | Single Phase |
|---|---|
| Material | Composite |
| Color | White |
| Type | Duplex |
| Current Rating | 15 A |
| Carton Quantity | 10 |
| Nema Rating | 5-15R |
| Frequency | 60 Hz |
| Display Size | Standard |
| Amperage | 15 A |
| Mounting Hardware Material | Mounting Screws |
| Item | Surge Protection Receptacles |
| Application | Decorator Duplex with Light and Alarm |
| Connectivity | Terminal Screws |
| Series | Specification Grade |
| Brand | Hubbell Wiring Device-Kellems |
| Outlet | Straight Blade |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Response Time | 5 |
| Voltage Rating | 125 V |
| Indicator Type | LED and Audible Alarm |
| Contact Design | Tandem Modified Bypass |
| Mounting Strap | .050" Steel-Zinc Coated |
| Device Top | Nylon |
| LED | Red |
| Receptacle Grade | Standard |
| CSA Certified | To Specification C22.2 No. 42 |
| Receptacle Style | Duplex |
| ANSI/IEEE | C62.41 (IEEE 587) |
| Device Base | Nylon |
| Alarm | Visual, Audible |
| Poles and Wires | 2 Pole, 3 Wire |
| Voltage/Power Rating | 125V AC |
| Installation Categories | A (Ring Wave), "B" (Unidirectional Impulses) |
| Product Type | tvss-receptacles |
| Certifications | UL Listed File E2186 |
| Clamping Plate | Brass |
| Listed To: | UL Standards 498 Receptacles, Meets UL1449 TVSS |
| Grounding Screw | Steel |
| Mounting Screws | Zinc-Plated, steel |
| Auto Ground Clip | Stainless Steel |
| Terminal Screws | #8-32 Brass |
| Power Contact | .031" (.8) Brass |
| Alarm Muting Screw | Nylon |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating Description | 125 V |
| Item Type | Surge Protection Receptacles |
| Industry Standard(s) | CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 UL Listed File E2186 |
| Performance | Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs), Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C) |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 15 A |
| Frequency Rating | 60 Hz |
| Material - Mounting Hardware | Mounting Screws |
| Indicator(s) Type | LED and Audible Alarm |
| Current / Amperage Rating | 15 A |
| Package Quantity | 1 |
