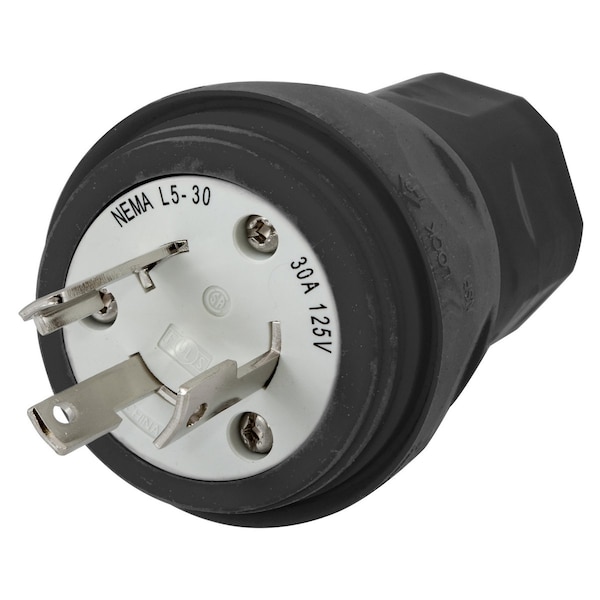

Watertight Devices, Twist-Lock Plug, 30A, 125V, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-30P, Black
| Width | 2.77 in |
|---|---|
| Length | 2.77 in |
| Color | Black |
| Height | 3.94 in |
| Cord Diameter | 0.375"-1.000" (9.5-25.4) |
| Max Working Voltage | As marked |
| UV resistance | All exposed materials are UV stabilized |
| Dielectric Voltage | 2500V AC |
| Operating temperatures | -40°C (without impact) to +60°C continuous |
| Temperature Rise | 30°C max per UL498 at rated current |
| Blade Holder | White Nylon |
| Current Interrupting | Rated for current interruption per UL498 |
| Strain Relief Nut | PBT |
| Bushing & Cone Seal | Black Elastomer |
| Core | White Nylon |
| Gotcha Ring | Nylon |
| Moisture Resistance | UL Listed 4, 4X, 12, 6, 6P |
| Body | Thermoplastic Elastomer |
| Cord Accomodation | 0.375"-1.000" (9.5-25.4) |
| Terminal Retainer | Clear polycarbonate |
| Watertight Connector | HBL29W47BK |
| Terminal Screws | Nickel Plated Brass |
| Blades | Nickel plated brass |
| Nema Rating | L5-30P |
| Item Type | 30A Watertight Twist-Lock® Plug |
| Dimensions | 2.77 in x 2.77 in x 3.94 in |
| Type | Plug |
| Wire Size | Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Industry Standard(s) | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Amperage Rating | 30 A |
| Voltage Rating Description | 125 V |
| Current / Amperage Rating | 30 A |
| Performance | Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4) |
| Package Quantity | 1 |
