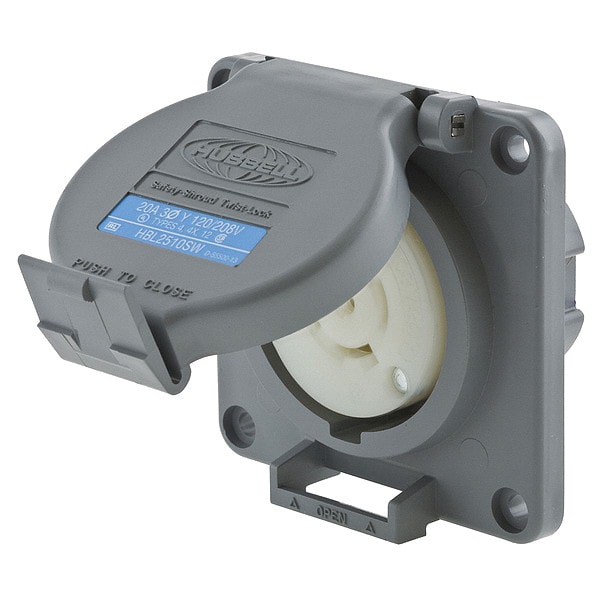

Este receptáculo de bloqueo a prueba de agua es ideal para entornos húmedos y exigentes. Con capacidad para 20 A y 120/208V AC, este dispositivo de montaje al ras es perfecto para aplicaciones trifásicas.
| Item | Watertight Flanged Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | L21-20R |
| Current Rating | 20 A |
| Voltage Rating | 120/208V AC |
| Phase | Three |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Wire Connection Type | Screw Terminals |
| Shrouded | Yes |
| Grounding | Grounded |
| Housing Color | Gray |
| Mount Type | Flush |
| Cover Type | Flip-Up Cover |
| IP Rating | IP69K |
| NEMA Enclosure Rating | 12, 4, 4X |
| Standards | CSA Certified Type 4 4X and Type 12, UL Listed |
| Resistance Properties | Moisture Resistant, Watertight |
| Flange Type | Non-Flanged |
| Wiring Style | Standard |
| Special Features | With Locking Cover |
| Material | Reinforced Nylon |
| Mounting Type | Flush Mount |
| Shrouded / Non-Shrouded | Shrouded |
| Grade | Industrial |
| Connection Orientation | Straight |
| Minimum Wire Size | 16 AWG |
| Number of Gangs | 1 |
| Flange Width | Not Applicable |
| Market | Industrial |
| UL 94 Flammability Rating | V-2 |
| Contact Material | Brass |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40 deg F |
| Flange Diameter | Not Applicable |
| Maximum Operating Temperature | 167 deg F |
| Horsepower Rating | 2 HP |
| Housing Material | Valox |
| Polarized | Yes |
| Flange Height | Not Applicable |
| AFCI | No |
| Gasket Material | Closed-Cell Neoprene Foam |
| Cord Size | 16 to 8 AWG |
| Temp. Rise | 30°C |
| Flange Material | Gray Valox |
| Flammability | UL 94 V2 |
| Retainer Material | Clear Polycarbonate |
| Screw Material | 302/304 Stainless Steel |
| Dielectric Strength | 2000V |
| Weight | 0.65 lb |
| Operating Temp. | -40 to 75°C |
| NEMA Configuration | L21-20 |
| Amps | 20 |
| Voltage | 120/208V AC |
| Color | Gray |
| NEMA Rating | 12, 4, 4X |
| HP | 2.0 |
| Package Quantity | 1 |
