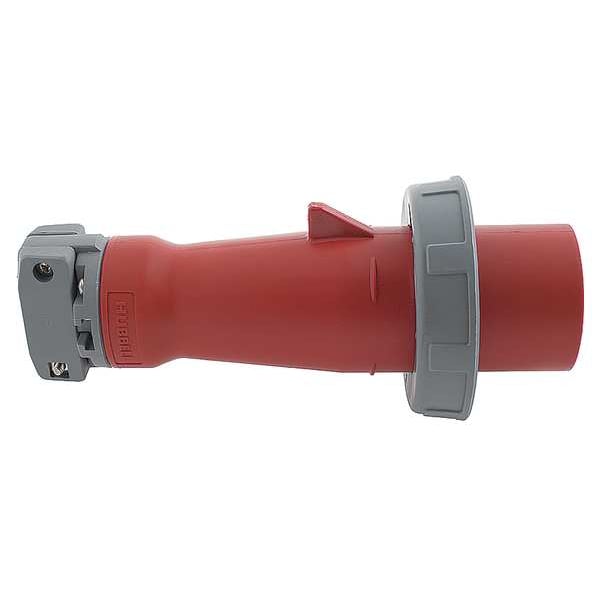

Este tapón y enchufe estanco de clavija y toma es ideal para aplicaciones en ambientes húmedos o polvorientos. Con una capacidad de 60 A y 480V AC, es perfecto para uso monofásico. Cumple con las normas de conexión a tierra IEC y cuenta con NEMA 4X para mayor protección.
| Item | Watertight Pin & Sleeve Plug |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 480V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| IP Rating | IP67 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Terminals |
| Connection Orientation | Straight |
| Switch Rated | No |
| Grounding Style | IEC |
| Housing Color | Red |
| Cap Type | No Cap or Cover |
| For Maximum Cable Diameter | 1.45 in |
| For Minimum Cable Diameter | 0.83 in |
| Standards | CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1 |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Voltage | 480VAC |
| Item - Plugs and Receptacles | Watertight Pin and Sleeve Plug |
| Color | Red |
| Body Material - Pin and Sleeve | Zytel 801 Nylon |
| Features | Gasketed Sealing Ring Provides Watertight Seal |
| Color - Plugs and Receptacles | Red |
| Body Material | Zytel 801 Nylon |
| Amps - Plugs and Receptacles | 60 |
| Phase - Electrical | 1 |
| Amps | 60 |
| Voltage - Plugs and Receptacles | 480V AC |
| Overall Length | 10.14 in |
| Minimum Operating Temperature | -40 deg C |
| Minimum Wire Size | 8 AWG |
| Horsepower Rating | 7.5 HP |
| Maximum Operating Temperature | 75 deg C |
| Housing Material | Non-Metallic |
| Power Indicating Light | No |
| Shrouded | Yes |
| Face Diameter | 2.72 in |
| Maximum Wire Size | 2 AWG |
| Grounding | Grounded |
| UL 94 Flammability Rating | HB |
| Reverse Service | No |
| Hub Style | Standard |
| Package Quantity | 1 |
