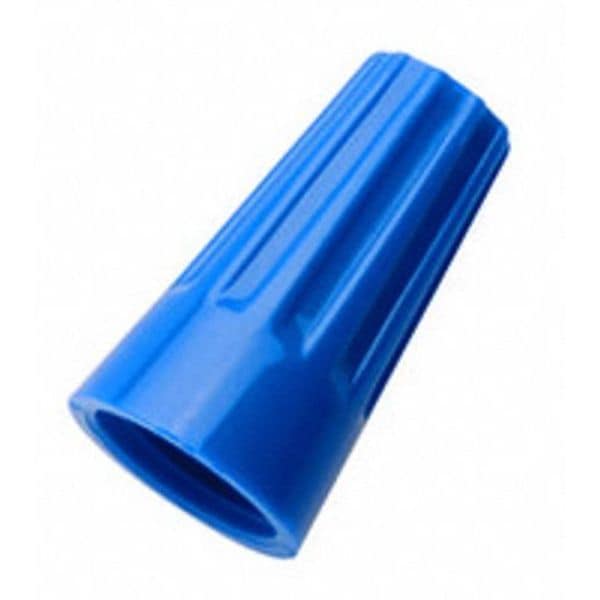

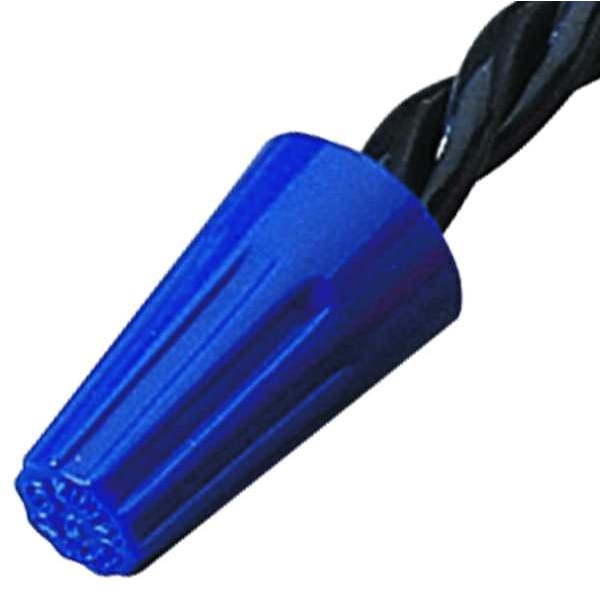

Twist On Wire Connector, 22 AWG to 14 AWG, 300 V, Standard Style, Blue, 100 PK
| Color | Blue |
|---|---|
| Min. Single Wire Size | 22 AWG |
| Max. Single Wire Size | 14 AWG |
| Series | 72B |
| Max. Voltage | 300 V AC |
| Wire Connector Style | Standard |
| Min. Wire Combination | (2) 22 AWG |
| Max. Wire Combination | (3) 16 AWG |
| Height | 0.7 in |
| Width | 0.39 in |
| Application | General Purpose |
| Item | Twist On Wire Connector |
| Standards | CE, CSA Certified, UL Listed |
| Connector Type | 72B |
| Max. Temp. | 221 deg F |
| Maximum Wire Combination | (3) 16 AWG |
| Minimum Single Wire Size | 22 AWG |
| Maximum Operating Temperature | 221 deg F |
| UL 94 Flammability Rating | V-2 |
| Minimum Wire Combination | (2) 22 AWG |
| Maximum Conductors | 5 |
| Maximum Single Wire Size | 14 AWG |
| Maximum Voltage | 300 V |
| Contact Material | Steel |
| Special Features | Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers |
| Overall Width | 0.39 in |
| Overall Height | 0.7 in |
| For Conductor Material | Copper |
| Insulation Material | Thermoplastic |
| Promotional Badge | Best Seller |
| Product Name | Wire Connector |
| Product Color | Blue |
| Product Type | Cable Tying |
| Cable Manager Type | Cable Binder |
| Twist-On Style | Non-Wing |
| Maximum Rated Voltage | 300V |
| Termination Method | Twist-On |
| Minimum Wire Gauge | 22 AWG |
| Maximum Wire Gauge | 14 AWG |
| Package Quantity | 100 |
