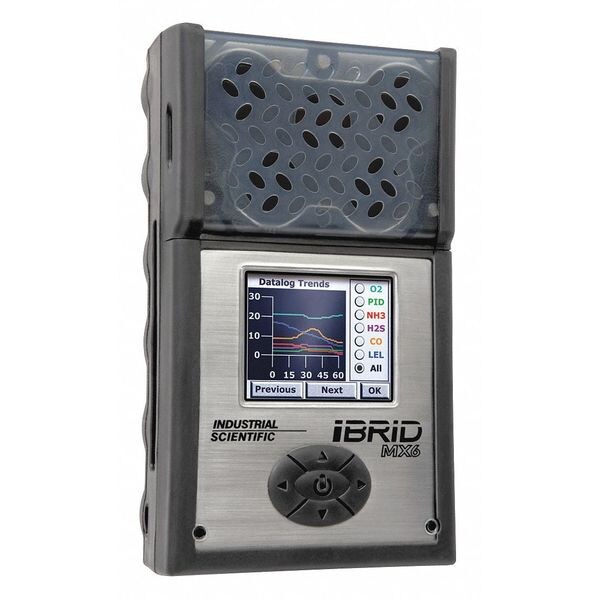

MX6 iBrid Multi-Gas Detector, IP64, Audible, Vibrating, Visual, LCD, 10.5 hr Battery Life
| Item | Multi-Gas Detector |
|---|---|
| Gas Detected | Carbon Dioxide, Carbon Monoxide, Hydrogen Sulfide, LEL, Oxygen |
| Alarm Type | Audible, Visual, Vibrating |
| Alarm Setting | Adjustable |
| Battery Life | 10 hr 30 min |
| Operating Temp. Range | -4 Degrees to 131 Degrees F |
| Standards | ANZEx: Ex ia s Zone 0 I, Ex ia s Zone 0 IIC T4, ATEX: Ex ia I, ATEX: Ex ia IIC T4 Ga, Cl II, Groups F G, Cl l Zone LEL 0, AEx ia d IIC T4 (or AEx ia d IIC T4 IR Sensor), CMA: Approval for Mining Products, CH4,O2,CO,CO2, CSA: Cl I, Gr A-D T4, EAC: PBExiadI X, 1ExiadIICT4 X, Equipment Group and Category: I M1/II 1G, Ex d ia IIC T4, Ex d ia IIC T4 Gb, Ex ia IIC T4 Ga, IECEX: Ex ia I (Ex ia d I IR Sensor), II 1G (or Ex d ia IIC T4 Gb IR Sensor), INMETRO: Ex ia IIC T4 Ga, KC: Ex d ia IIC T4, KIMM: Ex d ia IIC T4, MDR: Registration of Plant Design, CH4,O2,CO,H2S,NO2, MSHA: 30 CRF, Part 22, Intrinsically Safe for Methane/Air Mixtures, PA-DEP: BFE 114-08 Permissible for PA Bituminous Underground Mines, UL Class I Division 1, Groups A, B, C, D, T4 |
| Sensor Range | CO 0 to 1500 ppm, CO2 IR 0 to 5%, H2S 0 to 500 ppm, LEL 0 to 100%, O2 0 to 30% |
| IP Rating | IP64 |
| Series | MX6 iBrid |
| Display Screen Type | LCD |
| Chemical Formula | CO, H2S |
| Housing Color | Black |
| Features | Prescreen Entries for Benzene with an Optional Convertible Kit, 24 Sensor Options: Including Photoionization Detectors and Infrared (IR) |
| Resolution | Ammonia 1% vol, Carbon Monoxide 1% vol, Hydrogen Sulfide 0.1% vol, Oxygen 0.1% vol |
| Includes | Belt Clip, Calibration Cup (Diffusion), Calibration Tubing, Dust Filter/Water Stop (Aspirated), Nylon Carrying Case, Sample Tubing (Aspirated), Screwdriver, Wrist Strap |
| Power Source | Battery |
| Hazardous Location Specification | Class I Divisions 1 |
| Number of Gases Detected | 4 |
| Operating Temperature - Minimum | -4 deg F |
| Overall Height | 7.6 in |
| Communication Protocol | Not Applicable |
| Measurement Range | Carbon Dioxide (0 to 5% vol), Carbon Monoxide (0 to 1500 ppm), Hydrogen Sulfide (0 to 500 ppm), Oxygen (0 to 30% vol) |
| Operating Humidity - Minimum | 15 % |
| Sensor Type | Infrared, Photo Ionization |
| Includes Mounting Hardware | Yes |
| Overall Depth | 2.2 in |
| Battery Size | AA |
| Data Logger | Yes |
| Number of Sensors | 2 |
| Rechargeable Battery | Yes |
| Manufacturer Warranty Length | Limited Lifetime |
| Alert Type | Sound, Light, Vibration |
| Operating Humidity - Maximum | 95 % |
| Operating Temperature - Maximum | 131 deg F |
| Overall Width | 3.1 in |
| Alarm Volume Level | 95 dB |
| Temperature Code | T4 |
| Includes Charger | Yes |
| Replaceable Battery | Yes |
| Includes Probe | No |
| Housing Material | Stainless Steel |
| Display Type | Digital |
| Battery Chemistry | Alkaline |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
