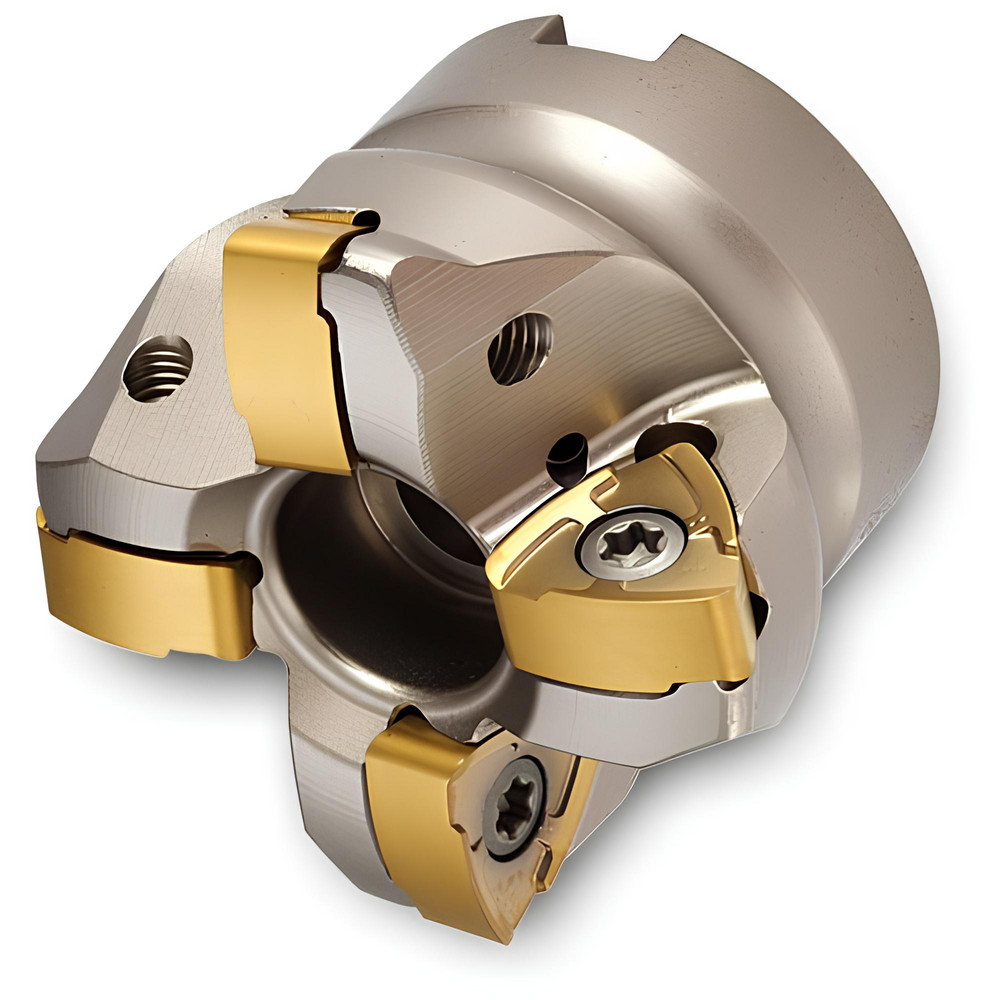

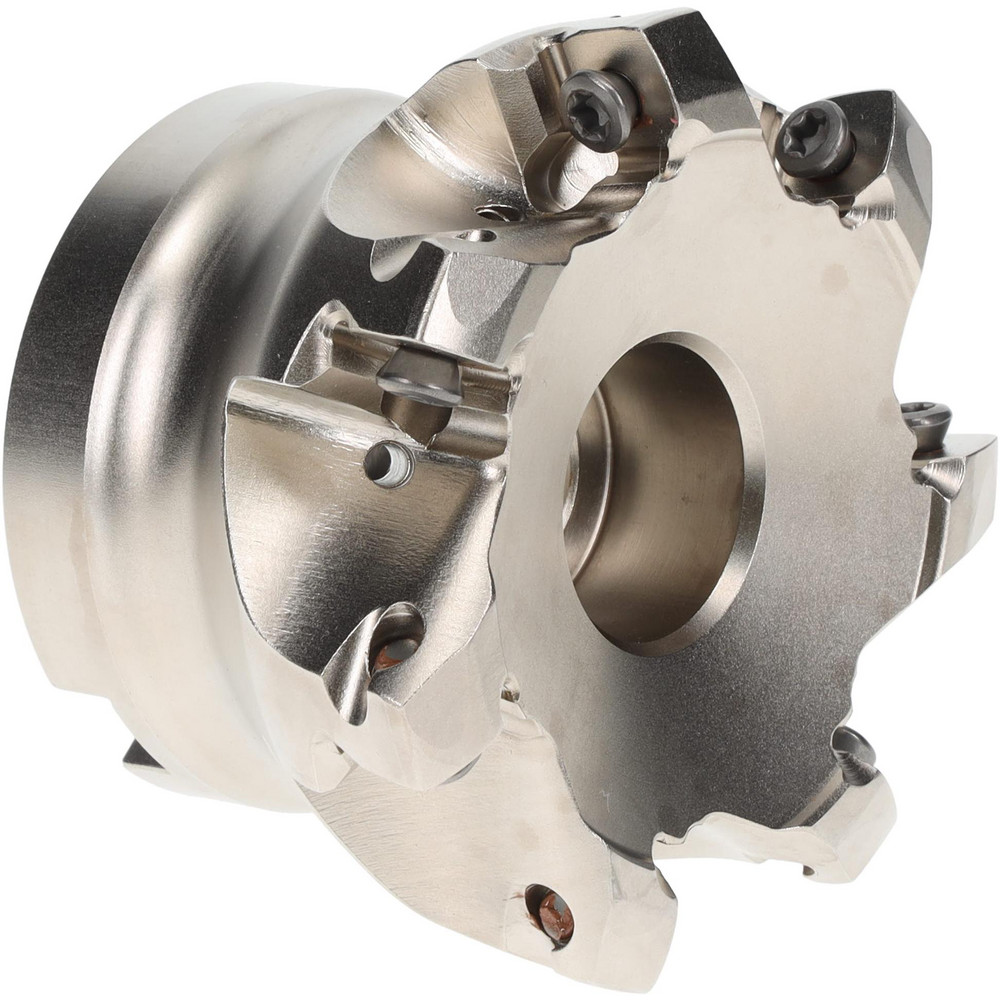

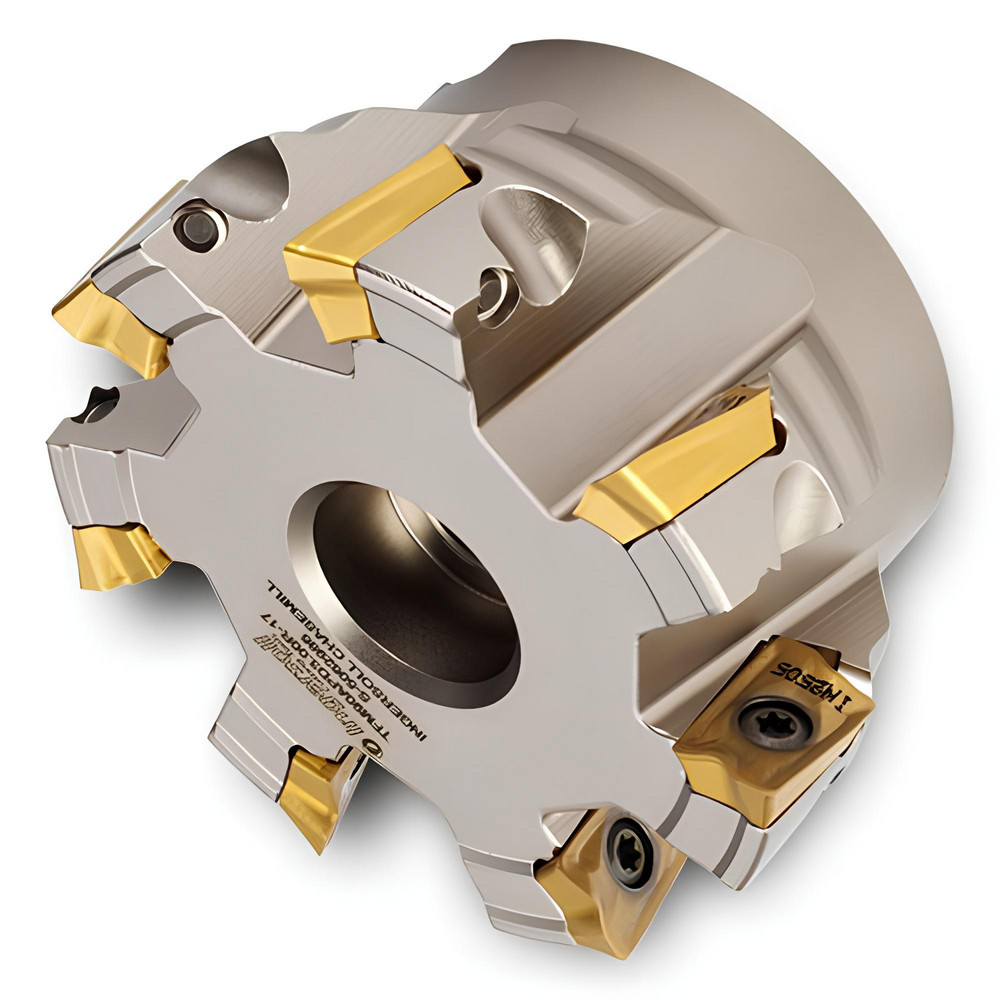

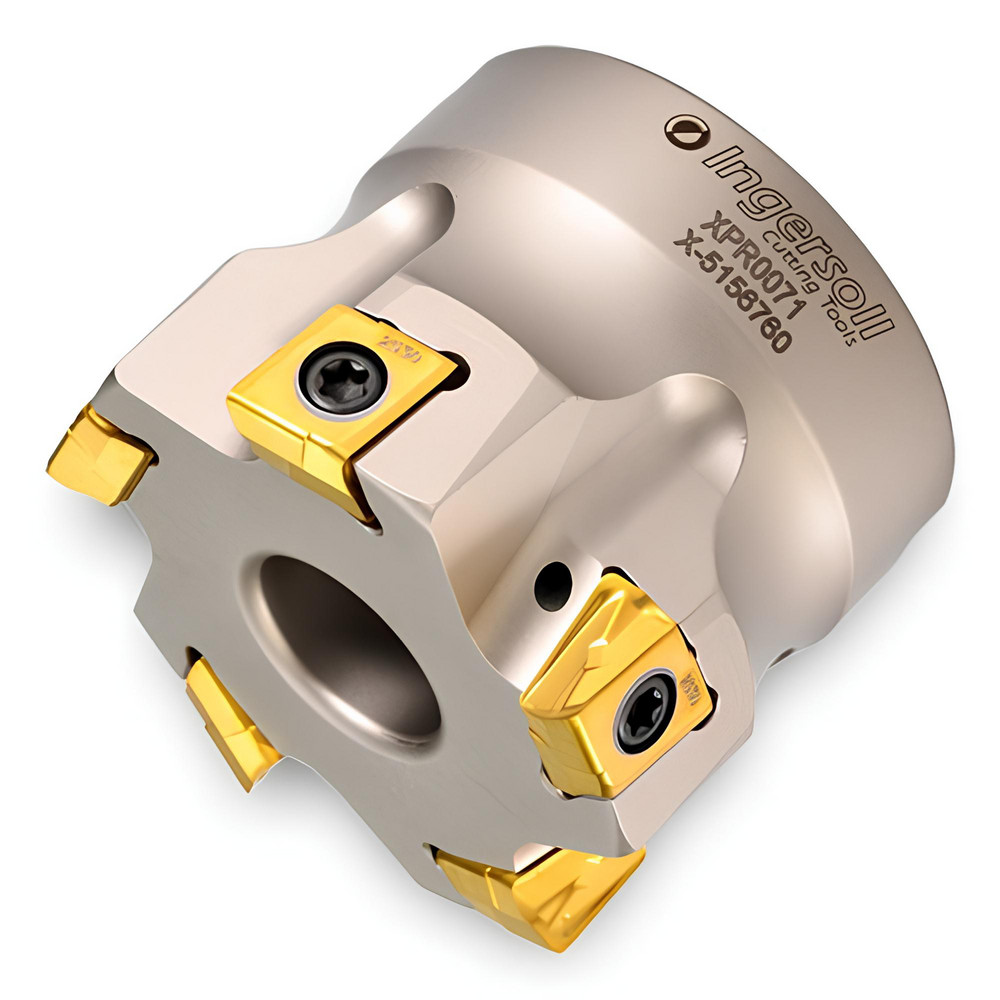

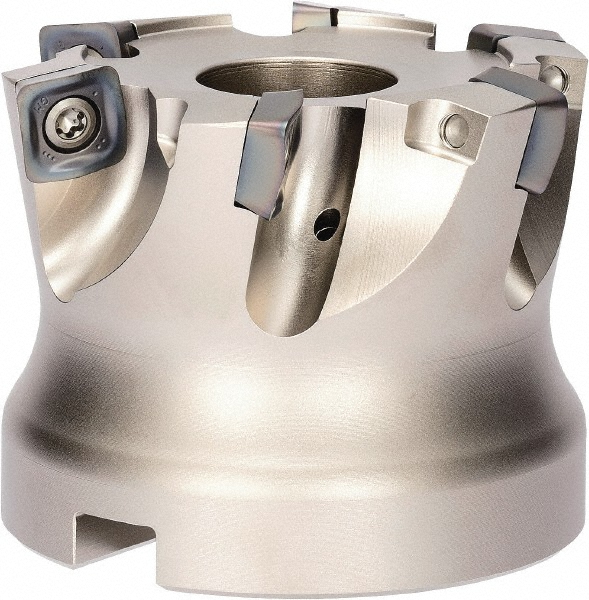

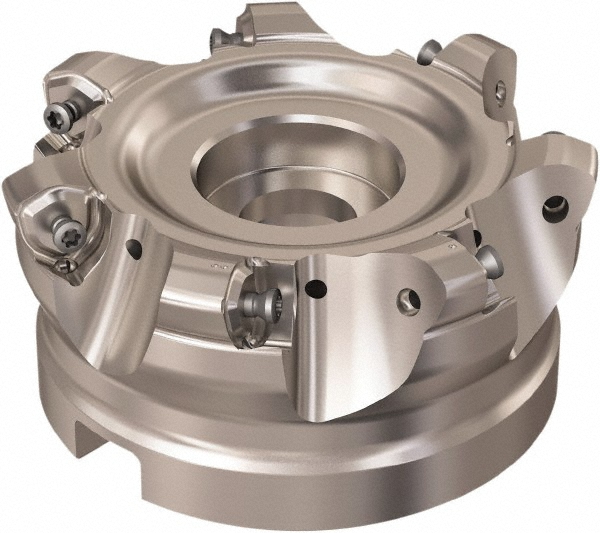

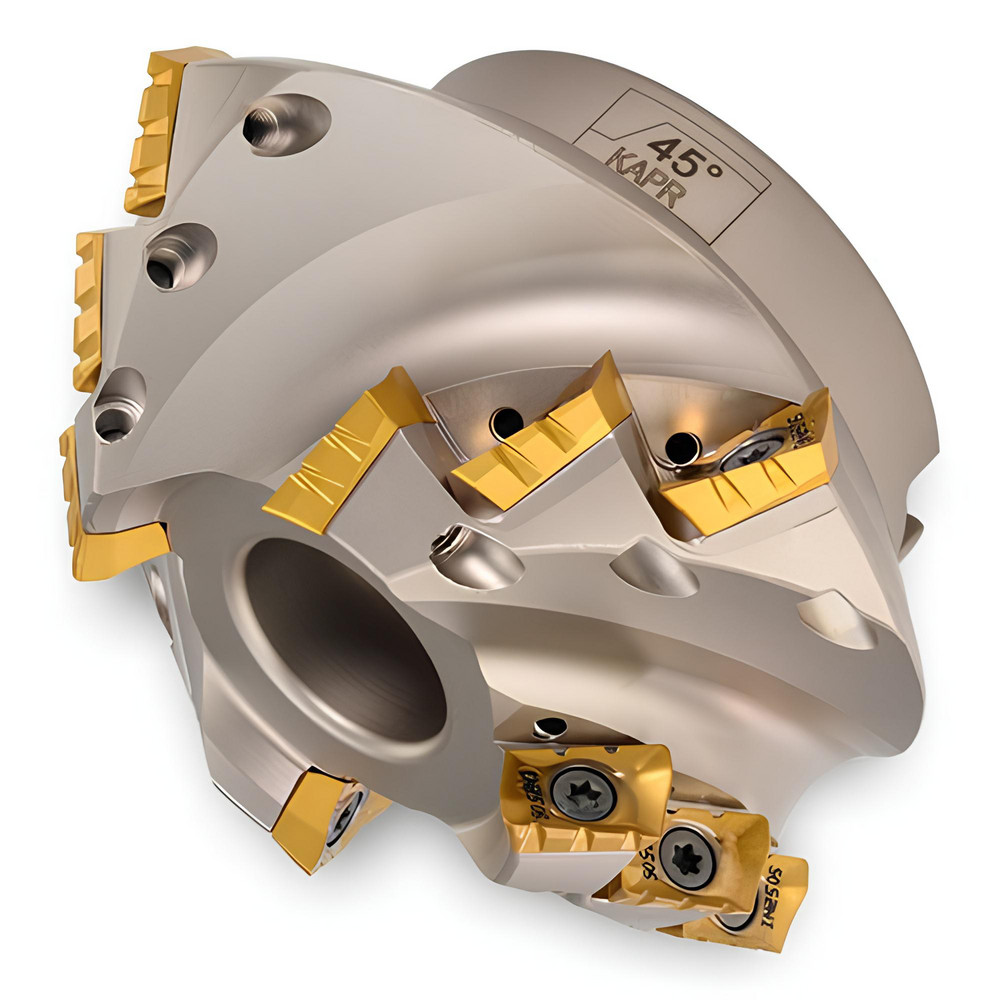

Takes (7) 1307 Inserts, Through Coolant
| Minimum Cutting Diameter (Decimal Inch) | 3.2120 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | 1307 |
| Maximum Ramping Angle | 0.30 |
| Cutter Style | DG5P |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | DG5P |
| Keyway Width (mm) | 16.00 |
| Overall Height (Inch) | 2-3/8 |
| Overall Height (Decimal Inch) | 2.3750 |
| Tool Application | Helical Interpolation; Plunging; Shouldering; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 7 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| MSC Number | MSC# 32340671 |
