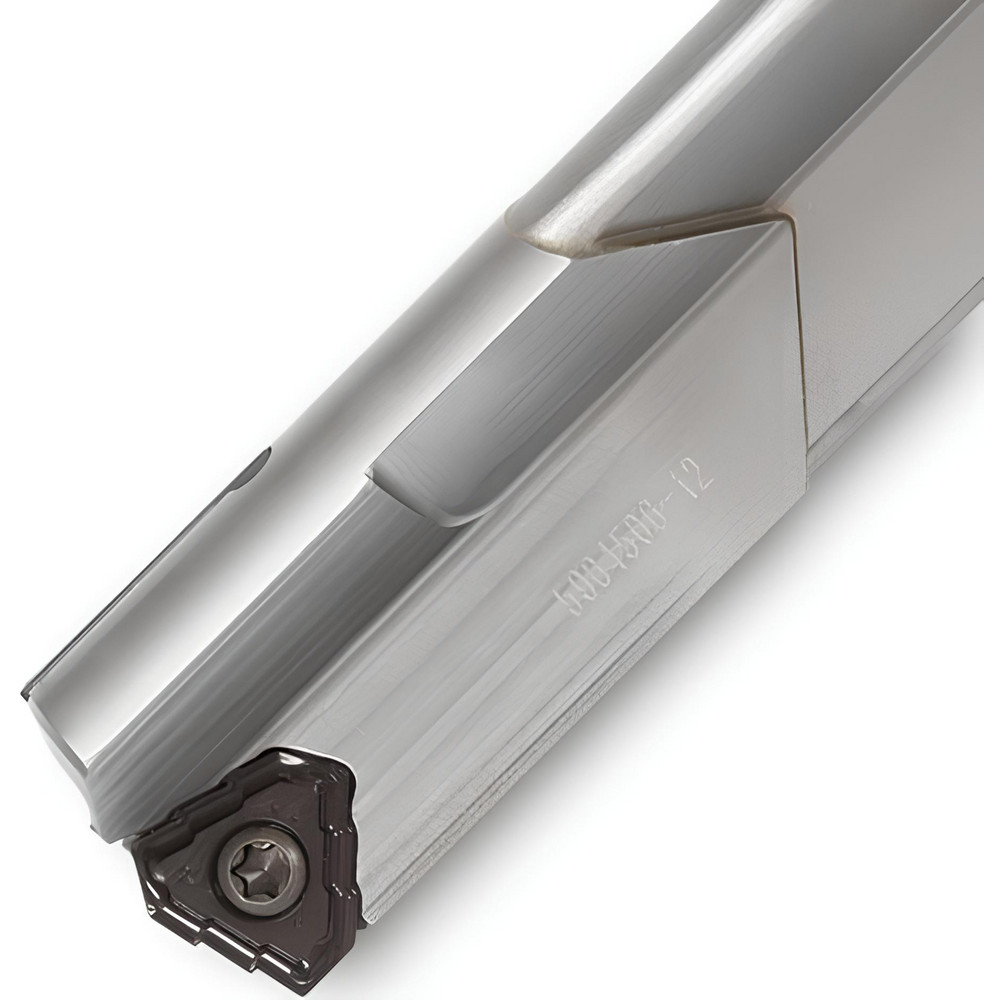

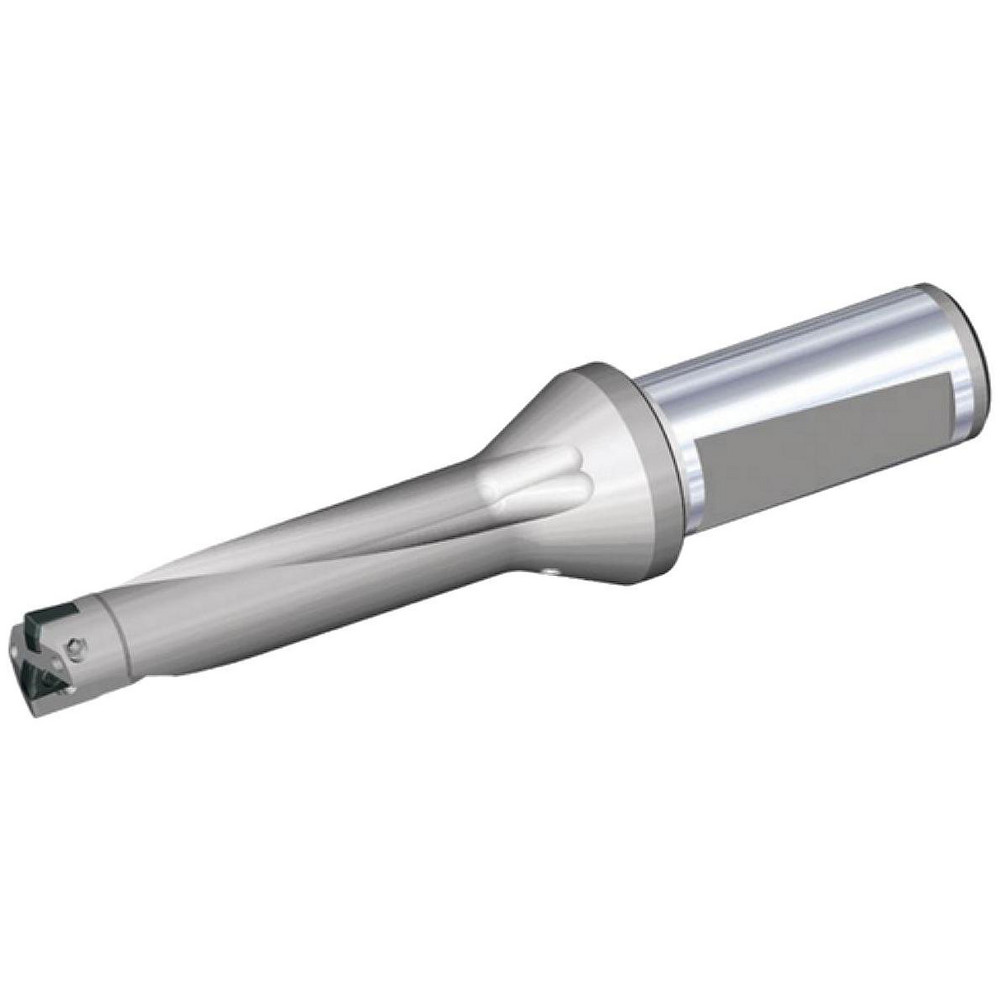

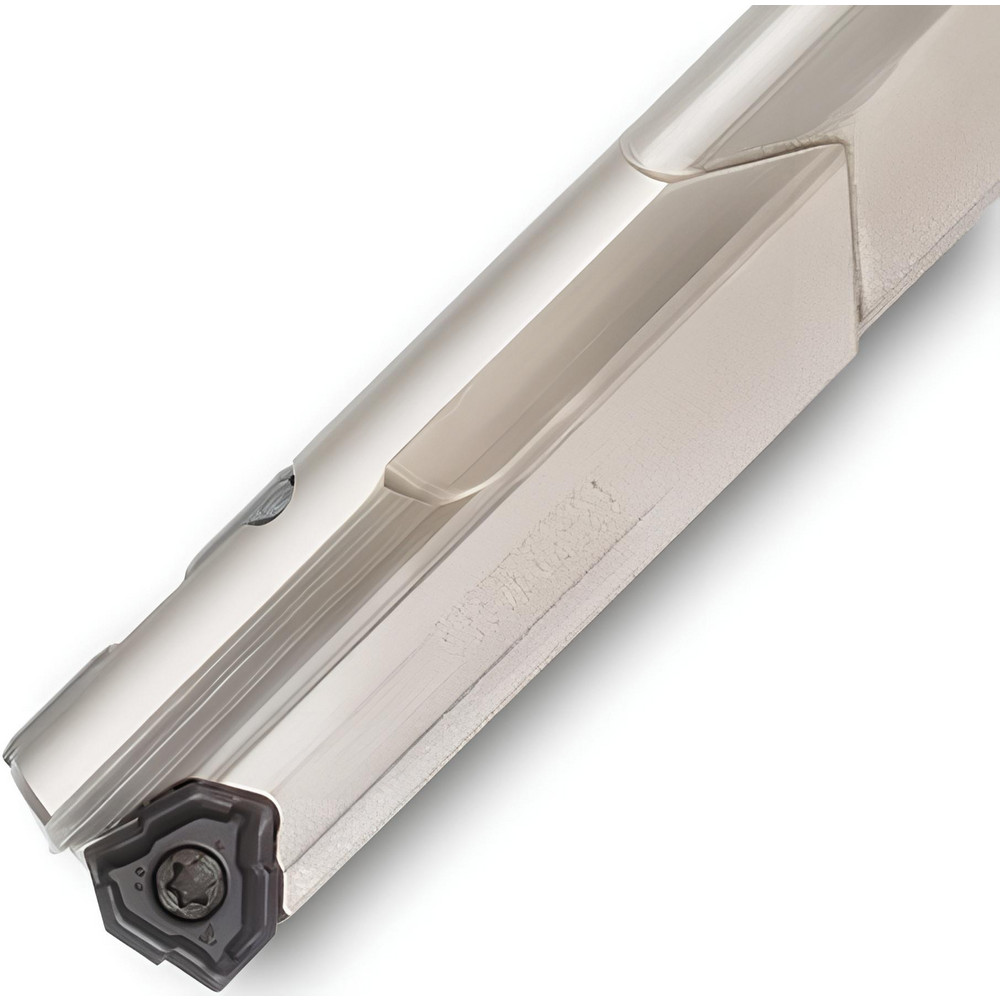

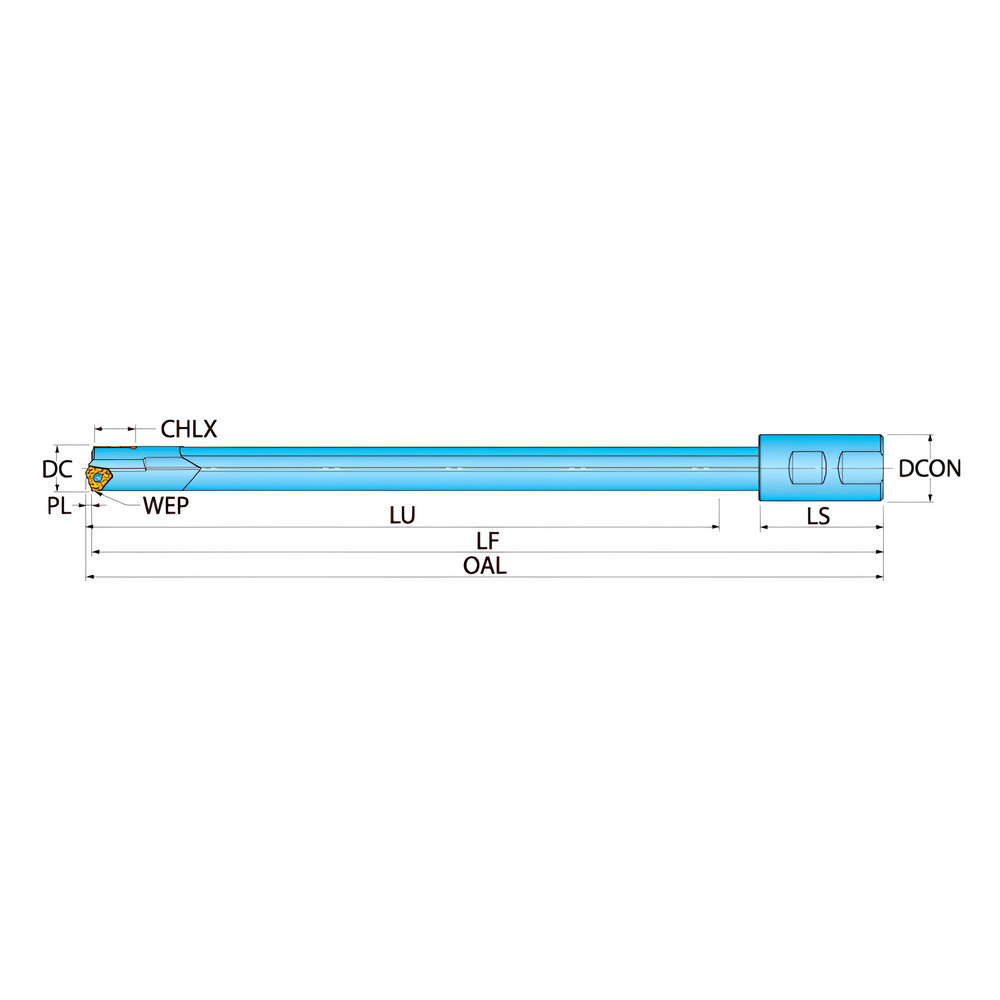

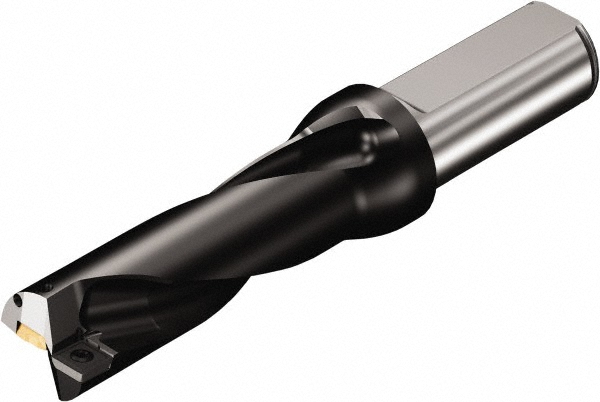

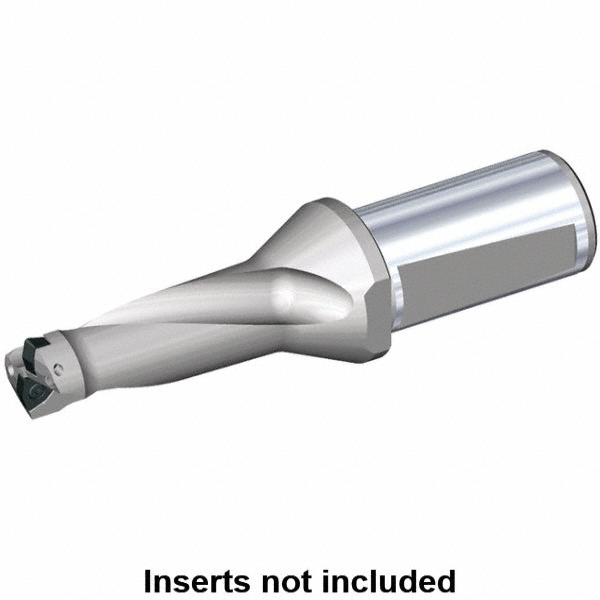

Weldon Flat & Flange Shank, Uses TPHT 090305 Inserts, Series GT
| Compatible Drill Style | GT |
|---|---|
| Maximum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Depth (Decimal Inch) | 36.6929 |
| Maximum Drill Depth (mm) | 913.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.00 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | TPHT |
| Compatible Insert Size Code | 090305 |
| Drill Depth by Diameter Ratio | 46xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 39.3701 |
| Series | GT |
| Flute Length (Decimal Inch) | 36.6929 |
| Flute Length (mm) | 913.00 |
| Body Length (mm) | 1000.00 |
| Body Length (Decimal Inch) | 38.2638 |
| Shank Length (Decimal Inch) | 2.3583 |
| Shank Length (mm) | 60.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3280 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | TPHT090305R-DT |
| Insert Lock Screw | SR14-560/S |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 97017578 |
