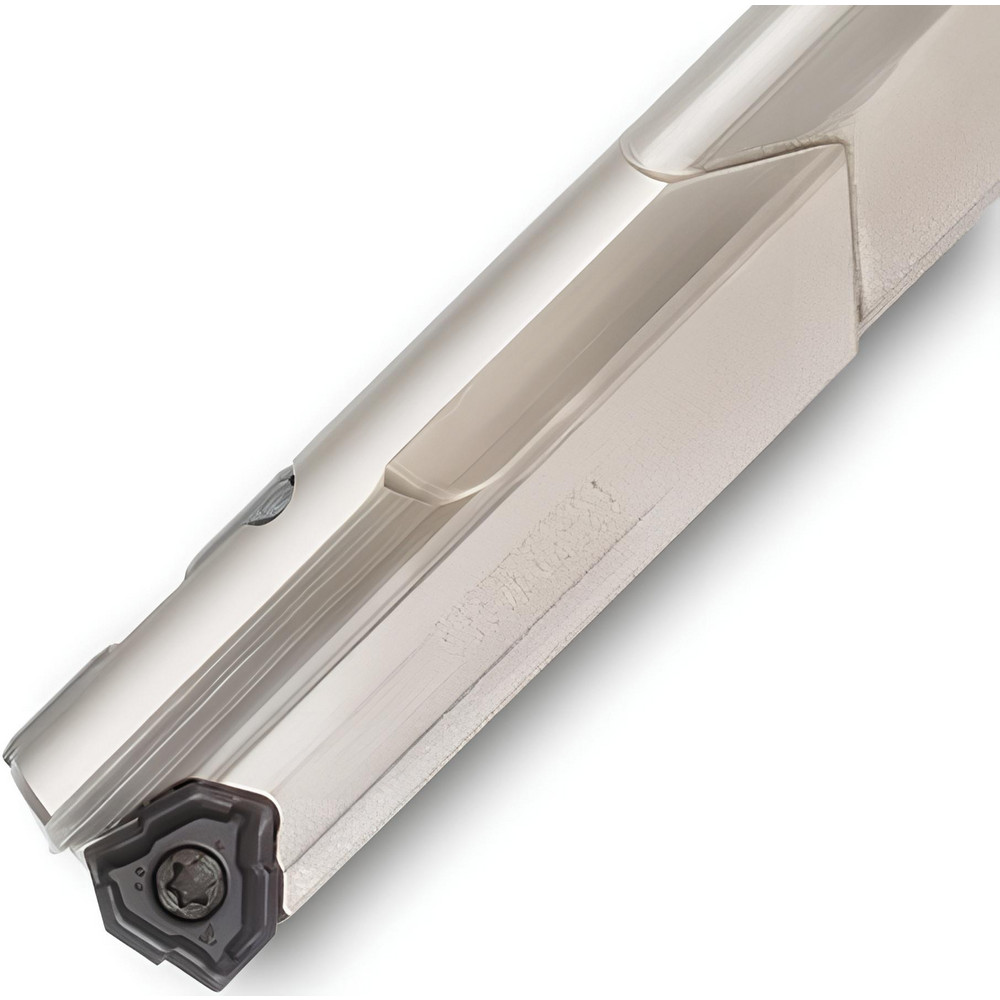

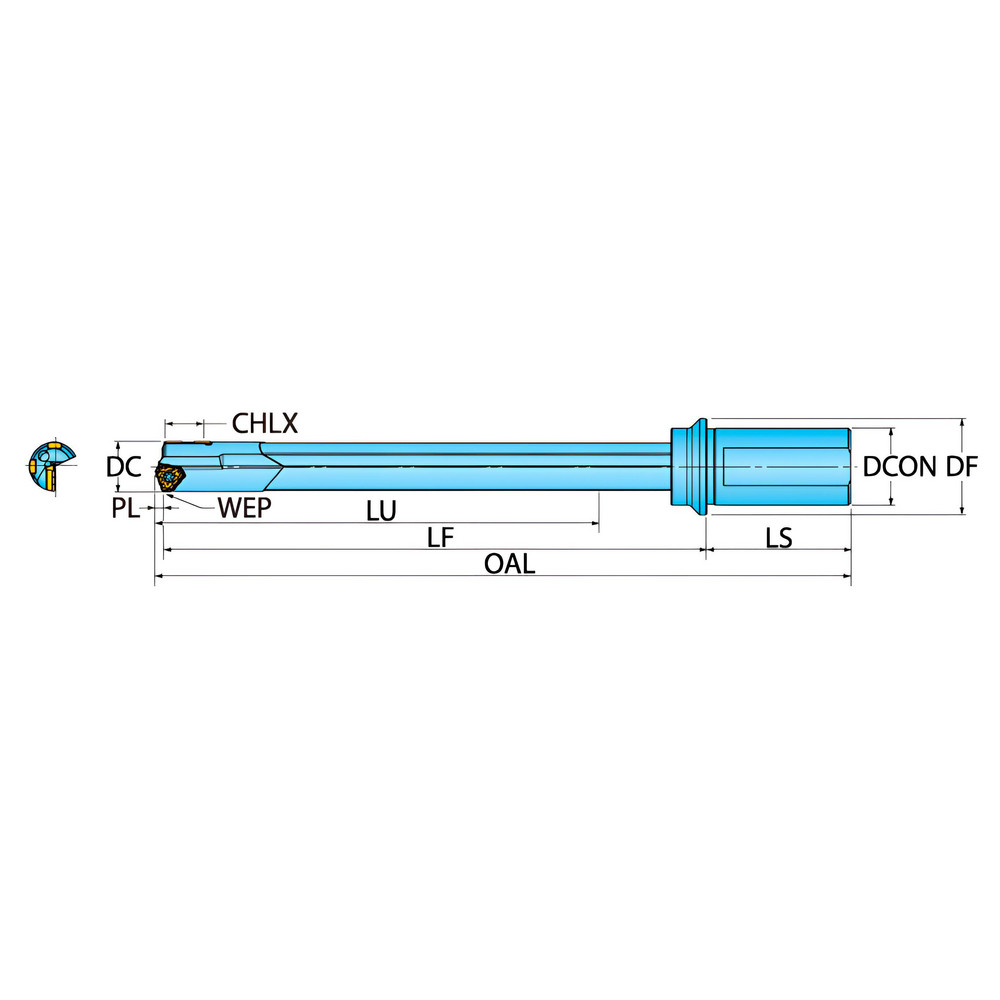

Weldon Flat & Flange Shank, Uses TPHT 100305 Inserts, Series GT
| Compatible Drill Style | GT |
|---|---|
| Maximum Drill Diameter (Inch) | 13/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.8125 |
| Maximum Drill Depth (Inch) | 8-25/64 |
| Maximum Drill Depth (Decimal Inch) | 8.3900 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Tool Material | Steel |
| Compatible Insert Style | TPHT |
| Compatible Insert Size Code | 100305 |
| Drill Depth by Diameter Ratio | 10xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 12.5200 |
| Series | GT |
| Flute Length (Decimal Inch) | 8.3900 |
| Flute Length (mm) | 213.11 |
| Body Length (mm) | 255.02 |
| Body Length (Decimal Inch) | 10.0400 |
| Shank Length (Decimal Inch) | 2.3600 |
| Shank Length (mm) | 59.94 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3630 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | TPHT100305R-DT |
| Collar Diameter (Decimal Inch) | 1.7700 |
| Collar Diameter (mm) | 44.96 |
| Insert Lock Screw | SR34-506 |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 96834973 |
