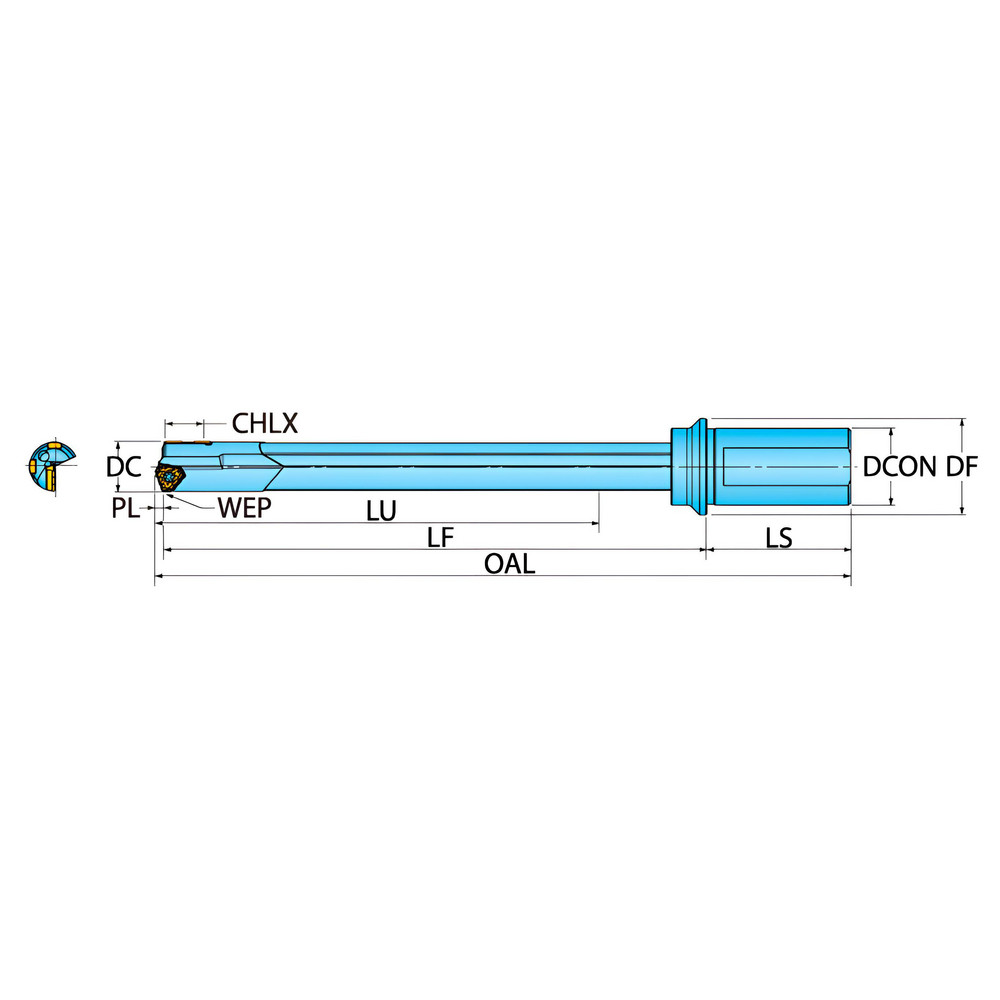

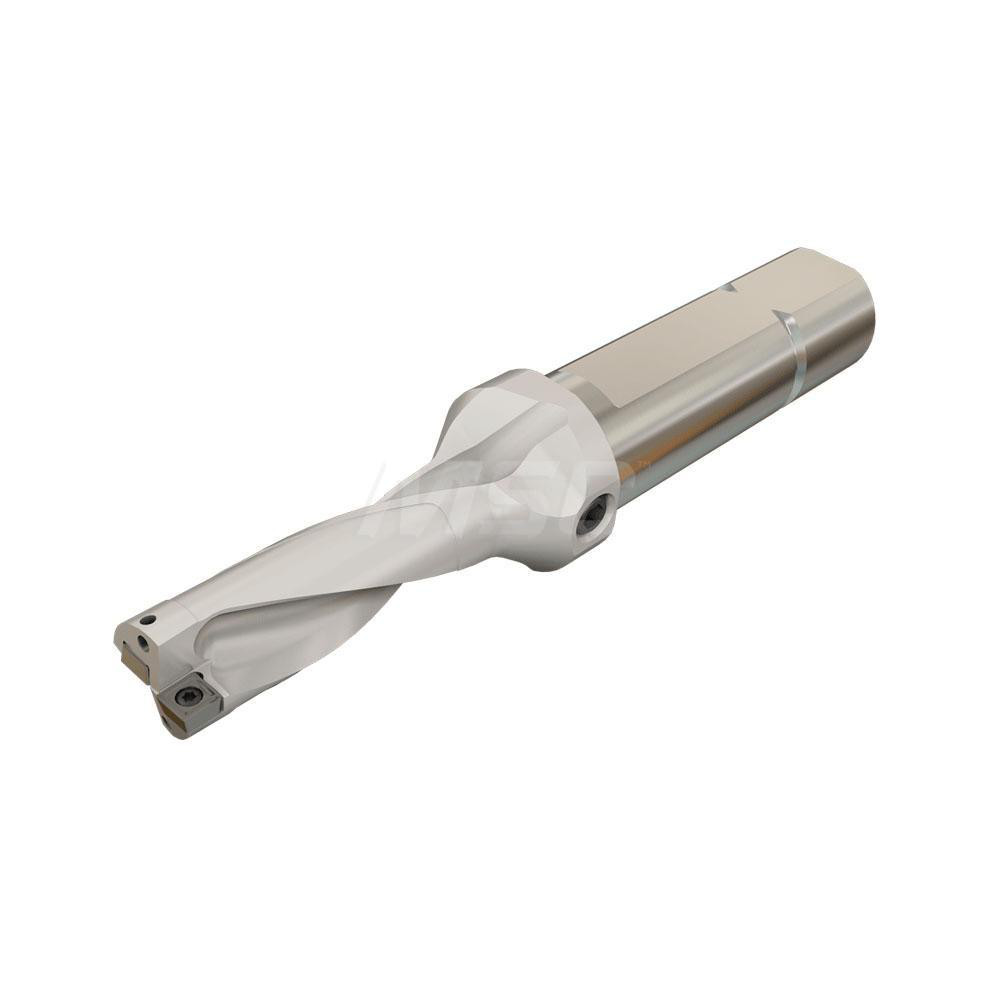

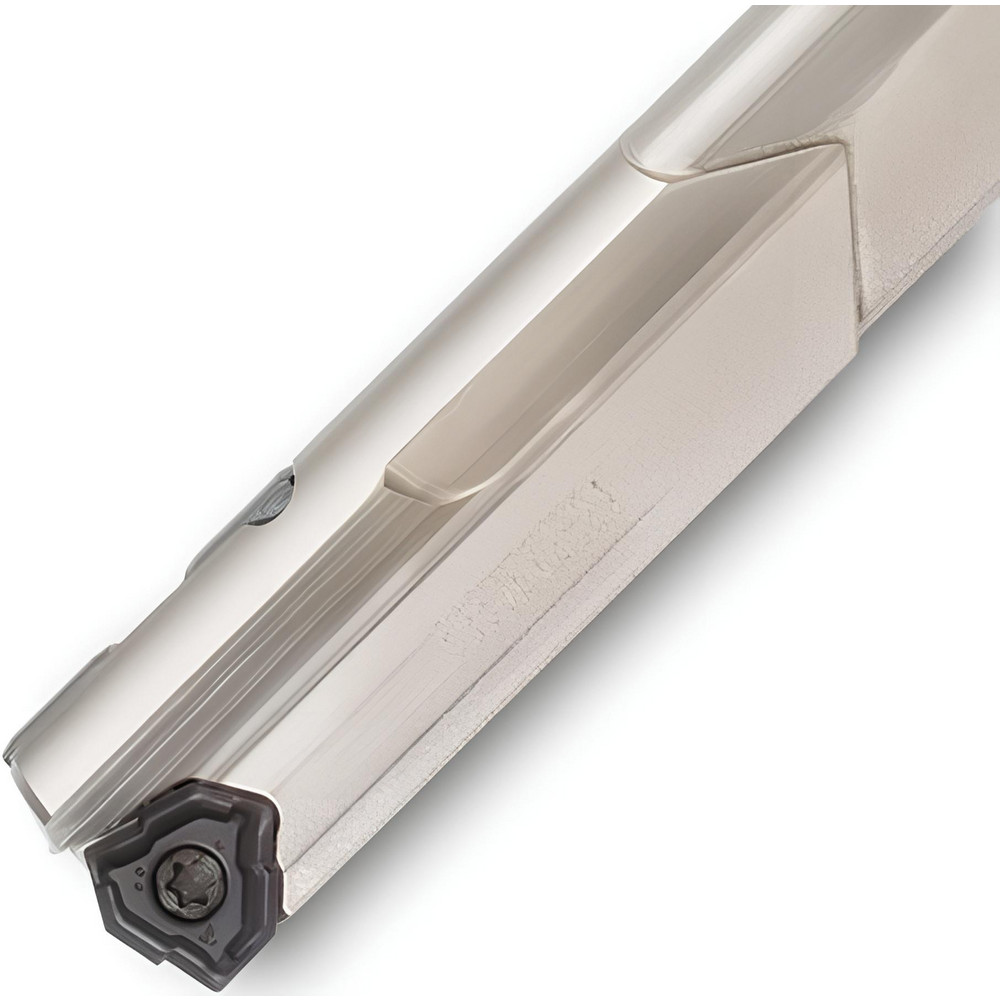

Weldon Flat & Flange Shank, Uses TPHT 120405 Inserts, Series GT
| Compatible Drill Style | GT |
|---|---|
| Maximum Drill Diameter (Inch) | 1-1/16 |
| Maximum Drill Diameter (Decimal Inch) | 1.0625 |
| Maximum Drill Depth (Decimal Inch) | 27.7100 |
| Maximum Drill Depth (mm) | 703.83 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Tool Material | Steel |
| Compatible Insert Style | TPHT |
| Compatible Insert Size Code | 120405 |
| Drill Depth by Diameter Ratio | 25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 32.2300 |
| Series | GT |
| Flute Length (Decimal Inch) | 27.7100 |
| Flute Length (mm) | 703.83 |
| Body Length (mm) | 754.89 |
| Body Length (Decimal Inch) | 29.7200 |
| Shank Length (Decimal Inch) | 2.7600 |
| Shank Length (mm) | 70.10 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4560 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | TPHT120405R-DT; TPHT120405R-ML |
| Collar Diameter (Decimal Inch) | 2.1700 |
| Collar Diameter (mm) | 55.12 |
| Insert Lock Screw | SR14-506 |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 96836549 |
