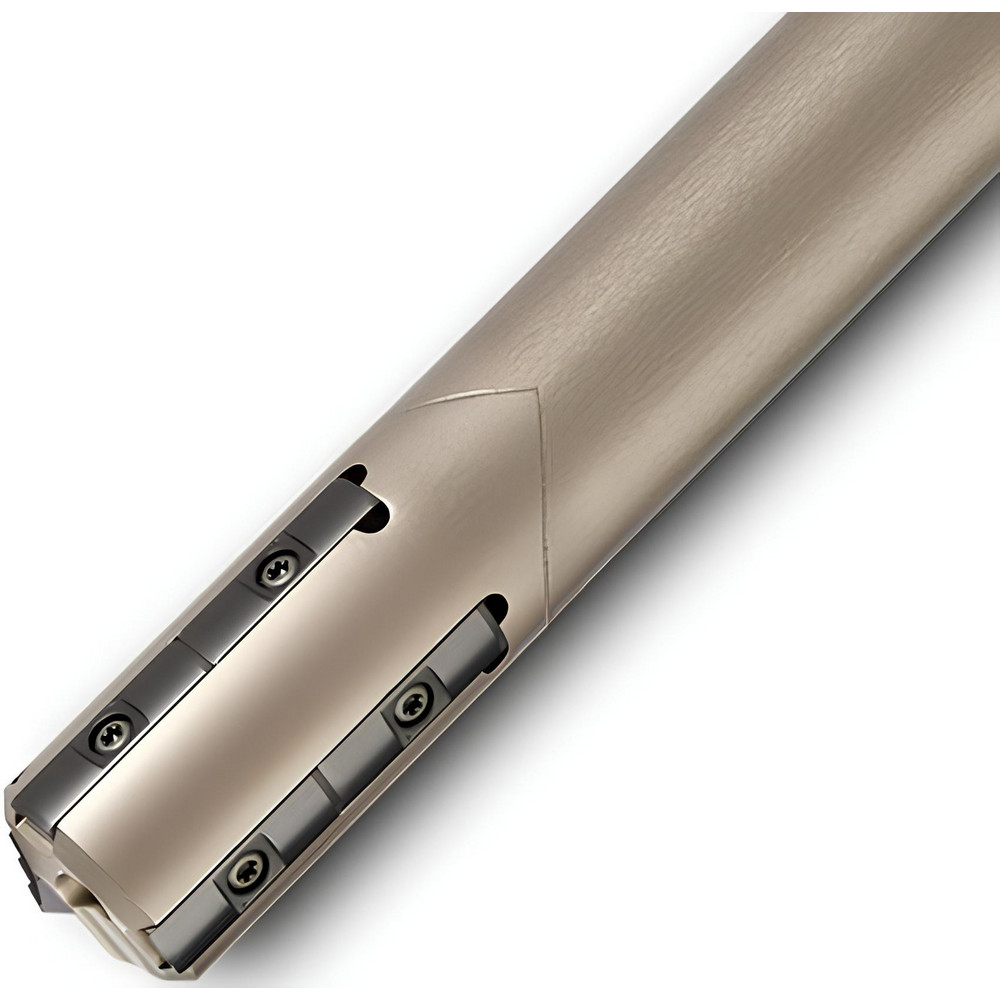

Weldon Flat & Flange Shank, Uses TPHT 090305 Inserts, Series GTADP
| Compatible Drill Style | GTADP |
|---|---|
| Maximum Drill Diameter (Inch) | 23/32 |
| Maximum Drill Diameter (Decimal Inch) | 0.7188 |
| Maximum Drill Depth (Decimal Inch) | 86.3000 |
| Maximum Drill Depth (mm) | 2192.02 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Tool Material | Steel |
| Compatible Insert Style | TPHT |
| Compatible Insert Size Code | 090305 |
| Drill Depth by Diameter Ratio | 120xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 90.1200 |
| Series | GTADP |
| Flute Length (Decimal Inch) | 86.3000 |
| Flute Length (mm) | 2192.02 |
| Body Length (mm) | 2286.00 |
| Body Length (Decimal Inch) | 90.0000 |
| Shank Length (Decimal Inch) | 2.7600 |
| Shank Length (mm) | 70.10 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3280 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DT; TPHT090305R-ML; TPHT090305R-DT; TPHT090305R-DT-P |
| Insert Lock Screw | SR14-560/S |
| Coolant Through | Yes |
| undefined | undefined |
| MSC Number | MSC# 97025506 |
