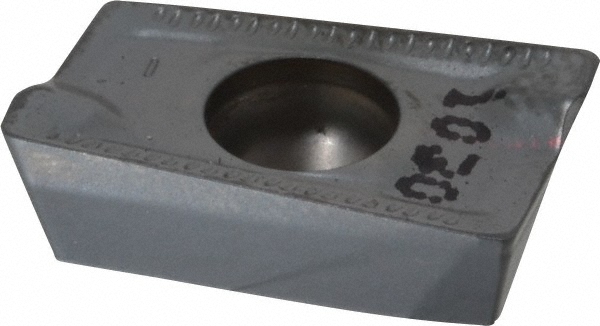

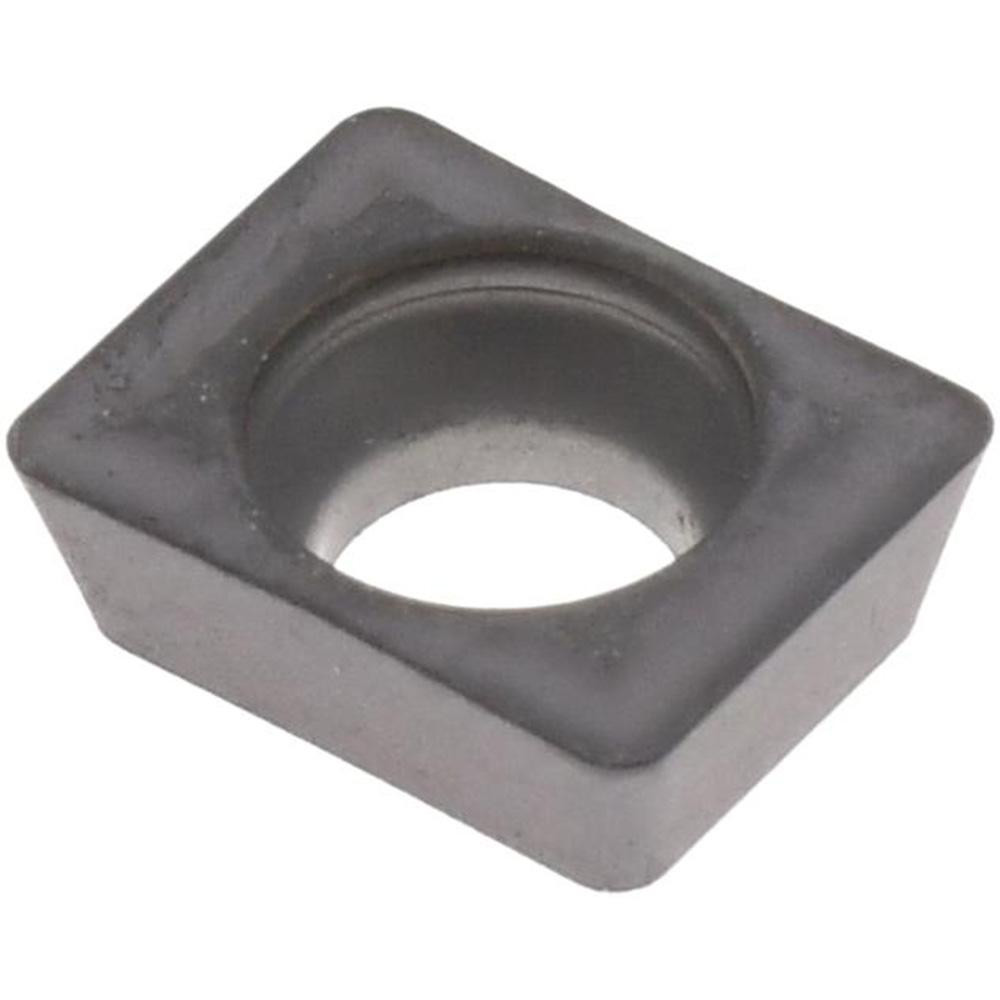

TiCN Finish, 0.1030" Thick, 0.1660" Wide
| Insert Style | AOMT |
|---|---|
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN1030 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1030 |
| Coating/Finish | TiCN |
| Insert Size Code | 060202 |
| Material Grade | Coarse Grain |
| Inscribed Circle (Decimal Inch) | 0.1660 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Corner Radius (Inch) | 1/128 |
| Inscribed Circle Range (Decimal Inch) | 0.1000 to 0.2000 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Series | AOMT |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.2200 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | AOMT060202R IN1030 |
| Iso Code | AOMT060202R IN1030 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5840533 |
| Cutter Series Compatibility | 22J3D; 12J1D; 12_1D |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.1660 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2280 |
| undefined | undefined |
| MSC Number | MSC# 74631268 |
