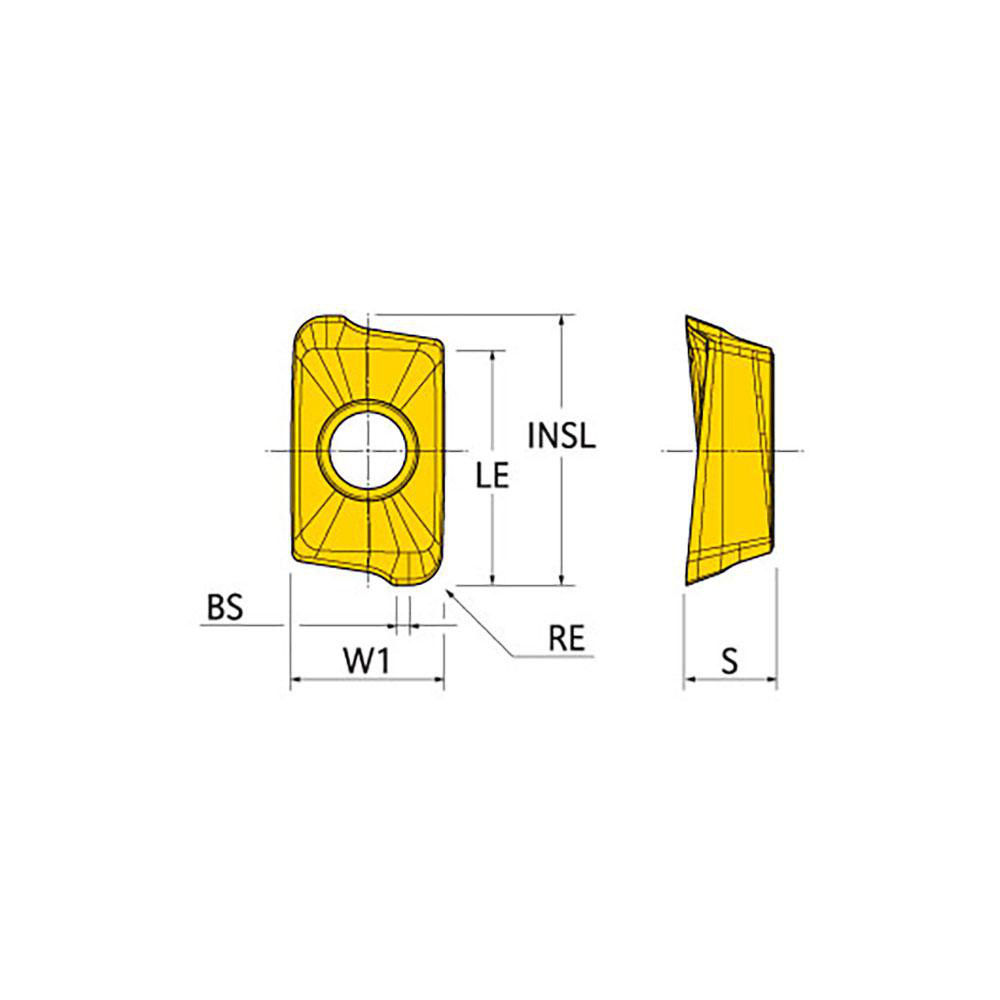

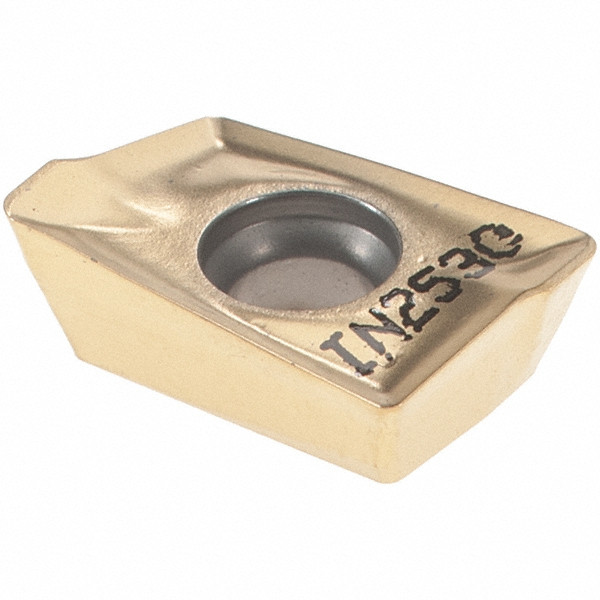

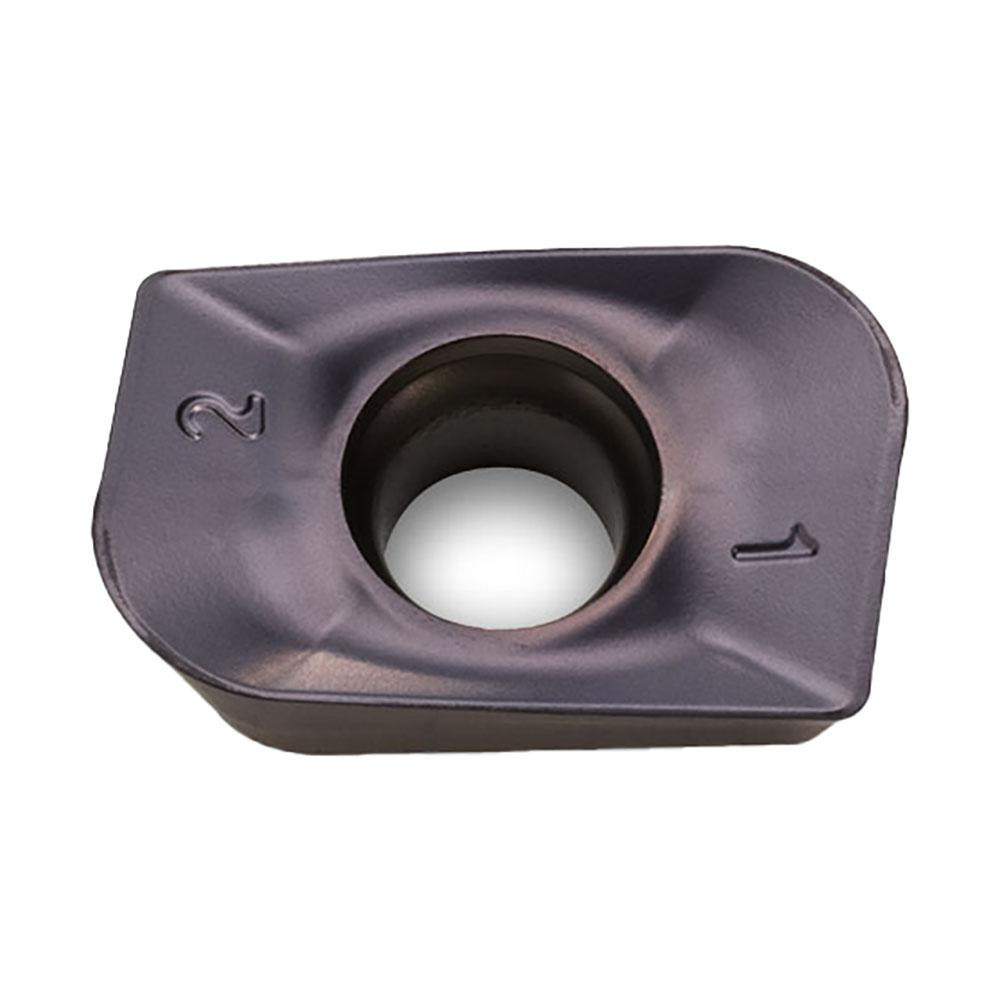

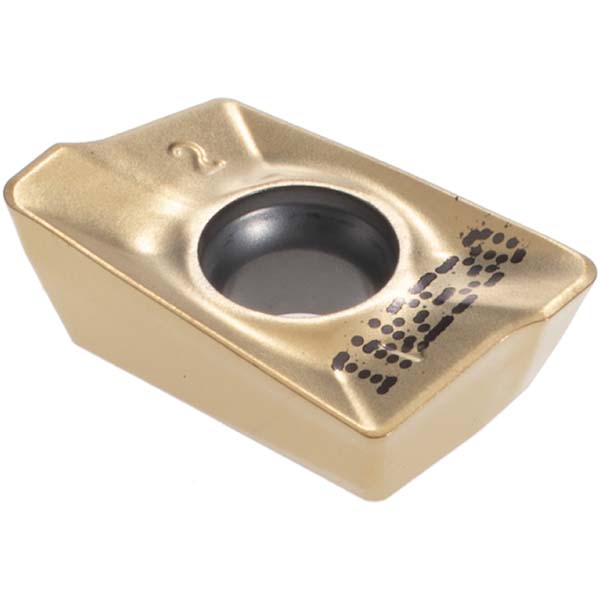

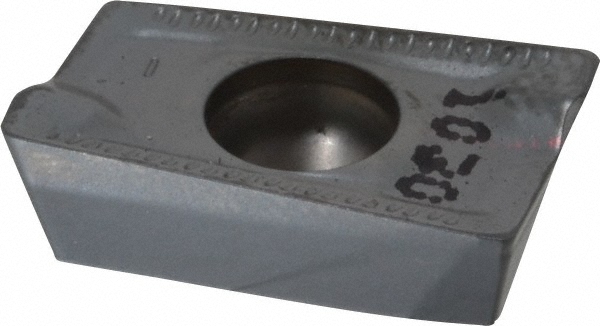

TiAlN & TiN Finish, 0.1900" Thick, 0.3250" Wide
| Insert Style | AOMT |
|---|---|
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN2530 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1900 |
| Coating/Finish | TiN; TiAlN |
| Insert Size Code | 120408 |
| Material Grade | Coarse Grain |
| Inscribed Circle (Decimal Inch) | 0.3250 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Series | AOMT |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4900 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | AOMT120408R IN2530 |
| Iso Code | AOMT120408R IN2530 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5813375 |
| Cutter Series Compatibility | 12S1X; 12V1X; 22J3X; 2J1X; 12J1X; 22N3X |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5730 |
| Country of Origin | South Korea |
| MSC Number | MSC# 92157239 |
