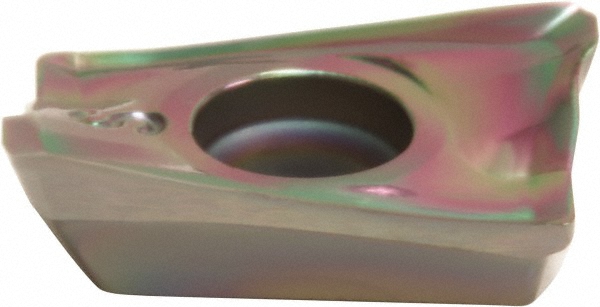

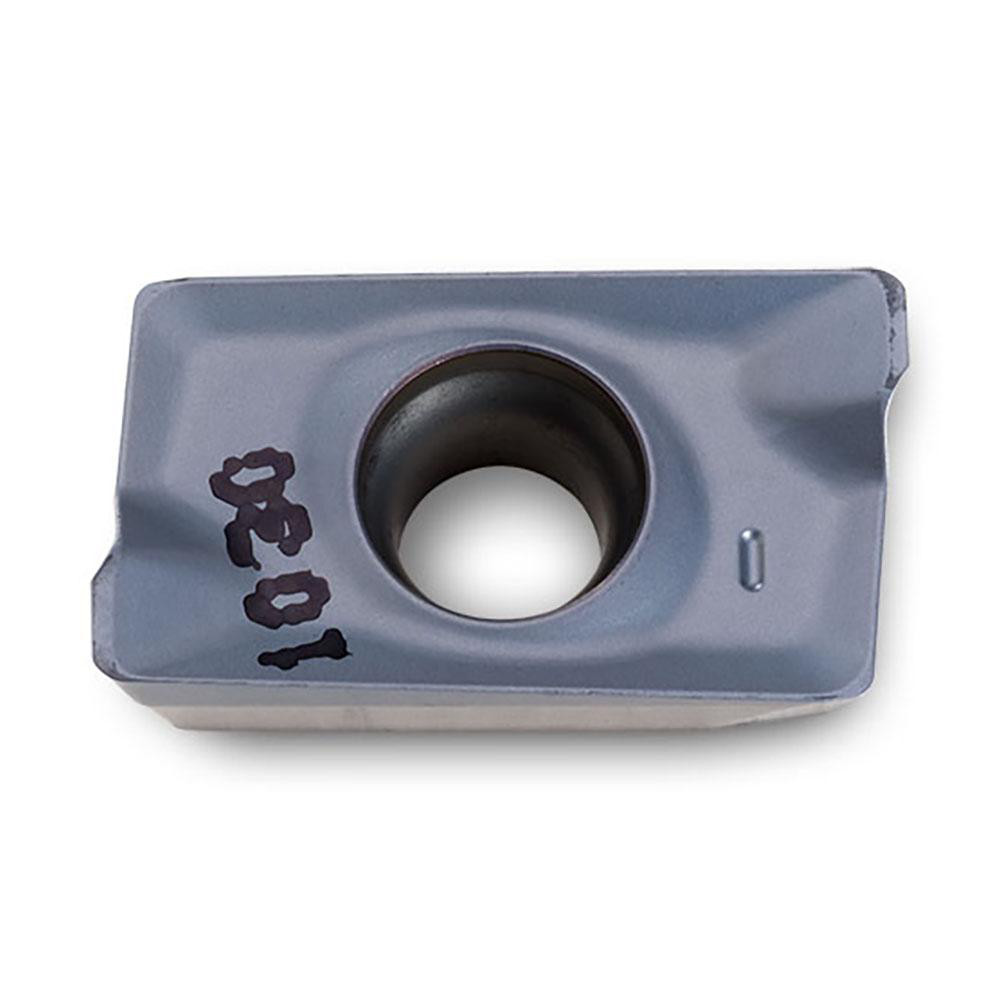

TiAlN Finish, 0.2190" Thick, 0.4230" Wide
| Insert Style | APEH |
|---|---|
| Insert Size | 64 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN2040 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2190 |
| Coating/Finish | TiAlN |
| Relief Angle | 11.00 |
| Insert Size Code | 64 |
| Material Grade | Fine Grain; Medium Grain |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.4230 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Series | APEH |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.6600 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | APEH64R01 IN2040 |
| Iso Code | AOMT180508R IN2040 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5804904 |
| Cutter Series Compatibility | 23J6G; 22J3E; 12J1E; 4W2A; 2J1E; 12S1E |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4230 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7670 |
| undefined | undefined |
| MSC Number | MSC# 48793079 |
