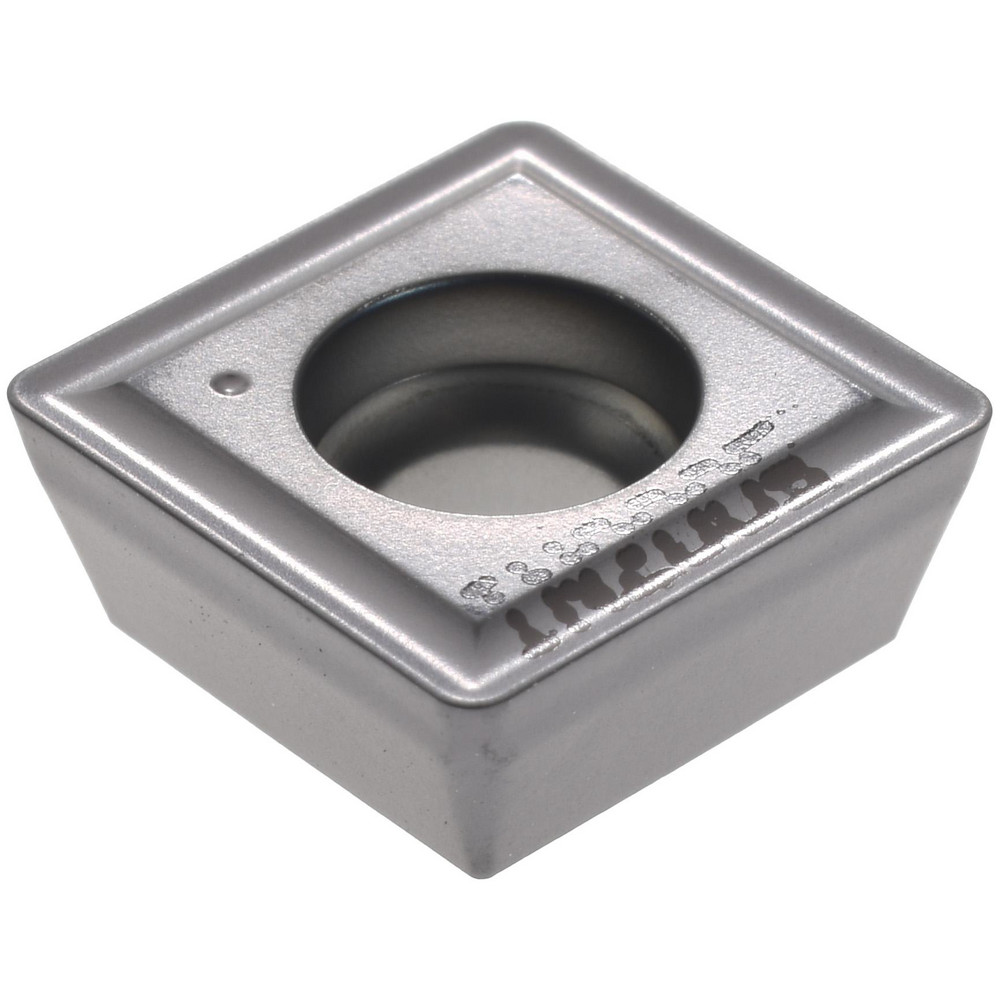

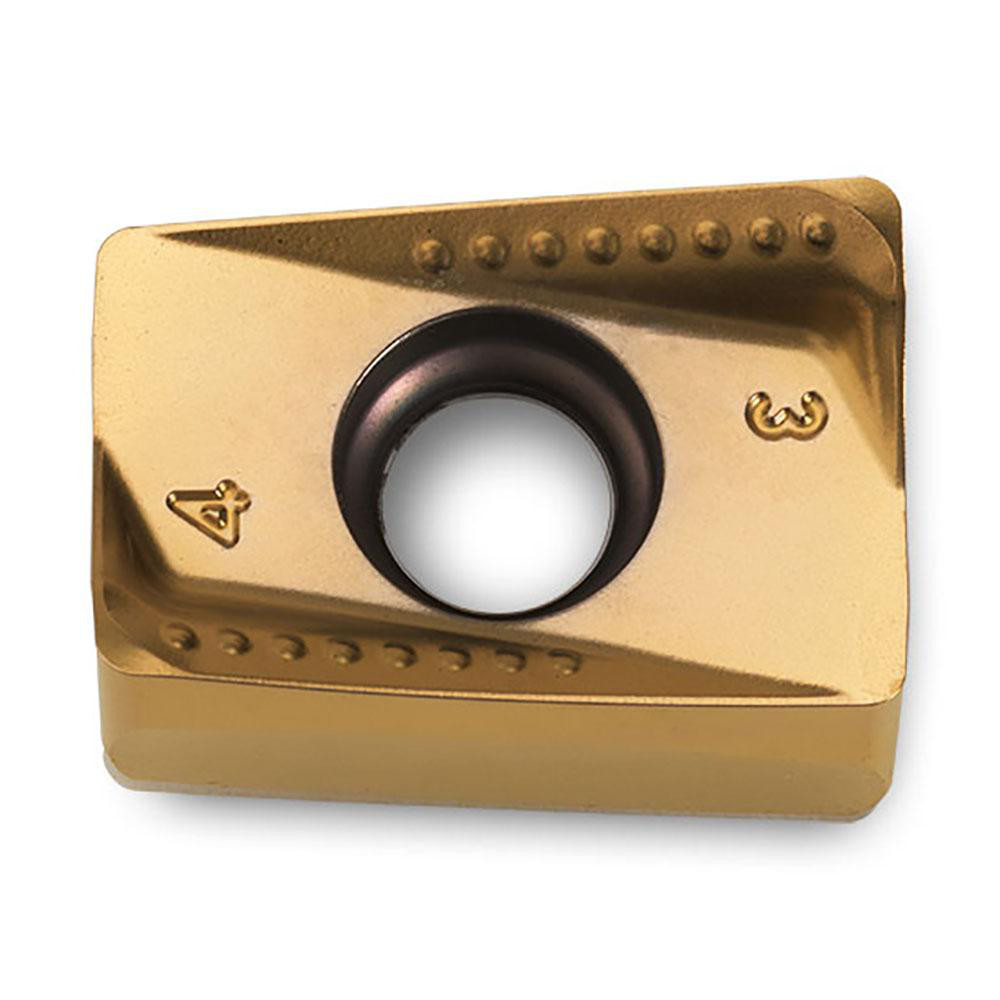

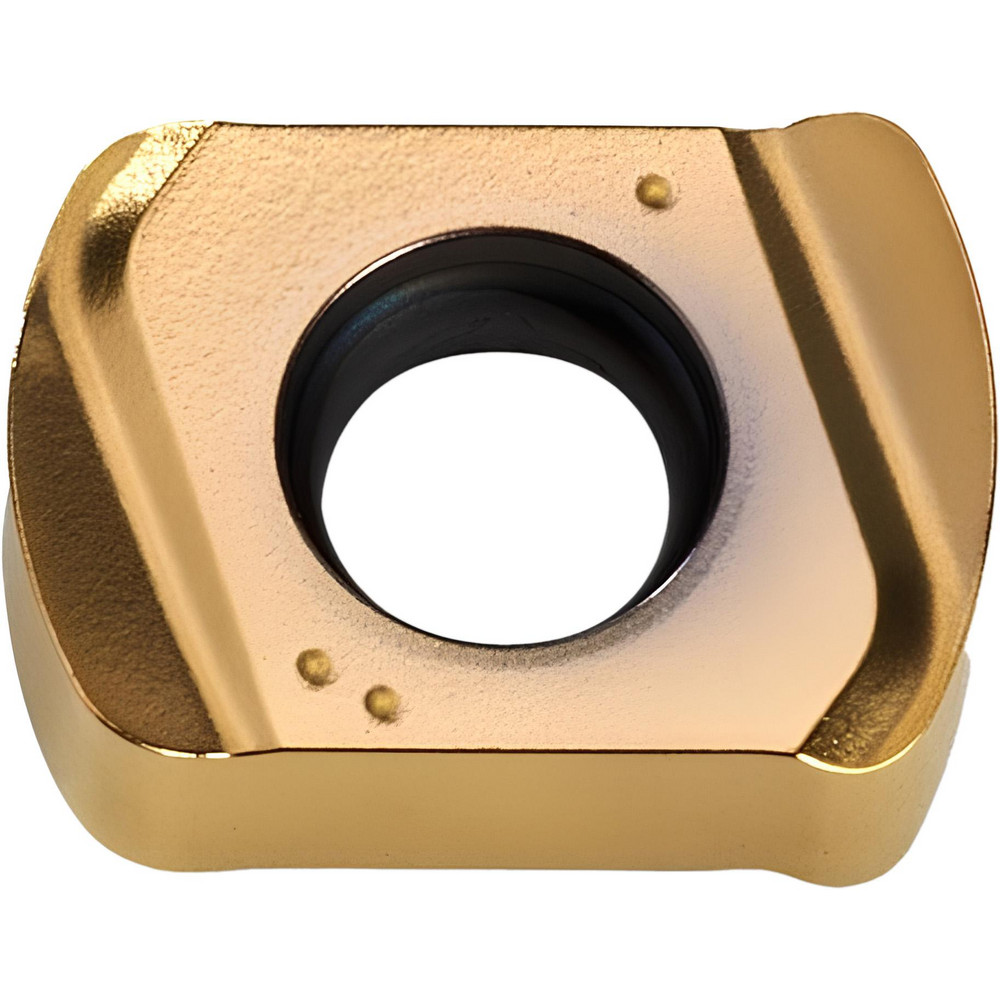

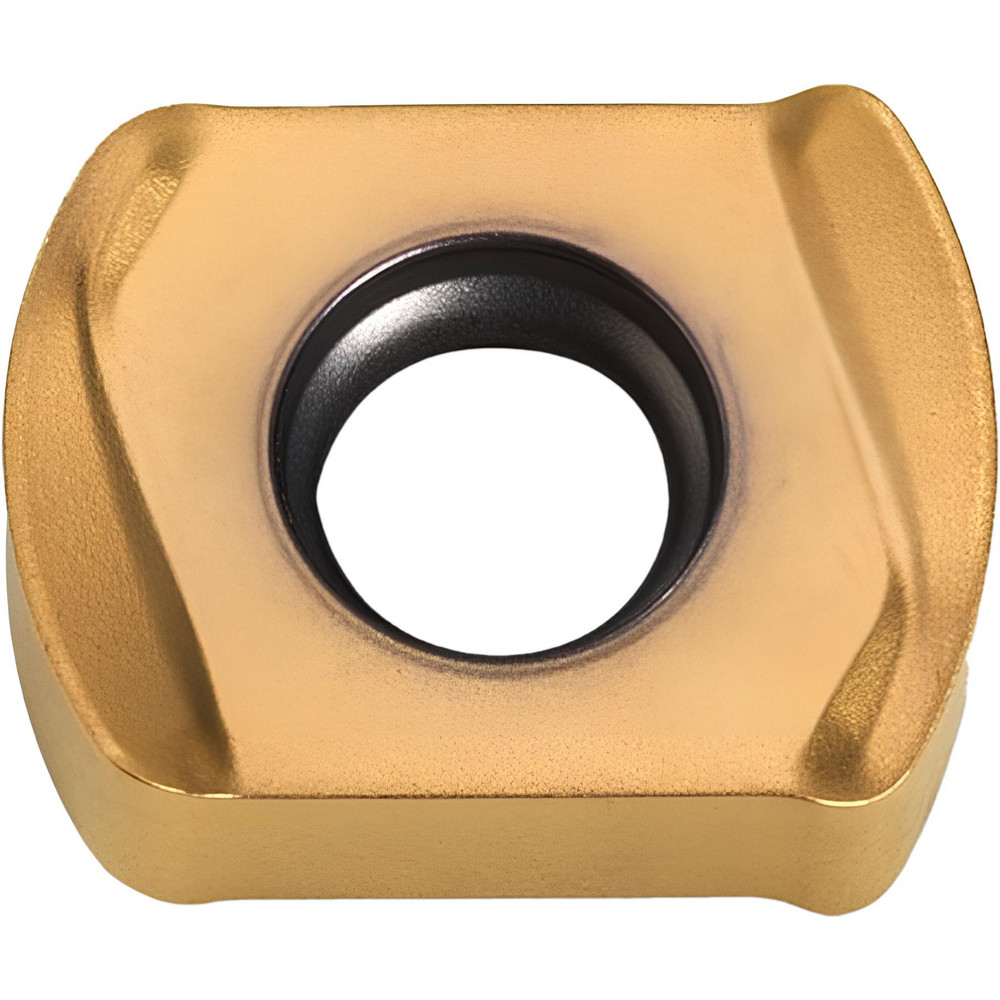

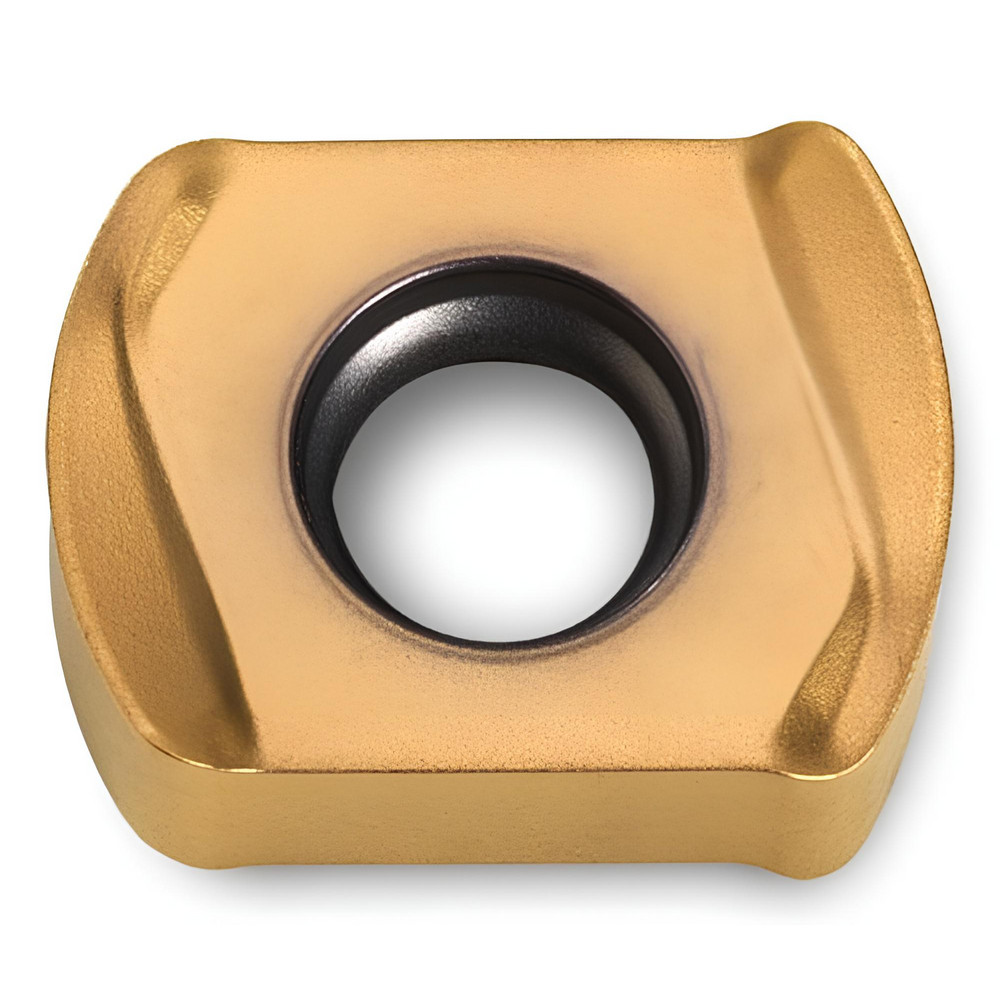

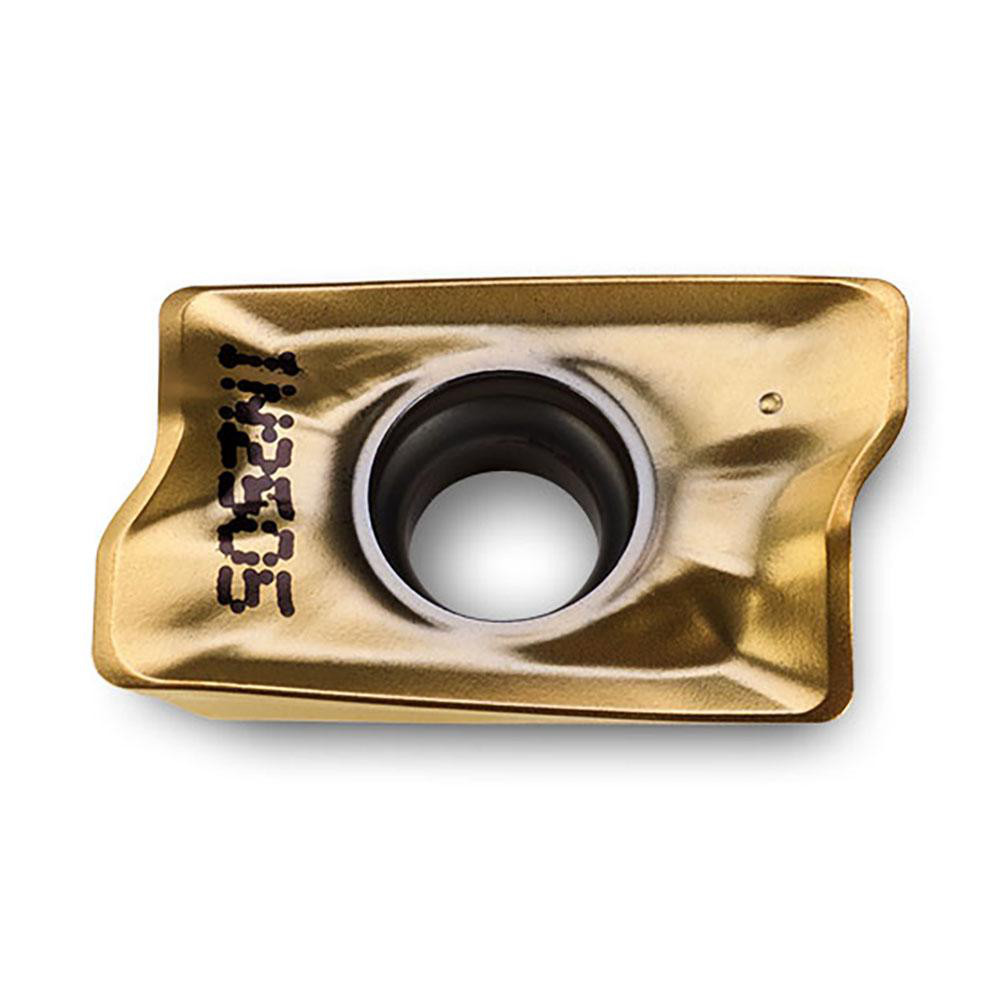

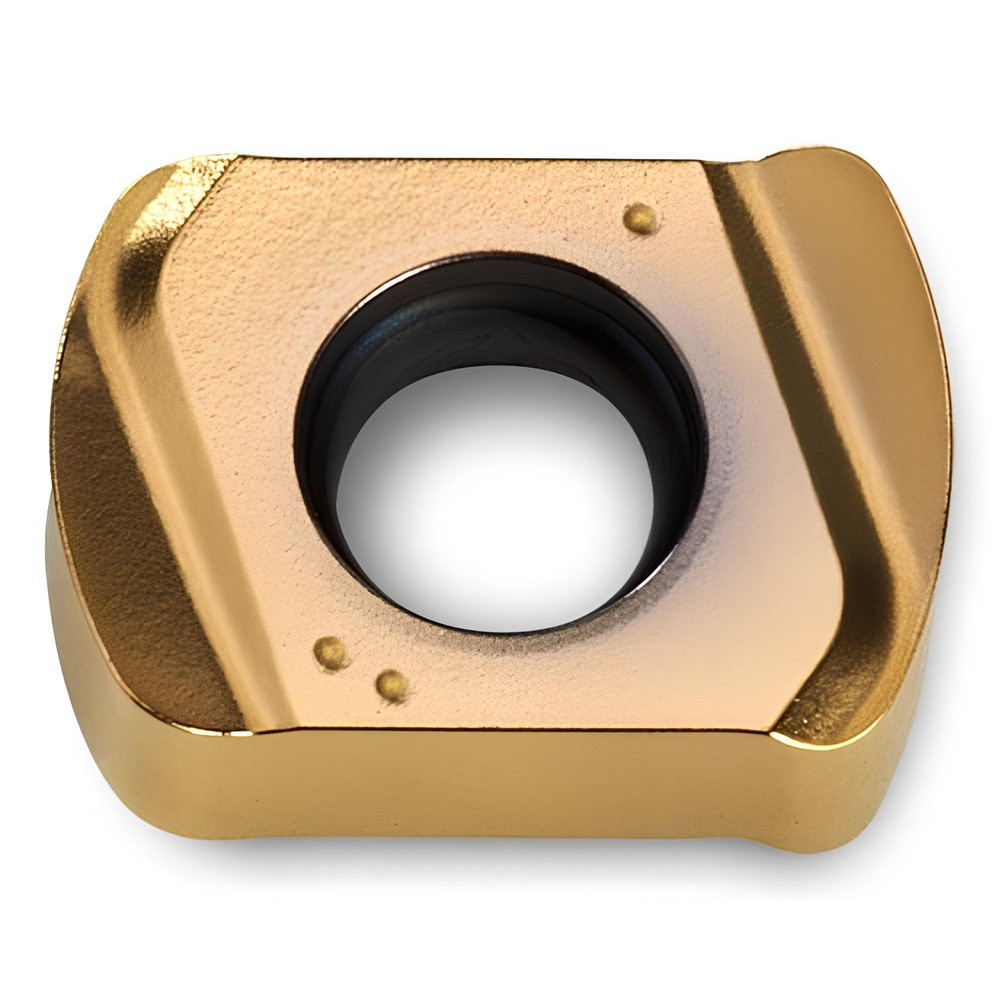

TiAlN & TiN Finish, 0.1420" Thick, 0.2510" Wide
| Insert Style | UNLU |
|---|---|
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Irregular |
| Manufacturer Grade | IN2505 |
| Corner Radius (Decimal Inch) | 0.0400 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1420 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 0603 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.2510 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.2000 to 0.3000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Series | UNLU |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | UNLU0603M0TR IN2505 |
| Iso Code | UNLU0603MOTR IN2505 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | 5812830 |
| Cutter Series Compatibility | 1TG1F; TG1F |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |

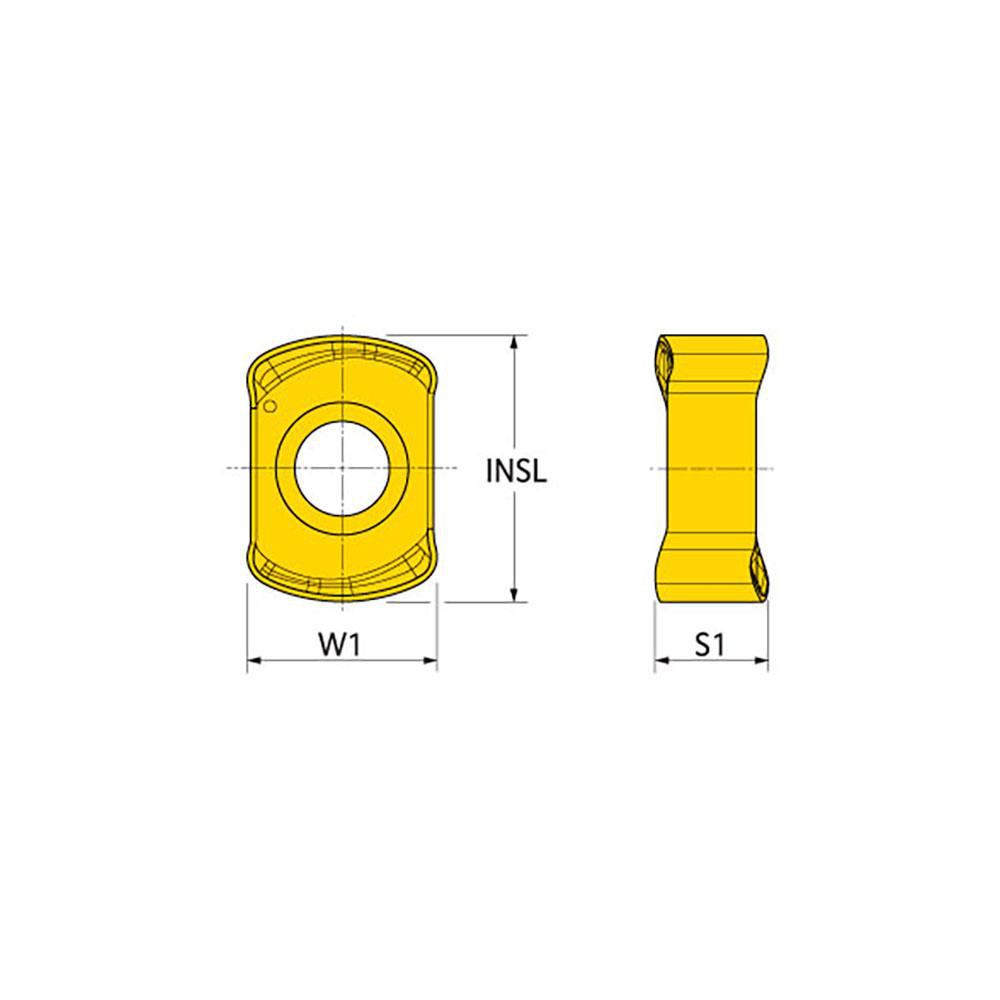

| Width (Decimal Inch - 4 Decimals) | 0.2510 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.3540 |
| undefined | undefined |
| MSC Number | MSC# 78037579 |
