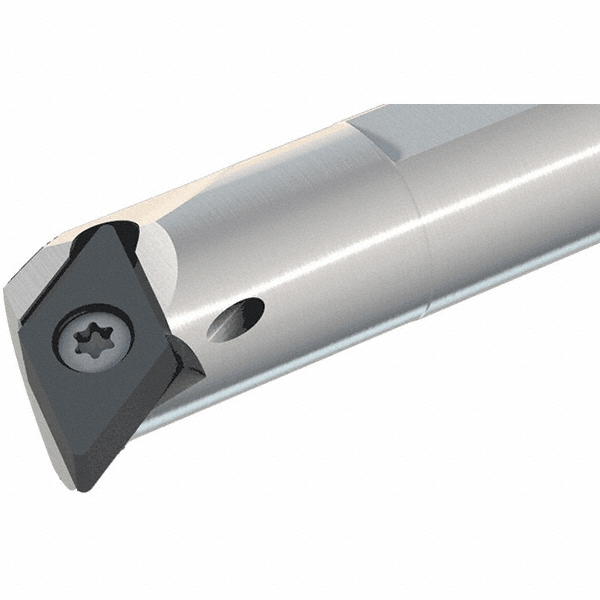

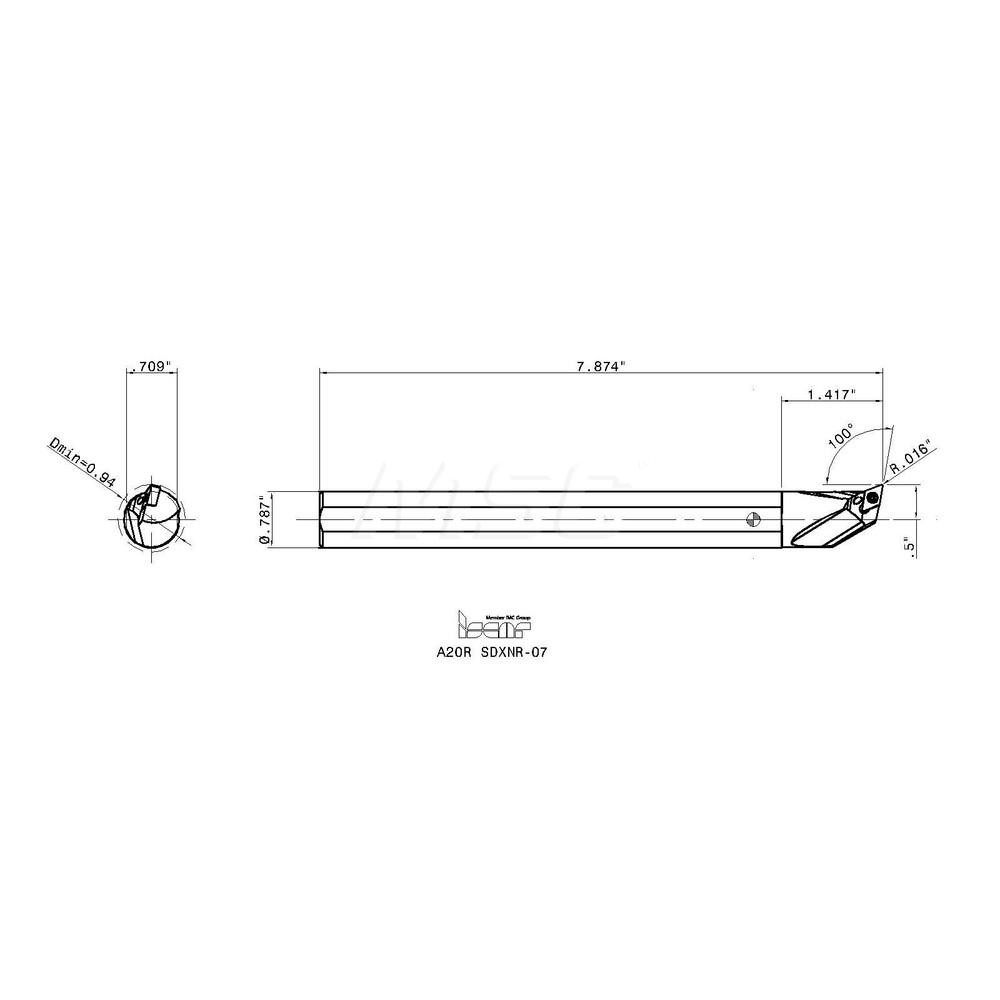

200.00 mm OAL, Screw, Uses DNGP Inserts
| Minimum Bore Diameter (mm) | 24.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.9440 |
| Maximum Bore Depth (Decimal Inch) | 3.1500 |
| Maximum Bore Depth (mm) | 80.00 |
| Toolholder Style | A20R SDXNR; A20R SDXNL |
| Insert Compatibility | DNGP |
| Shank Diameter (mm) | 20.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 7.8740 |
| Overall Length (mm) | 200.00 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative (Axial); Negative (Radial) |
| Lead Angle | 100 |
| Series | Isoturn |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (mm) | 12.60 |
| Standards | ISO 13399 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 46700845 |
