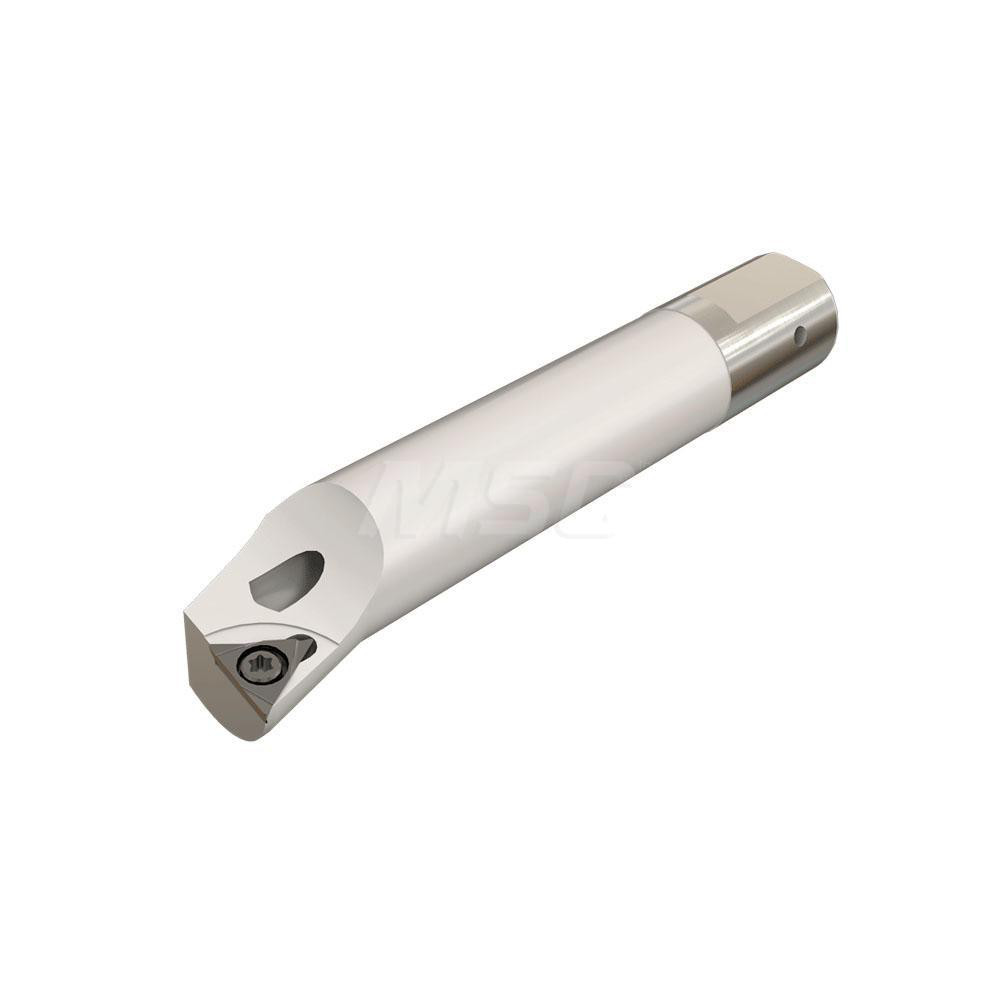

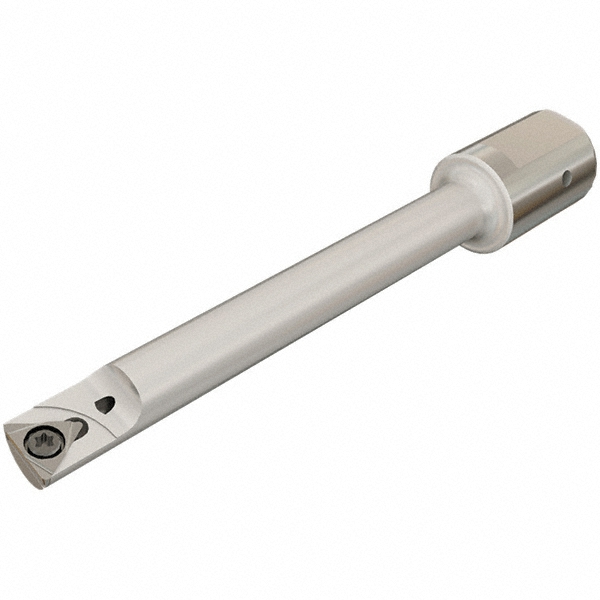

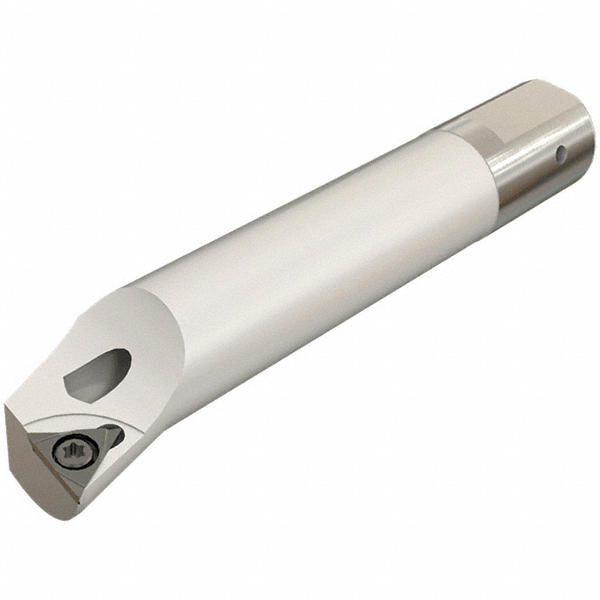

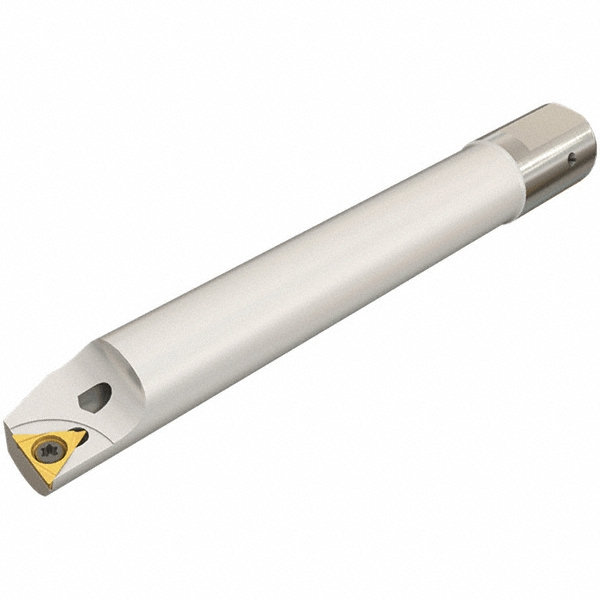

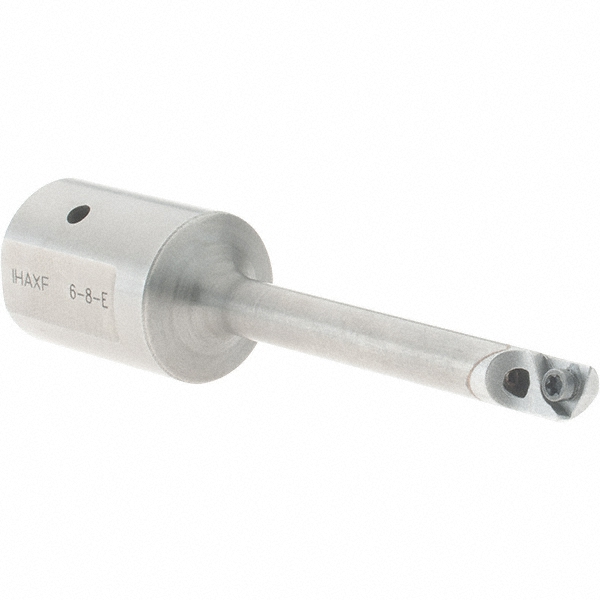

70.00 mm OAL, Screw, Uses TPGX 73.. Inserts
| Minimum Bore Diameter (mm) | 11.99 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.4720 |
| Maximum Bore Depth (Decimal Inch) | 1.6540 |
| Maximum Bore Depth (mm) | 42.01 |
| Toolholder Style | IHAXF |
| Insert Compatibility | TPGX 73.. |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 2.7560 |
| Overall Length (mm) | 70.00 |
| Compatible Insert Size Code | 73 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Rake | Positive |
| Lead Angle | 3 |
| Series | Itsbore |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Standards | ISO 13399 |
| Maximum Bore Diameter (mm) | 14.00 |
| UNSPSC Code | 23241601 |
| Maximum Bore Diameter (Decimal Inch) | 0.5510 |
| Coolant Through | Yes |
| Country of Origin | Italy |
| MSC Number | MSC# 61813176 |
