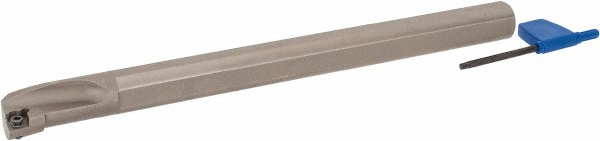

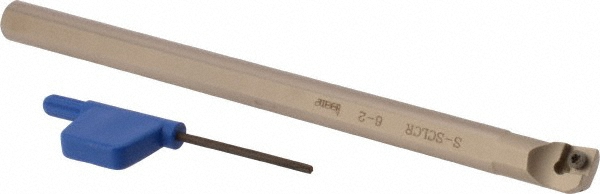

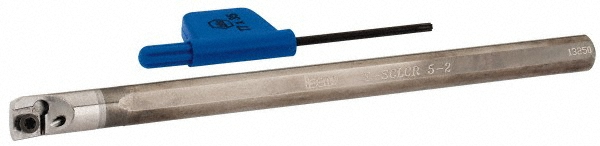

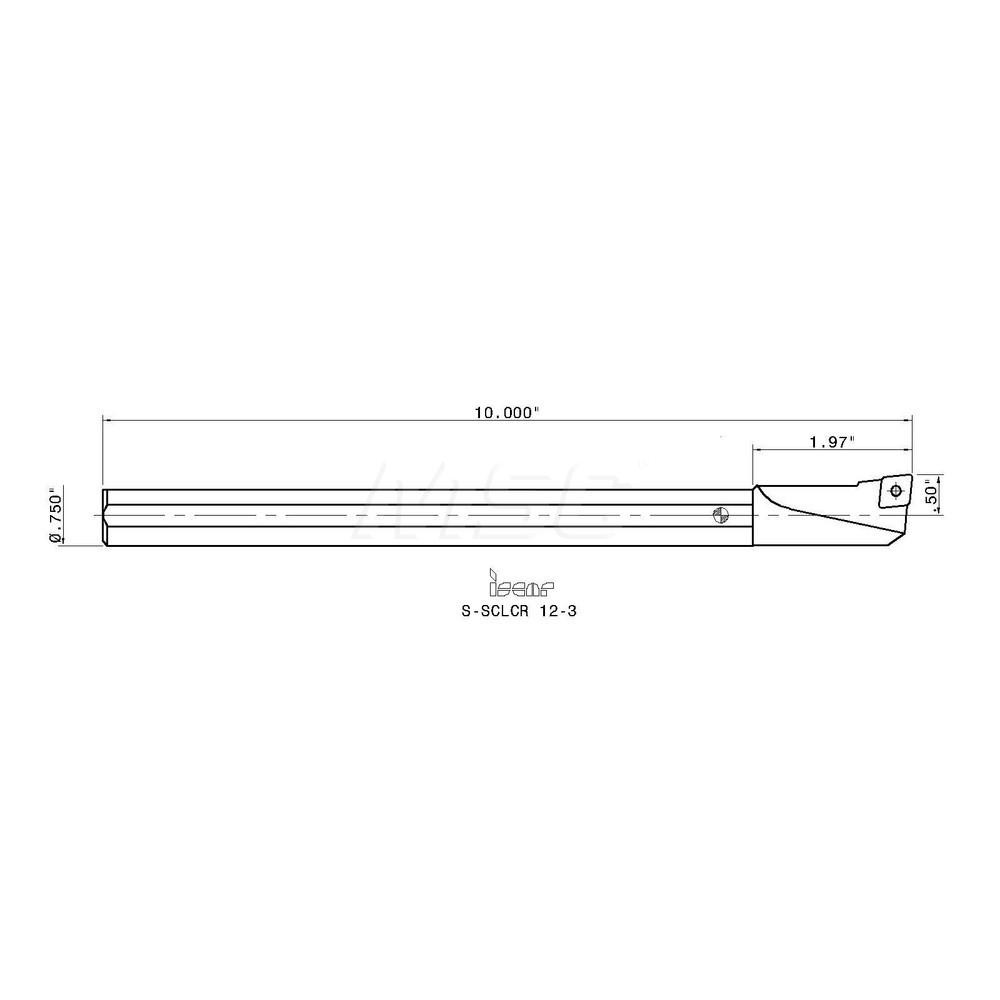

10.0000" OAL, Screw, Uses CC.. 32.52 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.9850 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.9700 |
| Toolholder Style | S-SCLC |
| Tool Material | Steel |
| Insert Compatibility | CC.. 32.52 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Compatible Insert Size Code | 3 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Neutral (Axial); Negative (Radial) |
| Lead Angle | -5 |
| Series | Isoturn |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Standards | ISO 13399 |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 60923265 |
