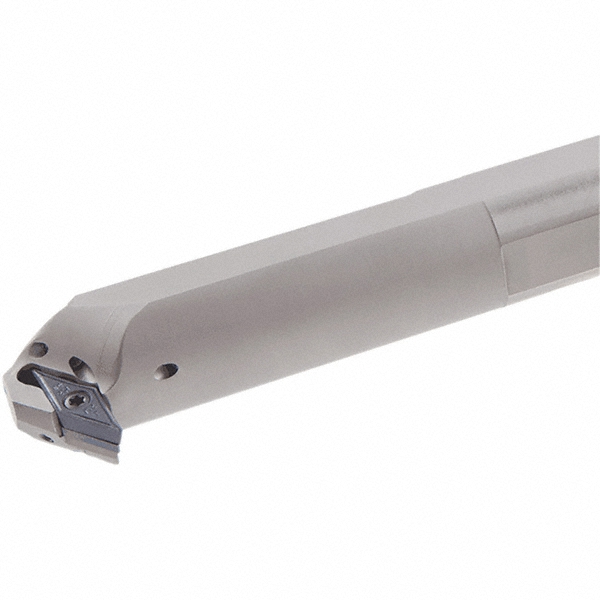

300.00 mm OAL, Screw, Uses VBMT 1604T & VC.. 1604.. Inserts
| Minimum Bore Diameter (mm) | 40.00 |
|---|---|
| Maximum Bore Depth (mm) | 63.20 |
| Toolholder Style | S-SVLBC |
| Tool Material | Steel |

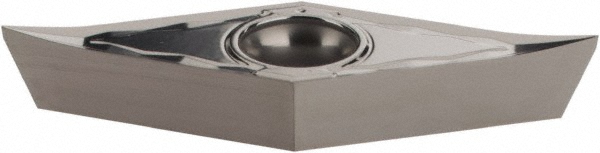

| Insert Compatibility | VBMT 1604T; VC.. 1604.. |
| Shank Diameter (mm) | 32.00 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 300.00 |
| Compatible Insert Size Code | 1604 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -8.00 |
| Series | Isoturn |
| Insert Inscribed Circle (mm) | 9.52 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (mm) | 22.00 |
| Standards | ISO 13399 |
| UNSPSC Code | 23241601 |
| Shank Height (Decimal Inch) | 1.1420 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 77176527 |
