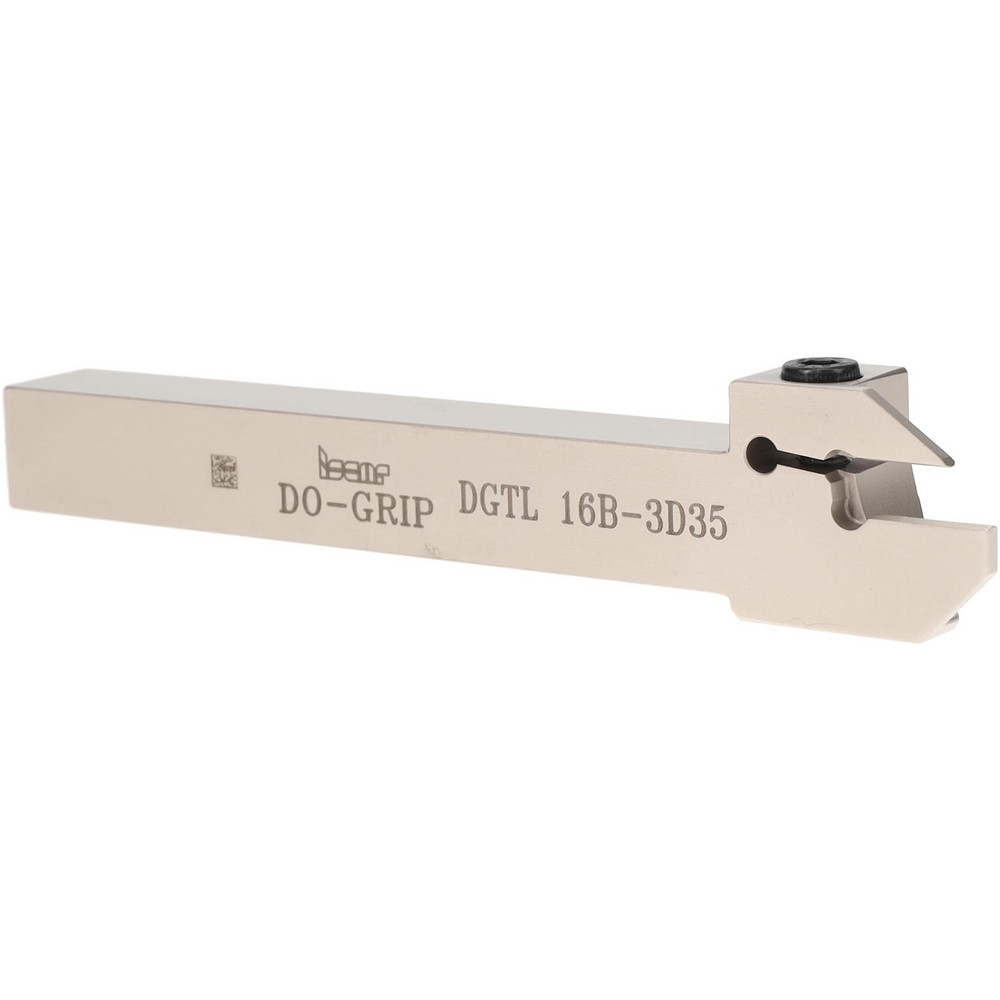

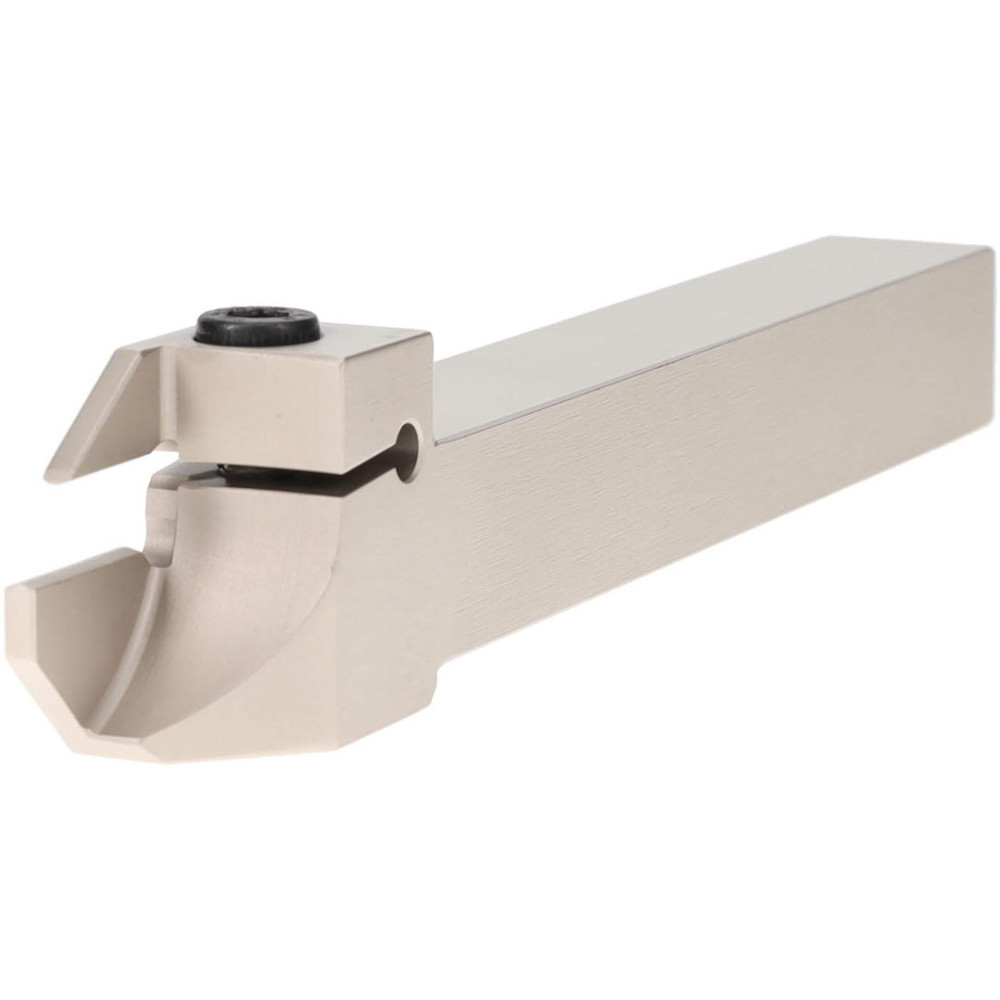

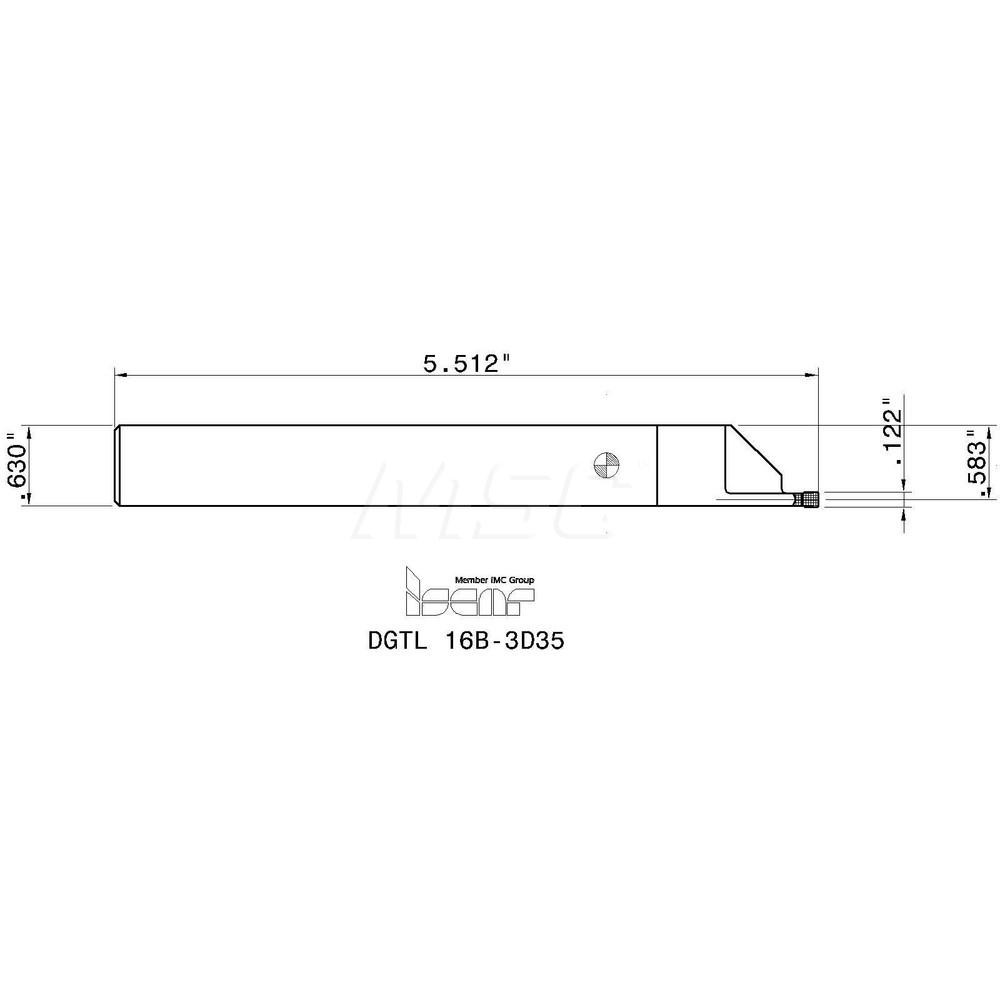

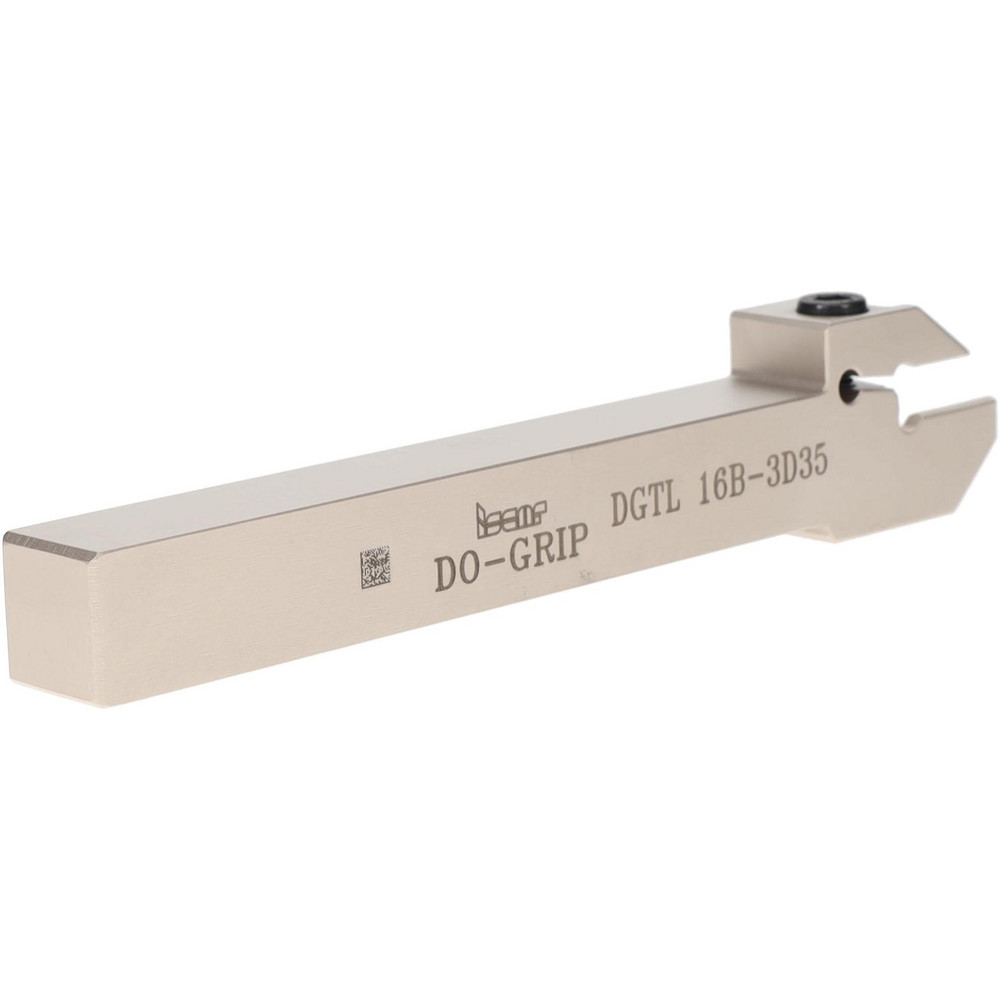

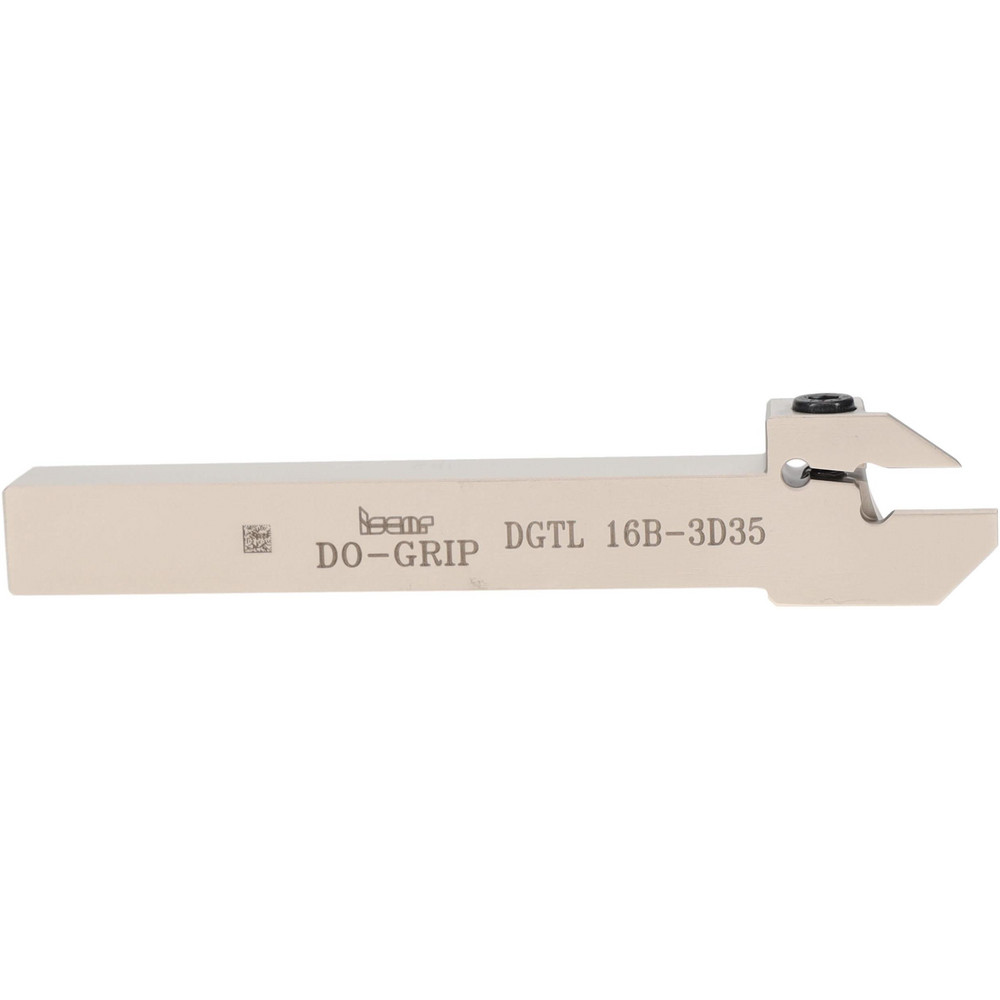

Uses DG. 1.., DG. 3.. Inserts, 16 x 16 mm Shank, Series Do Grip
| Hand of Holder | Left Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (mm) | 3.18 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | DGT |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | DGR/L-J/JS; DGN/DGNM-J/JS/JT |
| Insert Compatibility | DG. 3..; DG. 1.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Length (mm) | 107.90 |
| Shank Length (Decimal Inch) | 4.2362 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Series | Do Grip |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5000 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | No |
| Head Length (Decimal Inch) | 1.2638 |
| Head Length (mm) | 32.10 |
| Standards | ISO 13399 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| MSC Number | MSC# 52701463 |
