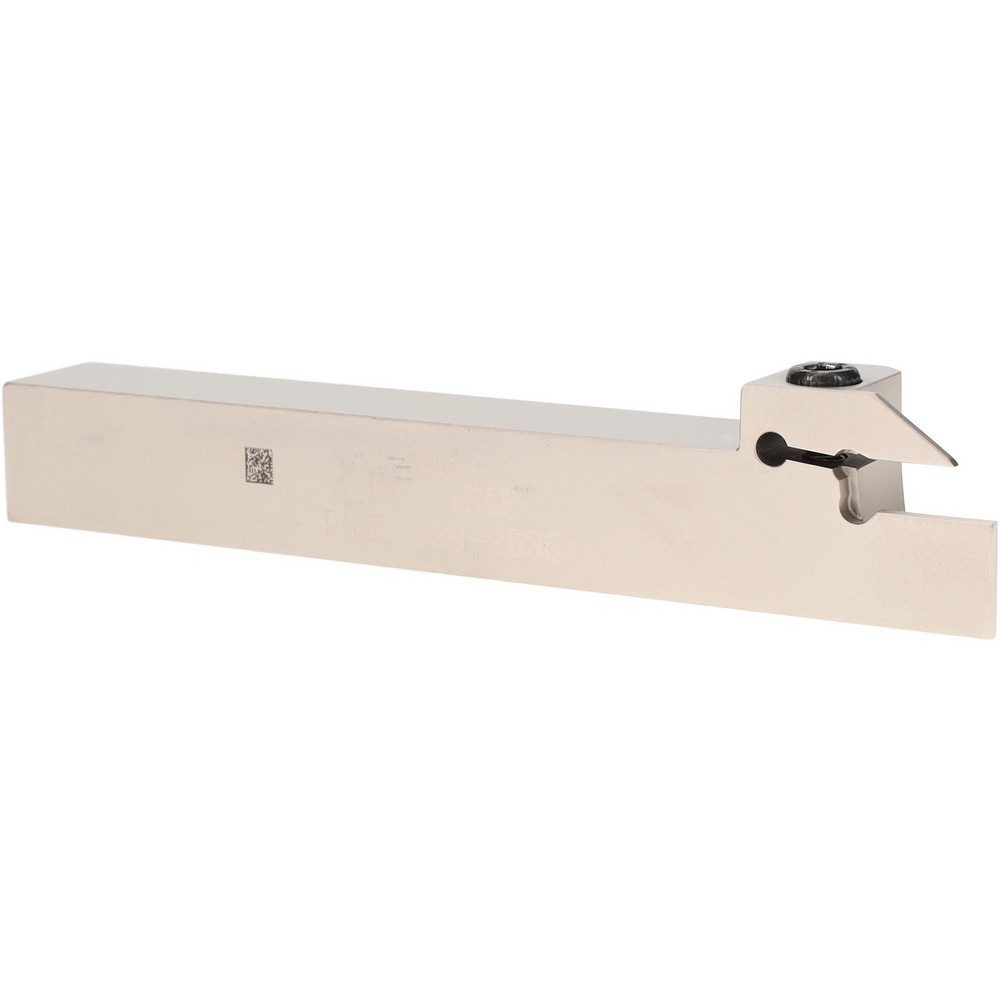

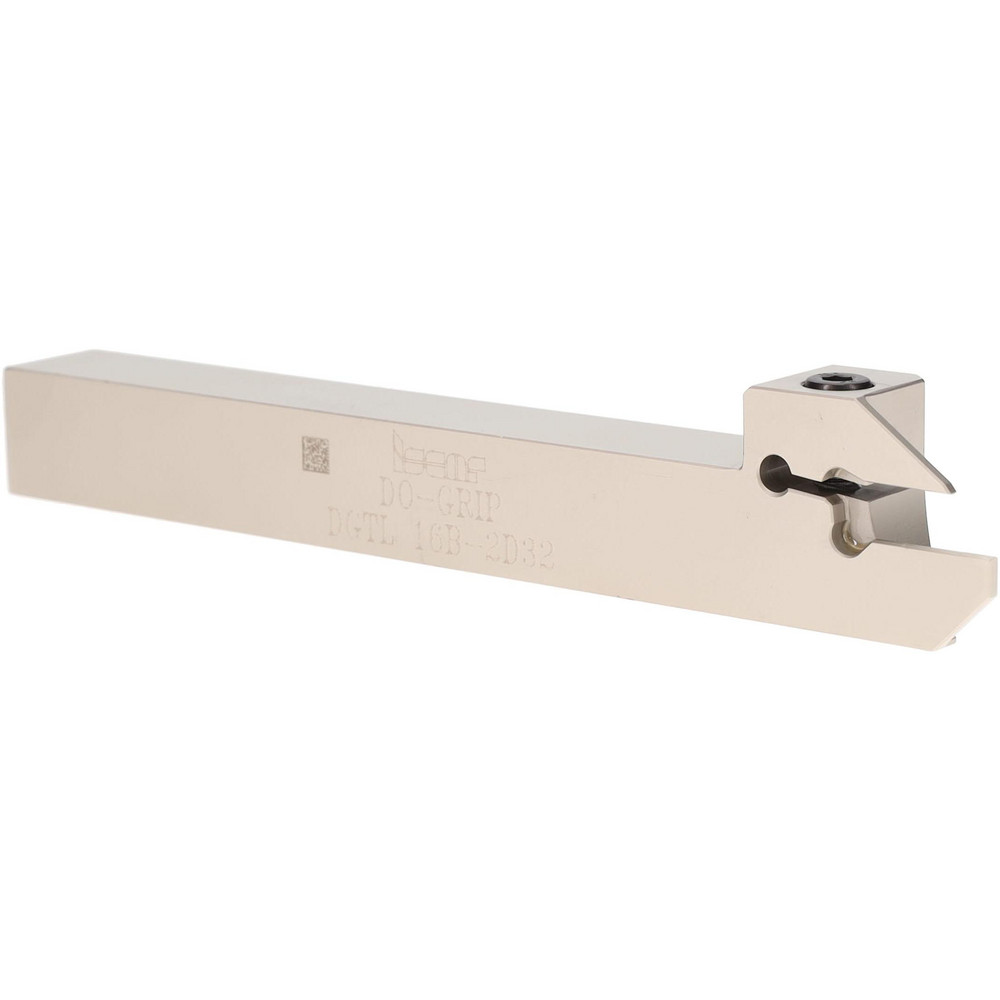

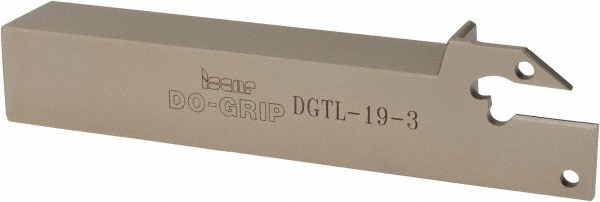

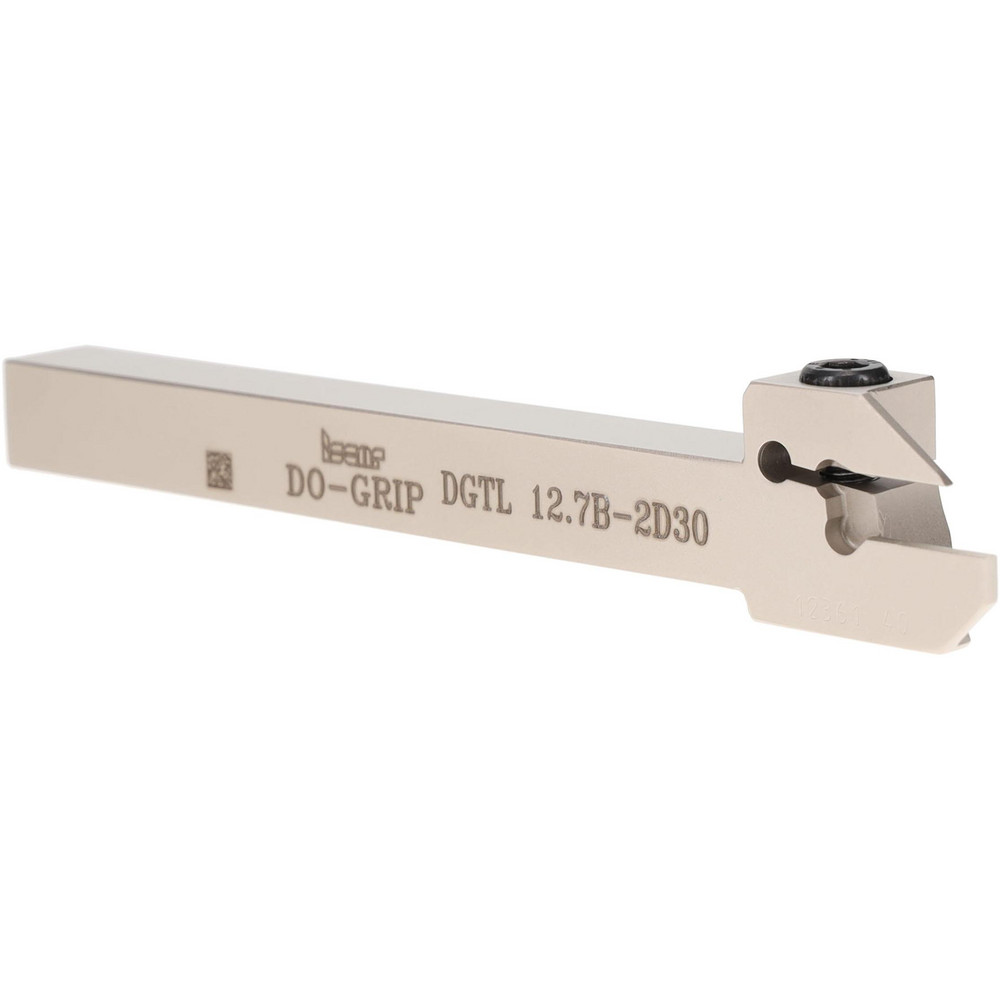

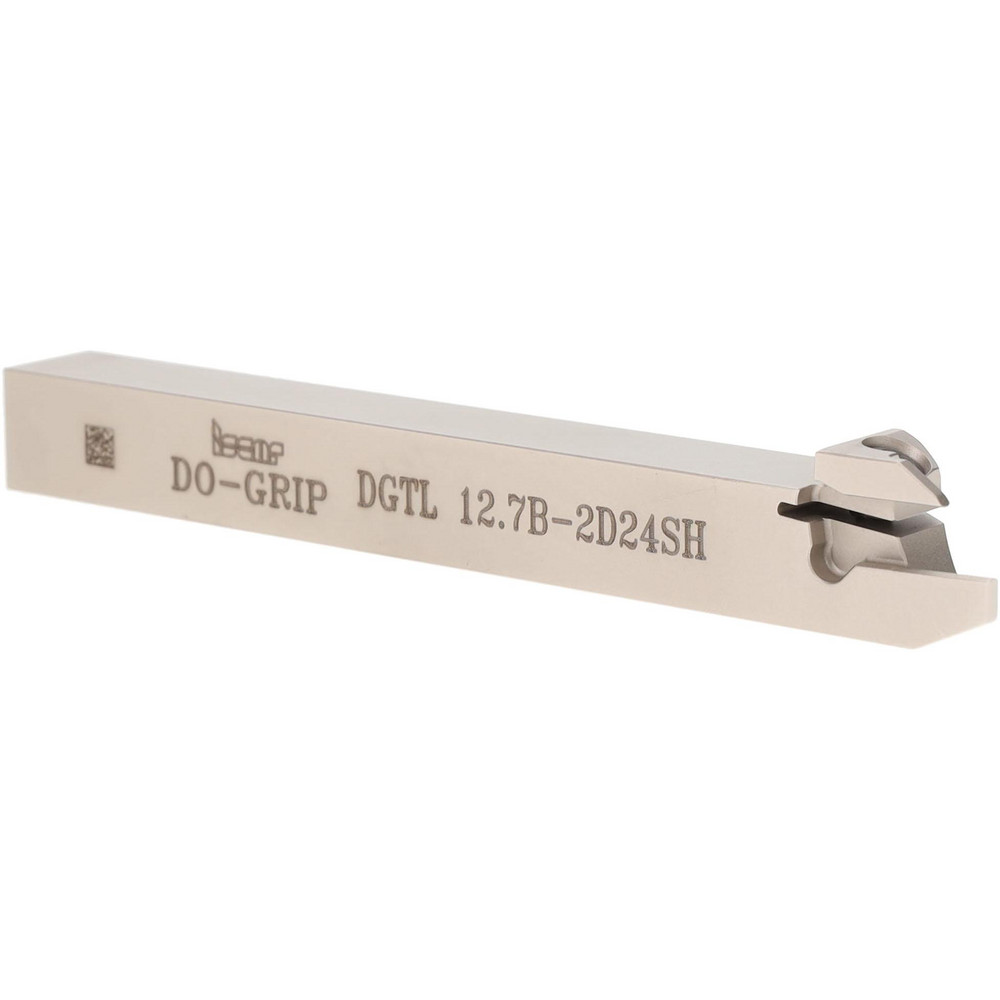

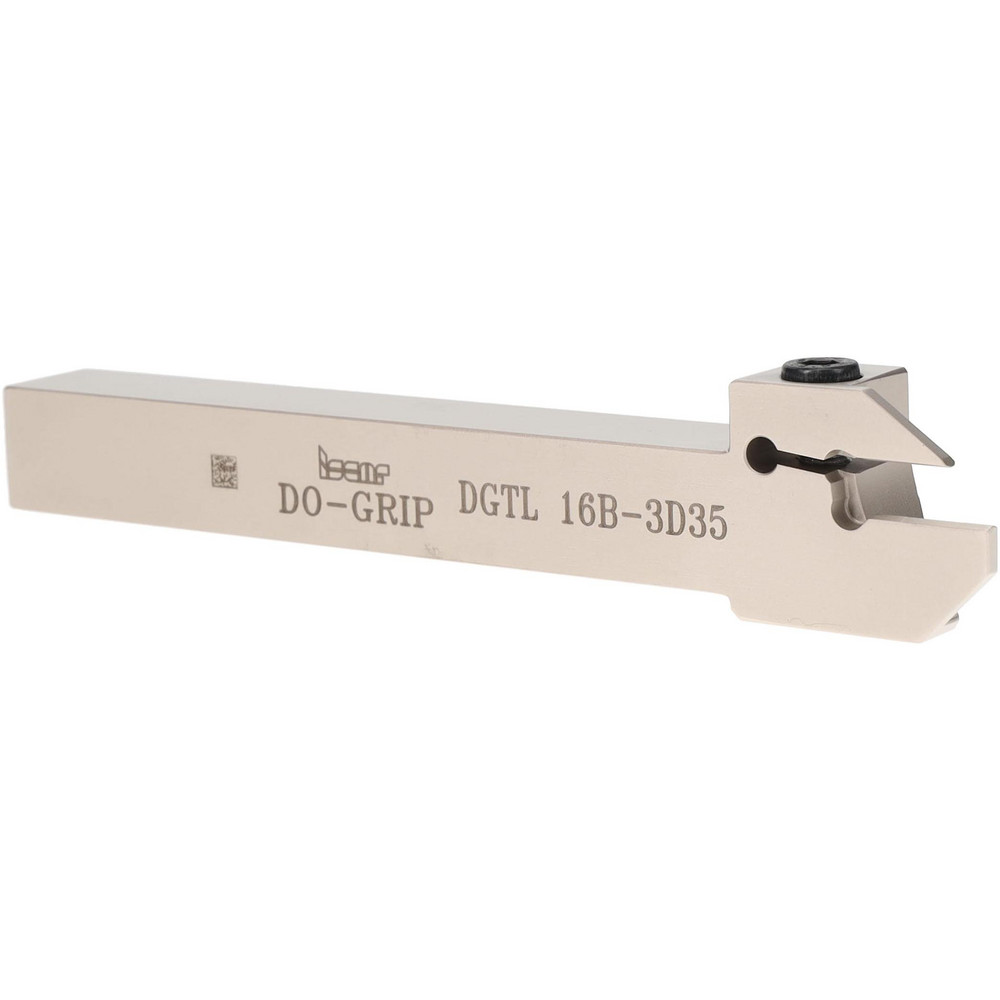

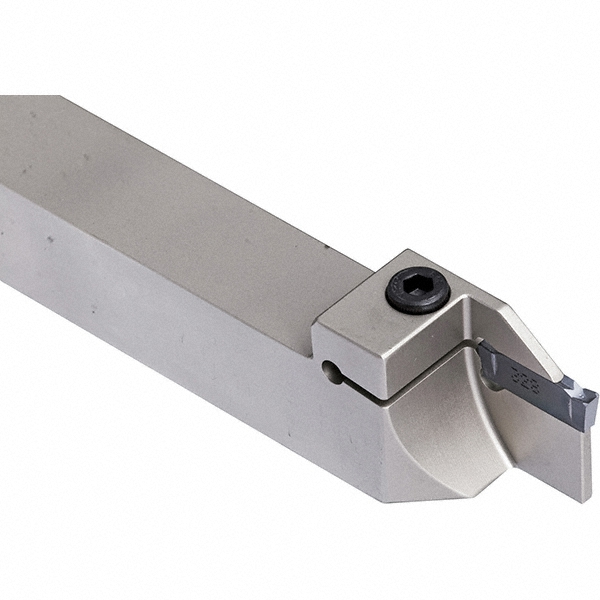

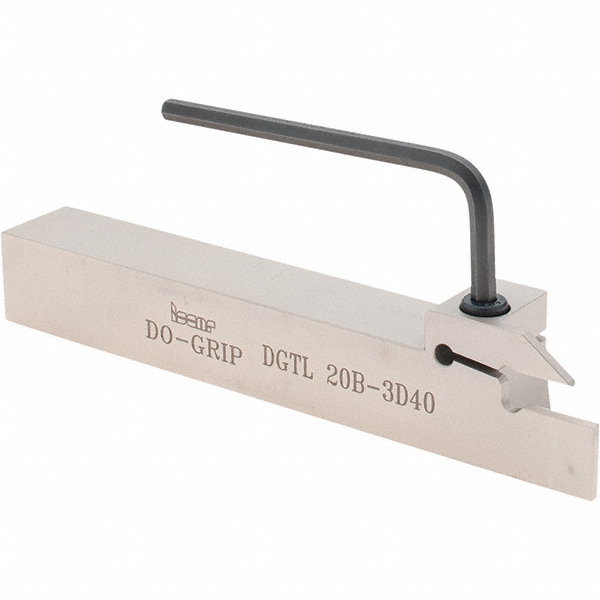

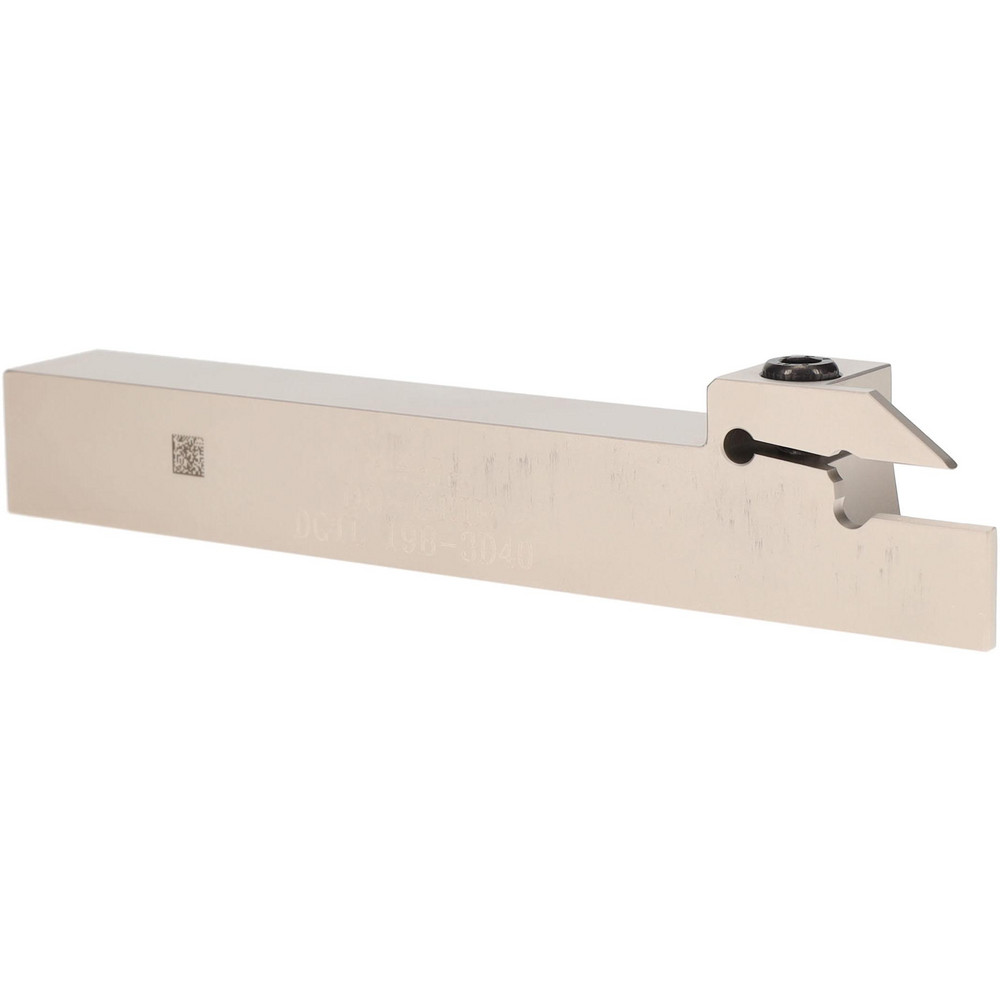

Uses DGN Inserts, 20 x 20 mm Shank, Series Do-Grip
| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Groove Width (Decimal Inch) | 0.1252 |
| Maximum Groove Width (mm) | 3.18 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | DGT |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | DGR/L-J/JS; DGN/DGNM-J/JS/JT |
| Insert Compatibility | DGN |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Length (mm) | 104.40 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | Do-Grip |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7402 |
| Head Length (mm) | 35.60 |
| Standards | ISO 13399 |

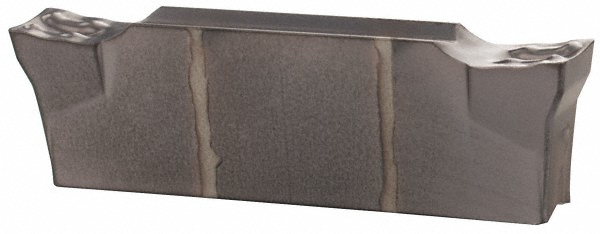

| Complete Insert Compatibility | DGN 3002Z; DGNC 3102C; DGN 3102J; DGNM 3202J; DGN 3003UA; DGN 3003UT; DGN 3000P; DGN 3102C; DGN 3100JS; DGN 3202J; DGNM 3202C; DGN 3102JT |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Product Service Code | 3455 |
| Country of Origin | Israel |
| MSC Number | MSC# 05414321 |
