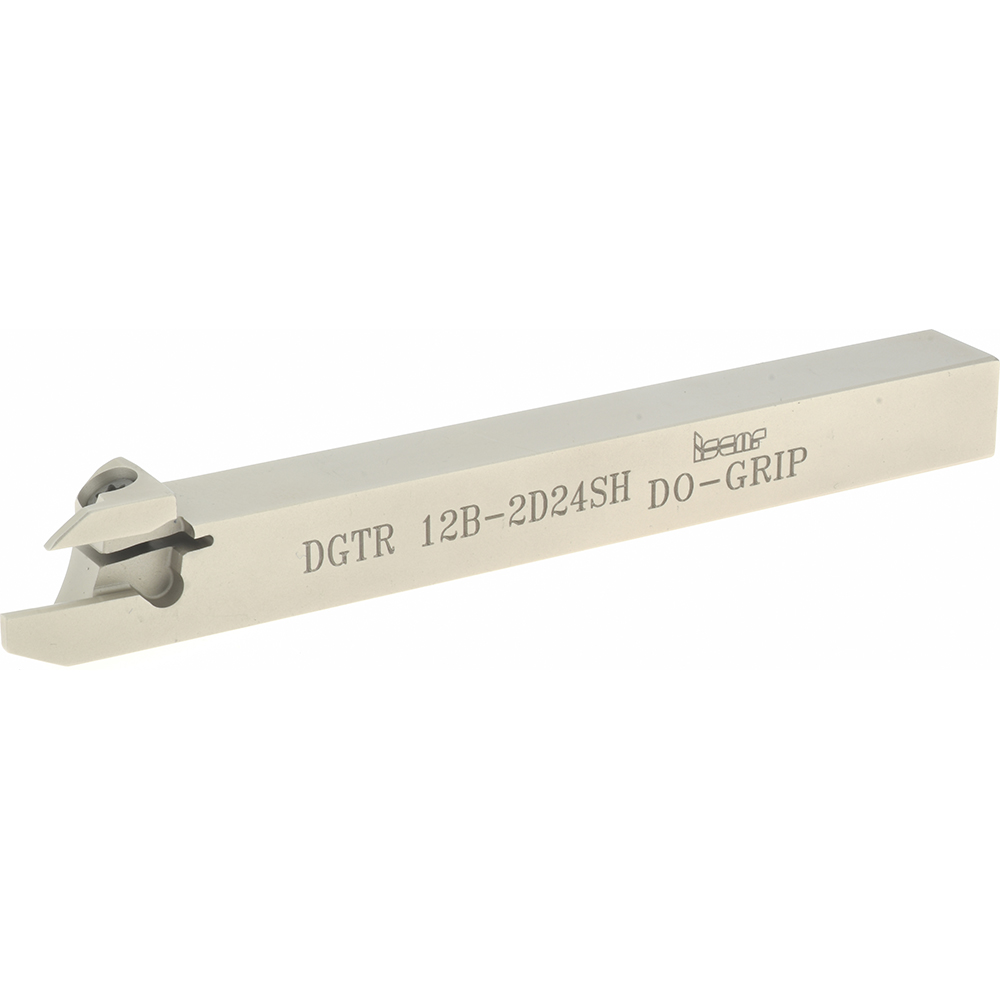

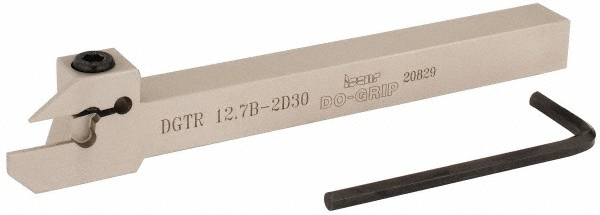

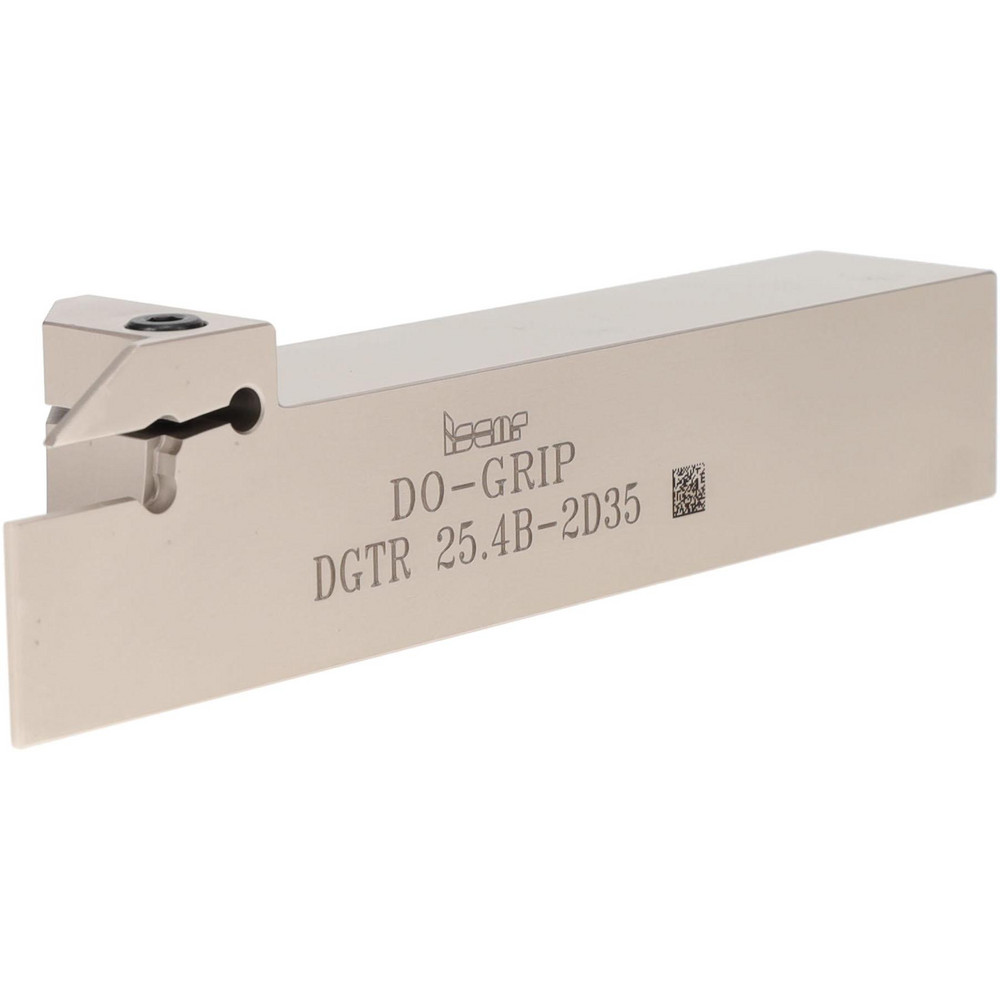

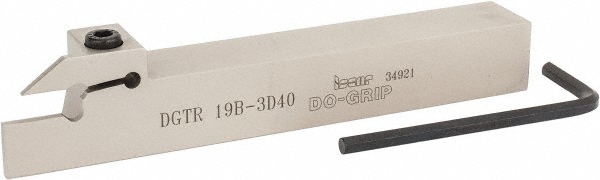

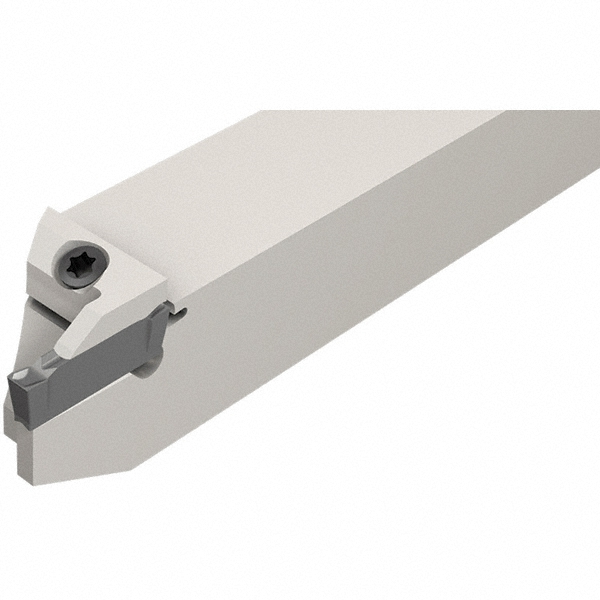

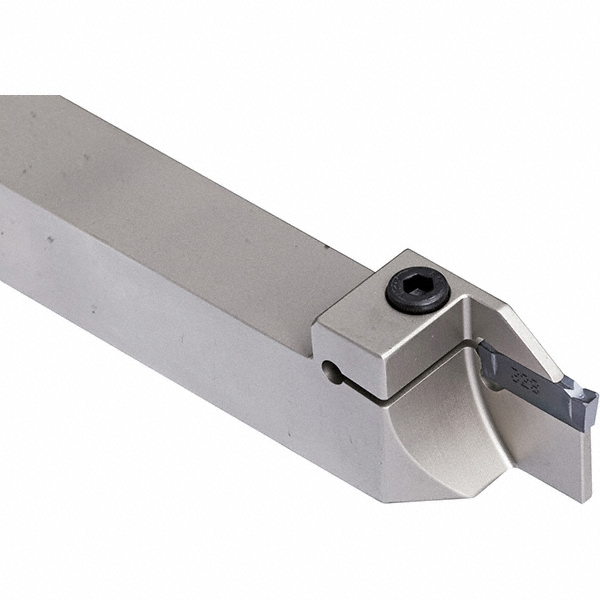

Uses DGN Inserts, 10 x 10 mm Shank, Series Do-Grip
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Maximum Groove Width (mm) | 2.50 |
| Minimum Groove Width (Decimal Inch) | 0.0748 |
| Minimum Groove Width (mm) | 1.90 |
| Toolholder Style | DGT |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | DGR/L-J/JS; DGN/DGNM-J/JS/JT |
| Insert Compatibility | DGN |
| Shank Height (mm) | 10.00 |
| Shank Height (Decimal Inch) | 0.3937 |
| Shank Length (mm) | 110.40 |
| Shank Width/Diameter (Decimal Inch) | 0.3937 |
| Shank Width/Diameter (mm) | 10.00 |
| Series | Do-Grip |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3622 |
| Head Length (mm) | 29.60 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | DGN 1900WP; DGN 2002JT; DGN 2502C; DGN 2000P; DGN 2400WP; DGN 2202C; DGN 2002C; DGN 2200JS; DGN 2202JT; DGN 2202J; DGN 2202UA; DGN 2202UT |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52701711 |
