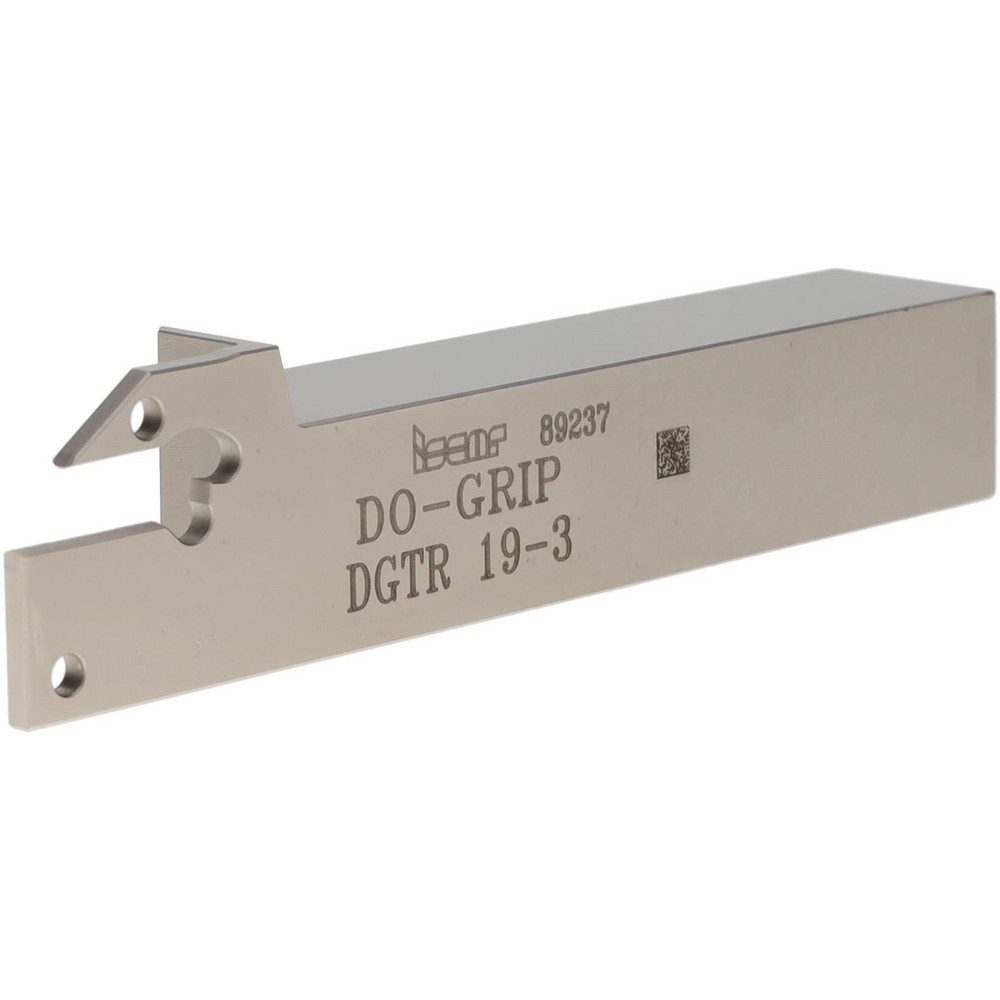

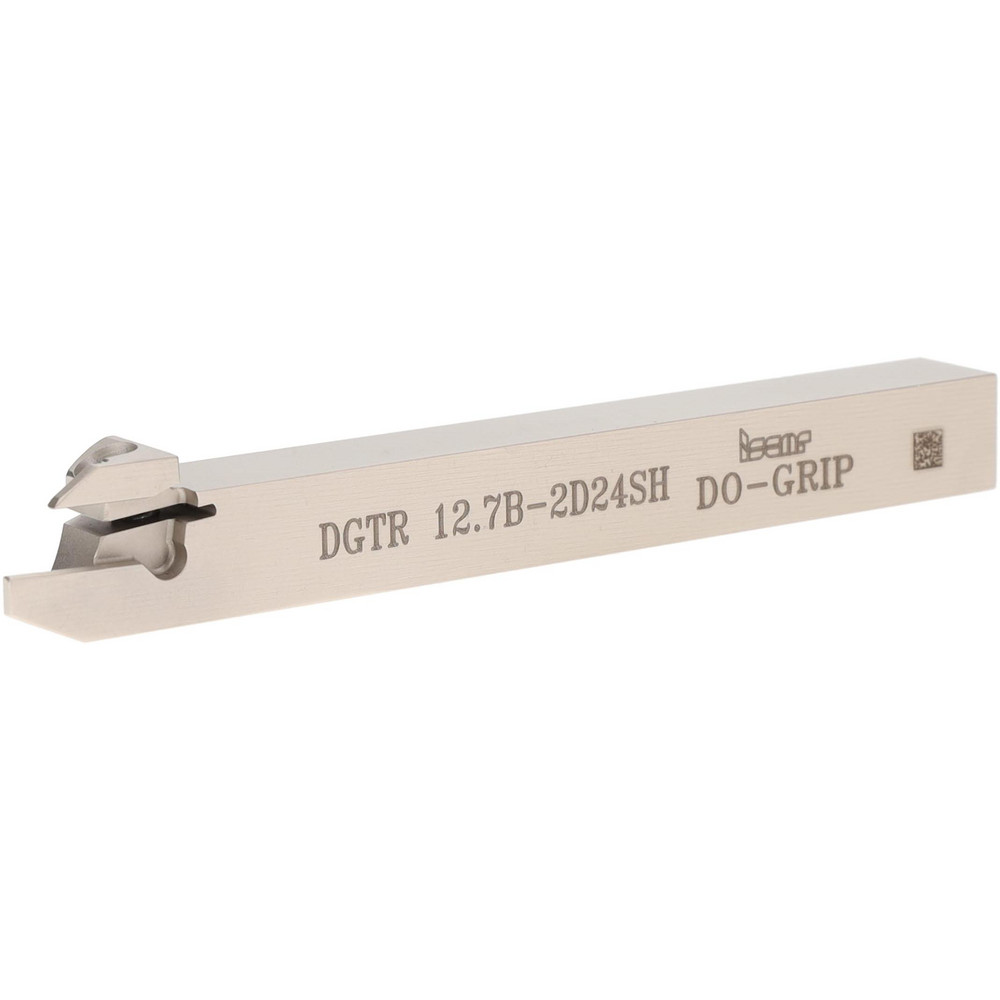

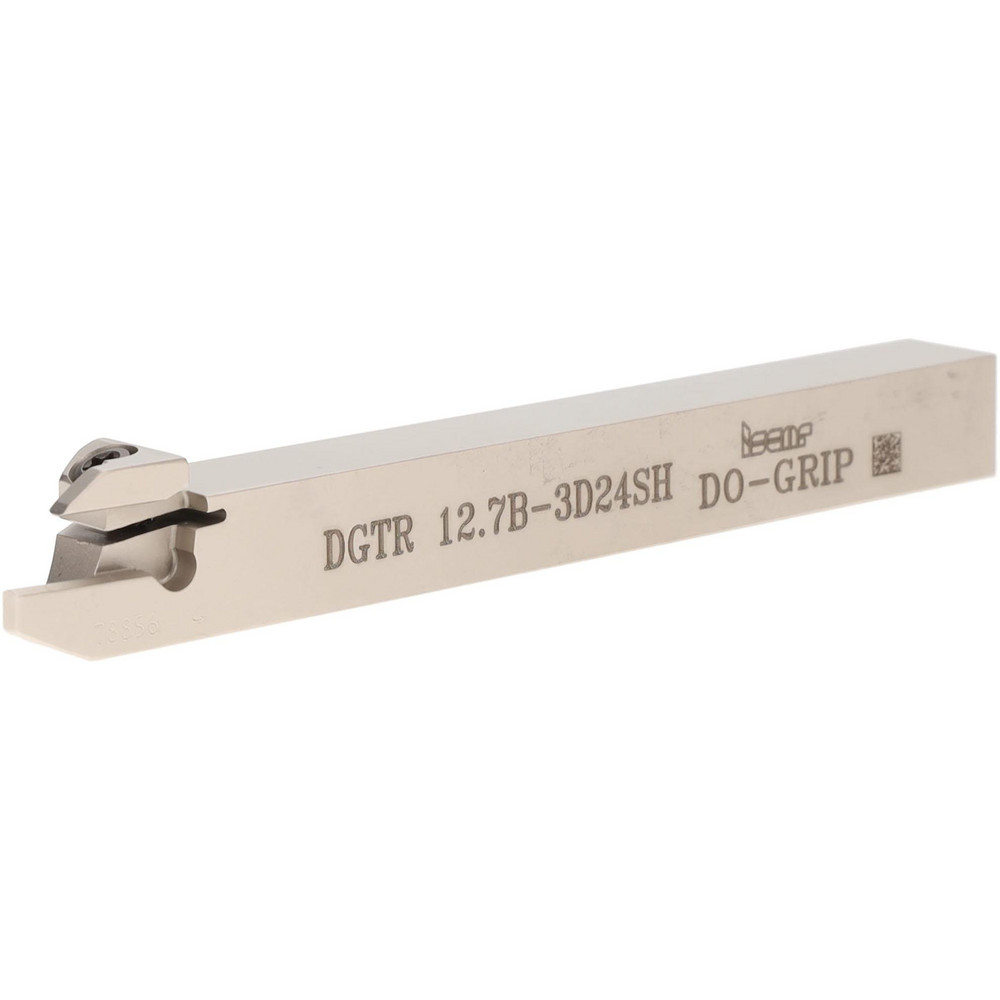

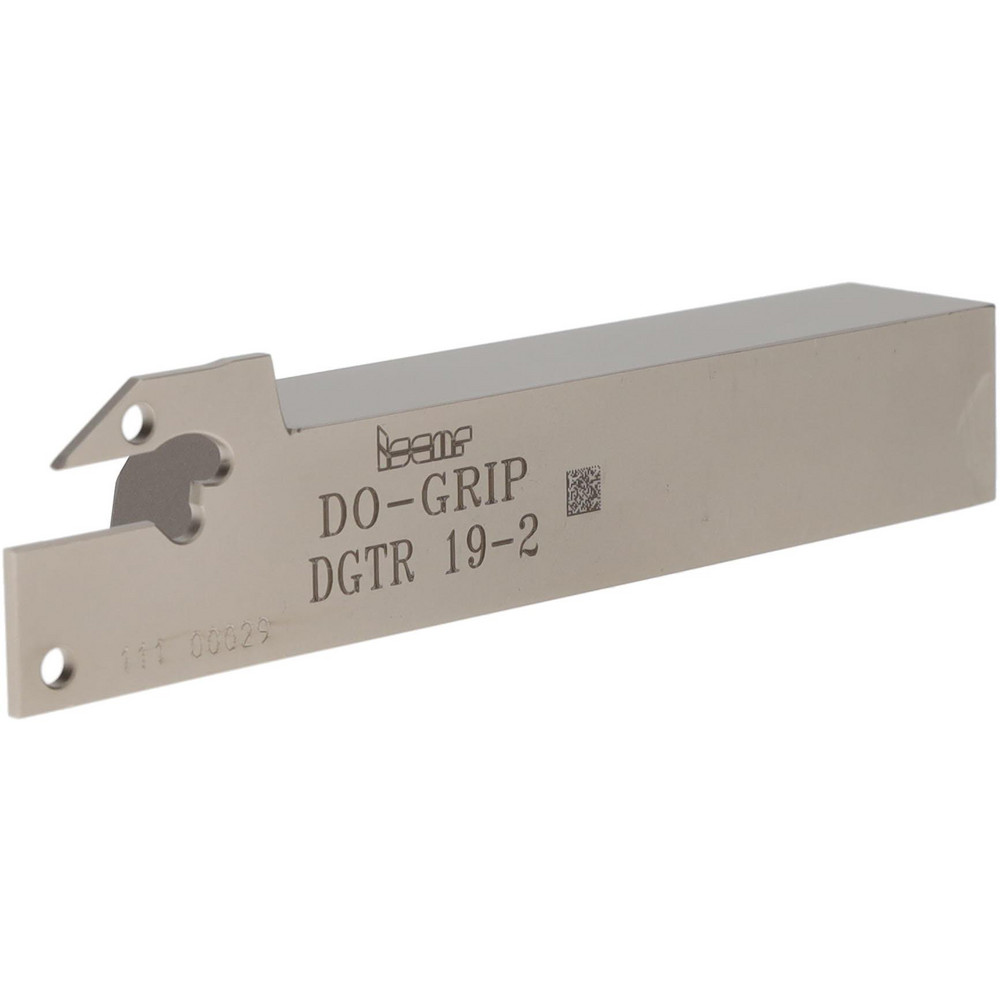

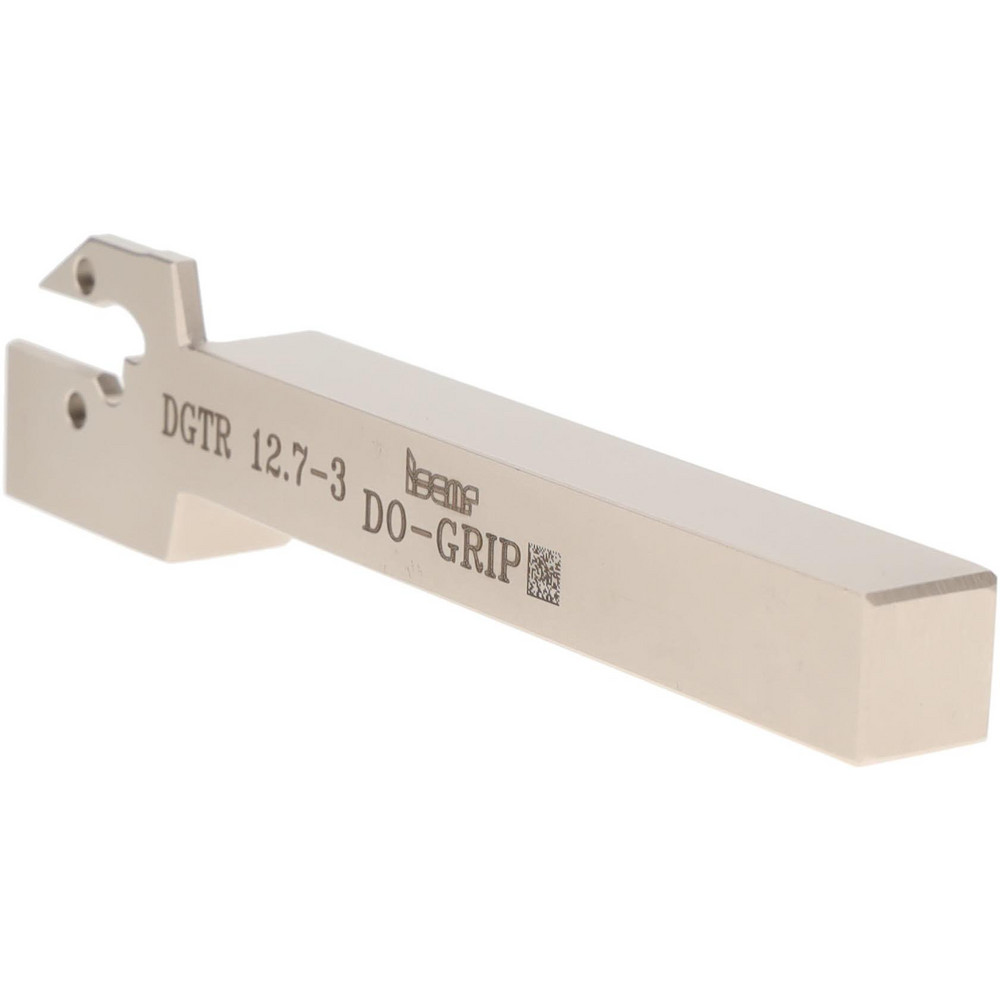

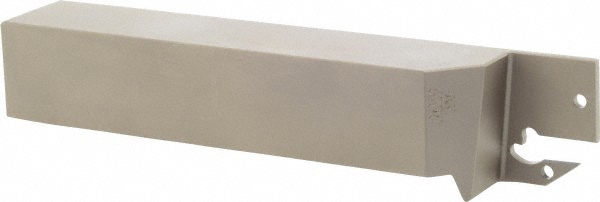

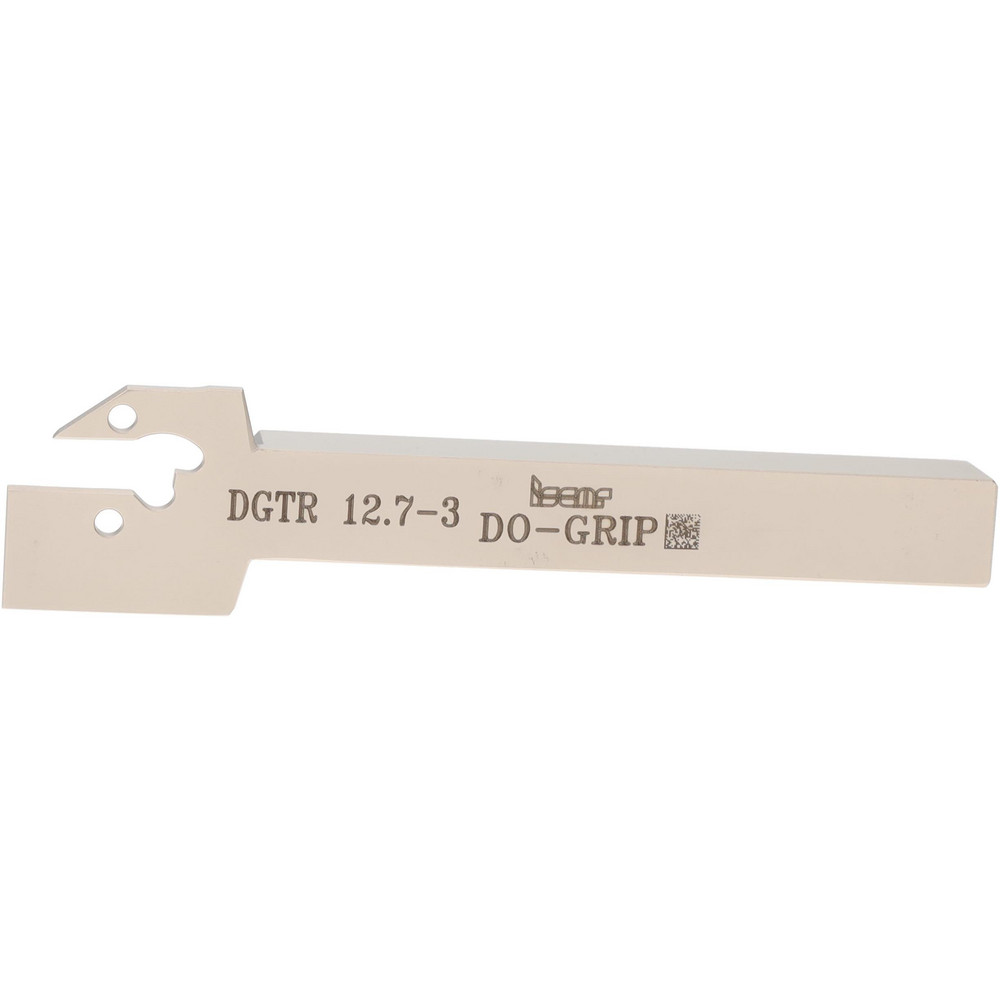

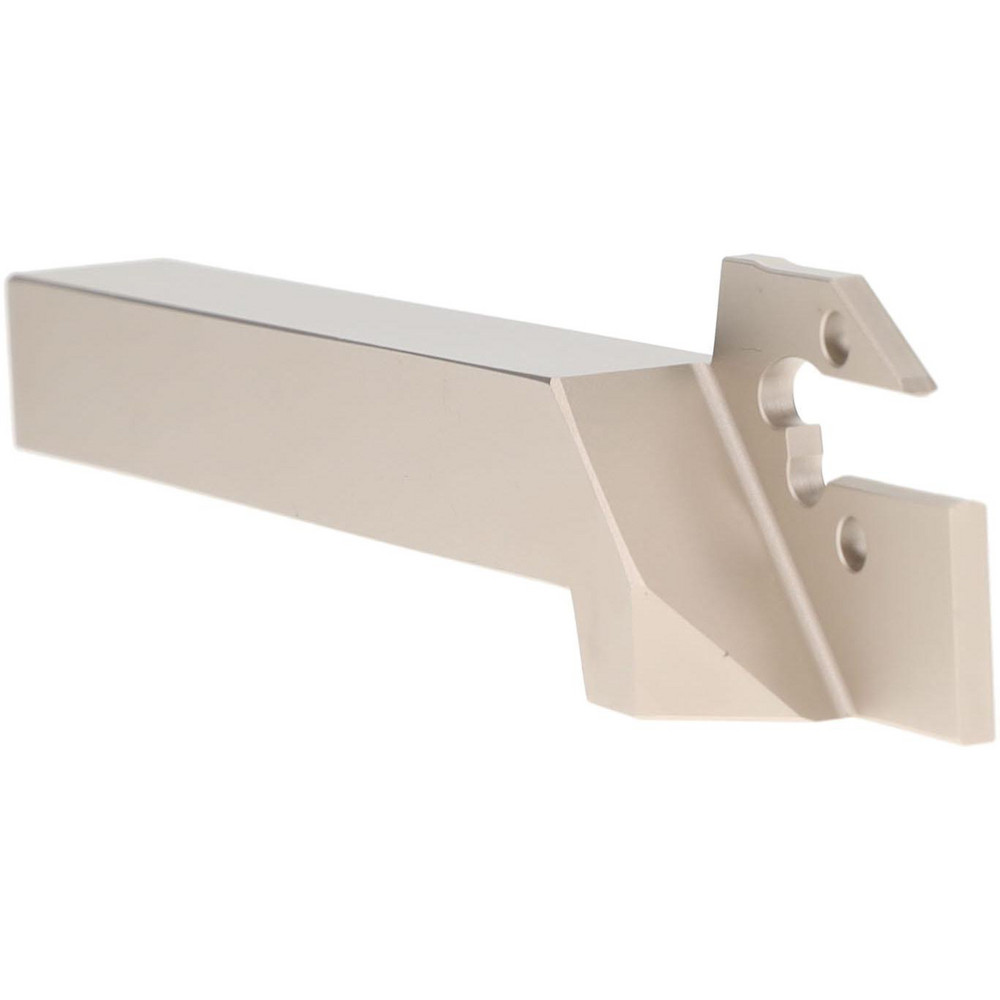

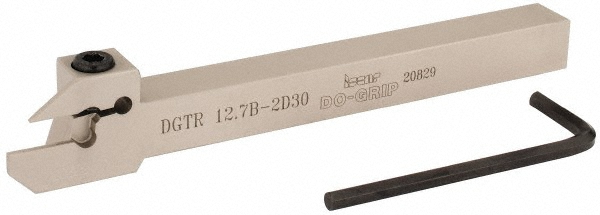

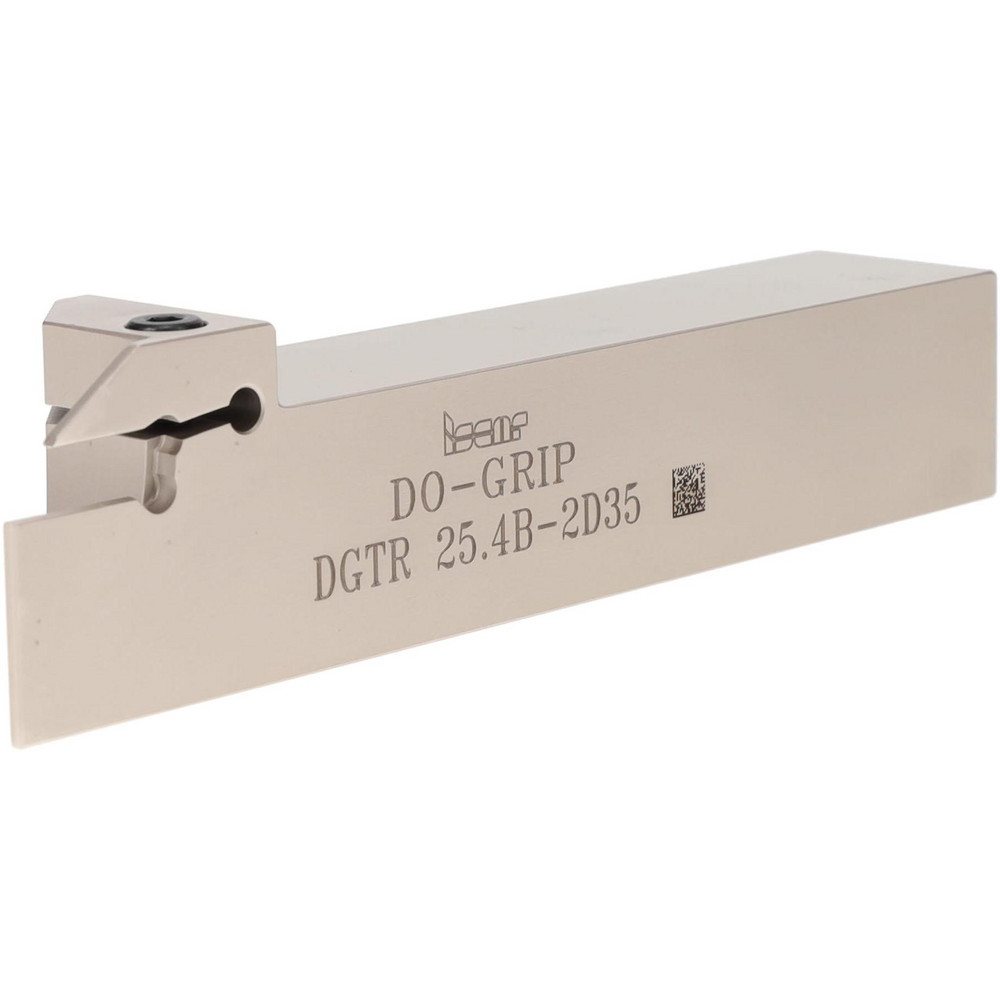

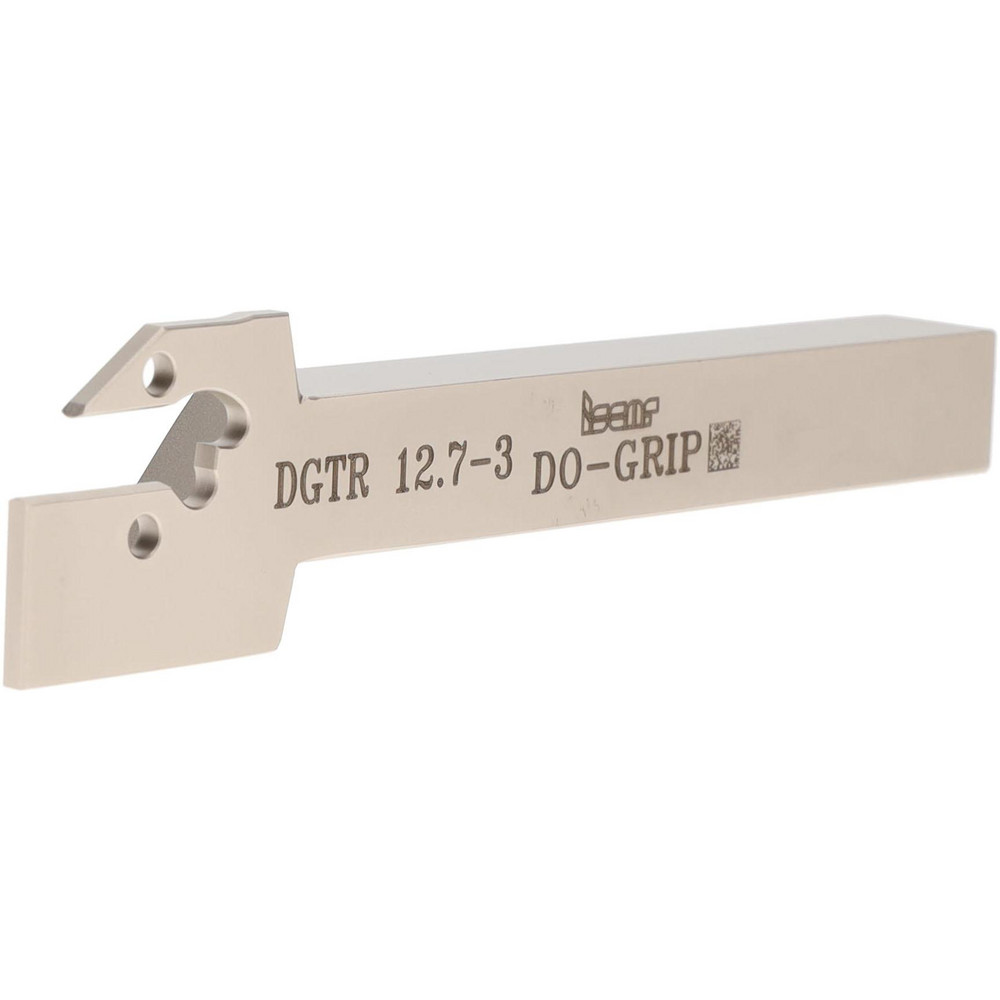

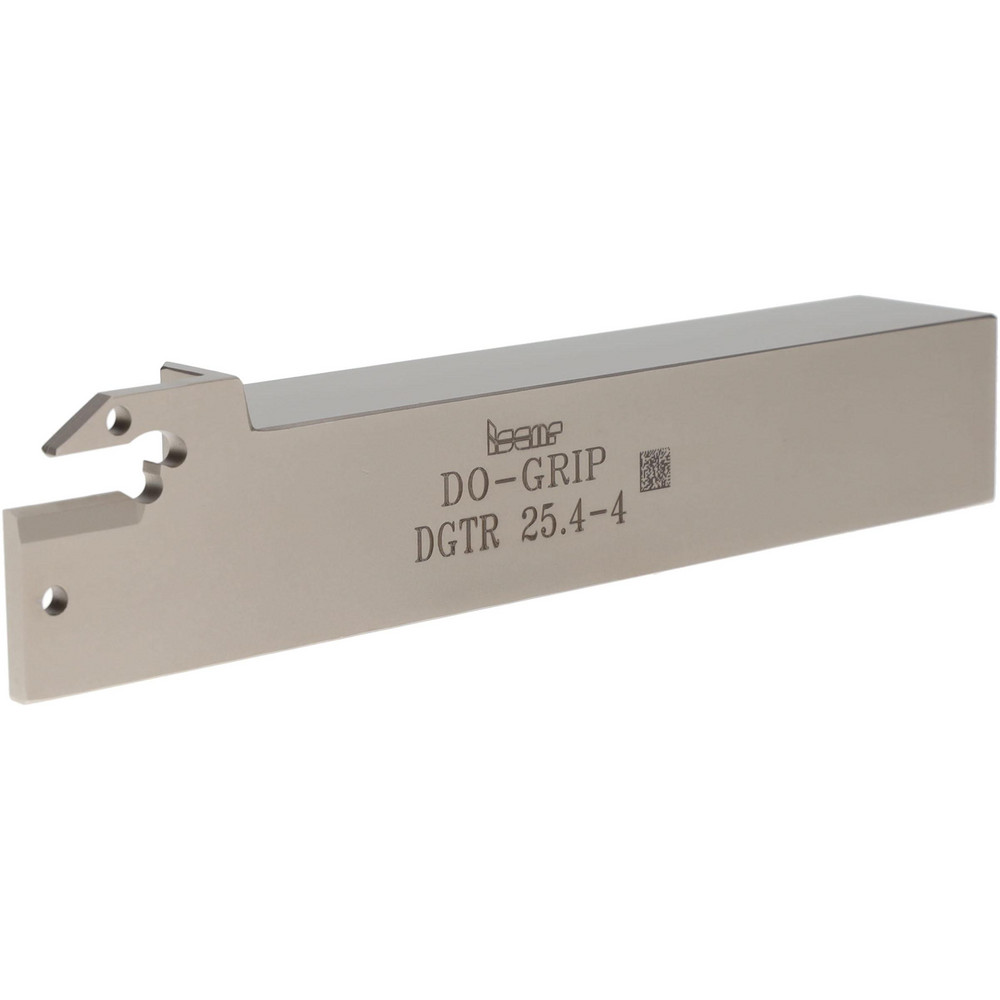

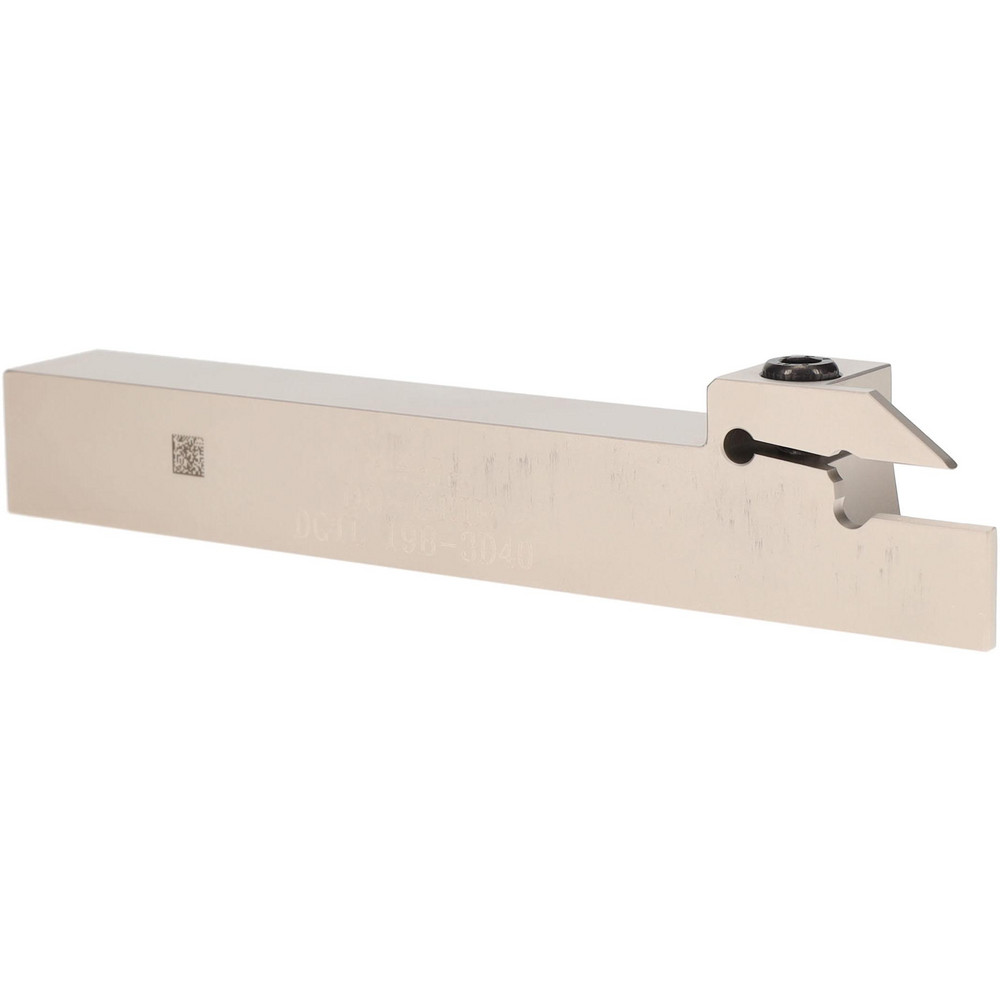

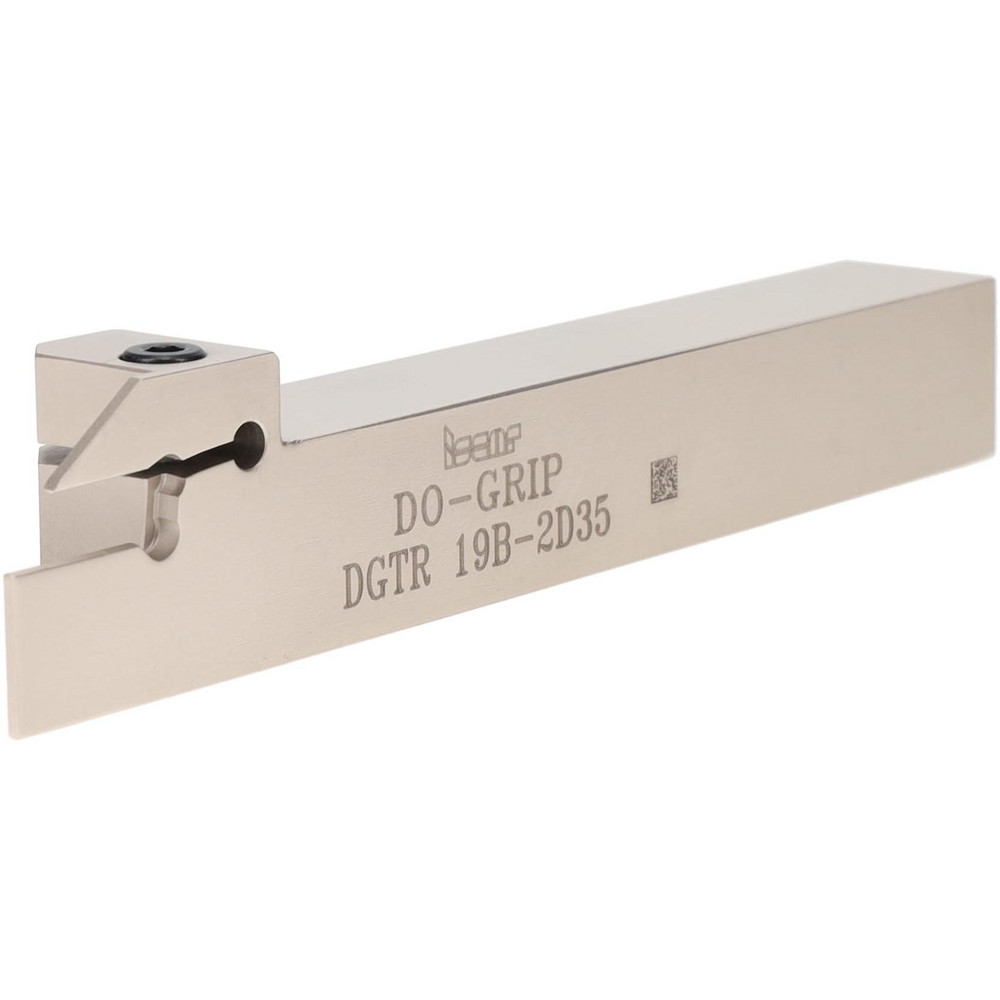

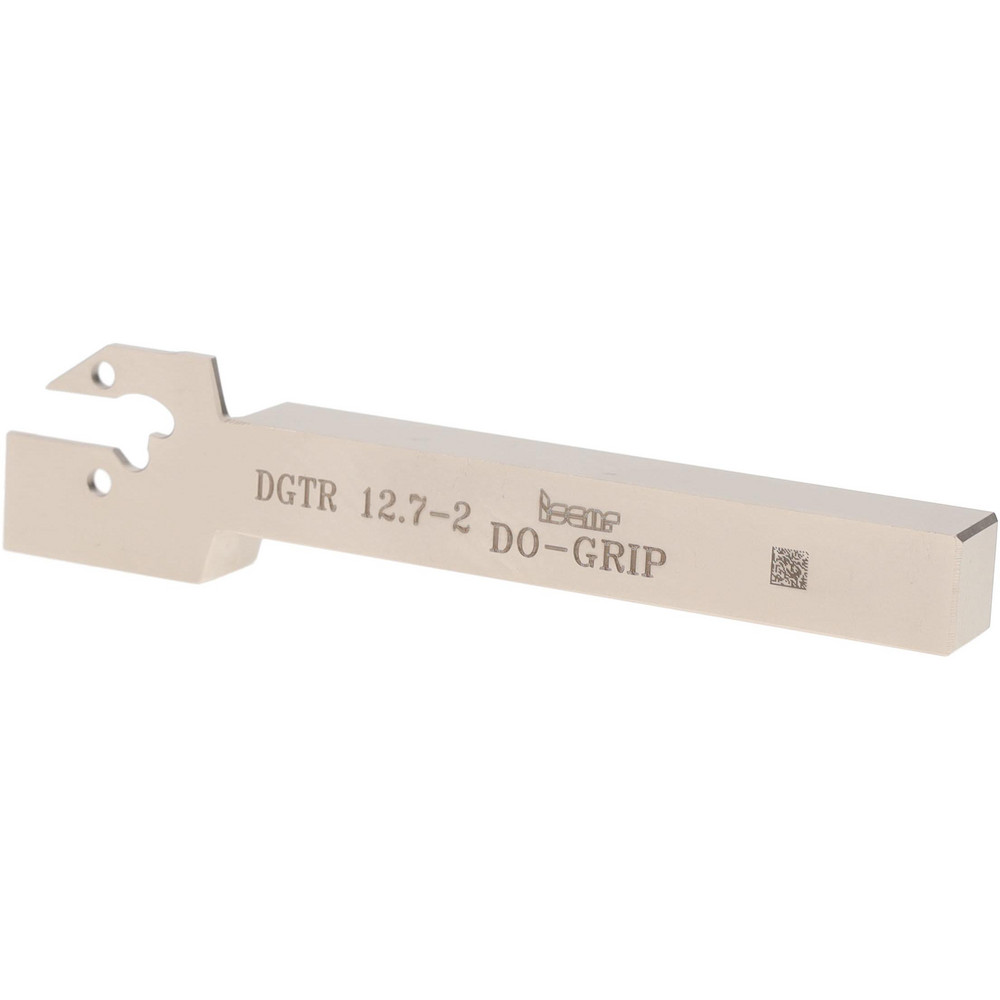

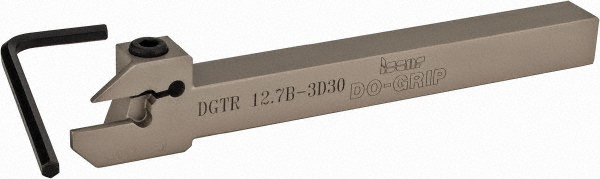

Uses DG.. Inserts, Series Do-Grip
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6900 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | DGT |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | DGR/L-C DGRC/LC-C; DGR/L-J/JS; DGN-Z; DGN-MF; DGN-WP; DGR-P; DGR-WP; DGN-P; DGN-LF/LFT; DGR-Z/ZS; DGN/DGNM-J/JS/JT; DGN/DGNC/DGNM-C; DGN-UT/UA |
| Insert Compatibility | DG.. |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Length (Decimal Inch) | 3.4000 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Inch) | 1/2 |
| Series | Do-Grip |
| Overall Length (Decimal Inch) | 4.5000 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | No |
| Head Length (Decimal Inch) | 1.1000 |
| Standards | ISO 13399 |

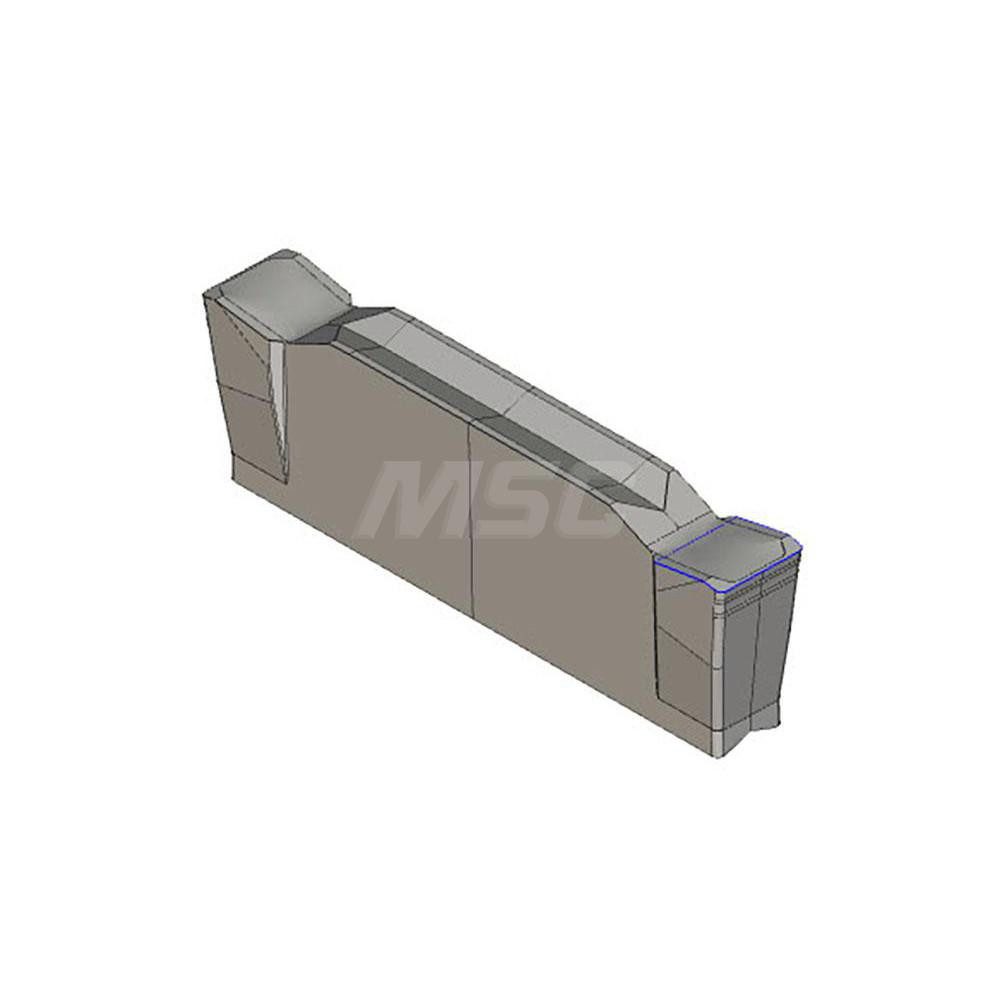

| Complete Insert Compatibility | DGL 3102J-15D; DGL 3102C-6D; DGNC 3102C; DGR 3100JS-15D; DGR 3102C-15D; DGN 3102C; DGR 3100JS-6D; DGN 3100JS; DGLC 3102C-6D; DGL 3100JS-15D; DGR 3102C-6D; DGN 3102JT; DGN 3102LFT; DGN 3102J; DGNM 3202J; DGL 3100JS-6D; DGL 3102C-15D; DGN 3202J; DGNM 3202C; DGN 3102LF |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52701737 |
