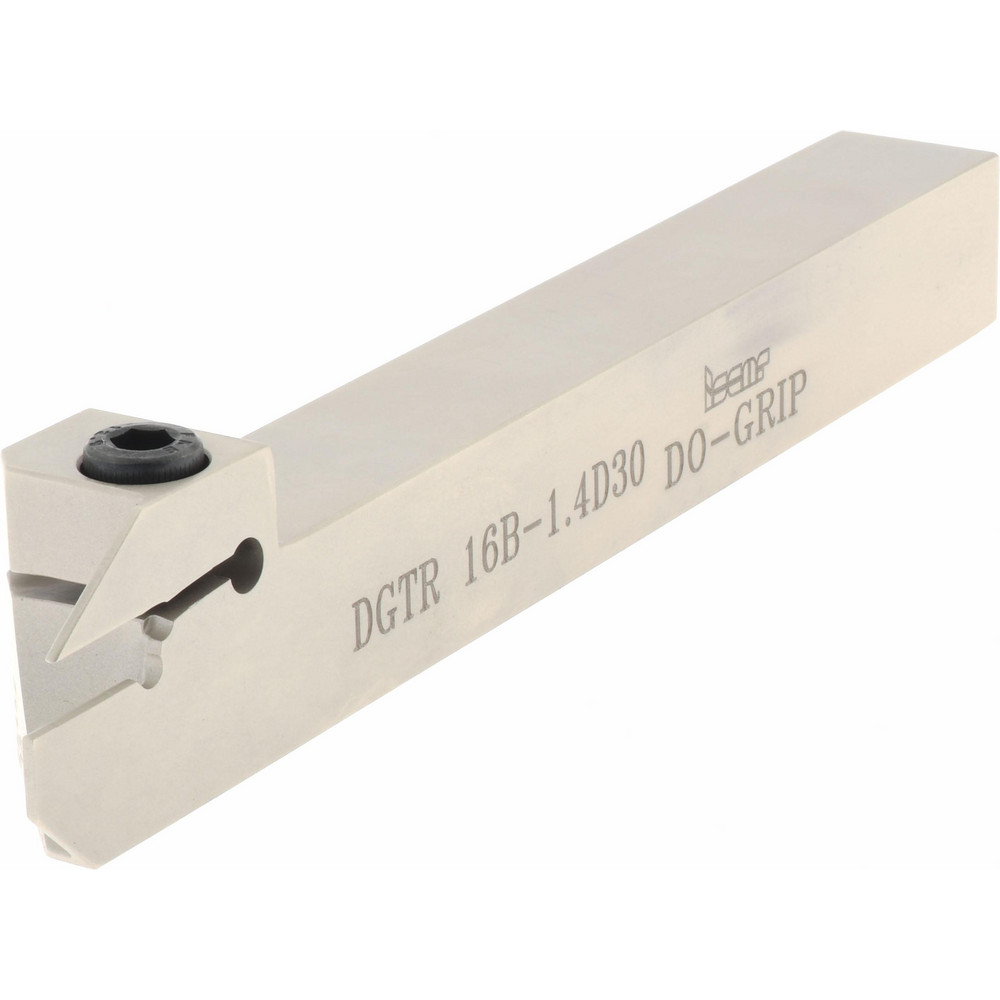

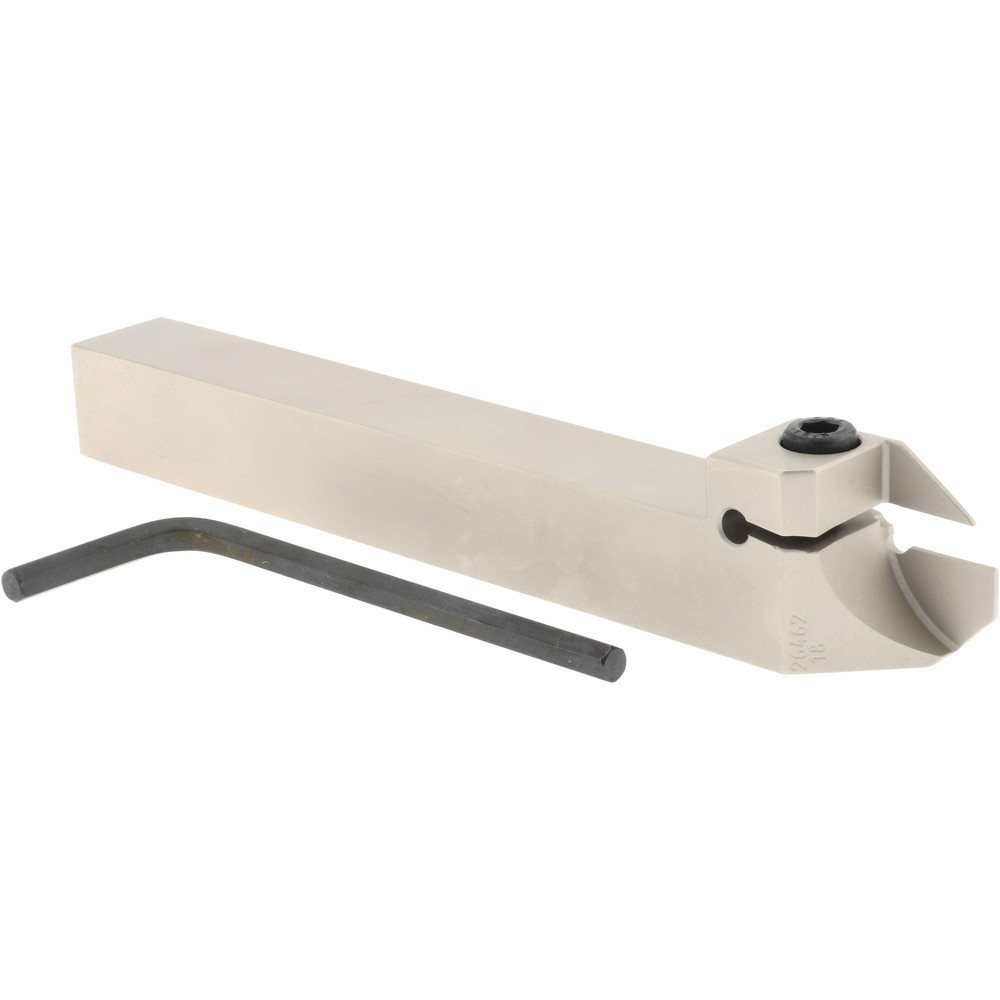

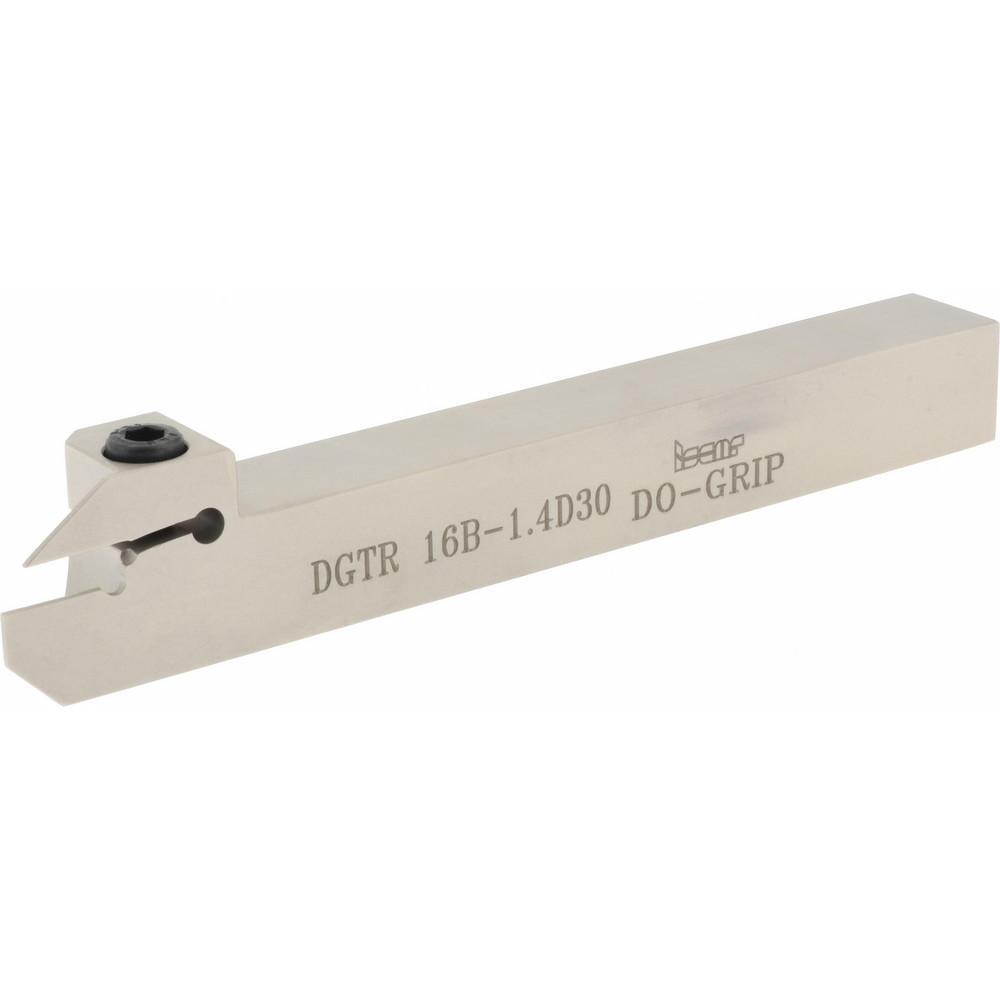

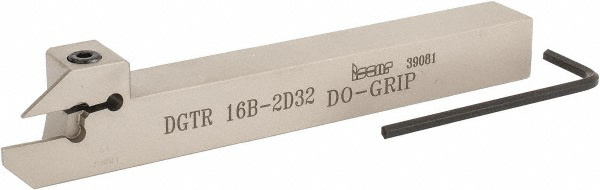

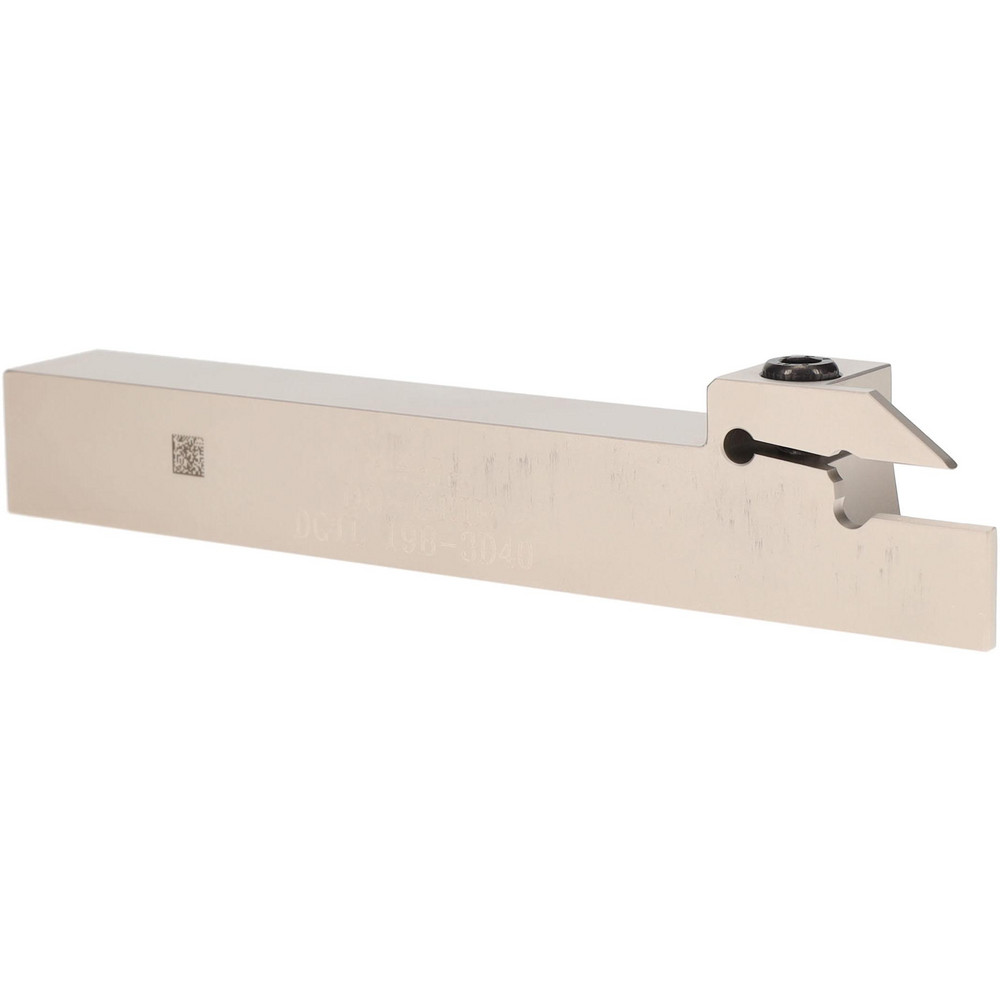

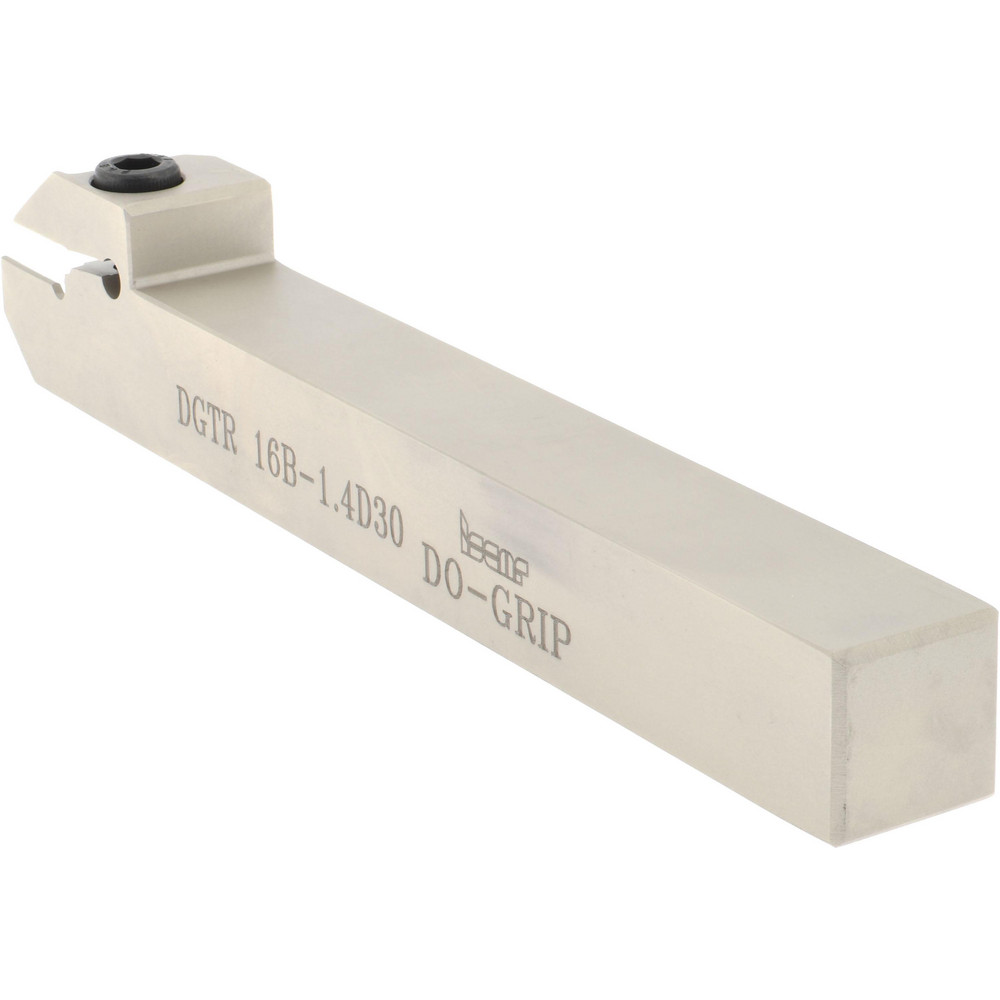

Uses DG.. Inserts, 16 x 16 mm Shank, Series Do-Grip
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Groove Width (Decimal Inch) | 0.0551 |
| Maximum Groove Width (mm) | 1.40 |
| Minimum Groove Width (Decimal Inch) | 0.0551 |
| Minimum Groove Width (mm) | 1.40 |
| Toolholder Style | DGT |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | DGR/L-J/JS; DGN/DGNM-J/JS/JT |
| Insert Compatibility | DG.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Length (mm) | 110.40 |
| Shank Length (Decimal Inch) | 4.3468 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Series | Do-Grip |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6102 |
| Head Length (Decimal Inch) | 1.1650 |
| Head Length (mm) | 29.60 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | DGR 1400JS-15D; DGL 1402J-8D; DGN 1402J; DGL 1400JS-15D; DGR 1402J-8D |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52701828 |
