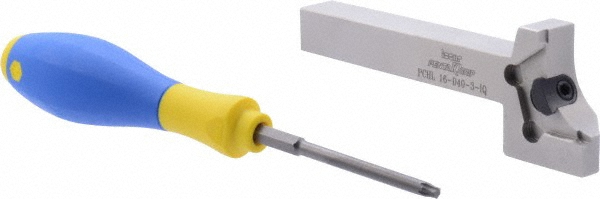

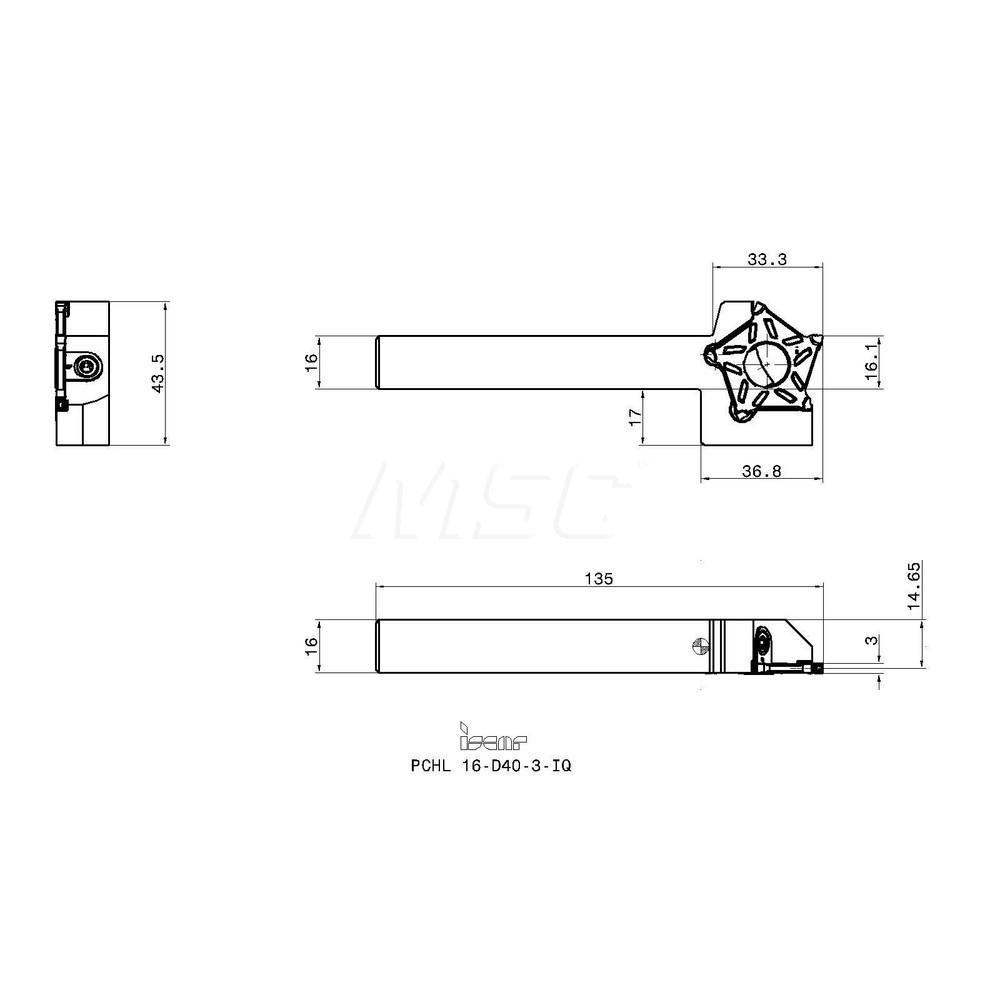

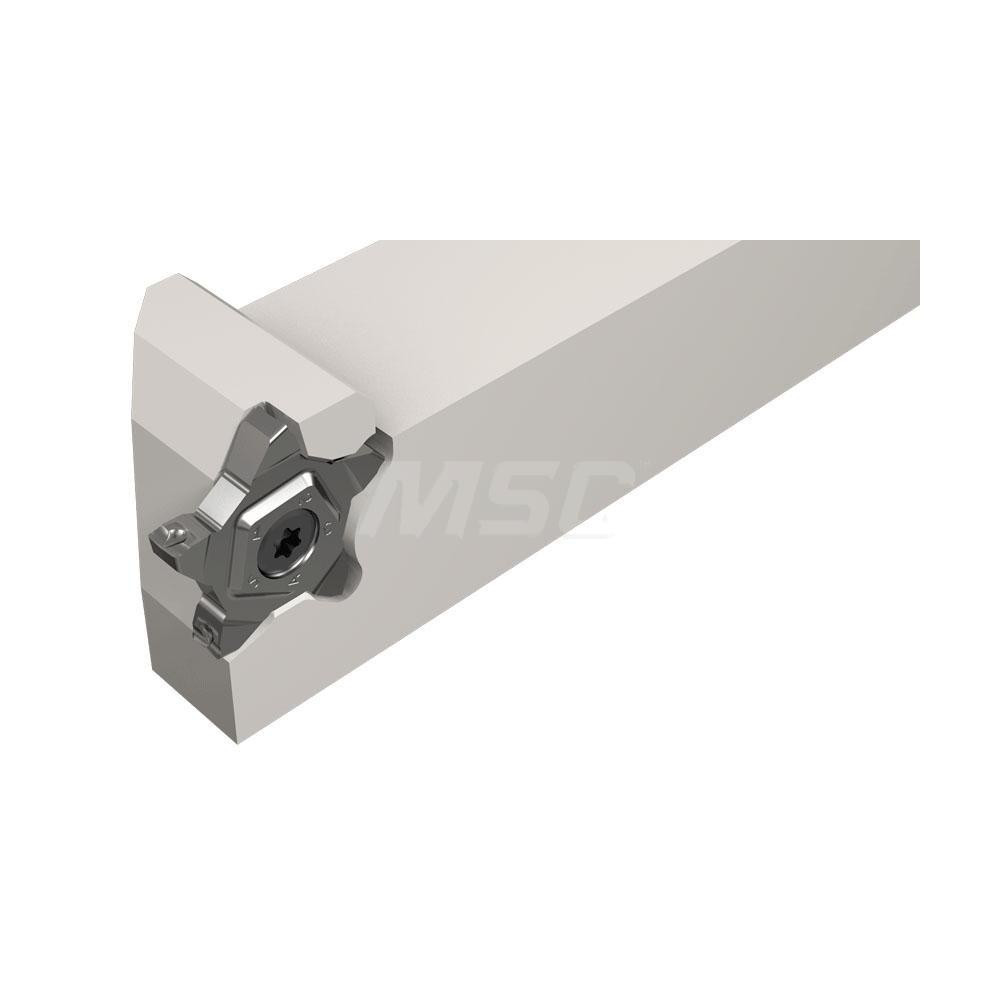

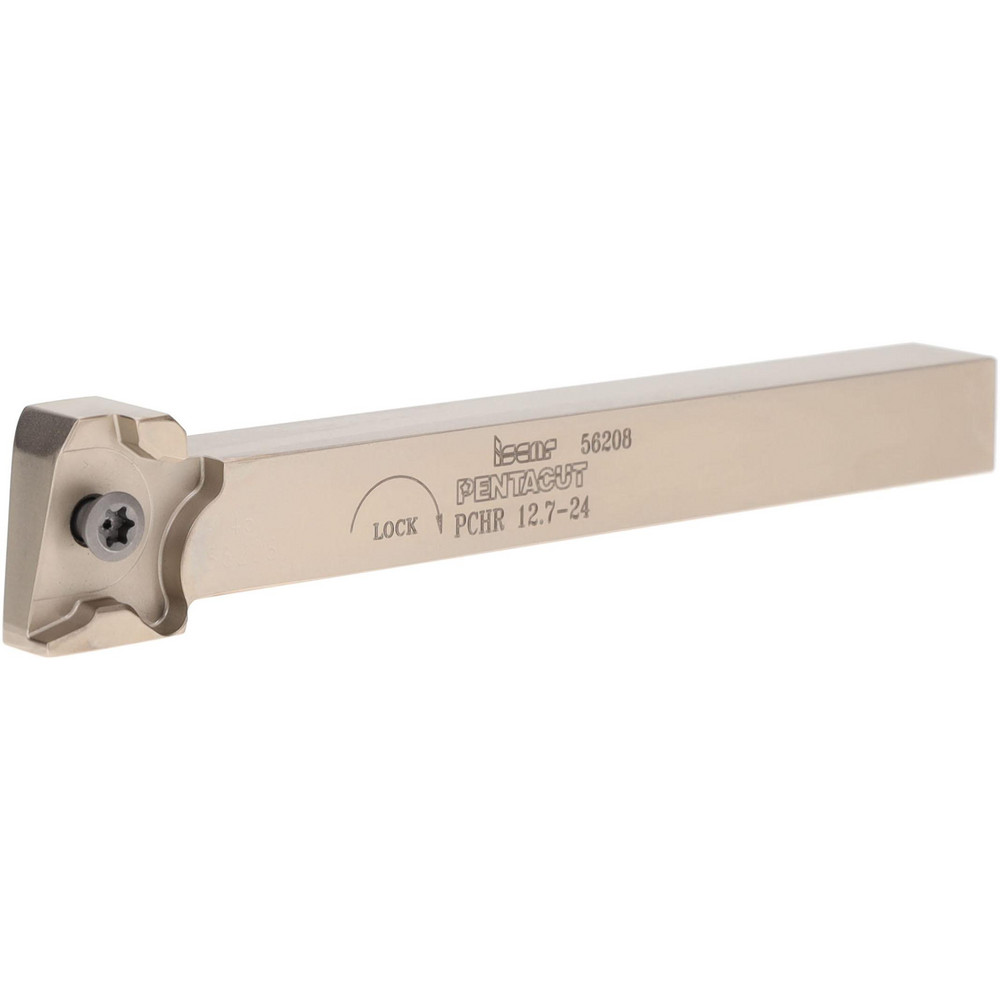

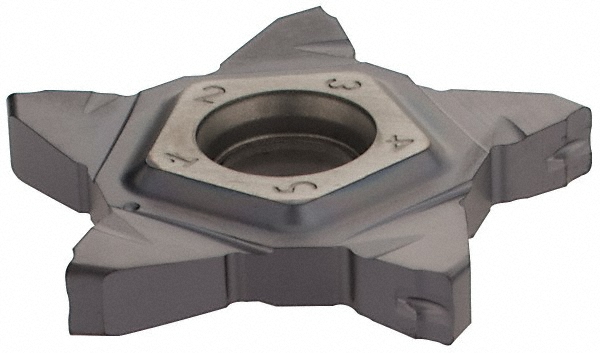

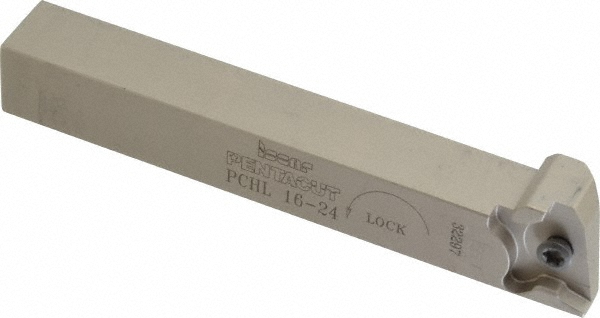

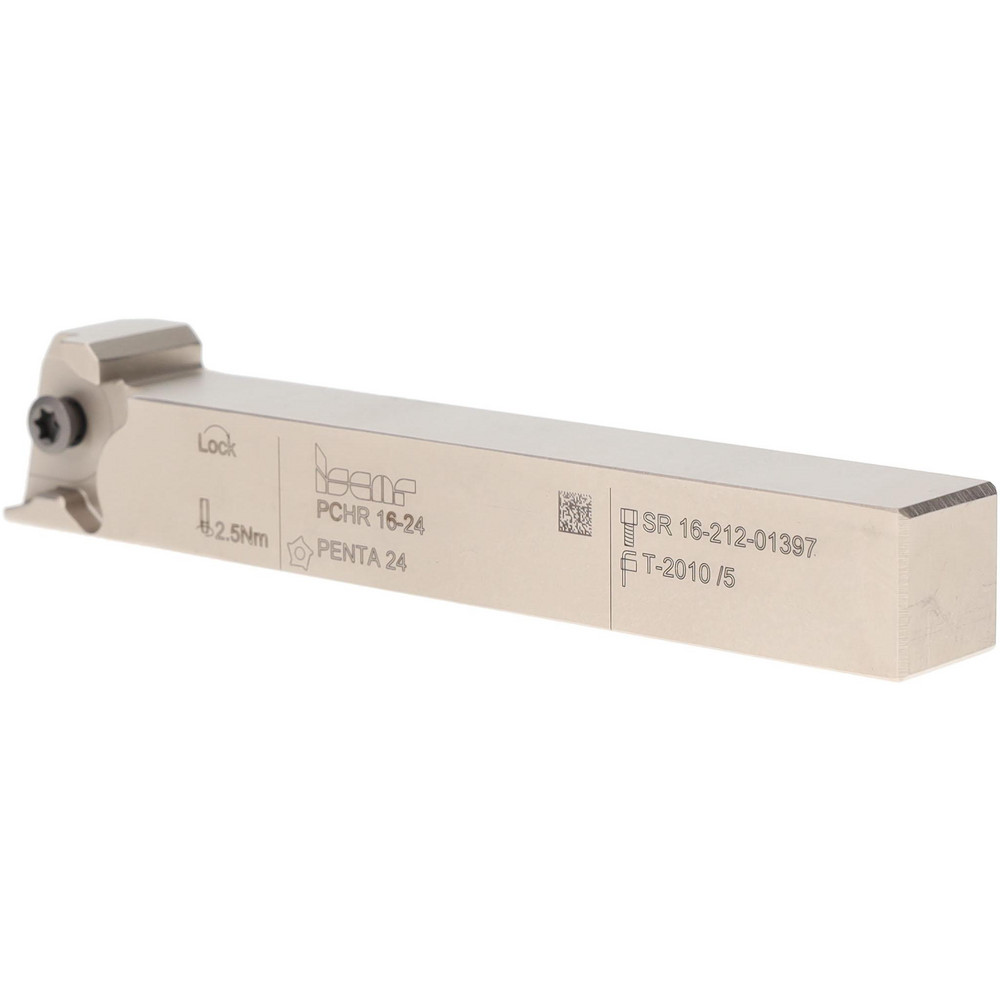

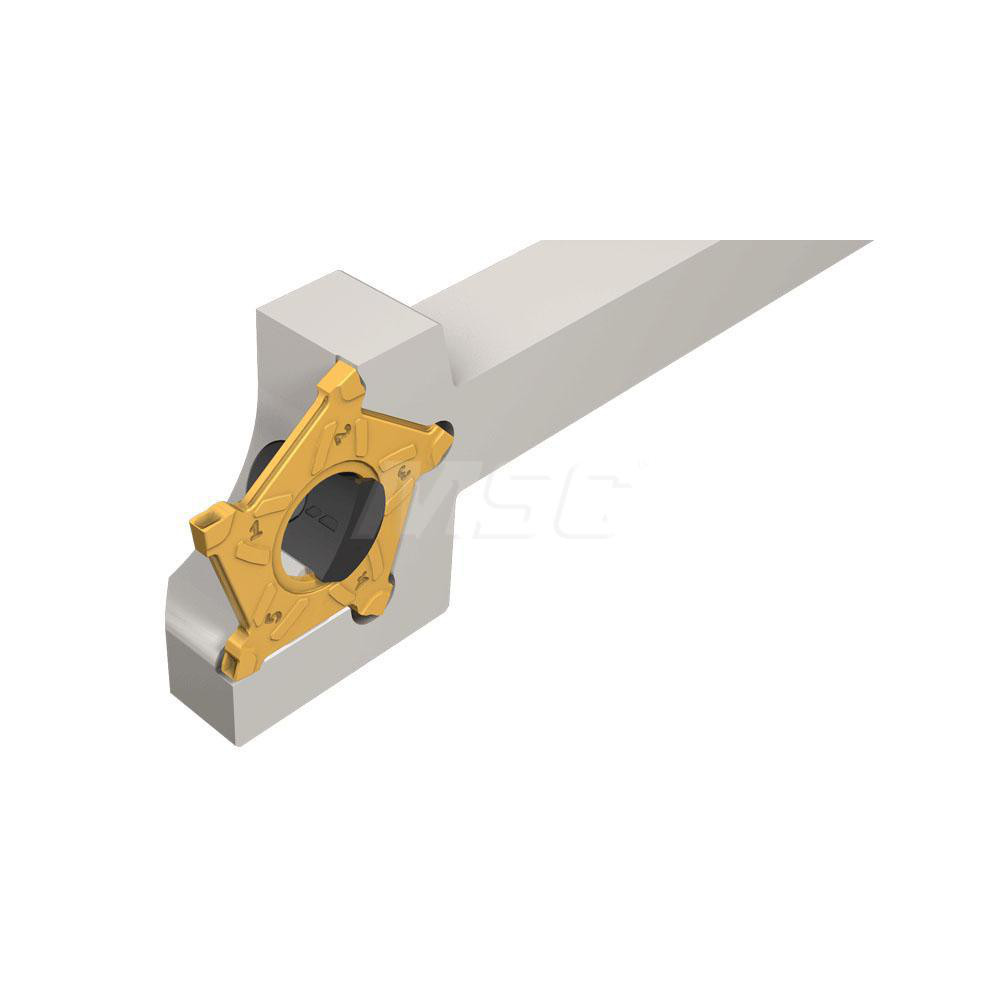

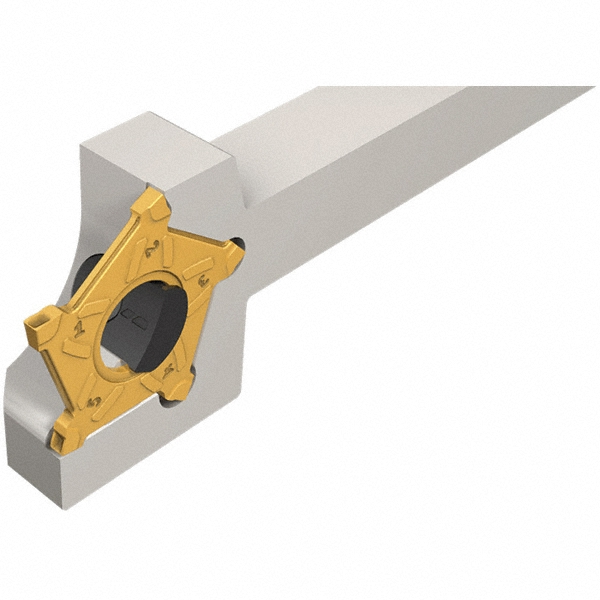

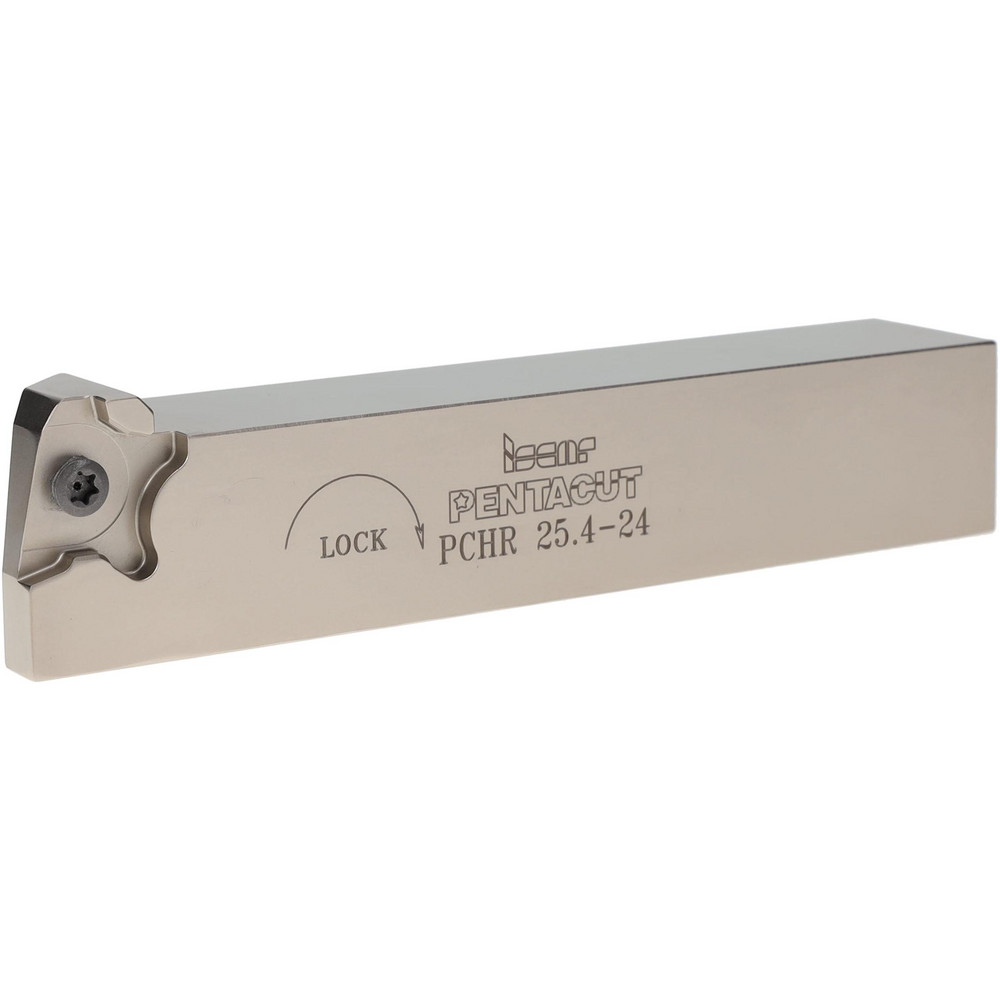

Uses PENTA D Inserts, 16 x 16 mm Shank, Series PentaCut

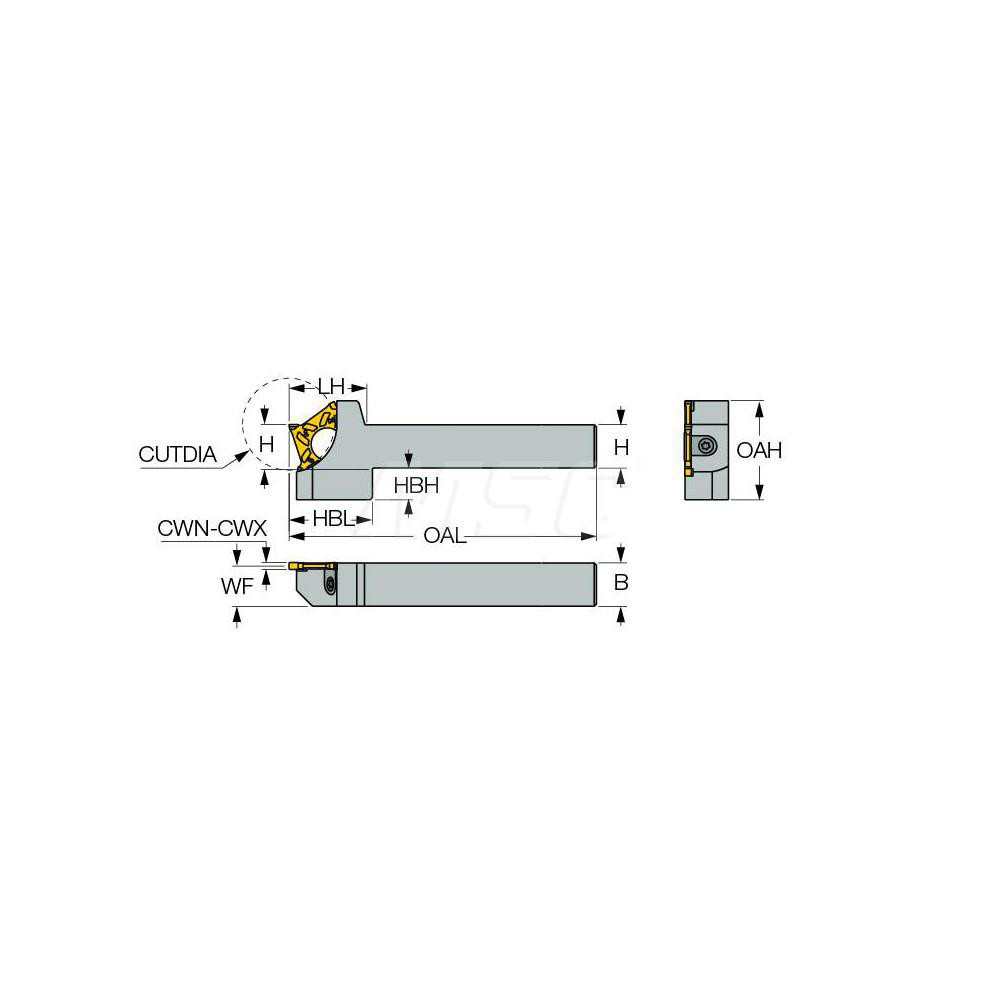

| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (mm) | 3.20 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | PCH |

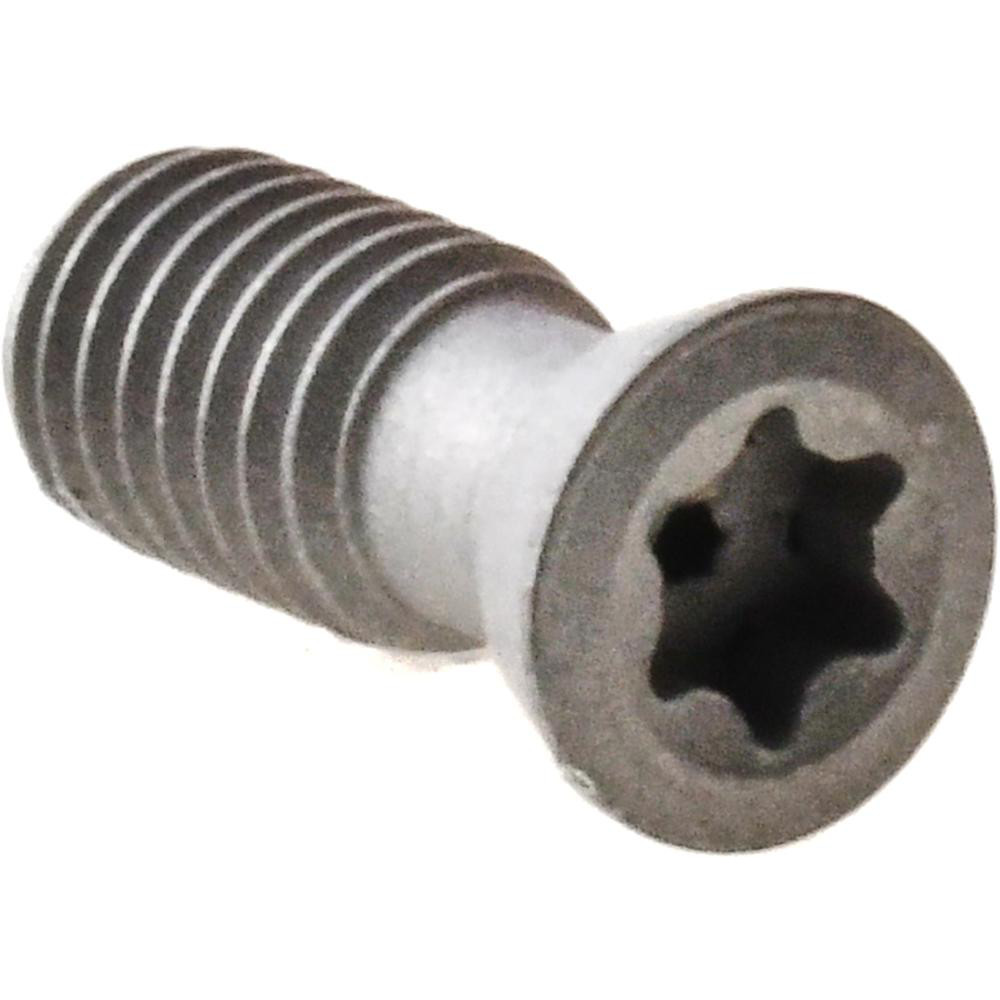

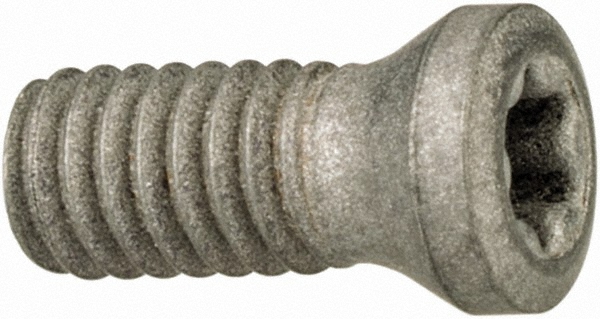

| Insert Holding Method | Screw |

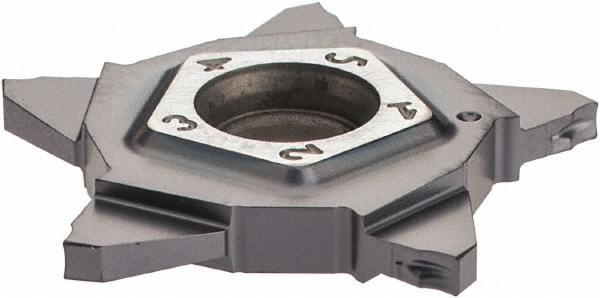

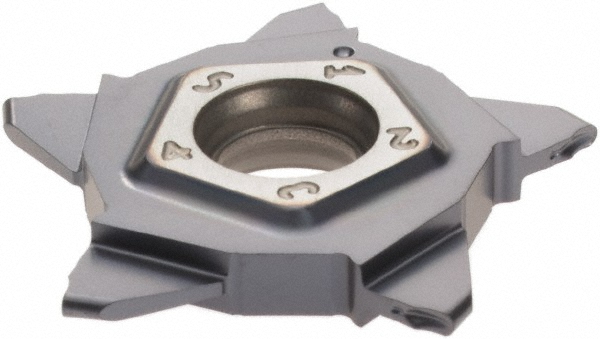

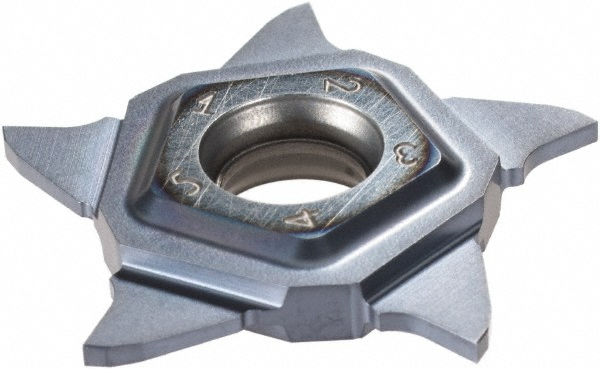

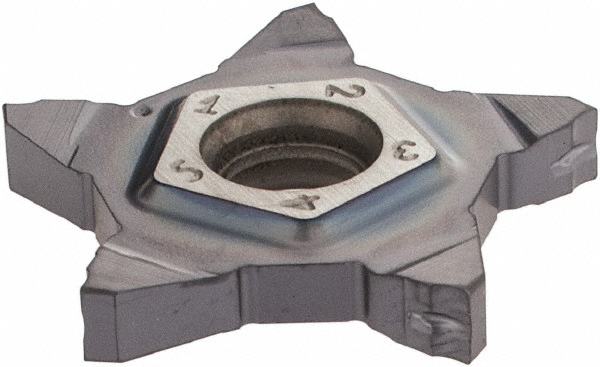

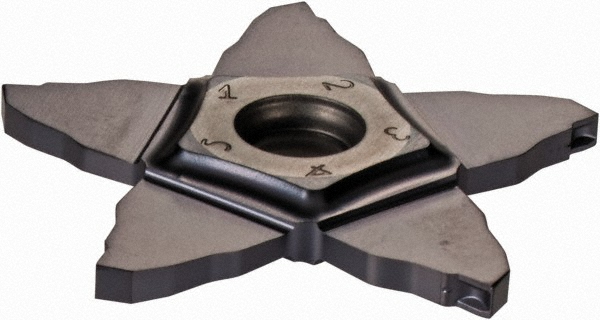

| Compatible Insert Size Code | PMN D-PB; PENTA D-N-C; PMN D-C; PENTA D-N-PB; PENTA D-R/L-C; PENTA D-R/L-PB |
| Insert Compatibility | PENTA D |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Length (mm) | 101.70 |
| Shank Length (Decimal Inch) | 4.0039 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Series | PentaCut |
| Overall Length (mm) | 135.00 |
| Overall Length (Decimal Inch) | 5.3150 |
| Cutting Tool Application | Grooving; Cut-Off |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5800 |
| Head Height (Decimal Inch) | 1.7126 |
| Head Height (mm) | 43.50 |
| Head Length (Decimal Inch) | 1.3110 |
| Head Length (mm) | 33.30 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | PENTA D-N-C; PENTA D-R/L-C |
| MSC/Manufacturer Number | PCHR/L 16-D40-3-IQ |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 77690931 |
