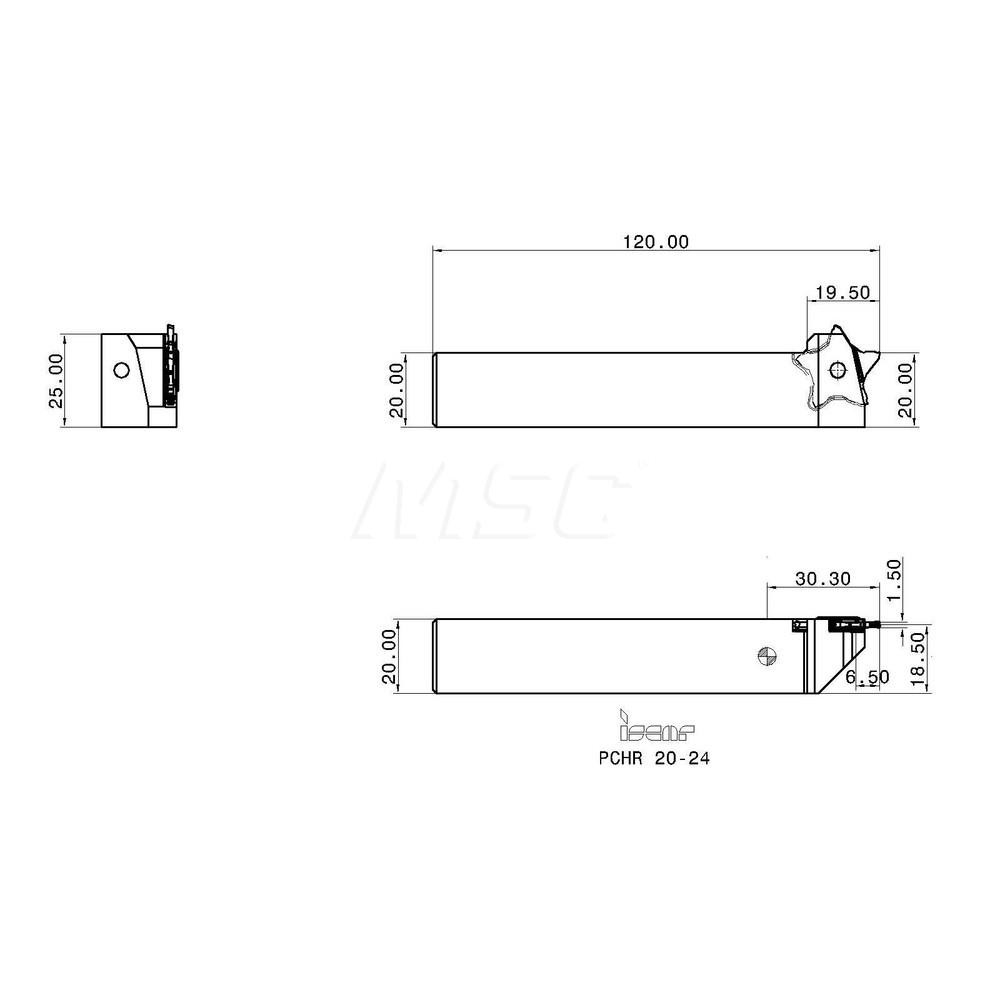

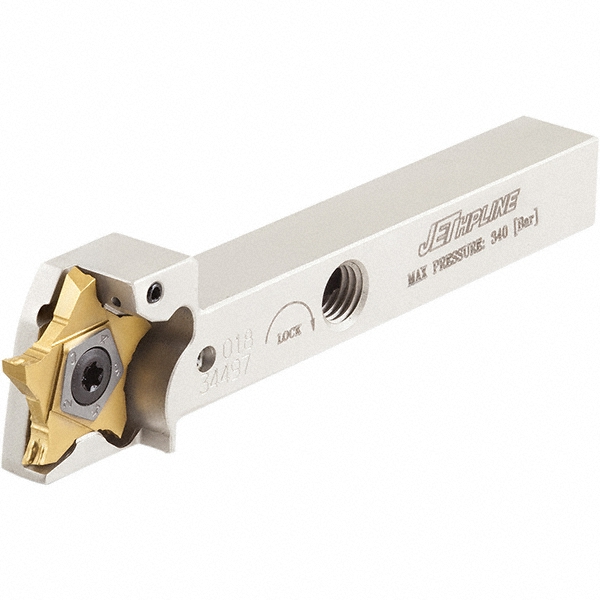

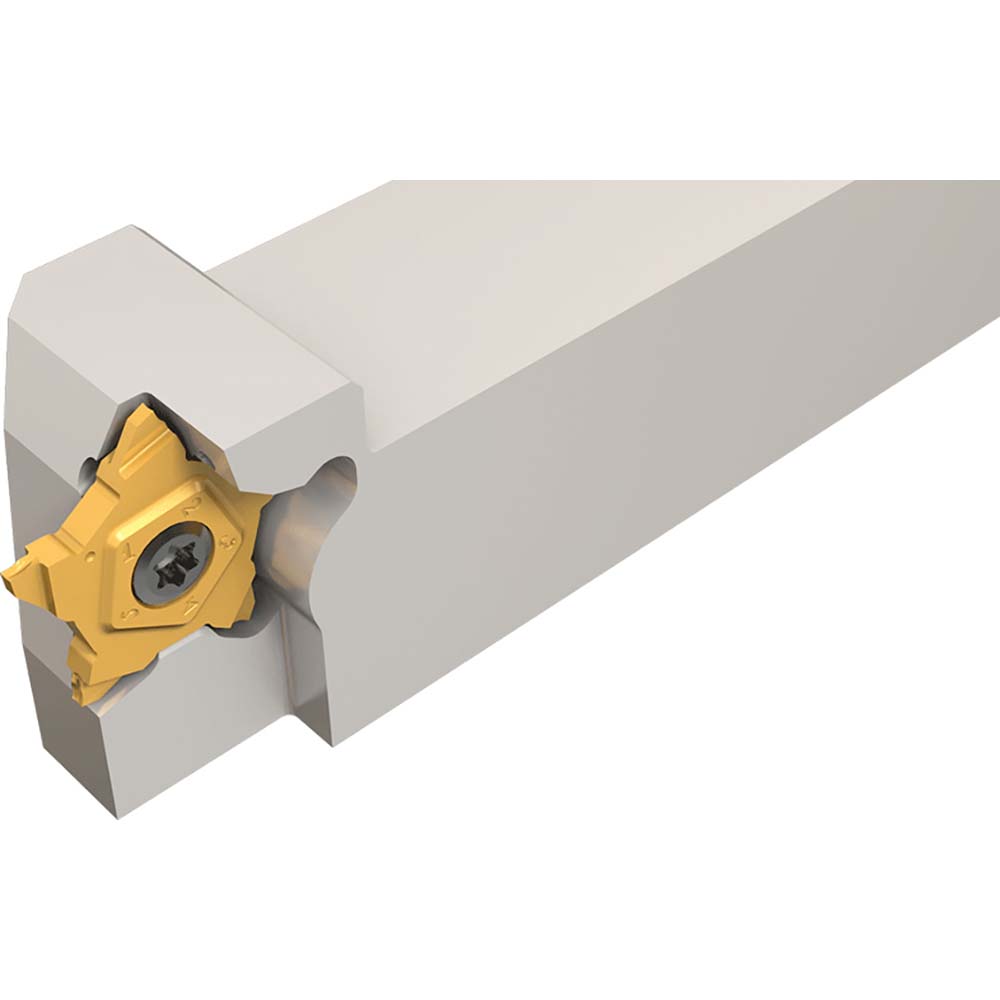

Uses PENTA 24... Inserts, 20 x 20 mm Shank, Series PentaCut
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (mm) | 3.20 |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Minimum Groove Width (mm) | 0.50 |
| Toolholder Style | PCH |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | PENTA 24-ISO; PENTA 24N-C; PENTA 24-UN; PENTA 24N-PF/P; PENTA 24R-C; PENTA 24-WT; PENTA 24N-J; PENTA 24-BSPT; PENTA 24R/L-Z; PENTA 24-MT; PENTA 24R-P; PENTA 24N-PF; PENTA 24-NPT; PENTA 24N-Z; PENTA 24-W; PENTA 24R/L-J |
| Insert Compatibility | PENTA 24... |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Length (mm) | 100.50 |
| Shank Length (Decimal Inch) | 3.9567 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | PentaCut |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | No |
| Head Length (Decimal Inch) | 0.7677 |
| Head Length (mm) | 19.50 |
| Standards | ISO 13399 |
| MSC/Manufacturer Number | PCHR 20-24 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 80691694 |
