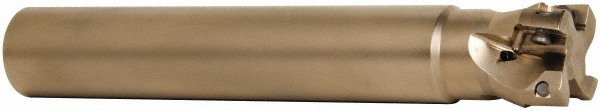

Uses (3) Inserts, 8" OAL
| Cutting Diameter | 1-1/2 |
|---|---|
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Maximum Depth of Cut (Decimal Inch) | 0.2400 |
| Cutter Style | ERCM |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 5.9 |
| Series | ChamMill |
| Shank Length (Decimal Inch) | 6.4200 |
| Head Length (Decimal Inch) | 1.58 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| UNSPSC Code | 27112803 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 09453218 |
