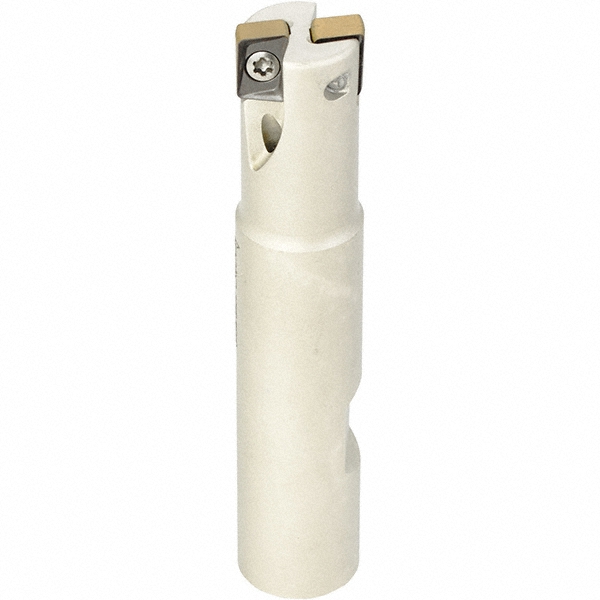

Uses (2) H490 ANKX 12.. Inserts, Through Coolant, 7.874" OAL
| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 7.8740 |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Cutter Style | H490 E90AX-12 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 1.5 |
| Tool Material | Solid Carbide |
| Series | Helido |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 5.9040 |
| Head Length (Decimal Inch) | 1.97 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility | H490 ANKX 12.. |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 93588481 |
