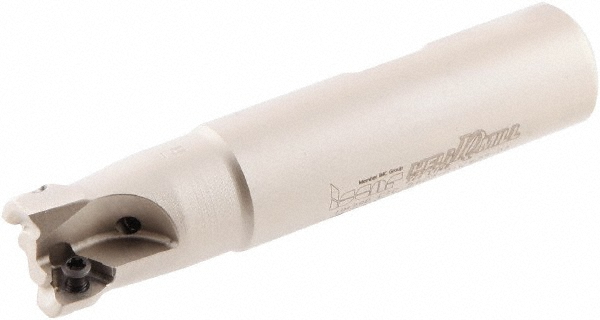

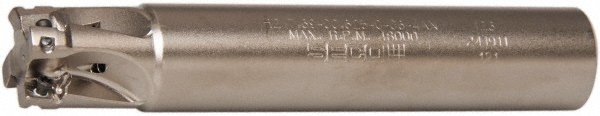

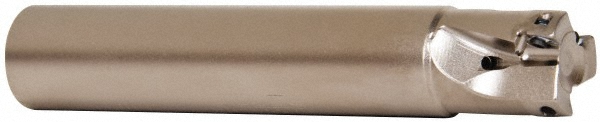

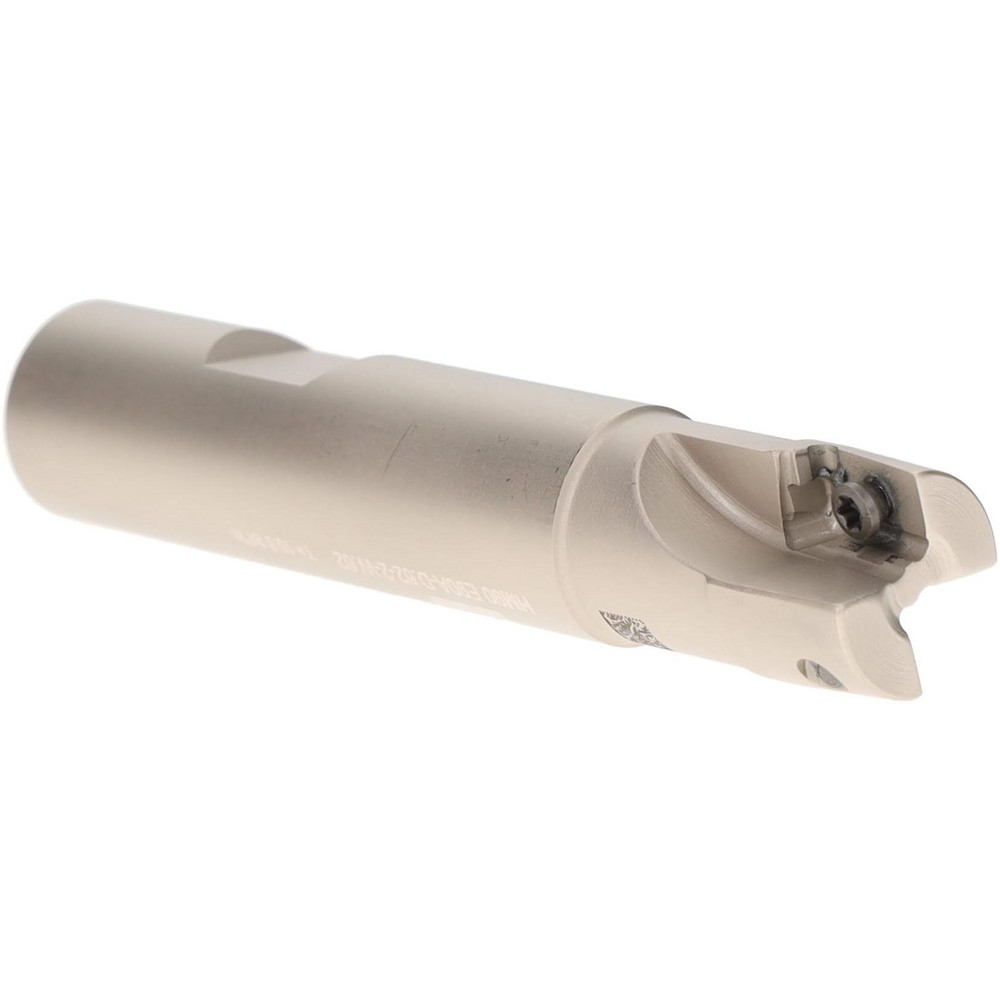

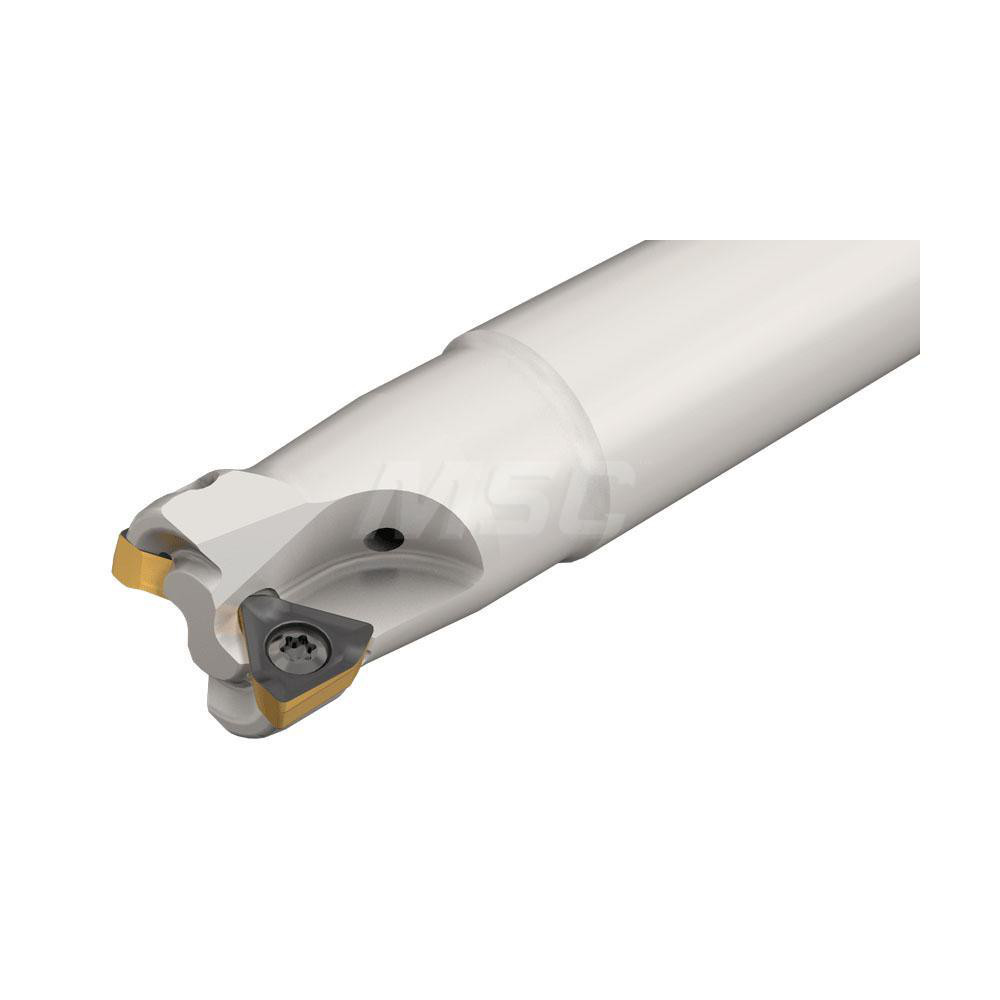

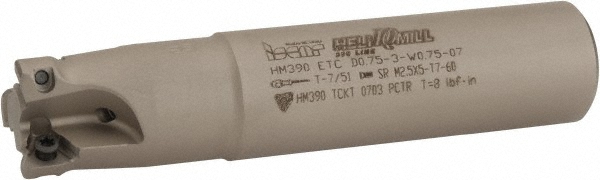

Uses (2) HM390 TCKT 0703PCTR Inserts, Through Coolant, 3" OAL

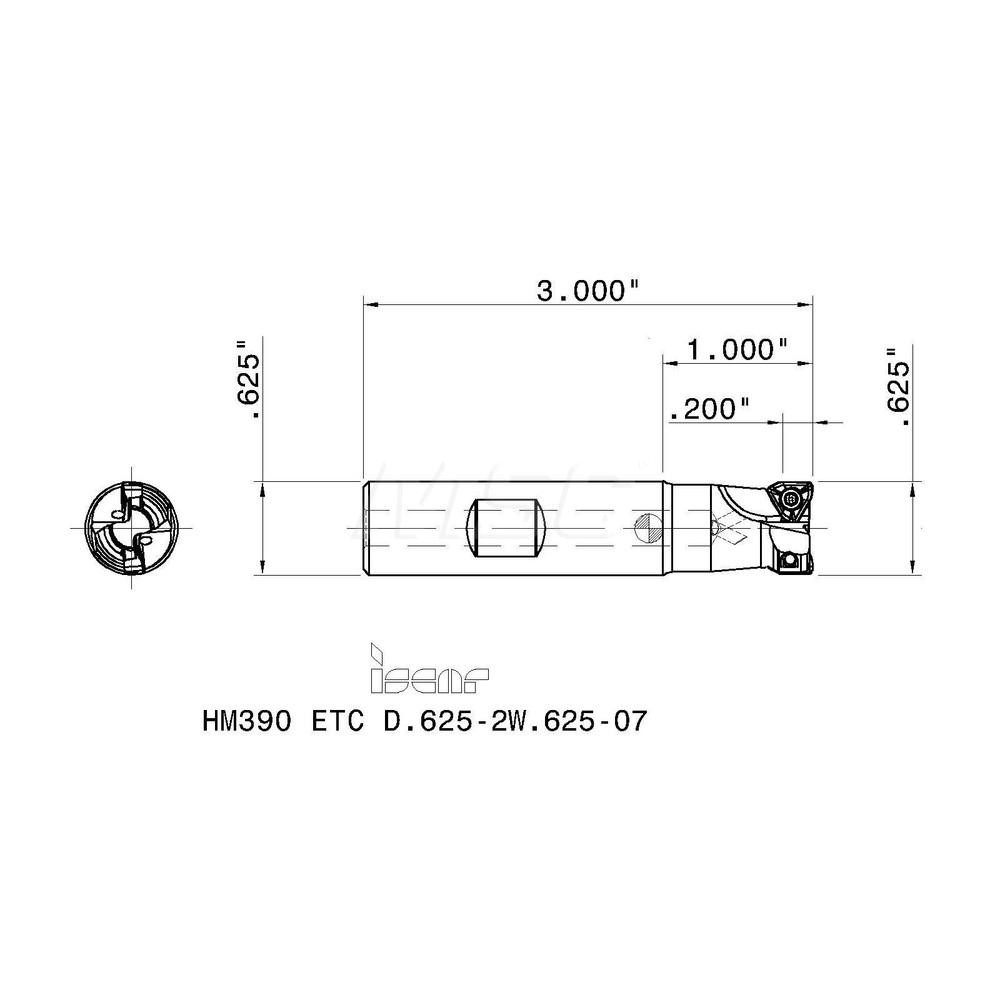

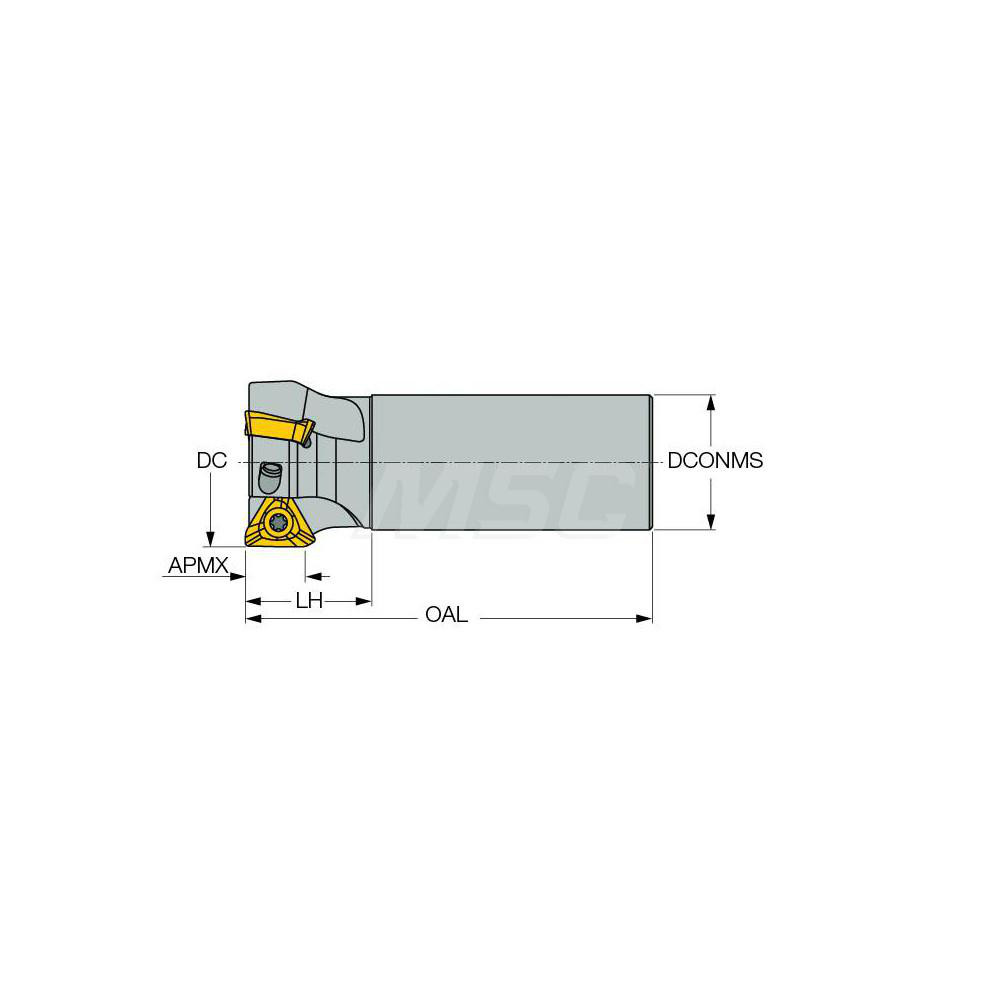

| Cutting Diameter | 5/8 |
|---|---|
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Cutter Style | HM390 ETC-07 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 1.9 |
| Series | HeliIQMill |
| Flute Type | Helical |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 2.0000 |
| Head Length (Decimal Inch) | 1 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility | HM390 TCKT 0703PCTR |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | HM390 ETC D.625-2W.625-07 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 69358901 |
