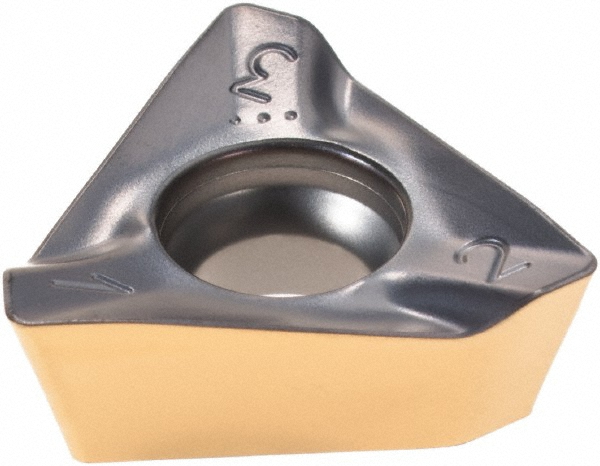

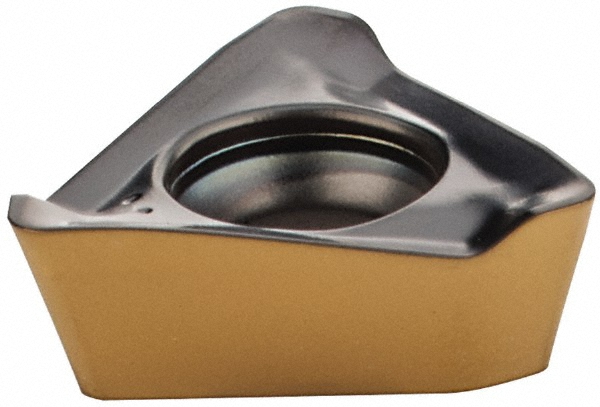

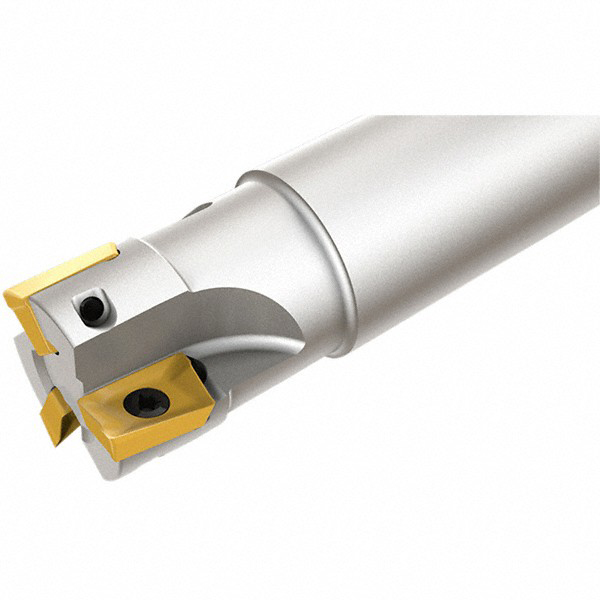

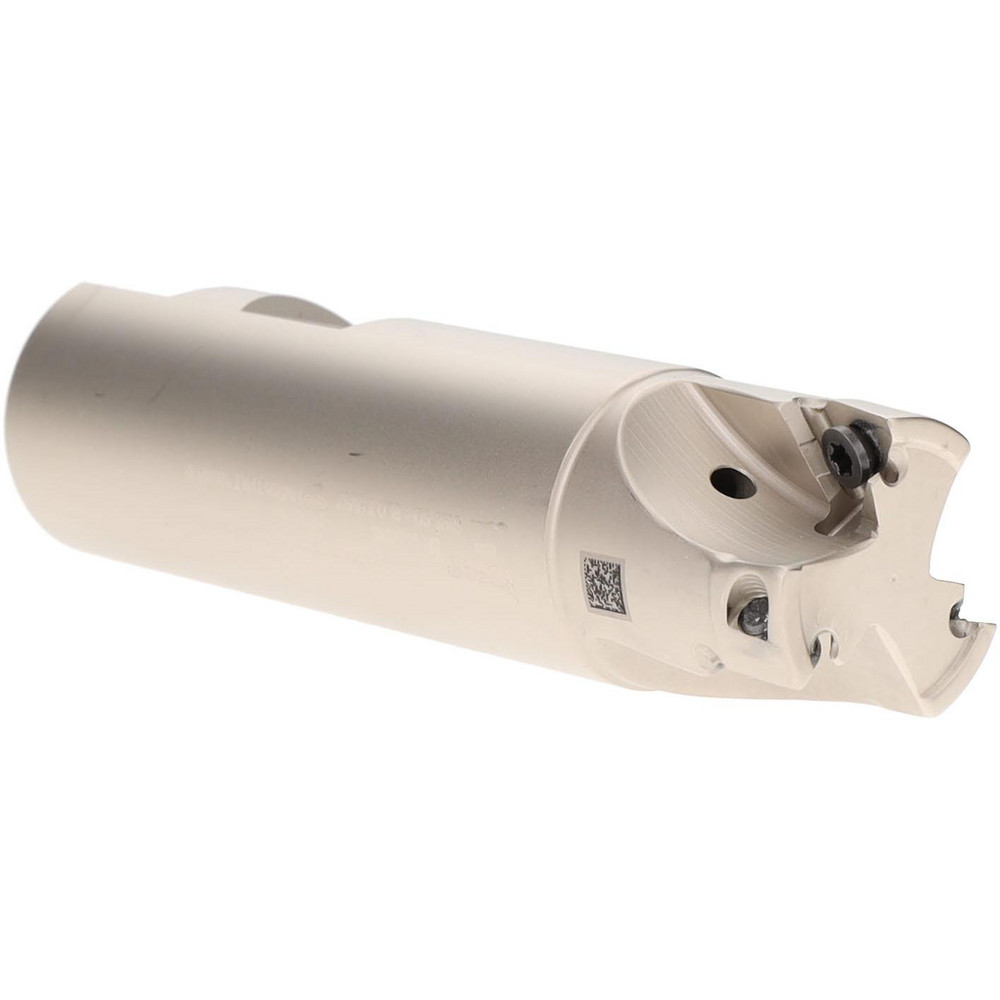

Uses (3) HM390 TPKT 1003PDR Inserts, Through Coolant, 3.38" OAL
| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 3.3800 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutter Style | HM390 ETP-10 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Series | HeliIQMill |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 2.0300 |
| Head Length (Decimal Inch) | 1.35 |
| Tool Application | Helical |

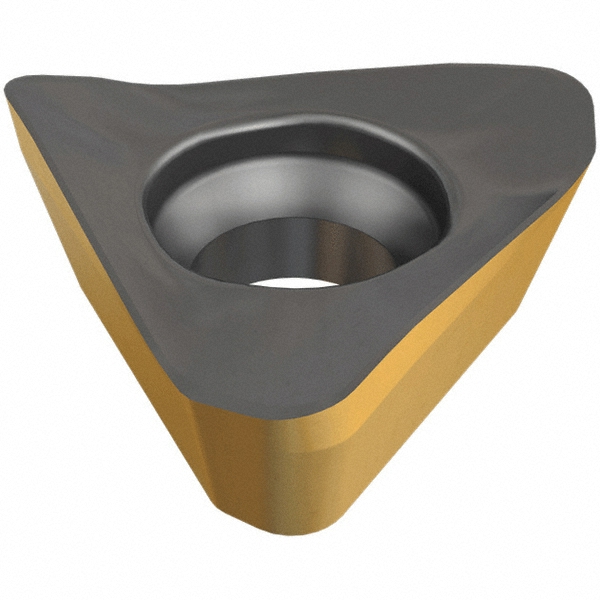

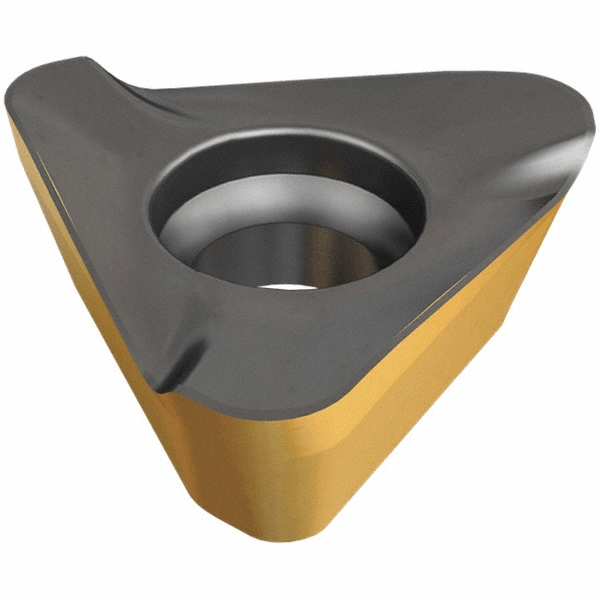

| Insert Compatibility | HM390 TPKT 1003PDR |
| UNSPSC Code | 27112803 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 45577293 |
