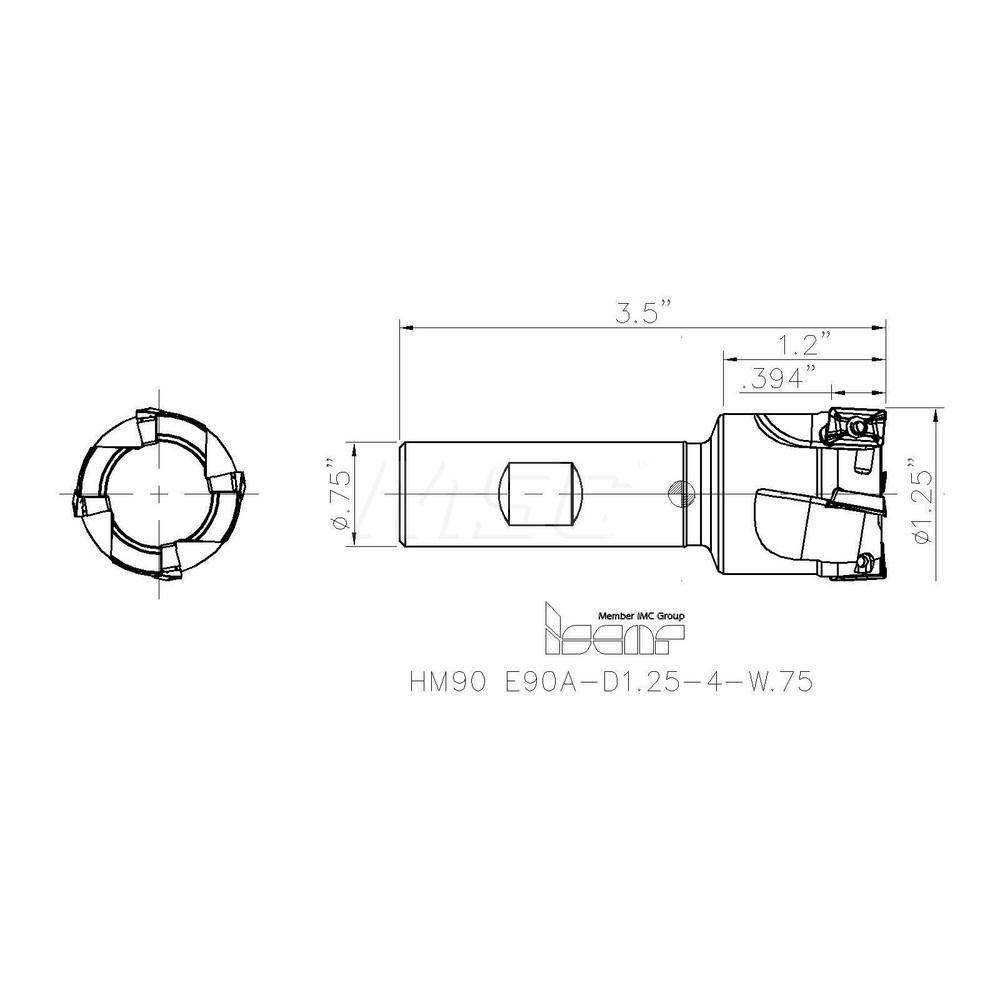

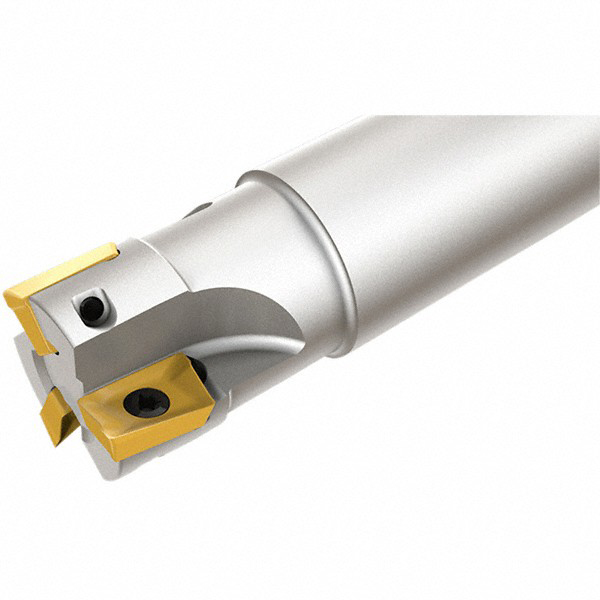

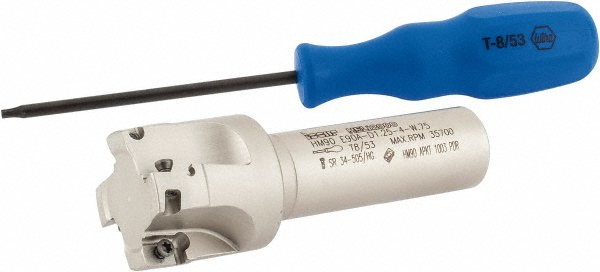

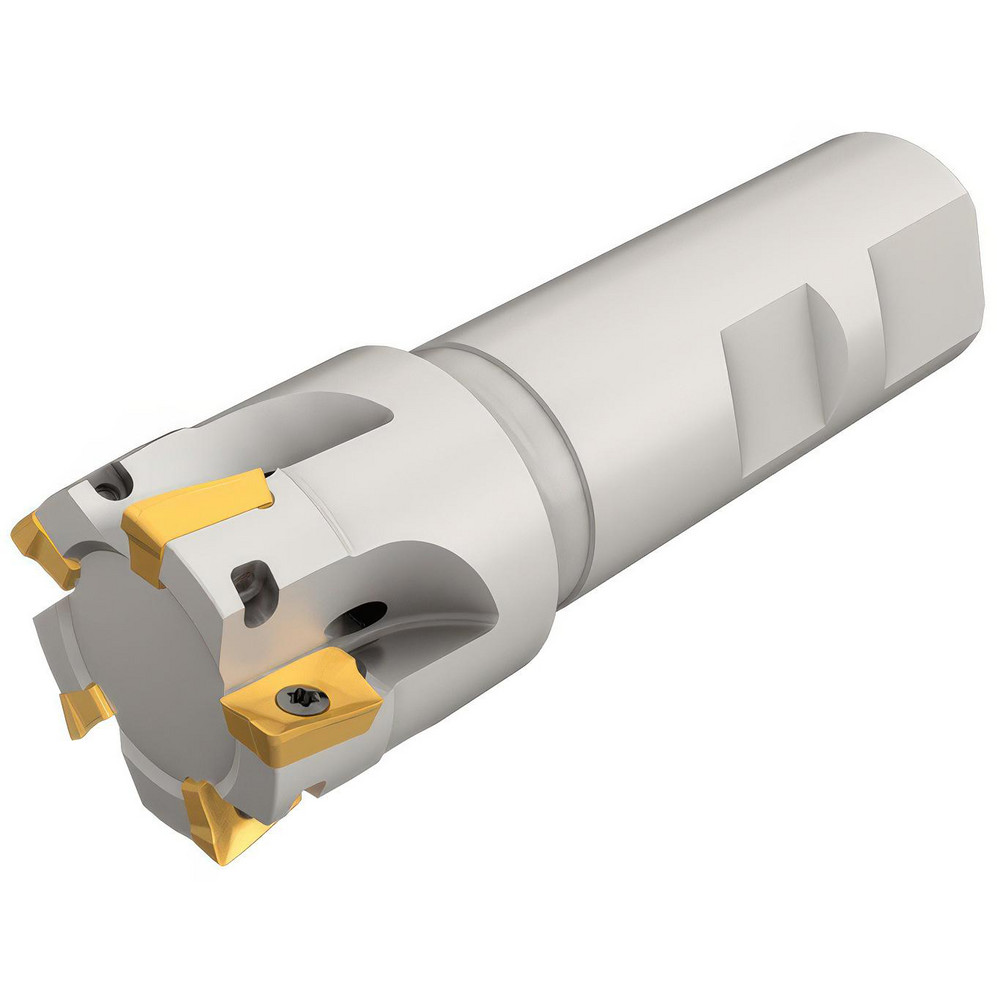

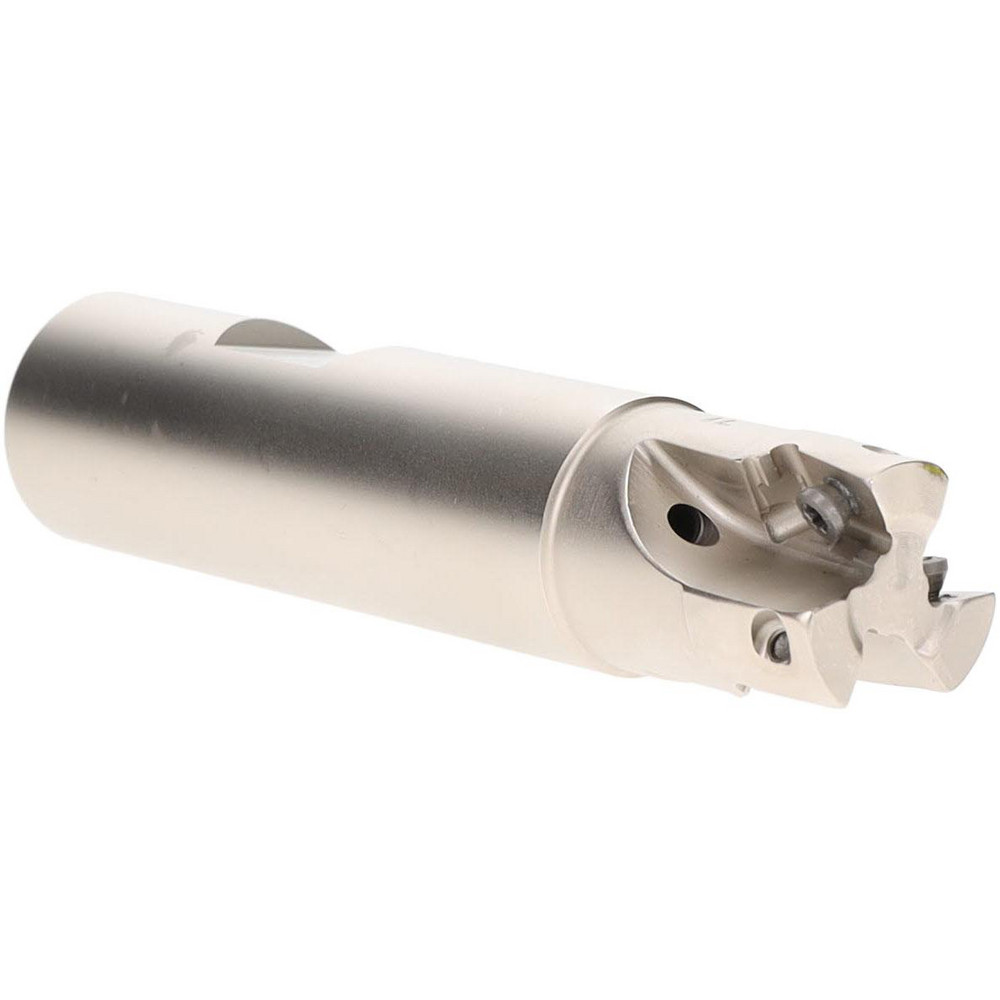

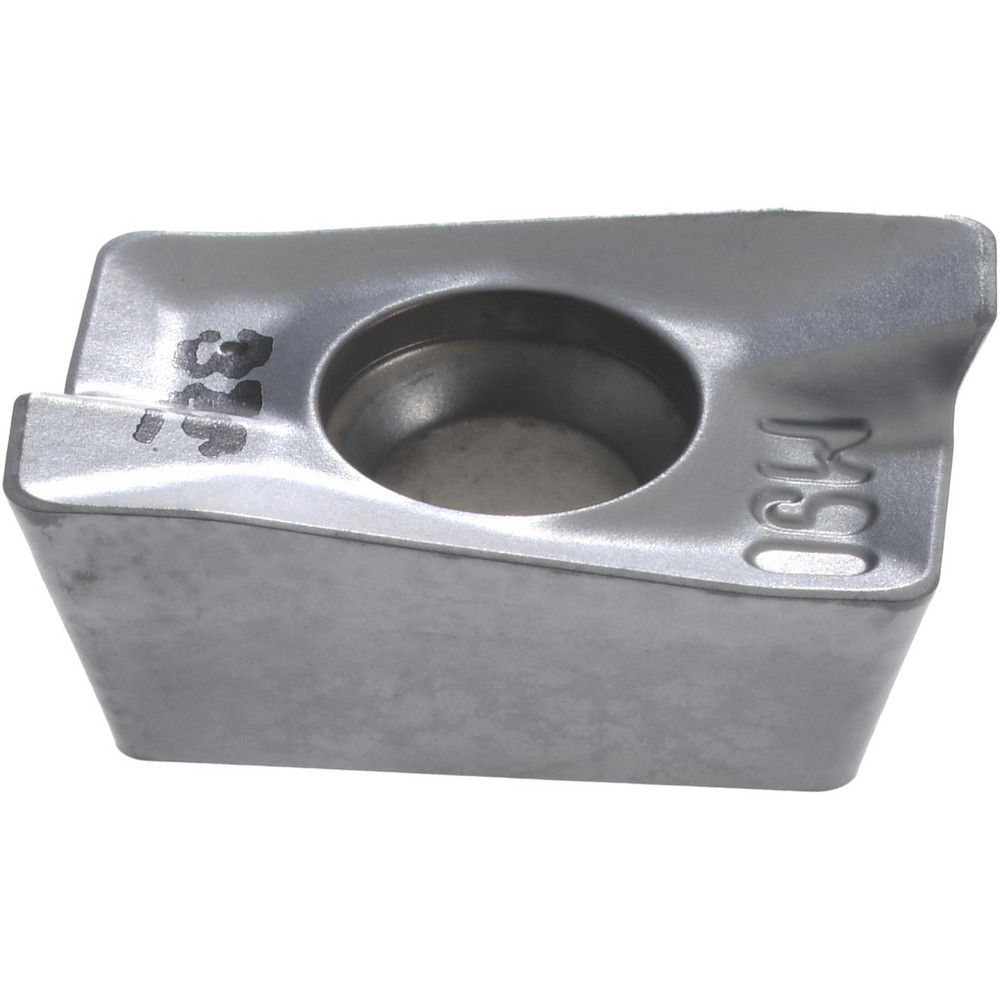

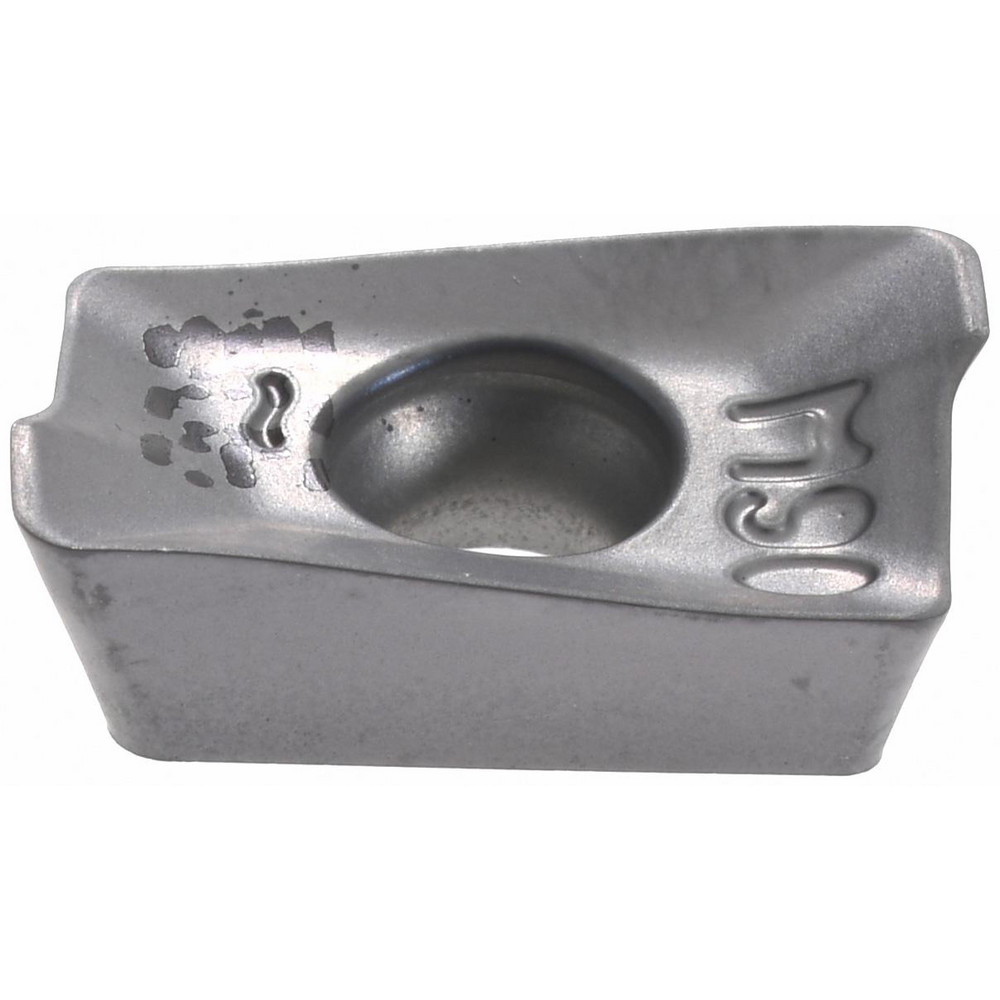

Uses (4) AP..1003..;HM90 AP..1003.. Inserts, 3-1/2" OAL

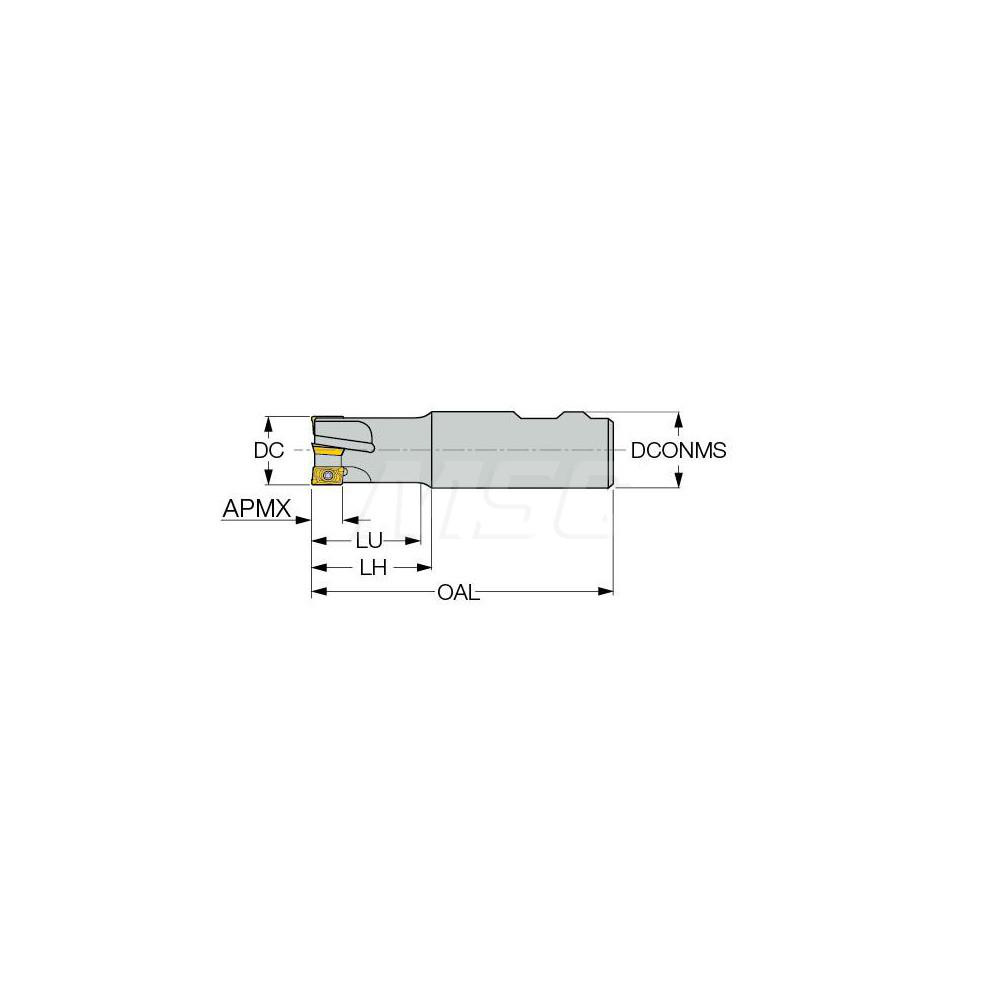

| Cutting Diameter | 1-1/4 |
|---|---|
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutter Style | HM90 E90A-10 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |

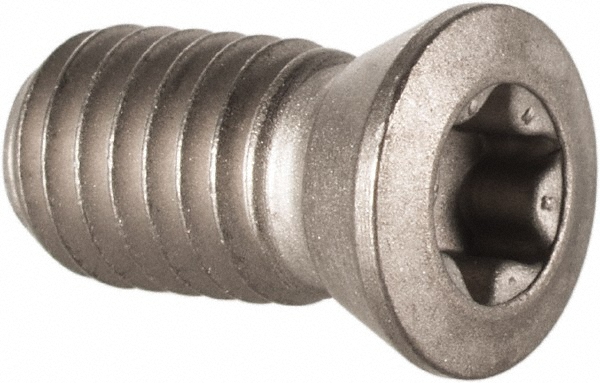

| Insert Holding Method | Screw |
| Maximum Ramping Angle | 3 |
| Tool Material | Solid Carbide |
| Series | Heli2000 |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.3000 |
| Head Length (Decimal Inch) | 1.2 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Rake | Positive |

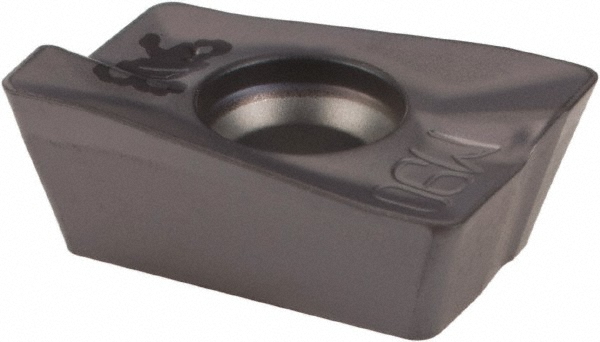

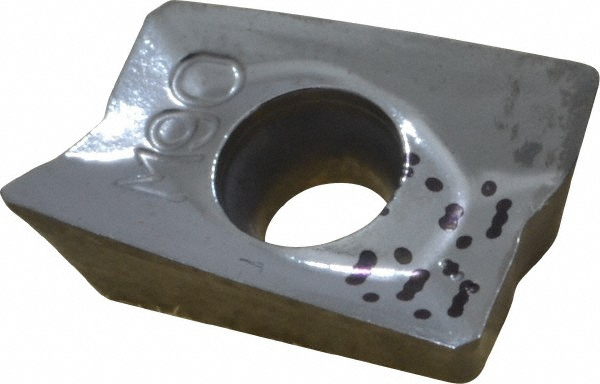

| Complete Insert Compatibility | APCR; HM90APKW 1003; APKW; APKT; HM90APCT; APKR; APCT; HM90APKT |

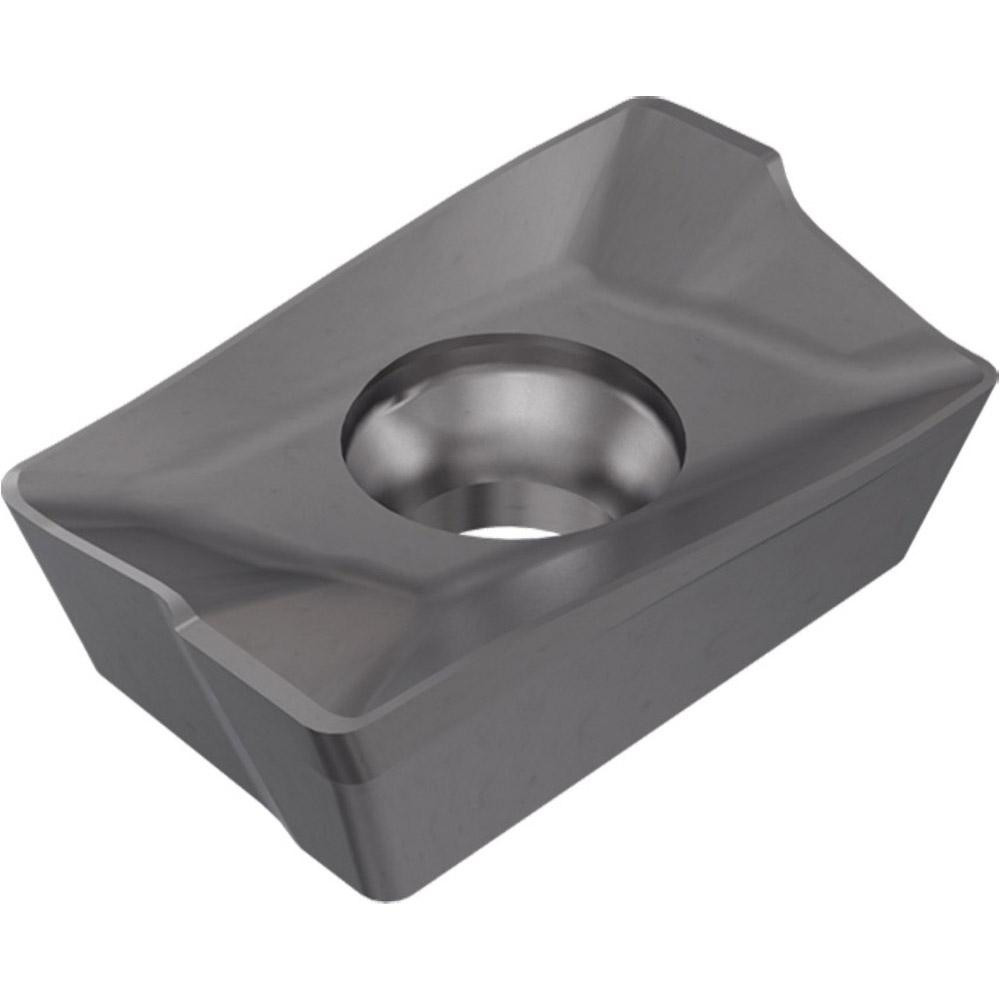

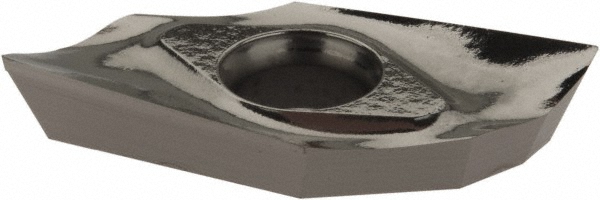

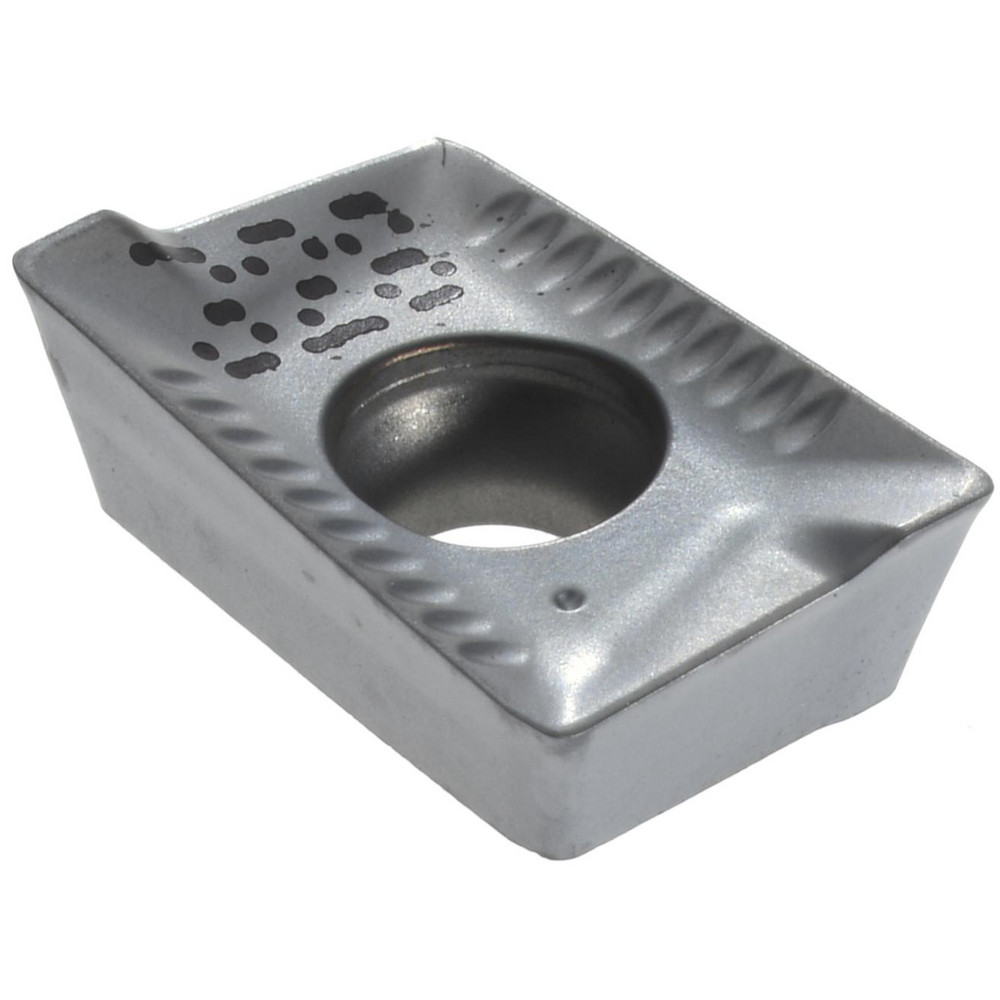

| Insert Compatibility | AP..1003..; HM90 AP..1003.. |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | HM90 E90A-D1.25-4-W.75 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | No |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 86883089 |
