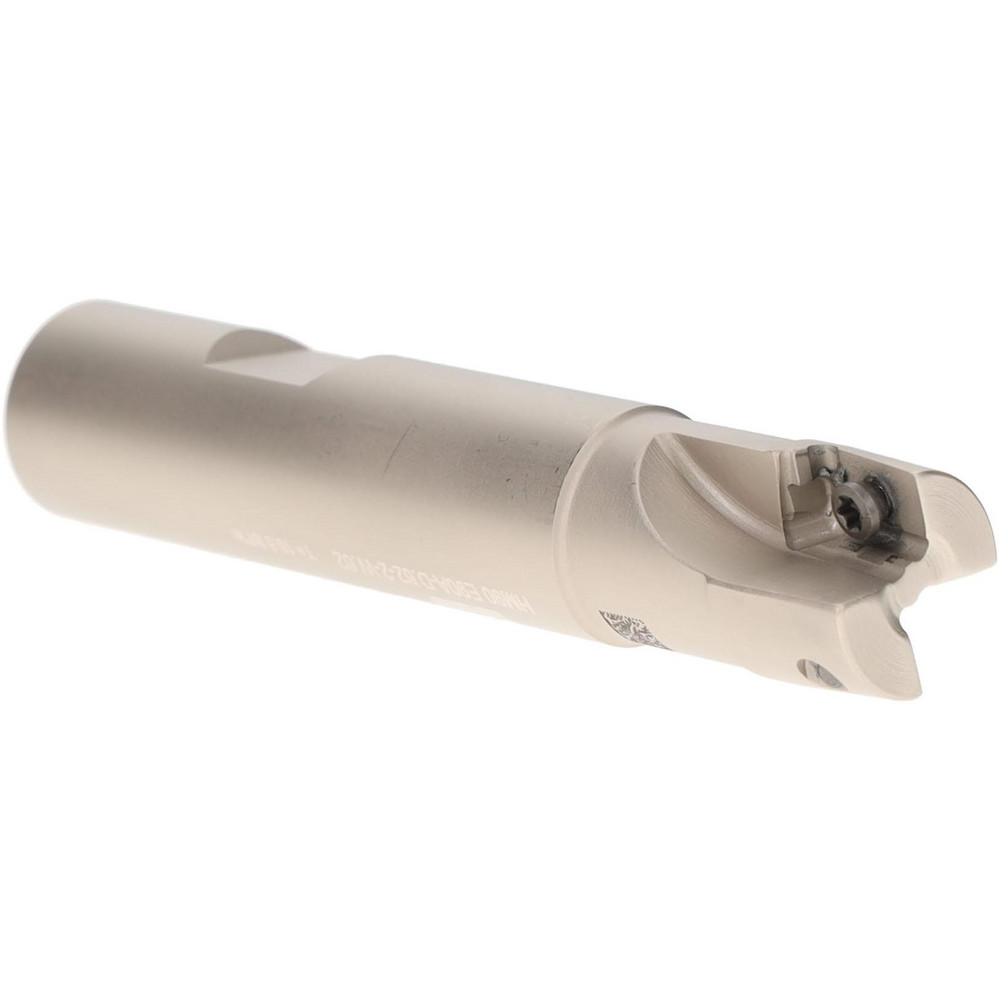

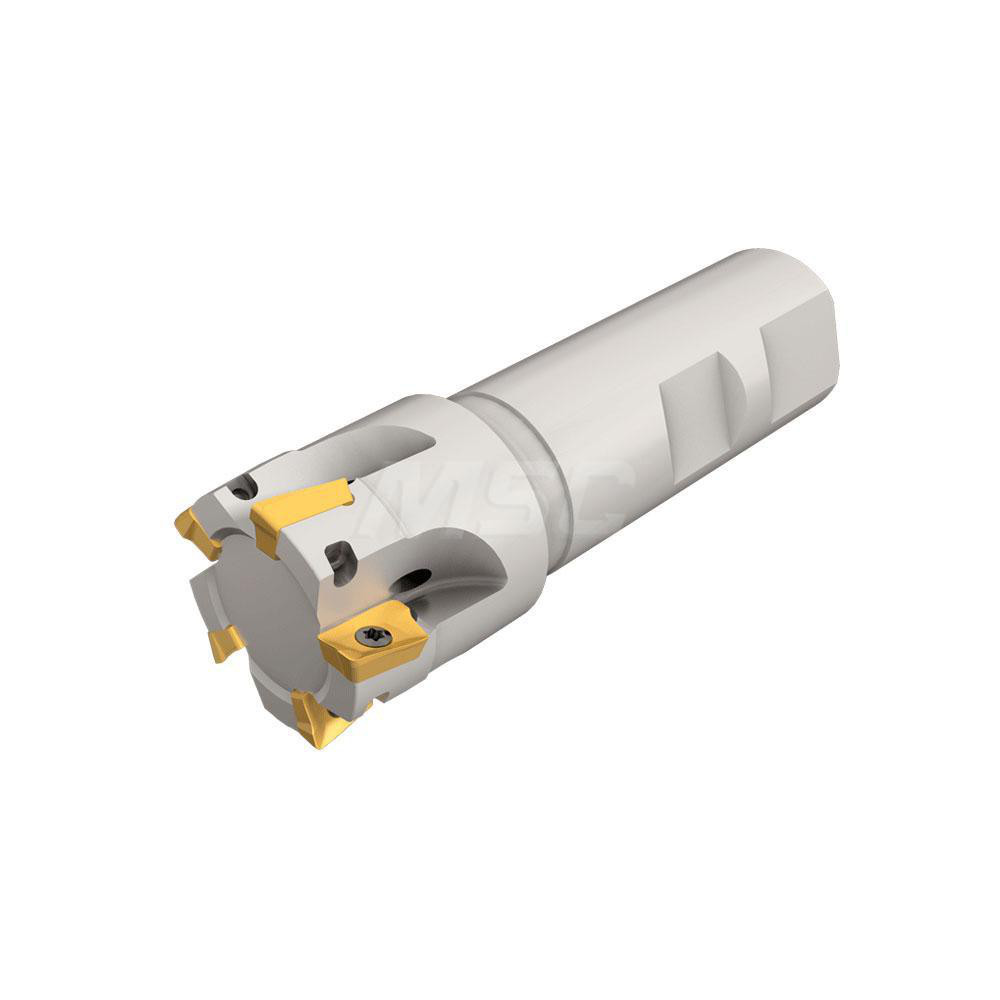

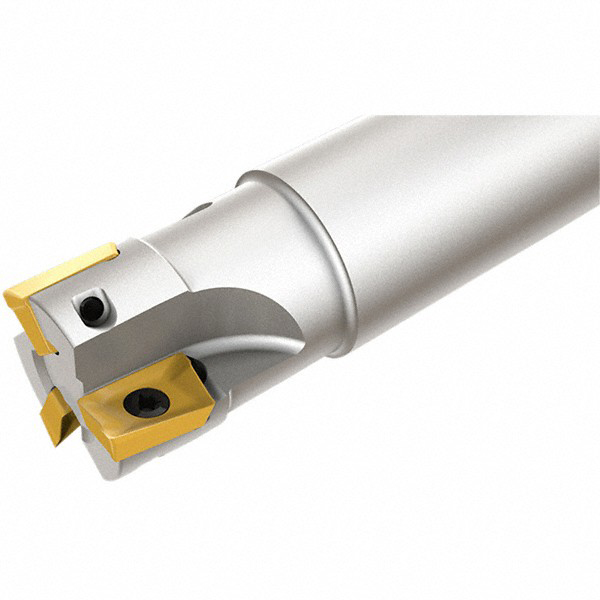

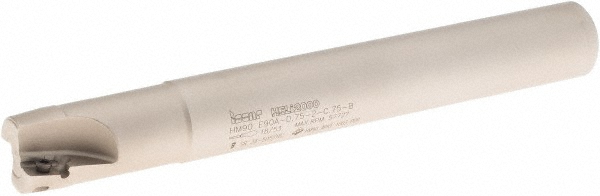

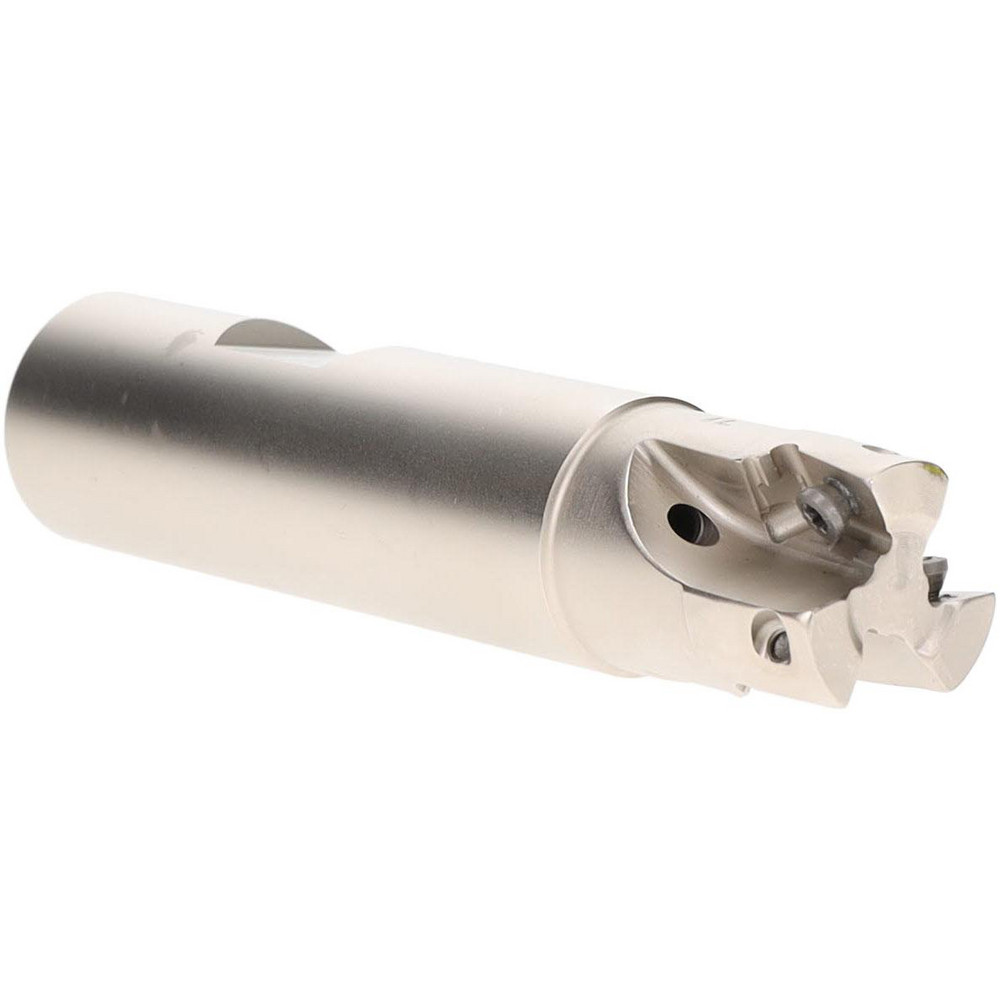

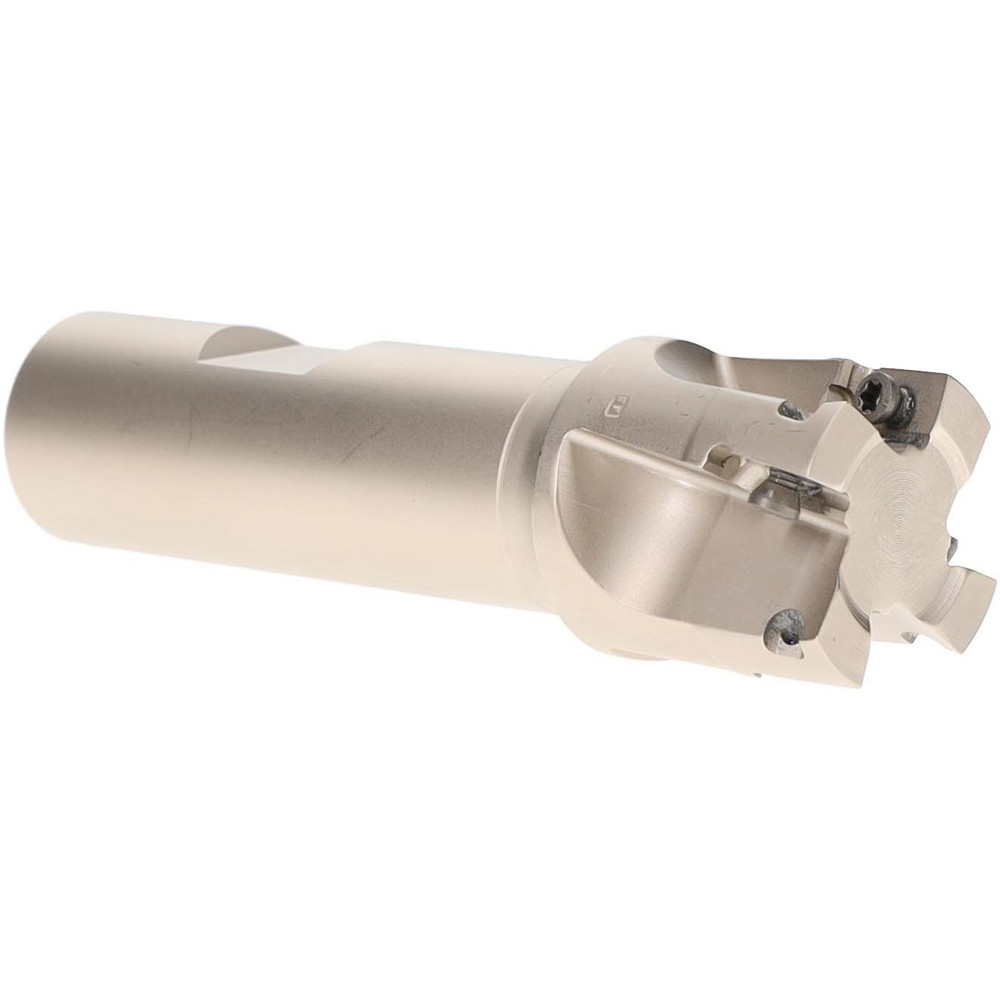

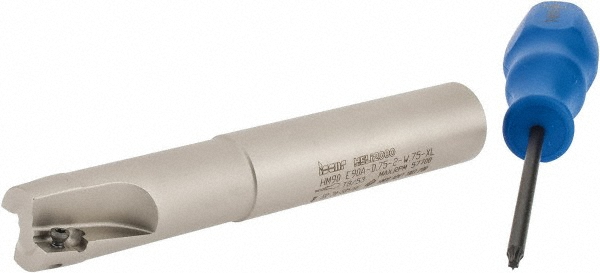

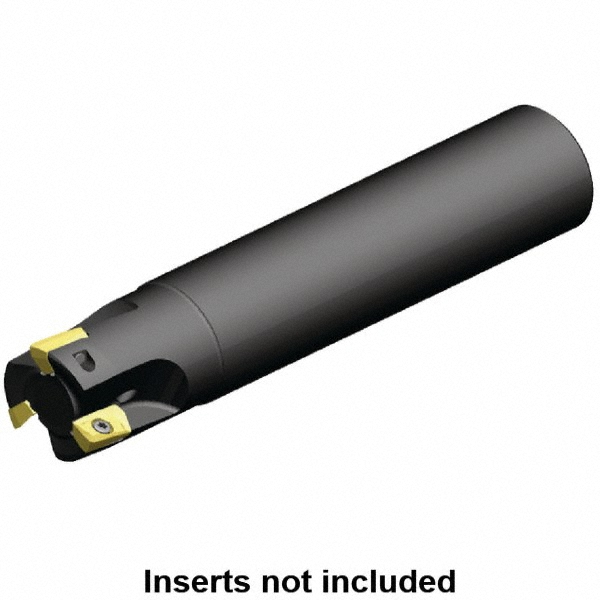

Uses (4) HM90 AP.. 1003.. Inserts, 130 mm OAL
| Cutting Diameter (mm) | 30.00 |
|---|---|
| Overall Length (mm) | 130.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Cutter Style | HM90 E90A-10 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 2 |
| Tool Material | Solid Carbide |
| Series | Heli2000 |
| Lead Angle | 90 |
| Shank Length (mm) | 90.00 |
| Head Length (mm) | 40.00 |
| Maximum RPM | 36500 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Rake | Positive |
| Insert Compatibility | HM90 AP.. 1003.. |
| UNSPSC Code | 27112803 |
| Usable Length (mm) | 35.40 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 91150508 |
