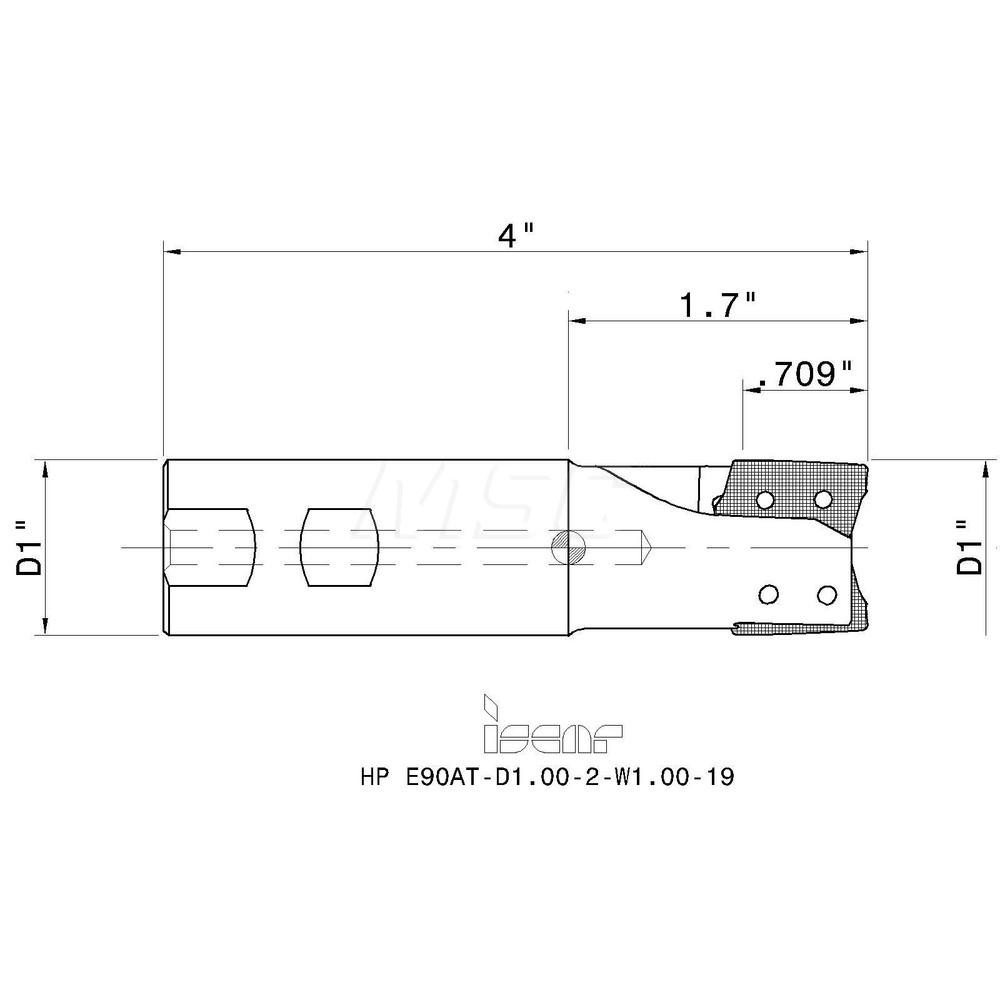

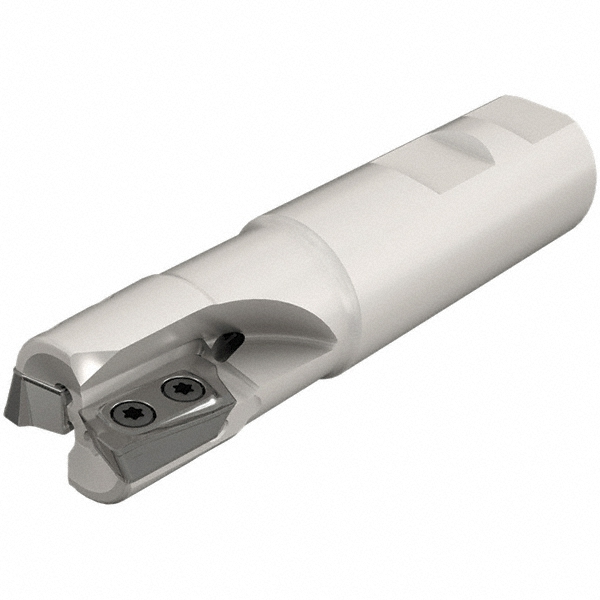

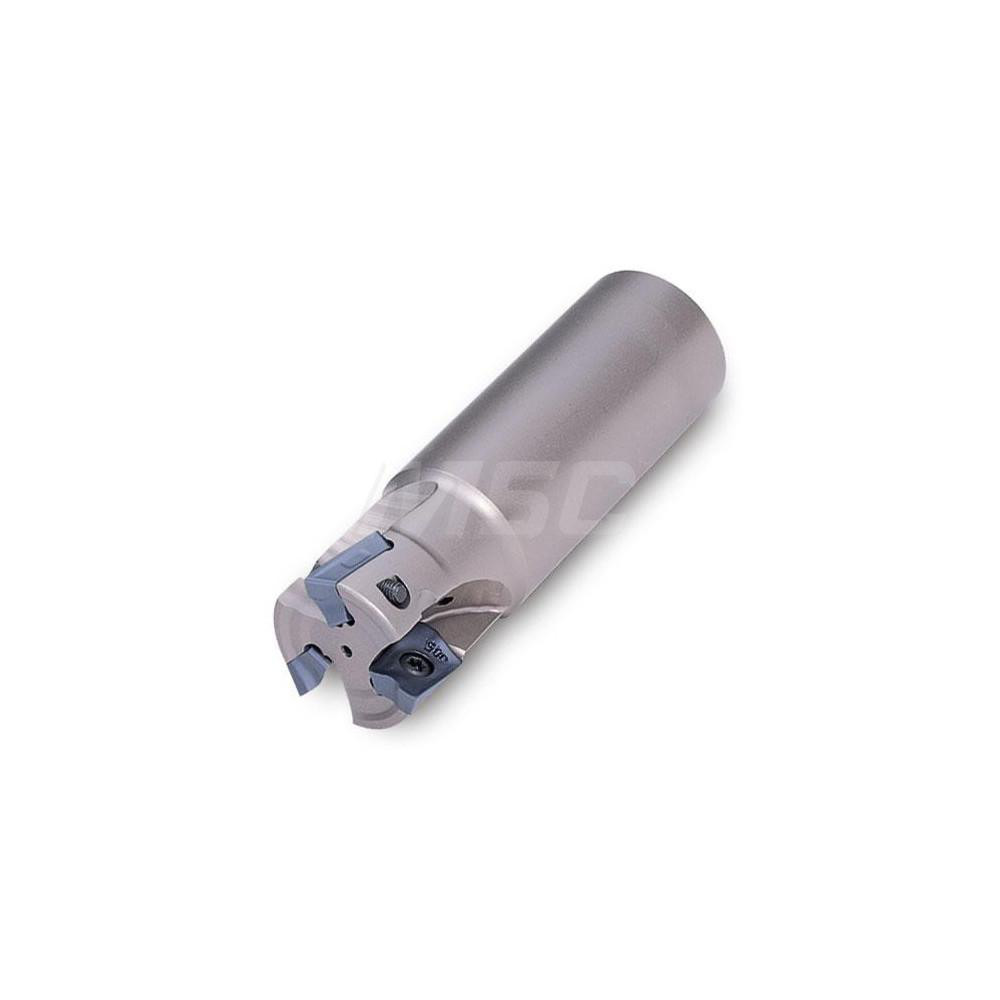

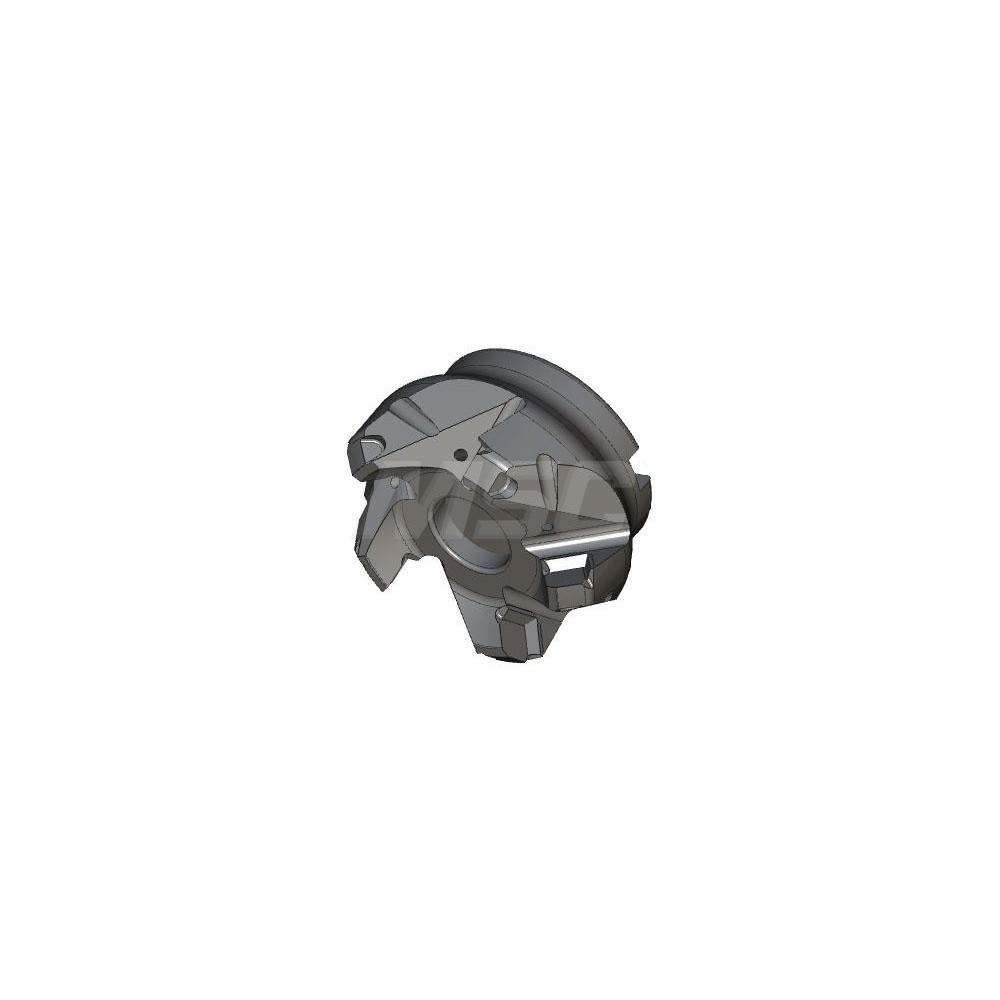

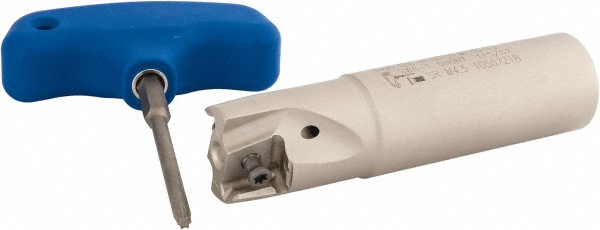

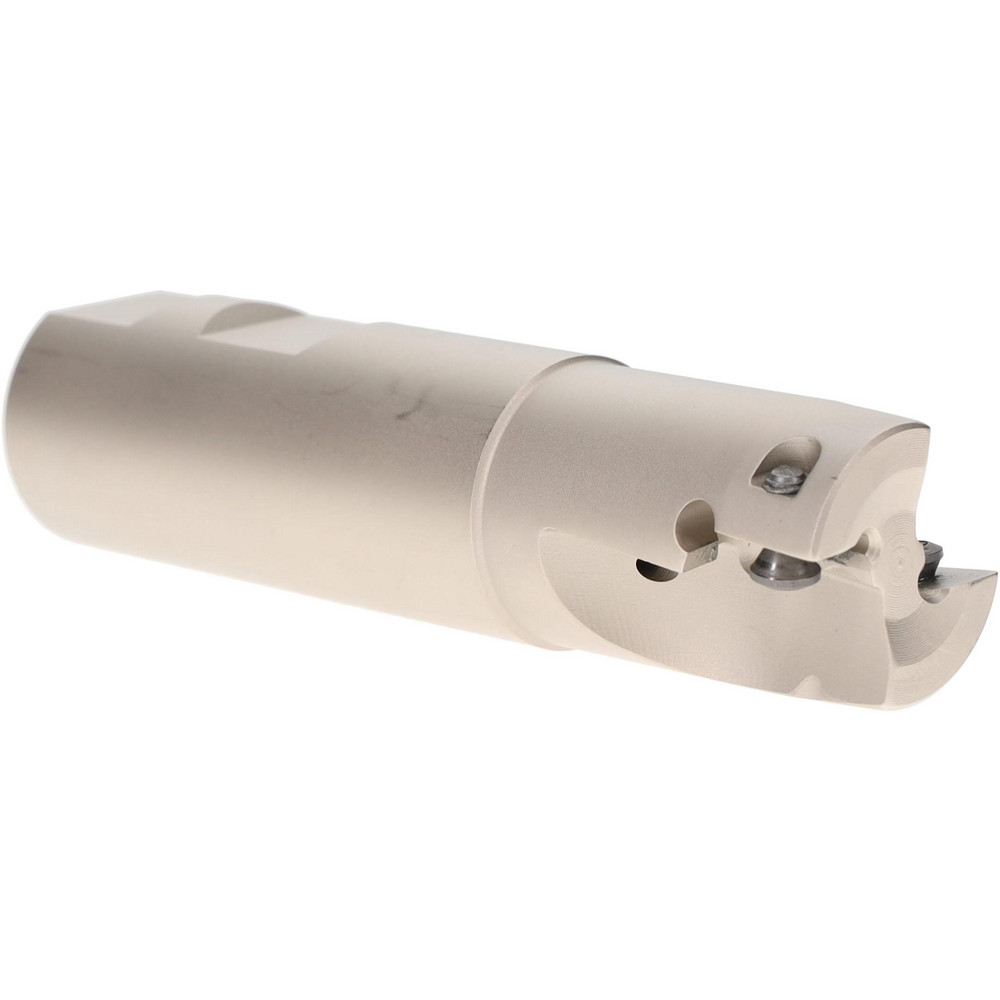

Uses (2) HP AD.. 1906.. Inserts, Through Coolant, 4" OAL

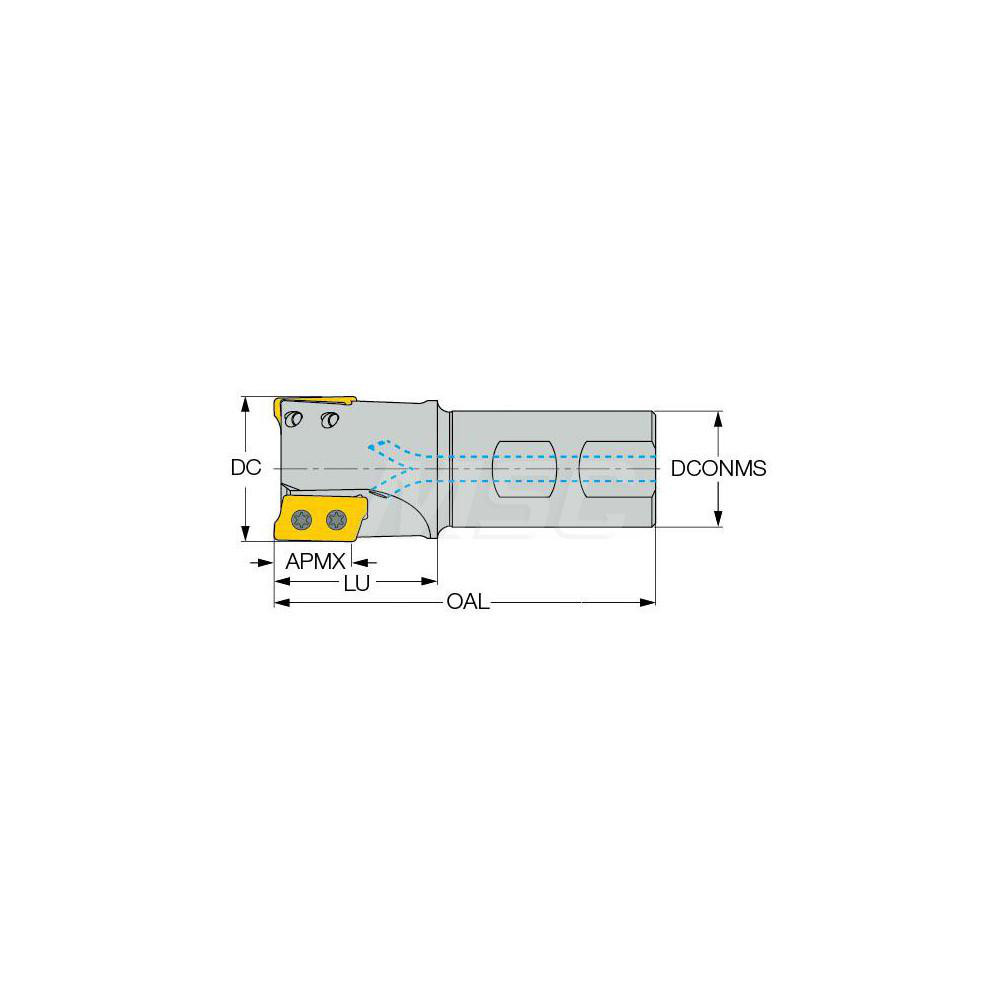

| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Cutter Style | HP E90AT-19 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 14 |
| Tool Material | Solid Carbide |
| Series | Heliplus |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.3000 |
| Head Length (Decimal Inch) | 1.7 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Rake | Positive |

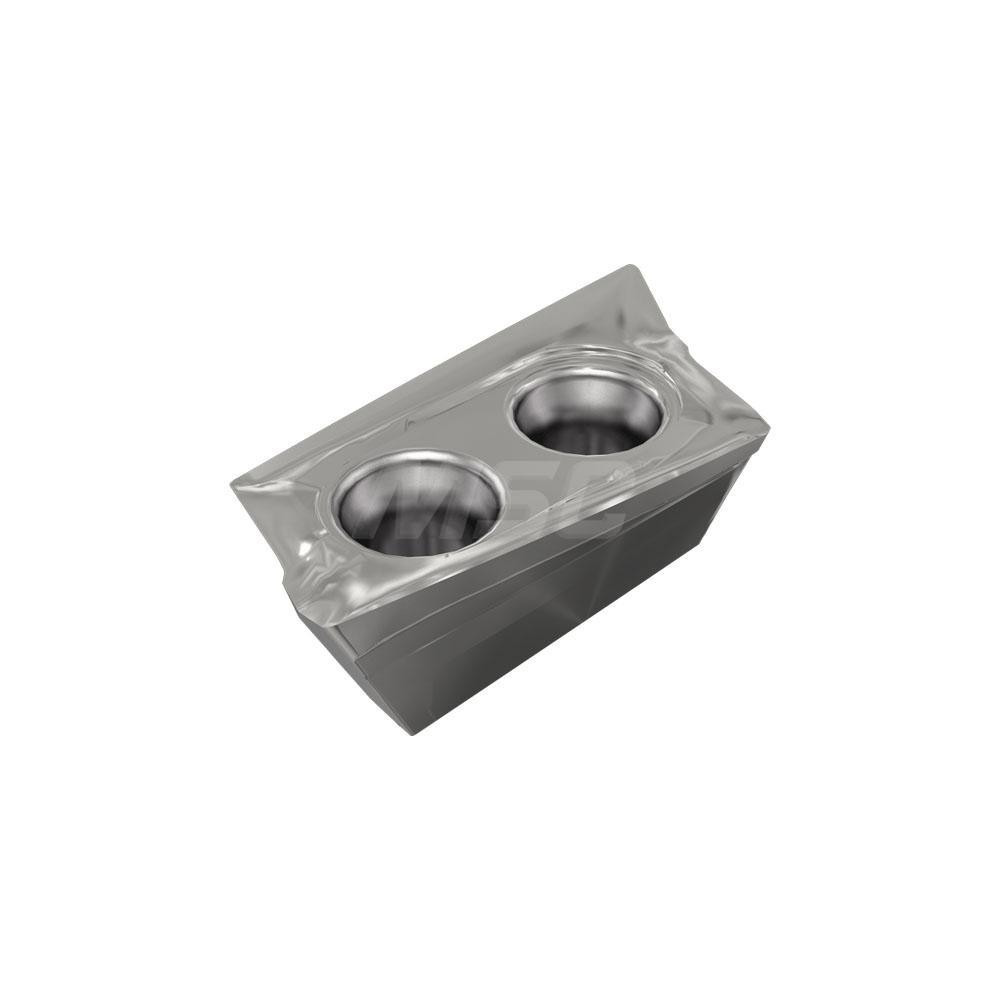

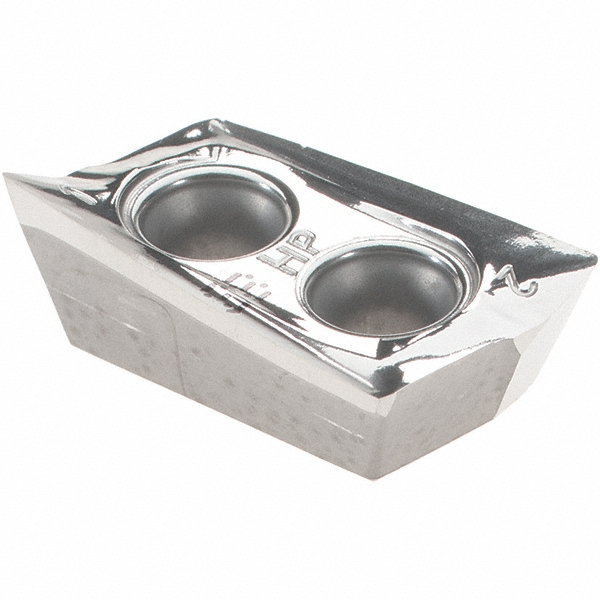

| Insert Compatibility | HP AD.. 1906.. |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 1.7000 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 93745867 |
