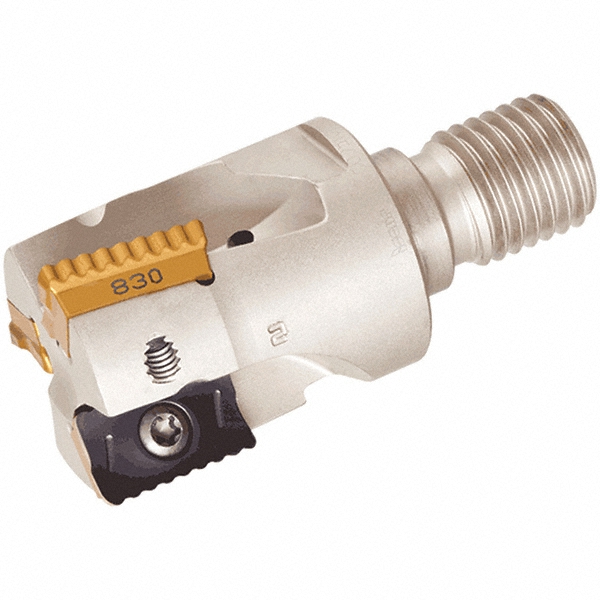

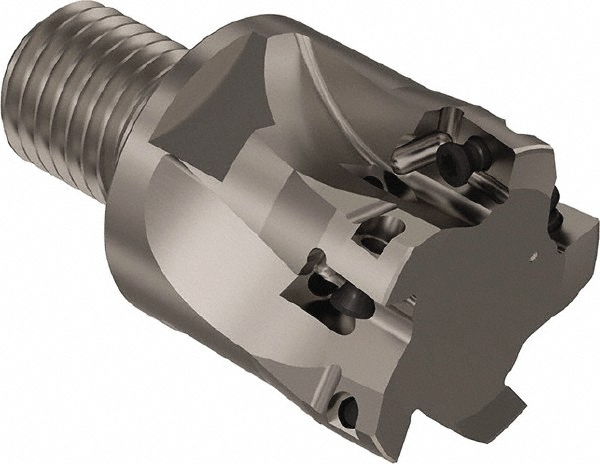

Uses (4) P290 AC.T 1806.. Inserts, Through Coolant, 65 mm OAL
| Cutting Diameter | 1.5748 in |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Overall Length (Decimal Inch) | 2.5591 |
| Overall Length (mm) | 65.00 |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Cutter Style | P290 EPW-M |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 1.5 |
| Series | FlexFit; MillShred |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 0.9843 |
| Shank Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Head Length (mm) | 40.00 |
| Modular Connection Size | M16 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility | P290 AC.T 1806.. |
| UNSPSC Code | 27112803 |
| Usable Length (mm) | 40.00 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 30708911 |
