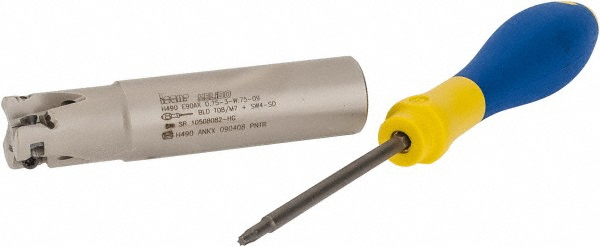

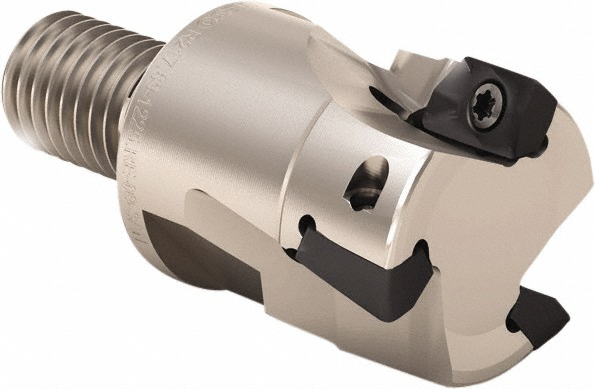

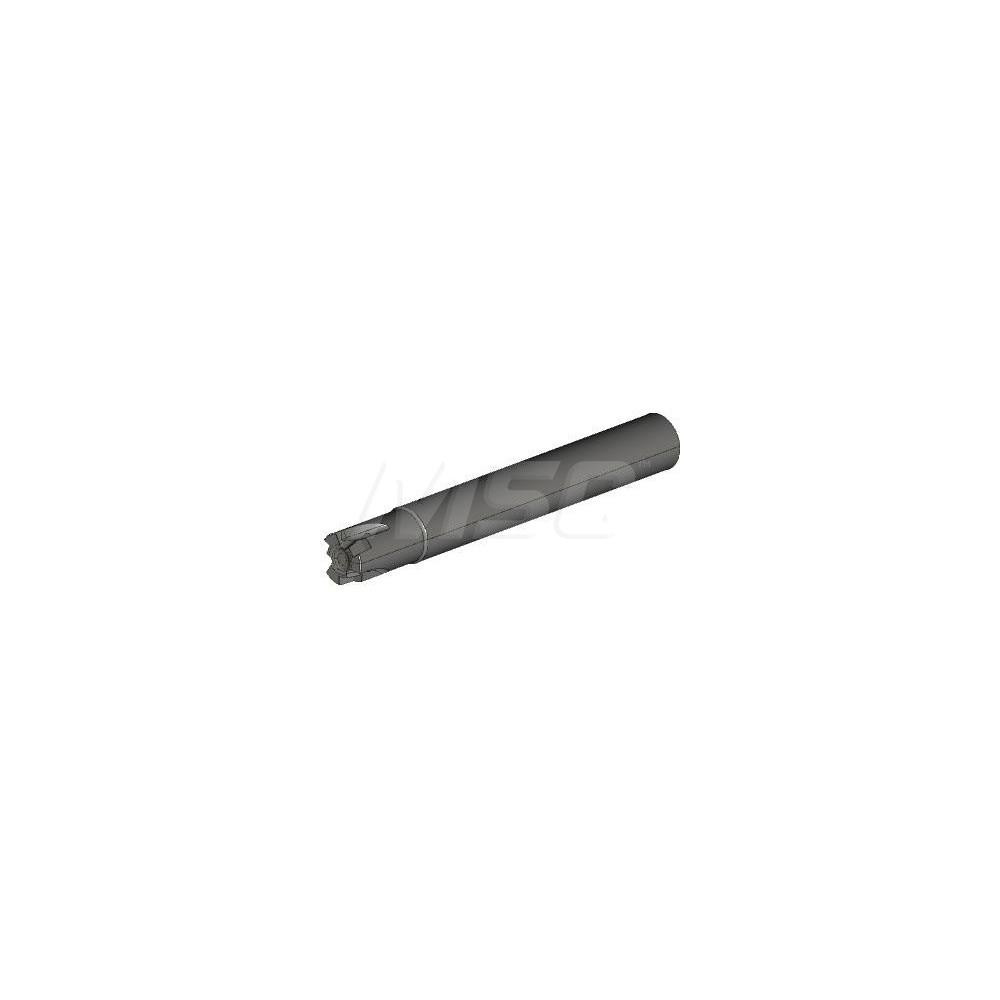

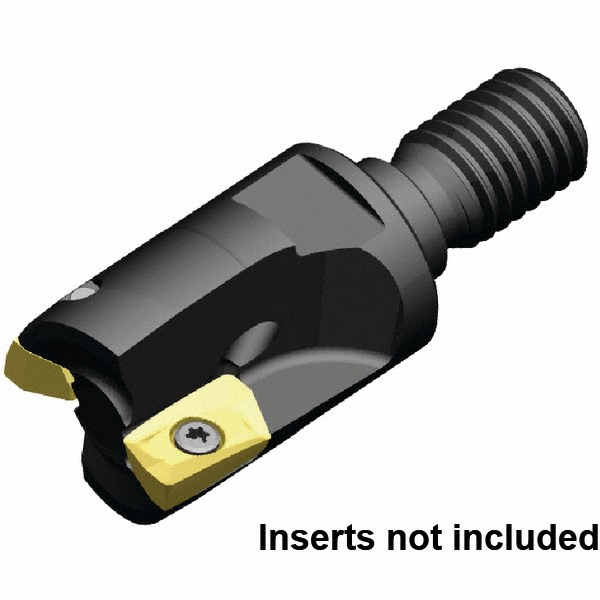

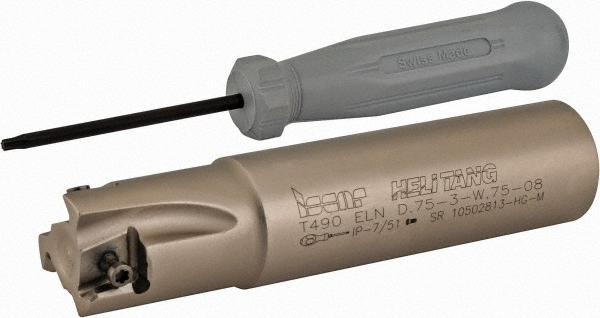

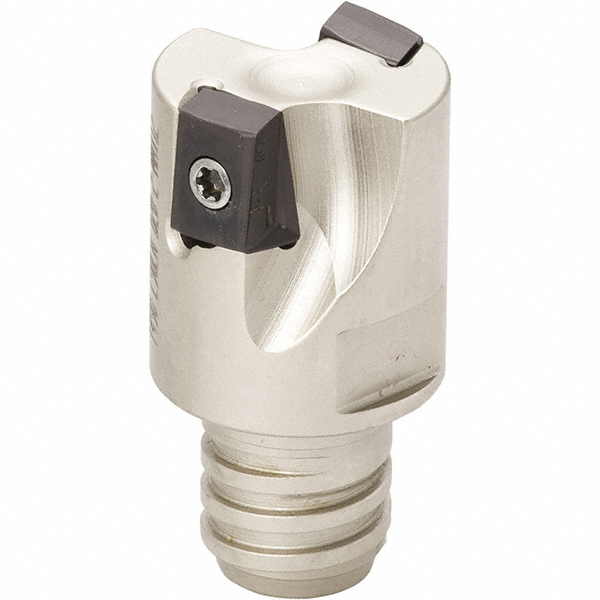

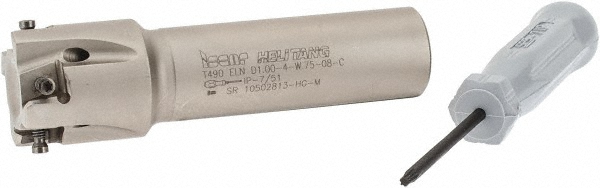

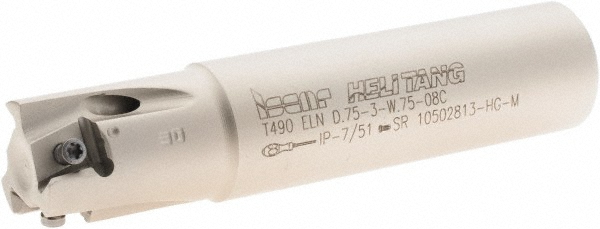

Uses (3) Inserts, Through Coolant, 1.37" OAL
| Cutting Diameter | 3/4 |
|---|---|
| Overall Length (Decimal Inch) | 1.3700 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutter Style | T490 |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Series | Helitang; Multimaster |
| Flute Type | Helical |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 1.1 |
| Modular Connection Size | T12 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| UNSPSC Code | 27112803 |
| Usable Length (Decimal Inch) | 0.8460 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 82612888 |
