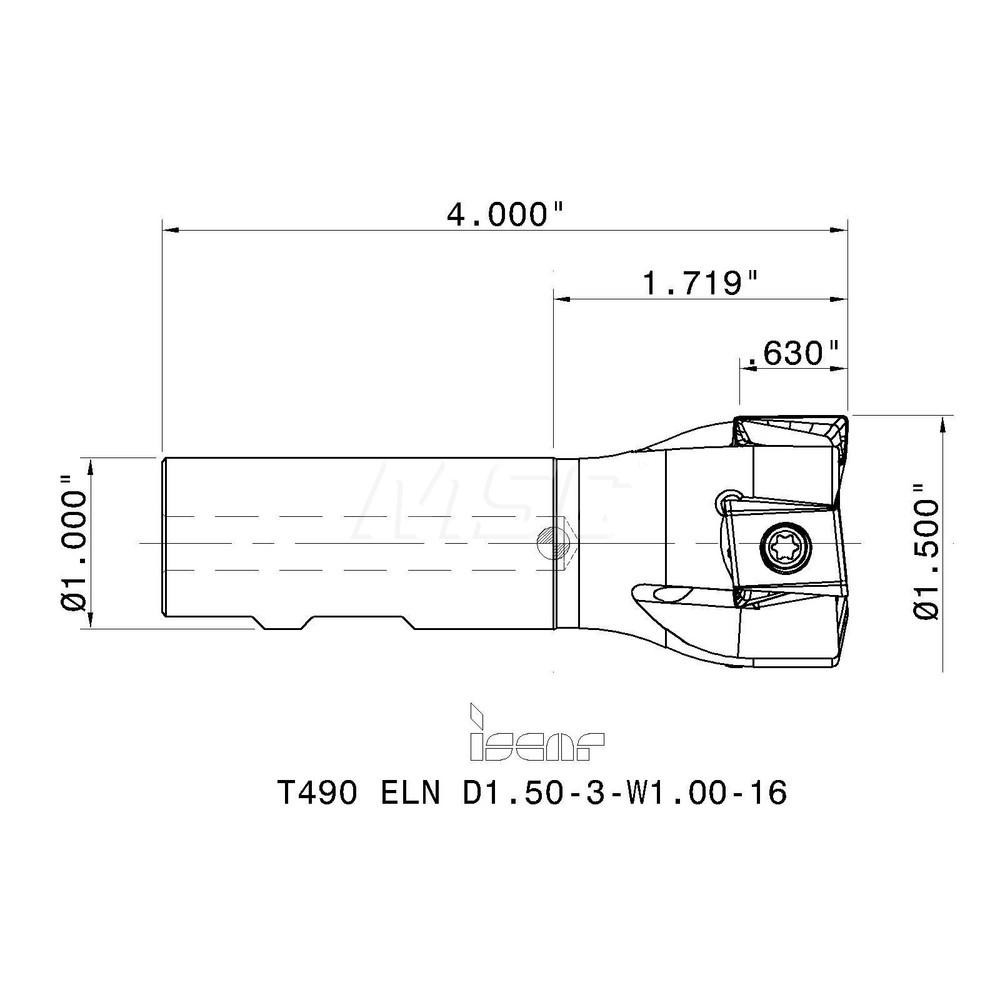

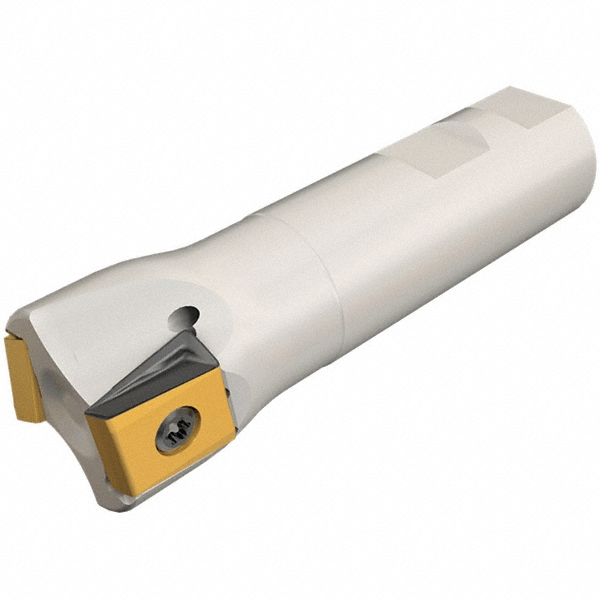

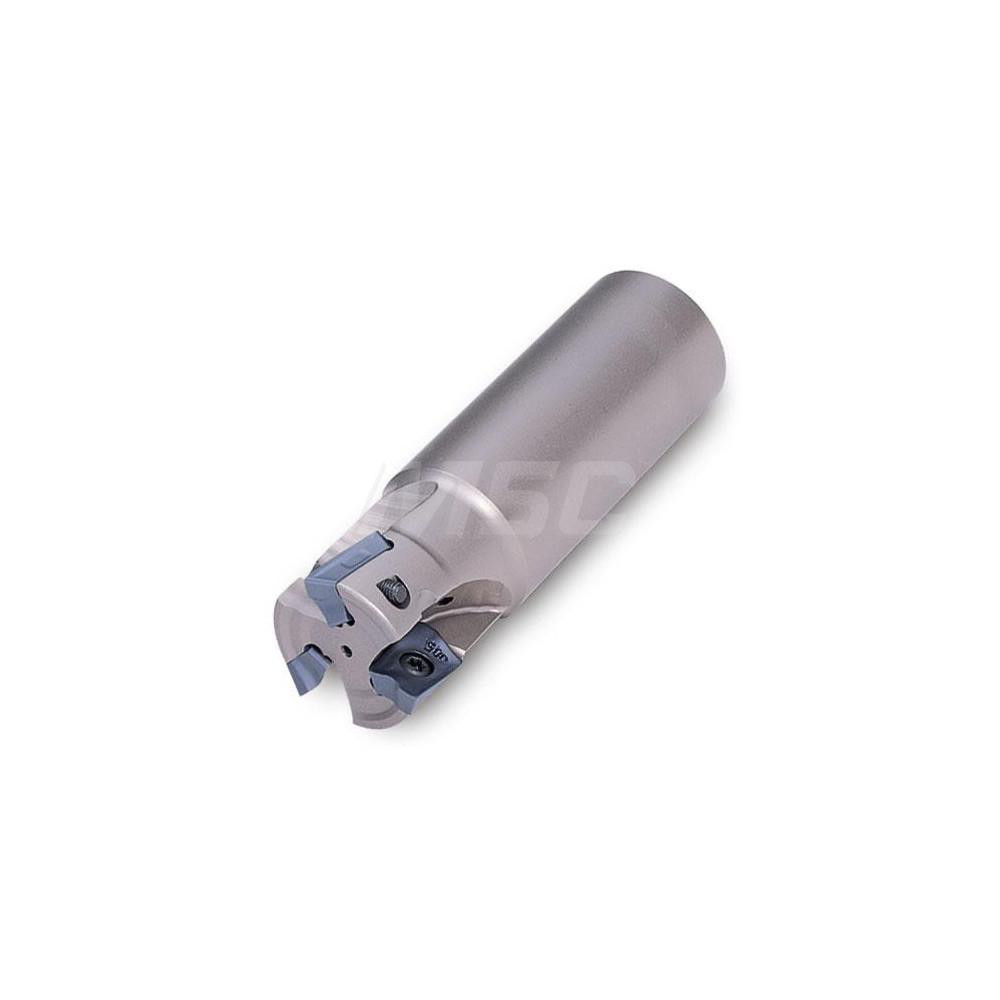

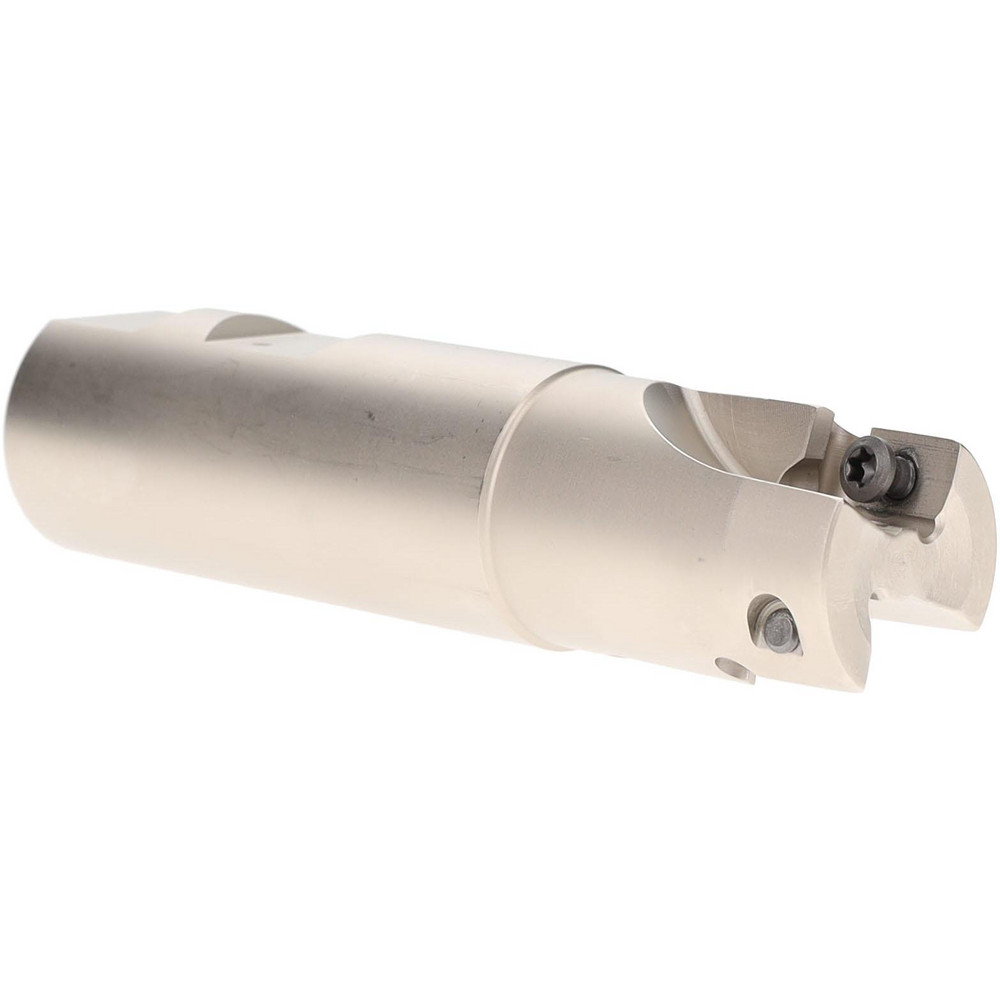

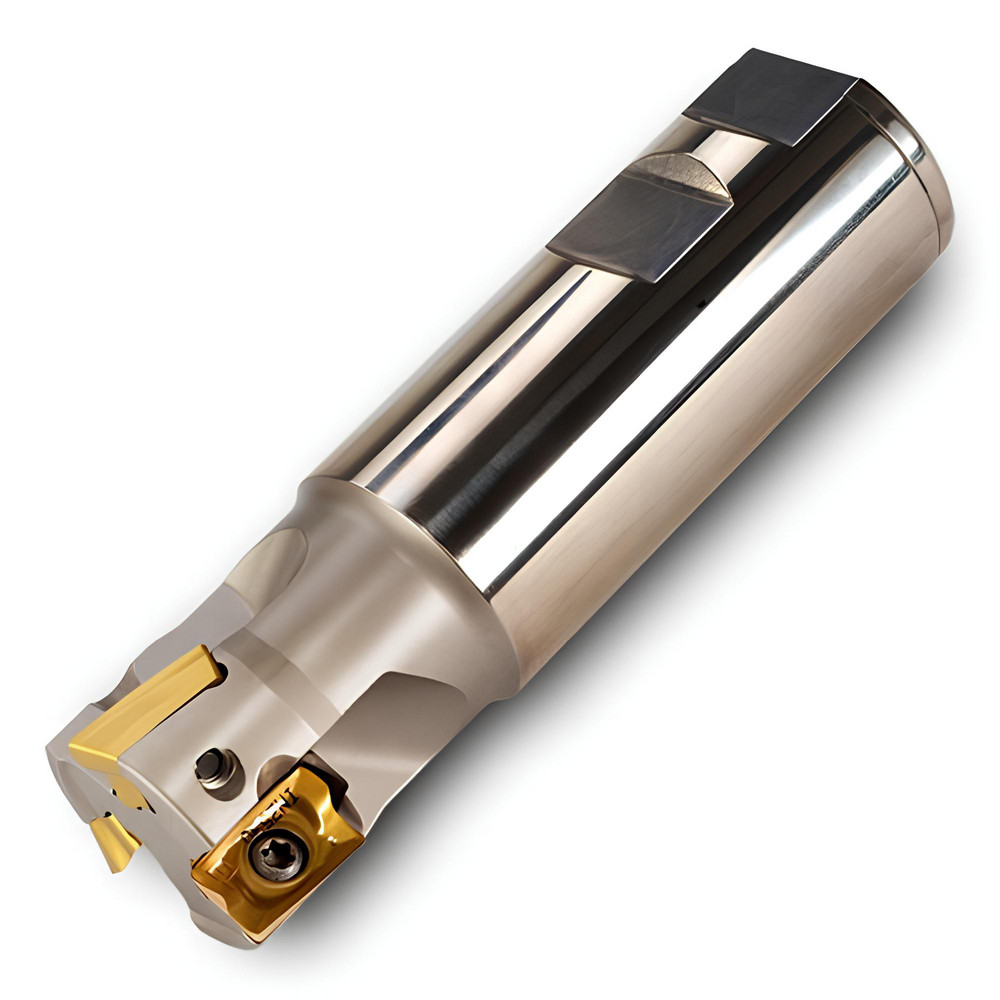

Uses (3) T490 LN.T 1607 Inserts, Through Coolant, 4" OAL

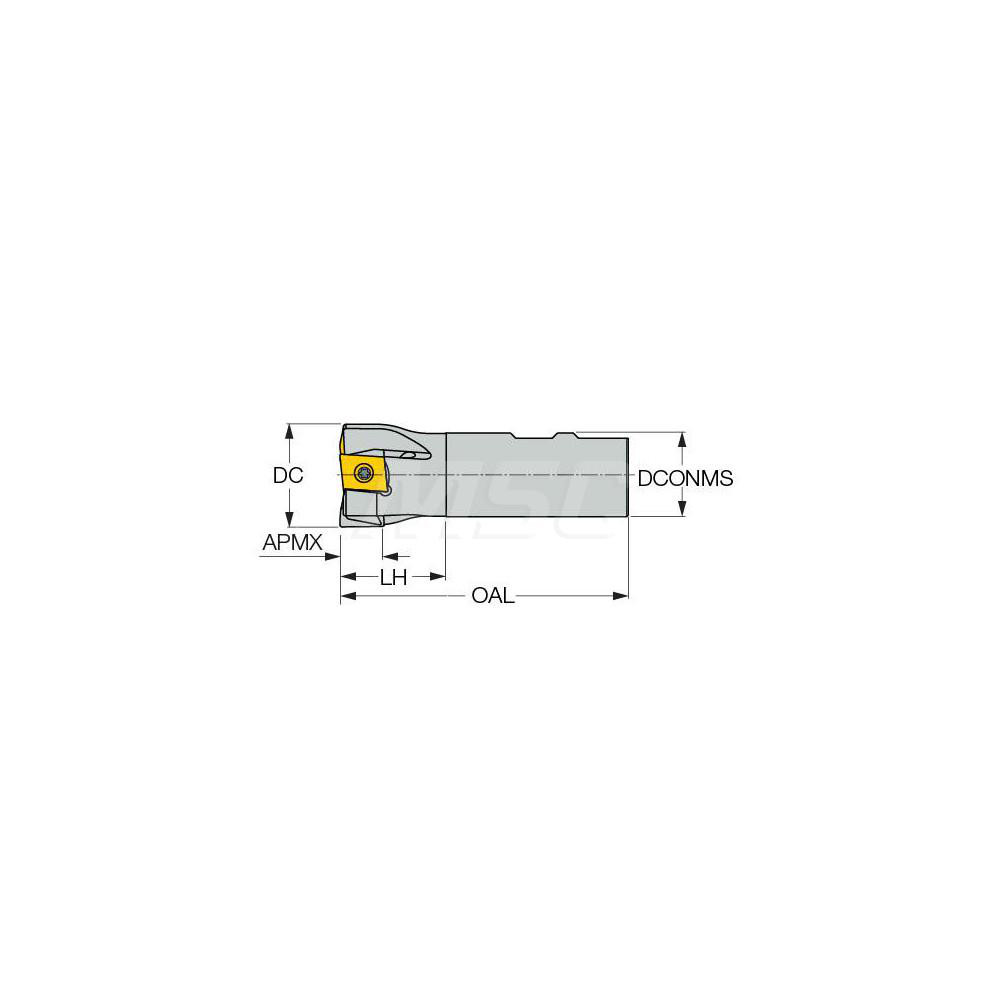

| Cutting Diameter | 1-1/2 |
|---|---|
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Cutter Style | T490 ELN-16 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Tool Material | Solid Carbide |
| Series | Helitang |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.2800 |
| Head Length (Decimal Inch) | 1.72 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility | T490 LN.T 1607 |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 91148643 |
