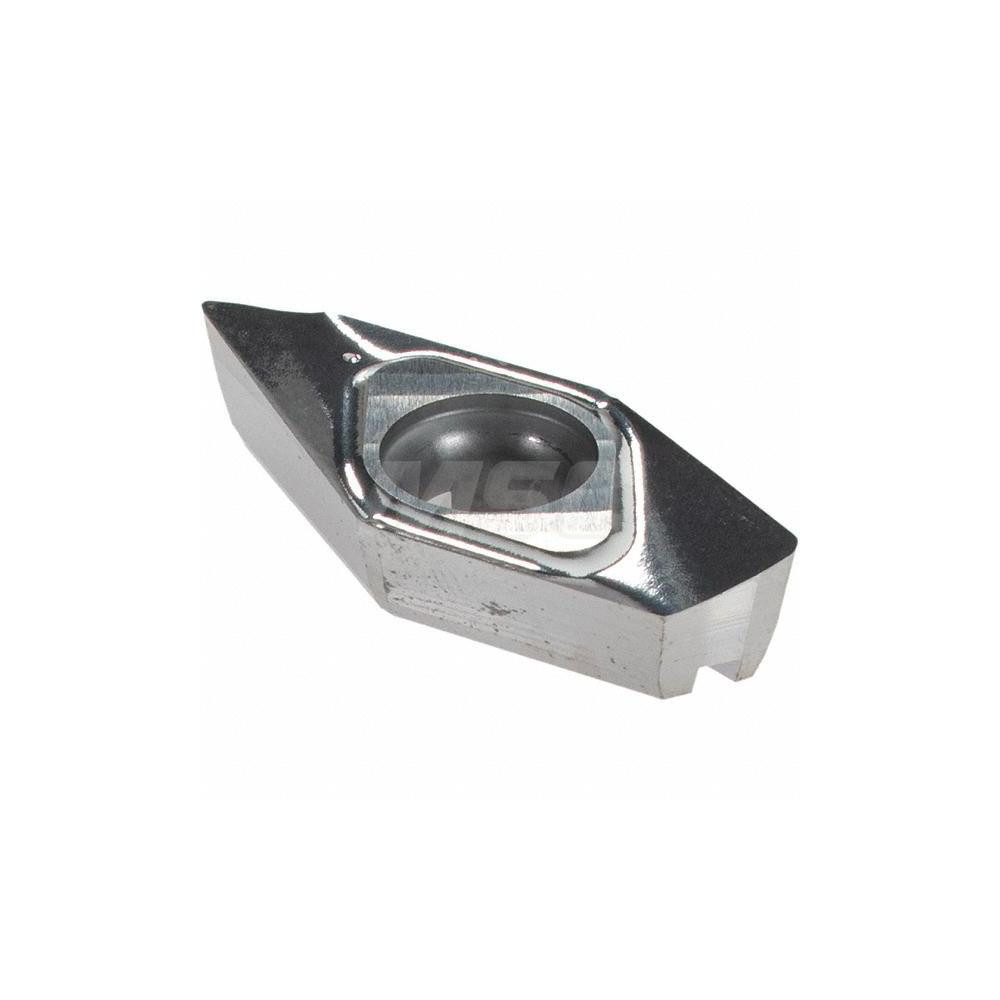

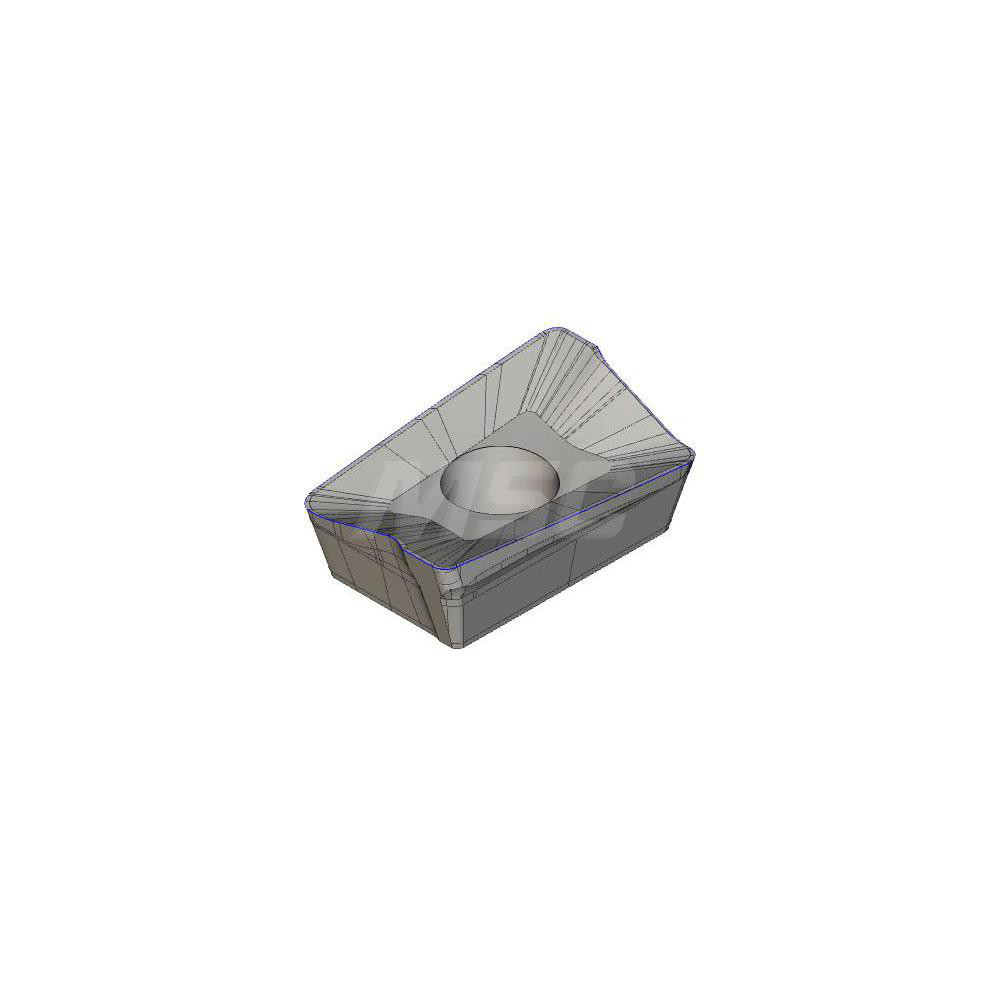

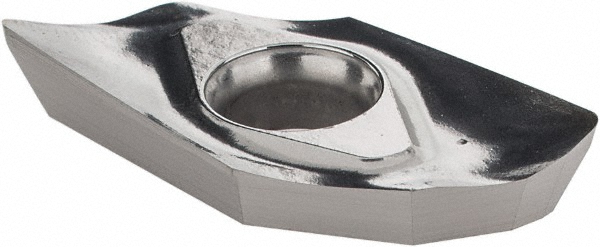

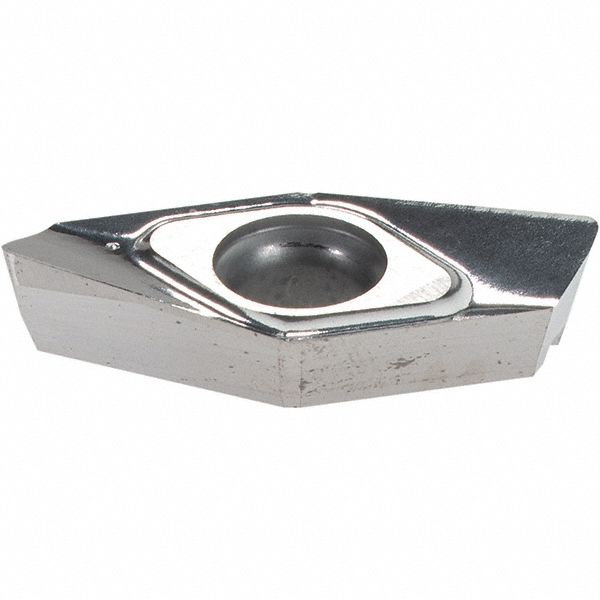

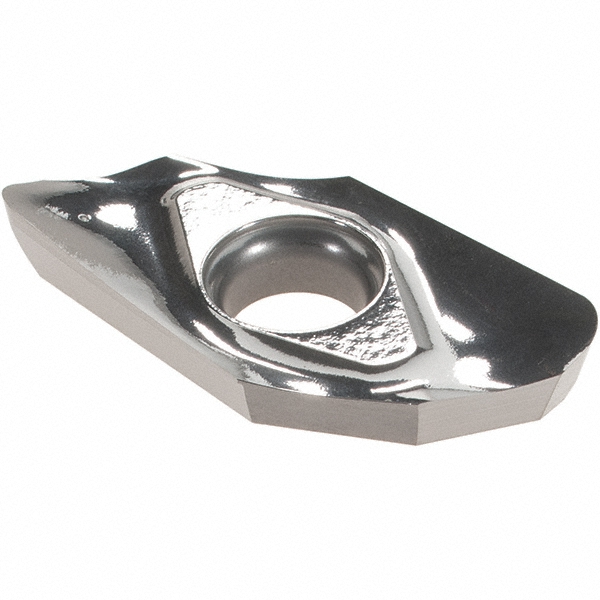

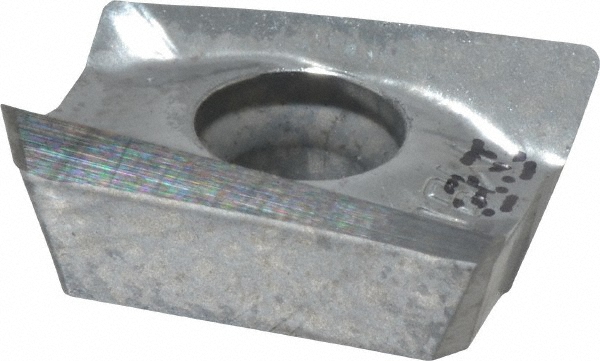

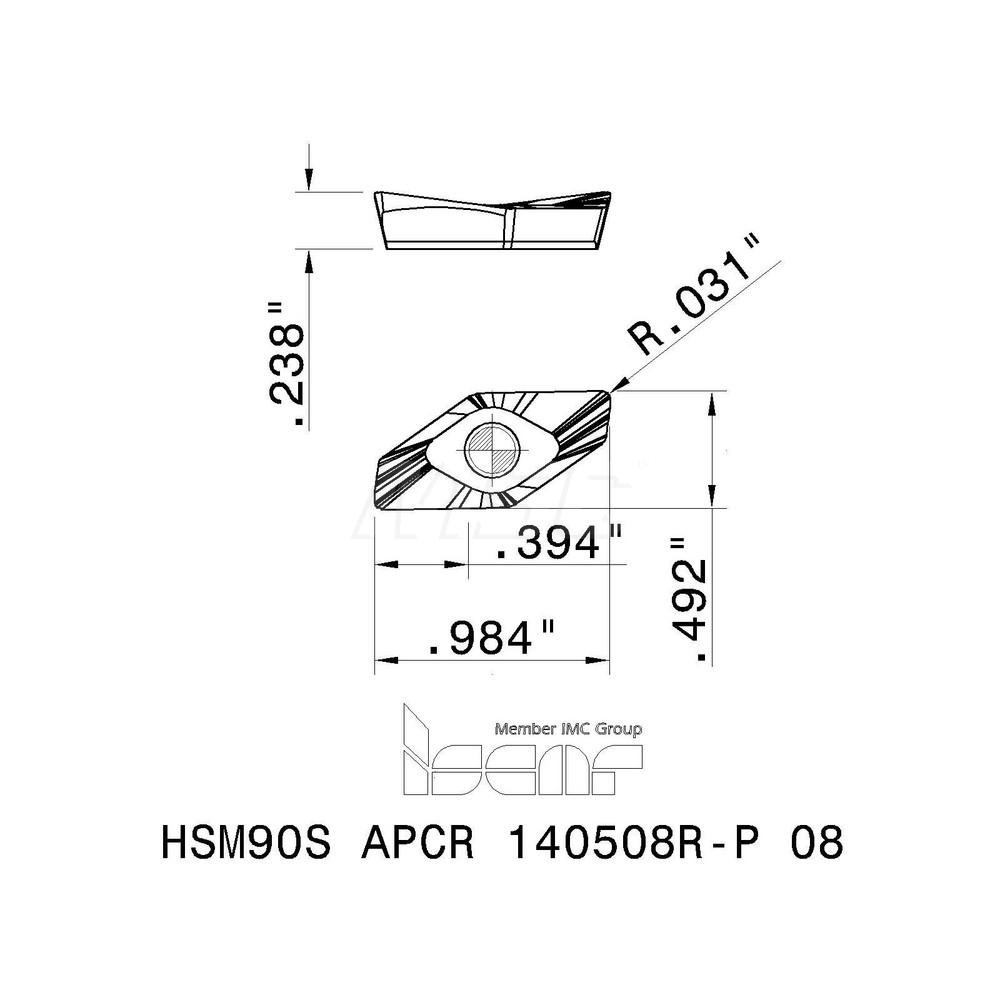

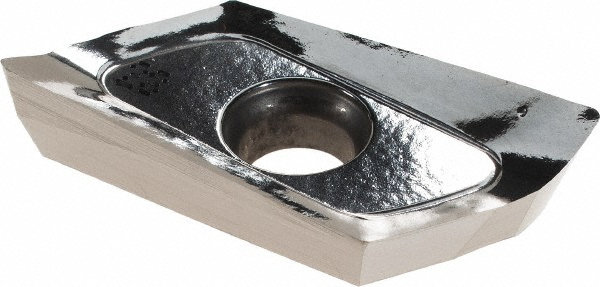

Bright/Uncoated Finish, 0.2380" Thick, 0.4920" Wide
| Insert Style | APCR |
|---|---|
| Insert Size | 14 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC28 |

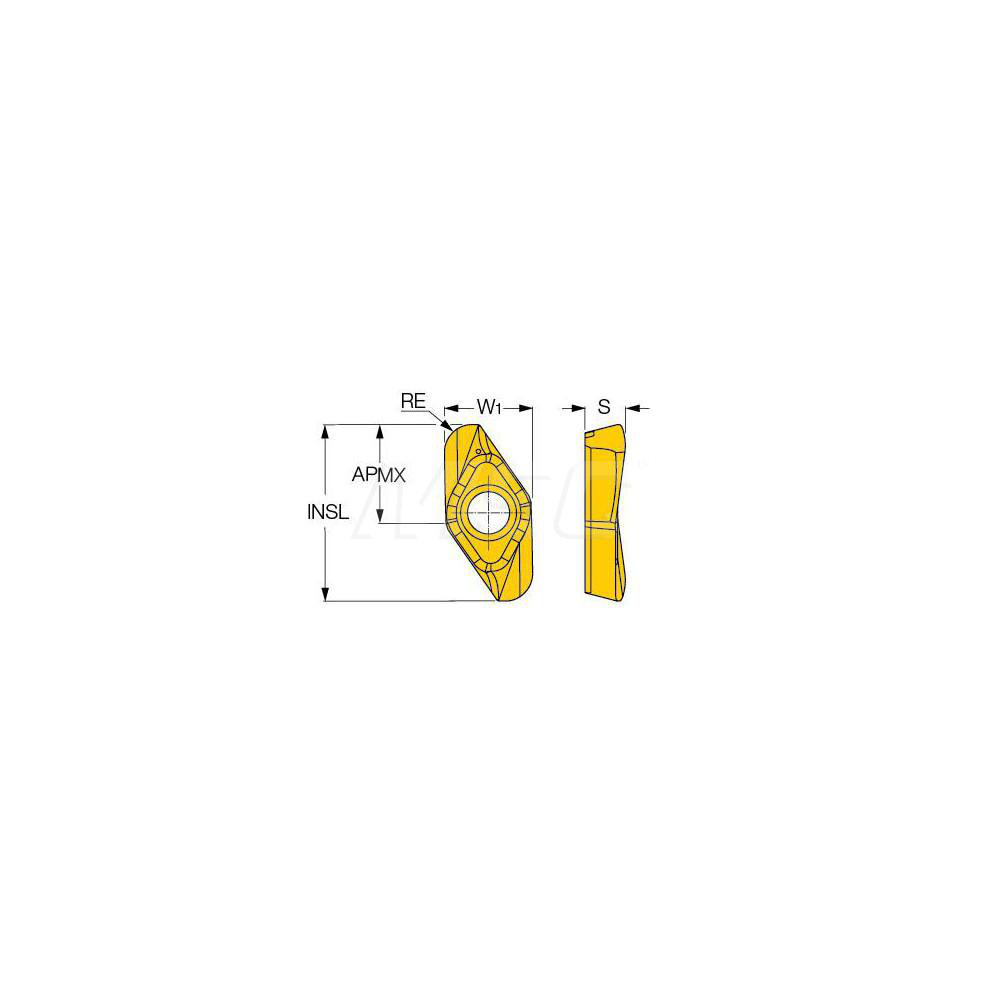

| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.79 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2380 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 11.00 |
| Insert Size Code | 140508 |
| Length (Inch) | 63/64 |
| Inscribed Circle (Decimal Inch) | 0.4920 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.9000 to 1.0000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5310 |
| Maximum Depth of Cut (mm) | 10.01 |
| Series | HELIALU |
| Coating Process | Uncoated |
| Cutting Edge Effective Length (Decimal Inch) | 0.3940 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | HSM90S APCR 140508R-P IC28 |
| Iso Code | HSM90S APCR 140508R-P |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | HSM90S APCR 140508R-P IC28 |
| Cutter Series Compatibility | HSM90-14 |
| Chip Breaker | P |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4920 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.9840 |
| Country of Origin | Israel |
| MSC Number | MSC# 60440450 |
