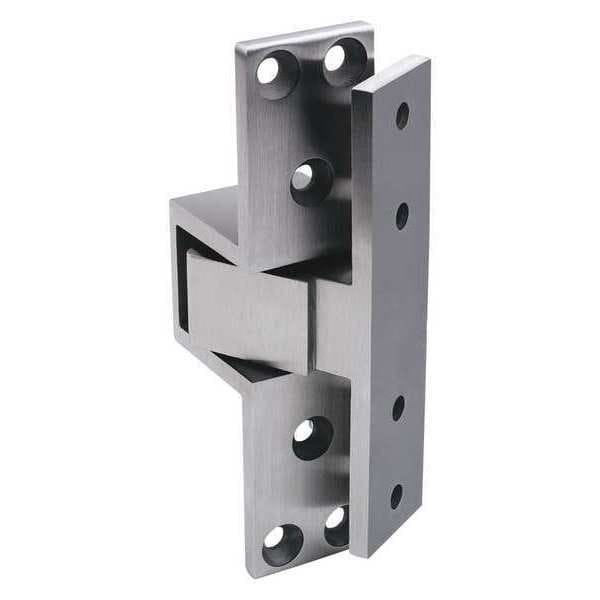

Pivot Hinge, Stainless Steel, Full Mortise Mounting, 1 3/8 in Leaf W x 6 5/16 in Leaf H
| Item | Pivot Hinge |
|---|---|
| Material | Stainless Steel |
| Finish | Satin Stainless Steel |
| Load Capacity | 90 lb |
| Ligature Resistant | No |
| Range of Motion | 90 deg |
| Orientation | Non Handed |
| Mounting | Full Mortise |
| Bearing Type | Sleeve |
| Holes per Leaf | 4 |
| Frame Leaf Width | 1-3/8 in |
| Frame Leaf Height | 6-5/16 in |
| Frame Leaf Thickness | 1/4 in |
| Door Leaf Width | 1-3/8 in |
| Door Leaf Height | 6-5/16 in |
| Door Leaf Thickness | 1/4 in |
| Required Door Thickness | 1 3/4 in |
| Pin Material | Stainless Steel |
| Features | Use Two for Doors Up to 7 ft. And Over 7 ft. Use Three |
| Standards | ANSI A156.4 |
| Holes | With |
| Hardware | Included |
| Pin Type | Nonremovable |
| Corners | Square |
| Corner Type | Square |
| Includes Holes | Holes Included |
| Includes Hardware | Hardware Included |
| Range of Motion - Maximum | 90 deg |
| Mounting Style | Full Mortise |
| Number of Holes per Leaf | 4 |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
