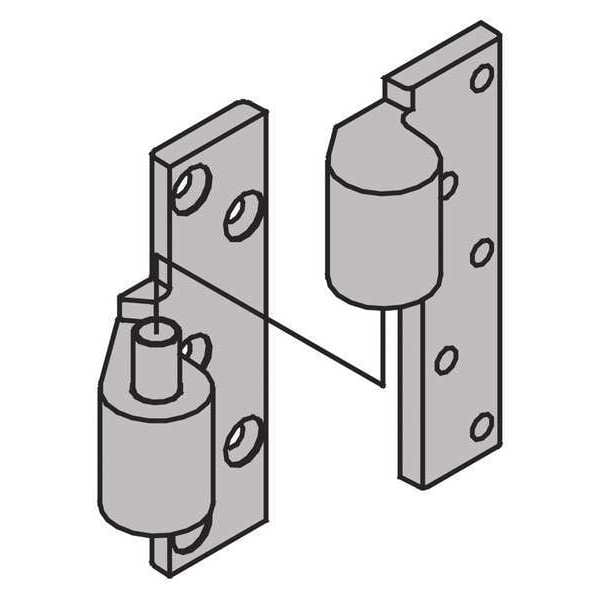

Pivot Hinge, Stainless Steel, Full Mortise Mounting, 1 5/16 in Leaf W x 7 1/4 in Leaf H
| Item | Pivot Hinge |
|---|---|
| Material | Stainless Steel |
| Finish | Satin Stainless Steel |
| Load Capacity | 1,000 lb |
| Ligature Resistant | No |
| Range of Motion | 180 deg |
| Orientation | Non Handed |
| Mounting | Full Mortise |
| Bearing Type | Sleeve |
| Holes per Leaf | 6 |
| Frame Leaf Width | 1-5/16 in |
| Frame Leaf Height | 7-1/4 in |
| Frame Leaf Thickness | 3/8 in |
| Door Leaf Width | 1-5/16 in |
| Door Leaf Height | 7-1/4 in |
| Door Leaf Thickness | 3/8 in |
| Holes | With |
| Pin Dia. | 1/2 in |
| Corners | Square |
| Required Door Thickness | 1 3/4 in |
| Pin Material | Steel |
| Pin Type | Nonremovable |
| Standards | ANSI A156.4 |
| Features | 3/4" Offset; Top - Header Mount; Bottom - Base Plate Mount |
| Hardware | Included |
| Corner Type | Square |
| Range of Motion - Maximum | 180 deg |
| Includes Holes | Holes Included |
| Includes Hardware | Hardware Included |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Resistance Properties | Corrosion-Resistant |
| Mounting Style | Offset |
| Pin Diameter | 1/2 in |
| Number of Holes per Leaf | 6 |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
