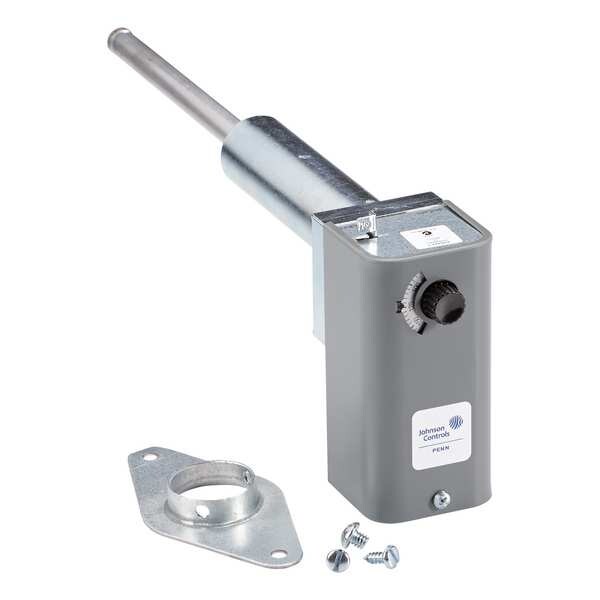

Fan and Limit Control, Open on Rise, 25 Degrees to 215 Degrees F, SPST, 120/208/240/277VAC
| Switch Action | Open on Rise |
|---|---|
| Voltage | 120/208/240/277VAC |
| Differential | Manual Reset |
| Switch Type | SPST |
| Control Range | 25 to 215 deg F |
| Height (In.) | 4-3/8 |
| Temp. Range (F) | 25 to 215 |
| Inductive Amps @ 240V | 8 A |
| Type | Heating/Cooling |
| Element Insertion Length (In.) | 9 5/16 in |
| Voltage Range | 120 to 277V AC |
| Pilot Duty Contacts (VA) | 125 VA |
| Depth (In.) | 1-13/16 |
| Thermostat Switch Type | SPST |
| Width (In.) | 2-1/8 |
| Item | Fan and Limit Control |
| Inductive Amps @ 120V | 16 A |
| For Use With | Warm Air Limit Control |
| Standards | cUL MP640, UL MP640 |
| Application | Limit Control |
| Mounting | Plenum Mount |
| Input Voltage | 120V AC, 208V AC, 240V AC |
| Element Type | Bi-Metal Rod |
| Contact Form | SPST |
| Fan Maximum Control Temperature | Not Applicable |
| Reset Type | Manual Reset |
| Overall Height | 4-3/8 in |
| Minimum Operating Temperature | 25 deg F |
| Overall Width | 2-1/8 in |
| Contact Rating (AC) | 16 A @ 120V AC, 8 A @ 240V AC, 9.2 A @ 208V AC |
| Limit Maximum Control Temperature | 215 deg F |
| Fan Minimum Control Temperature | Not Applicable |
| Limit Minimum Control Temperature | 25 deg F |
| Switch Opening Temperature | 125 Degrees F |
| Product Type | Limit Control |
| Overall Depth | 1-7/8 in |
| Switch Closing Temperature | Not Applicable |
| Insertion Length | 9 3/8 in |
| Maximum Operating Temperature | 300 deg F |
| Differential Adjustability | Fixed |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
